Drive mechanism with belt for elevation system - monitor Stream Master II (3480-3482)
Detailed contents :
Part no |
Ref. MMF |
Designation |
Quantity included |
55 |
- |
TEFLON SHOULDERED SPACER |
1 |
88 |
39151 |
|
1 |
94 |
- |
Notched pulley axle |
1 |
95 |
- |
pOULIE wheel |
1 |
96 |
- |
BELT |
1 |
To access the individual parts, please refer to the interactive table on the KIT CONTENTS

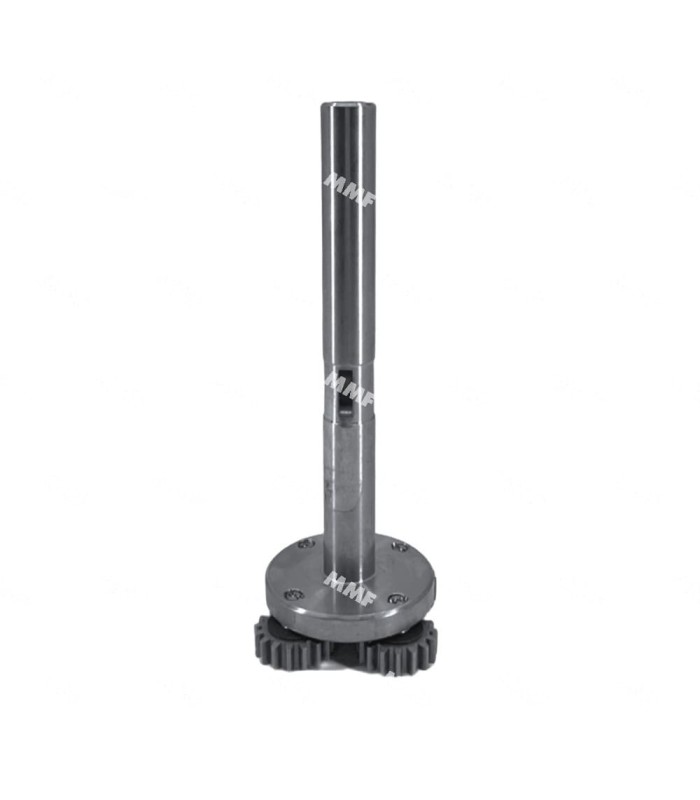

SHAFT FOR ROTATION MECHANISM 769497 303-304ST
Rotating shaft for AKRON mechanisms 769497 303-304ST.
O-RING 757326 2-158
Nitrile rubber O-ring for AKRON mechanisms 757326 N70 2-158.
Gears: rotation mechanism for monitor Stream Master II (3480-3482)
Detailed contents :
Part no |
Ref. MMF |
Designation |
Quantity included |
46 |
- |
AXIS OF ROTATION |
1 |
47 |
- |
TEFLON WORM SCREW |
1 |
48 |
34521 |
|
1 |
51 |
39138 |
7:1 PLANETARY GEAR |
3 |
52 |
- |
SHOULDER SLEEVE |
4 |
53 |
- |
HEXAGONAL SOCKET HEAD CAP SCREW WITH SHOULDER |
3 |
54 |
- |
PLANETARY GEAR RING |
1 |
55 |
- |
TEFLON SHOULDER SPACER |
1 |
To access the individual parts, please refer to the interactive table on the KIT CONTENTS

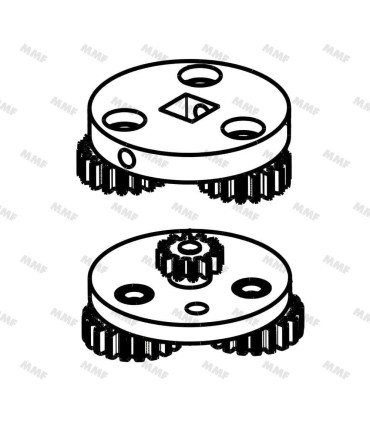

PLANETARY GEAR PLATES 34400209
Planetary gear set (without axle) for AKRON mechanisms 34400209.
Drive mechanism with belt for rotation system - monitor Stream Master II (3480-3482)
Detailed contents :
Part no |
MMF item no |
Designation |
Quantity included |
29 |
- |
85-TOOTH BELT |
1 |
56 |
- |
NOTCHED PULLEY SHAFT |
1 |
57 |
- |
PULLEY WHEEL |
1 |
58 |
34279 |
|
1 |
59 |
32809 |
|
1 |
60 |
- |
O-RING 2-164 |
1 |
To access the individual parts, please refer to the interactive table in the KIT CONTENTS tab.
THRUST WASHER 784121 .094 TRC-815 3571
Thrust washer for AKRON mechanisms .094 TRC-815 3571.
O-RING 757020 2-120
Nitrile rubber O-ring for AKRON N70 2-120 mechanisms.
