Gears: rotation mechanism for monitor Stream Master II (3480-3482)

Gears: rotation mechanism for Stream Master II barrel (3480-3482) - exploded view

Rotating mechanism for monitor Stream Master II | MMF.fr

Gears: rotation mechanism for monitor Stream Master II (3480-3482)

Gears: lifting mechanism for monitor Stream Master II (3480-3482)

Maintenance/repair kit - monitor StreamMaster II (3480-3482)

Detailed contents :

Part no

Ref. MMF

Designation

Quantity included

AXIS OF ROTATION

TEFLON WORM SCREW

34521

SPRING PIN

39138

7:1 PLANETARY GEAR

SHOULDER SLEEVE

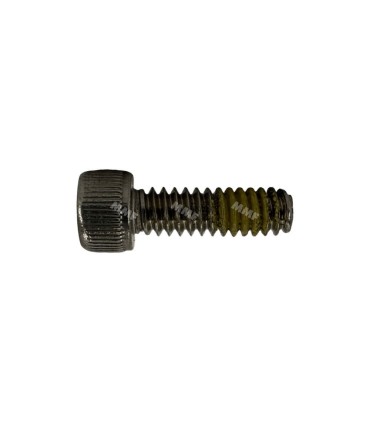

HEXAGONAL SOCKET HEAD CAP SCREW WITH SHOULDER

PLANETARY GEAR RING

TEFLON SHOULDER SPACER

To access the individual parts, please refer to the interactive table on the KIT CONTENTS

A gear set designed for performance

Over time, gear wear can lead to malfunctions in the rotation of your firefighting monitor. This set of parts provides an effective, long-lasting repair. It includes :

Transmission gears: guarantee smooth, jolt-free rotation.
Reinforced bearings: ensure longer life and reduce premature wear.
Axles and fasteners: for secure, precise assembly.
High-performance lubricants: optimize mechanism operation.

Why trust MMF Protection et Sécurité?

As AKRON's main dealer and authorized repair center in France, we guarantee :

Genuine AKRON parts: certified compatibility and quality.
Expert technical support: installation and maintenance assistance.
Availability and responsiveness: customer service at your disposal for any questions you may have.

Technical specifications

Features	Description
Compatibility	Stream Master II guns (models 3480 and 3482)
Composition	Gears, bearings, axles, fasteners and lubricants
Materials	High-strength metal alloy
Installation	Easy to assemble, with technical assistance available

Order your kit now

Keep your monitor Stream Master II running smoothly with this replacement gear kit. If you have any questions or need advice, please contact our experts. MMF Protection et Sécurité is your trusted partner for fire equipment maintenance and repair.
