24V (5:1) motor for firefighting monitors FireFox and StreamMaster - repair kit
Repair kit for firefighting monitors Akron FireFox and StreamMaster including 24V motor (ITT male connector), 5:1 ratio, with 2 O-rings.
Compatible with the following AKRON firefighting monitors models:
- FireFox 3463
- StreamMaster I 3578, 3579 and 3598
Gears: rotation mechanism for monitor Stream Master II (3480-3482)
Detailed contents :
|
Part no |
Ref. MMF |
Designation |
Quantity included |
|
46 |
- |
AXIS OF ROTATION |
1 |
|
47 |
- |
TEFLON WORM SCREW |
1 |
|
48 |
34521 |
|
1 |
|
51 |
39138 |
7:1 PLANETARY GEAR |
3 |
|
52 |
- |
SHOULDER SLEEVE |
4 |
|
53 |
- |
HEXAGONAL SOCKET HEAD CAP SCREW WITH SHOULDER |
3 |
|
54 |
- |
PLANETARY GEAR RING |
1 |
|
55 |
- |
TEFLON SHOULDER SPACER |
1 |

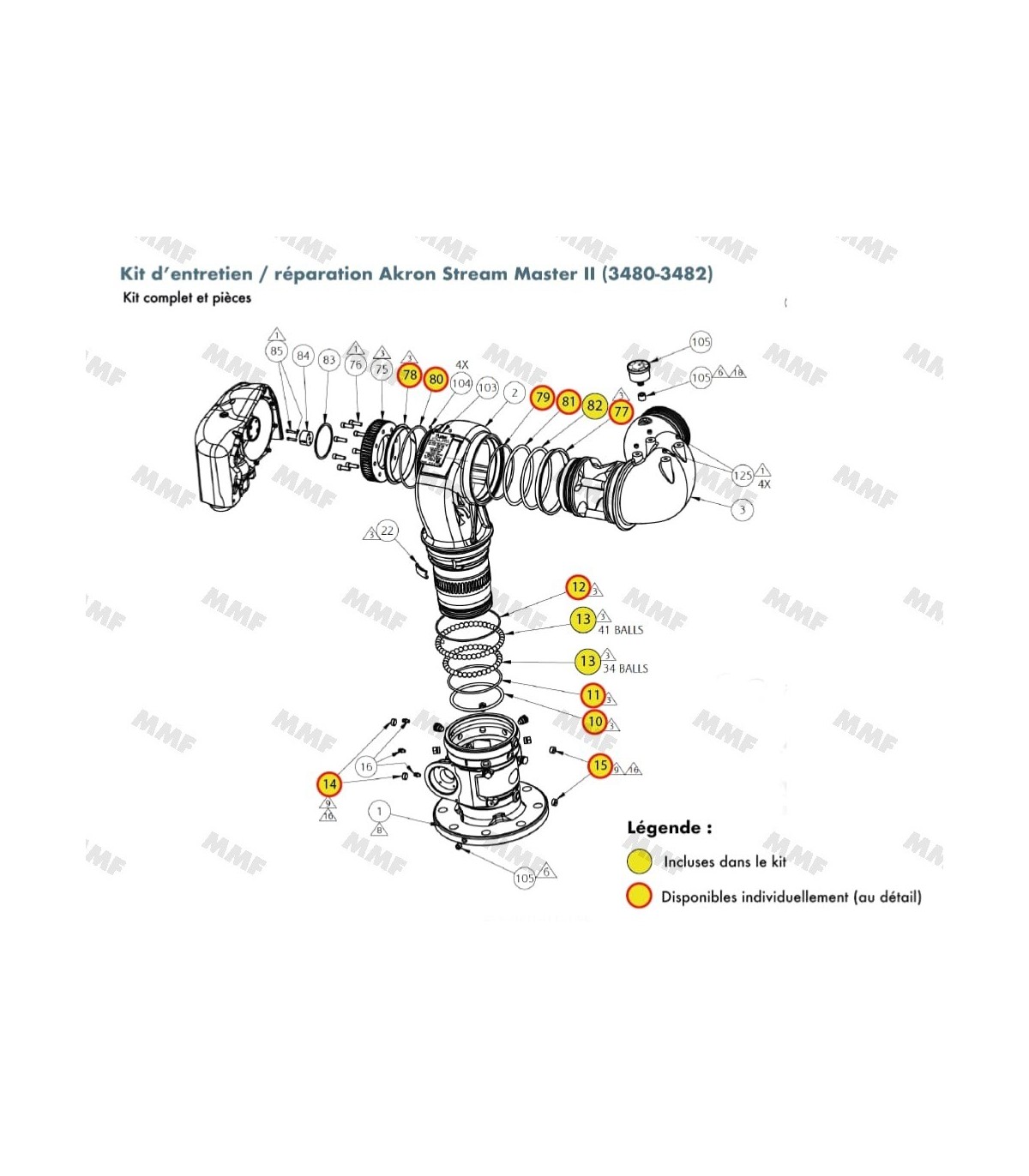

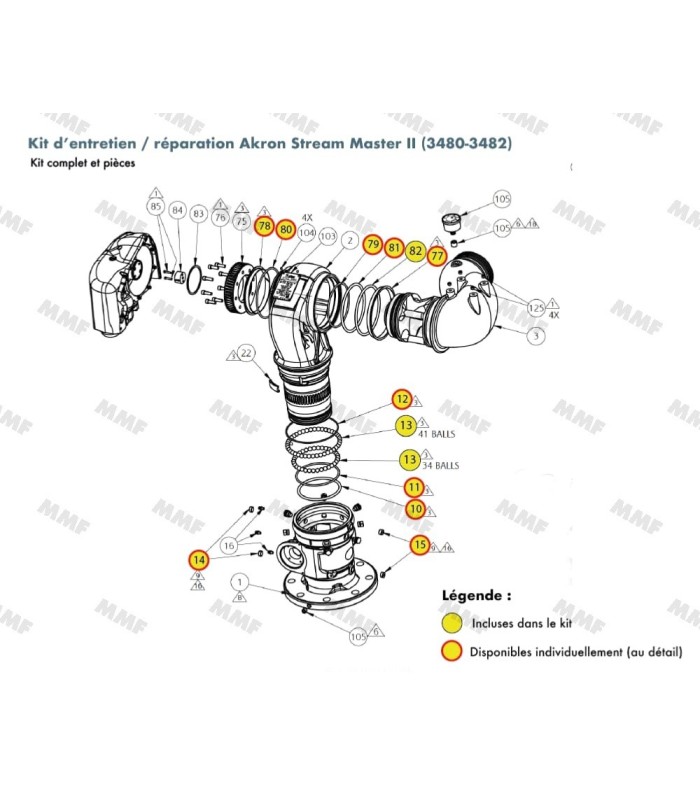

To access the individual parts, please refer to the interactive table on the KIT CONTENTS
Spirawave spring 769592
C100-L2 Spirawave spring for AKRON 769592 mechanisms.
Hex socket set screw with cup point 765025 10-24 x 1/4
Stainless steel hex socket set screw with cup point for AKRON mechanisms 765025 10-24 X 1/4.
Hex socket set screw with cone point 765186 3/8-24 x 1/2
Stainless steel hex socket set screw with cone point for AKRON mechanisms 765186 3/8-24 x 1/2.
Hex socket head cap screw 763041 1/4 -20 X 1
Stainless steel hex socket head cap screw (full thread) for AKRON mechanisms 763041 1/4-20 X 1.
Screw-on plug (with hole) 742123 1/2 -20X1/4
Celcon Delrin screw-on plug (with hole) for AKRON mechanisms 742123 1/2-20 X 1/4.
NEEDLE ROLLER CLUTCH 703453 NTA-815 1/2ID
Torrington needle bearing for AKRON NTA-815 1/2ID mechanisms.
