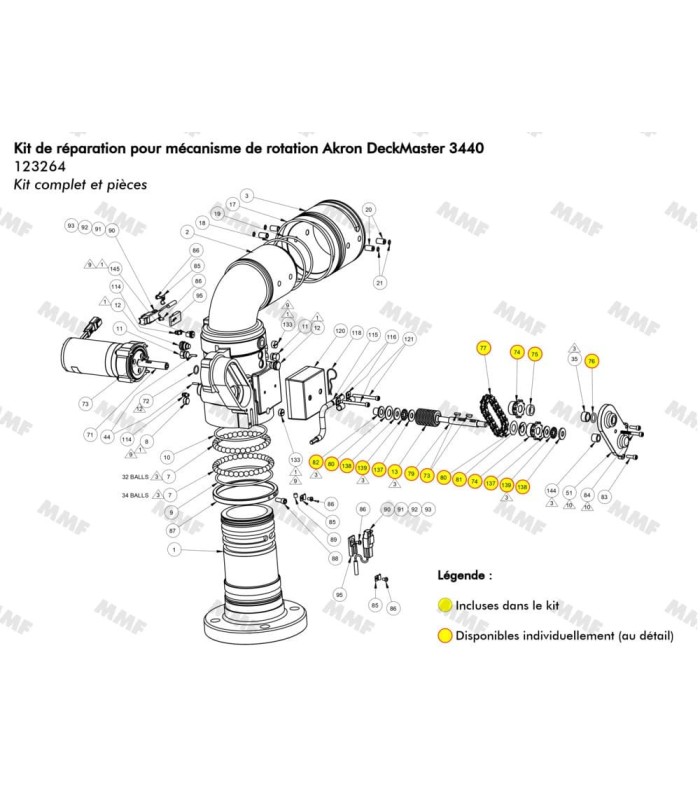

Rotating mechanism for monitor DeckMaster (3440)
Rotating mechanism for monitor DeckMaster (3440)

Rotating mechanism for monitor DeckMaster (3440)

Rotating mechanism for monitor Stream Master II (3480-3482)
HARDENED STEEL WORM GEAR 718273 HL1056
2-AKRON®

Detailed contents :

Part no

Ref. MMF

Designation

Quantity included

13

34839

VIS SANS FIN EN ACIER TREMPÉ 718273 HL1056HARDENED STEEL WORM SCREW

1

73

34478

CLAVETTE DEMI-LUNE 727025 1/8 X 1/2 404.HALF-MOON KEY

2

74

34479

PIGNON À 10 DENTS 769499 X1/2 BORE X3510-TOOTH PINION

2

75

34481

ENTRETOISE ÉPAISSE EN ACÉTAL 769495 .246THICK ACETAL SPACER

1

76

34279

JOINT TORIQUE 757313 2-112O-RING 2-112

1

77

34471

CHAÎNE POUR MÉCANISME DE ROTATION 35780001 8.625CHAIN FOR ROTATION MECHANISM

1

79

34473

AXE POUR MÉCANISME DE ROTATION 769525 303-304SHAFT FOR ROTATION MECHANISM

1

80

34397

RONDELLE-RESSORT 769276 B1000-050S SPRING WASHER

2

81

34398

RONDELLE DE CALAGE 769494 STL.010LOCK WASHER

1

82

34472

ENTRETOISE ÉPAULÉE EN BRONZE 703461BRACE WITH BRONZE SHOULDERS

1

137

34476

RONDELLE DE ROULEMENT FINE 784114 0.63 TRB613THIN BEARING WASHER

2

138

34475

RONDELLE DE ROULEMENT ÉPAISSE 784113 0.94 TRC613THICK BEARING WASHER

2

139

34428

BUTÉE À AIGUILLES 704437 3/8ID NTA613NEEDLE ROLLER THRUST BEARING

2

To access the individual parts, please refer to the interactive table on the KIT CONTENTS

Read moreShow less
Reference:
40914
Guide de tailles
Create a quote
€1,258.34 (tax excl.)
€1,258.34 (tax excl.)



Download PDF

Partager cette fiche produit :

Add to compare0
Description

Ensure the longevity and optimum performance of your firefighting monitor DeckMaster 3440 with our repair and maintenance parts kit. Designed specifically for the rotation mechanism, this kit includes all the essential parts to restore and maintain your equipment, ensuring smooth, reliable operation over the long term.

A complete kit for efficient repairs

This maintenance kit has been designed to meet the requirements of fire-fighting professionals and guarantee fast, efficient repair of the DeckMaster 3440. It includes :

  • Bearings and seals to ensure smooth rotation.
  • Drive parts for optimum transmission of motion.
  • Fasteners for secure installation.

Why choose MMF Protection et Sécurité?

As AKRON's main dealer and authorized repair center in France, we put our expertise at your service:

  • Precise diagnosis: Our specialists will advise you on the parts to replace, depending on the condition of your monitor.
  • Technical support: Dedicated assistance to help you with installation and maintenance.
  • Genuine AKRON parts: Guaranteed compatibility for optimum performance.

Kit features

Features Description
Compatibility Firefighting monitor DeckMaster 3440
Type of parts Seals, bearings, drive parts
Origin AKRON certified parts
Installation Easy to install with technical assistance available

Order your kit now

Ensure the reliability of your monitor DeckMaster 3440 by choosing our repair and maintenance kit. For any questions or technical advice, contact our team of experts. MMF Protection et Sécurité we'll help you choose and maintain your fire-fighting equipment.

Read moreShow less
Product Details
40914

Data sheet

Compatible model
DeckMaster - 3440 U1
Parts kit for
mechan. complete rotation
You may also like
No items

8 other products in the same category:

39462 Maintenance/repair kit - Stream Master II gun (3480-3482) - technical drawing

Reference: 39462
€392.75 (tax excl.)
€392.75 (tax excl.)

Detailed contents :

Part no

Ref. MMF

Designation

Quantity included

10

40590

JOINT TORIQUE 757319 2-343O-RING 2-343

1

11

32802

JOINT TORIQUE 757210 2-241O-RING SEAL 2-241

1

12

40591

JOINT TORIQUE 757326 2-158O-RING SEAL 2-158

1

13

33270

BILLES EN BRONZE POUR ROULEMENT 109342 3/8BALLS FOR 3/8" BEARING

75

14

33798

BOUCHON PLEIN À VISSER 742112 1/2-20 x 1/4FULL SCREW CAP

2

15

33806

BOUCHON PERCÉ À VISSER 742123 1/2 -20X1/4PIERCED SCREW CAP

2

77

40340

JOINT DE ROULEMENT EN TÉFLON 803058 4.835TEFLON BEARING SEAL 4.835

1

78

40341

JOINT DE ROULEMENT EN TÉFLON 803057 4.185TEFLON BEARING SEAL 4.185

1

79

40342

JOINT TORIQUE 757073 2-242O-RING SEAL 2-242

1

80

33800

JOINT TORIQUE 757076 2-246O-RING SEAL 2-246

1

81

33802

JOINT TORIQUE 757446 2-347O-RING 2-347

1

82

-

O-RING 2-348

1

To access the individual parts, please refer to the interactive table on the KIT CONTENTS

Gears: rotation mechanism for Stream Master II barrel (3480-3482) - exploded view

Reference: 39417
€598.54 (tax excl.)
€598.54 (tax excl.)

Detailed contents :

Part no

Ref. MMF

Designation

Quantity included

46

-

AXIS OF ROTATION

1

47

-

TEFLON WORM SCREW

1

48

34521

GOUPILLE ELASTIQUE 744341 302 .0625 x .375SPRING PIN

1

51

39138

7:1 PLANETARY GEAR

3

52

-

SHOULDER SLEEVE

4

53

-

HEXAGONAL SOCKET HEAD CAP SCREW WITH SHOULDER

3

54

-

PLANETARY GEAR RING

1

55

-

TEFLON SHOULDER SPACER

1

To access the individual parts, please refer to the interactive table on the KIT CONTENTS
