Mounting flange for firefighting monitor StreamMaster
Maintenance/repair part: mounting flange 117823 for firefighting monitors StreamMaster 3570, 3578, 3579 and 3598.
Rotating mechanism for monitor DeckMaster (3440)
Detailed contents :
|
Part no |
Ref. MMF |
Designation |
Quantity included |
|
13 |
34839 |
|
1 |
|
73 |
34478 |
|
2 |
|
74 |
34479 |
|
2 |
|
75 |
34481 |
|
1 |
|
76 |
34279 |
|
1 |
|
77 |
34471 |
|
1 |
|
79 |
34473 |
|
1 |
|
80 |
34397 |
|
2 |
|
81 |
34398 |
|
1 |
|
82 |
34472 |
|
1 |
|
137 |
34476 |
|
2 |
|
138 |
34475 |
|
2 |
|
139 |
34428 |
|
2 |

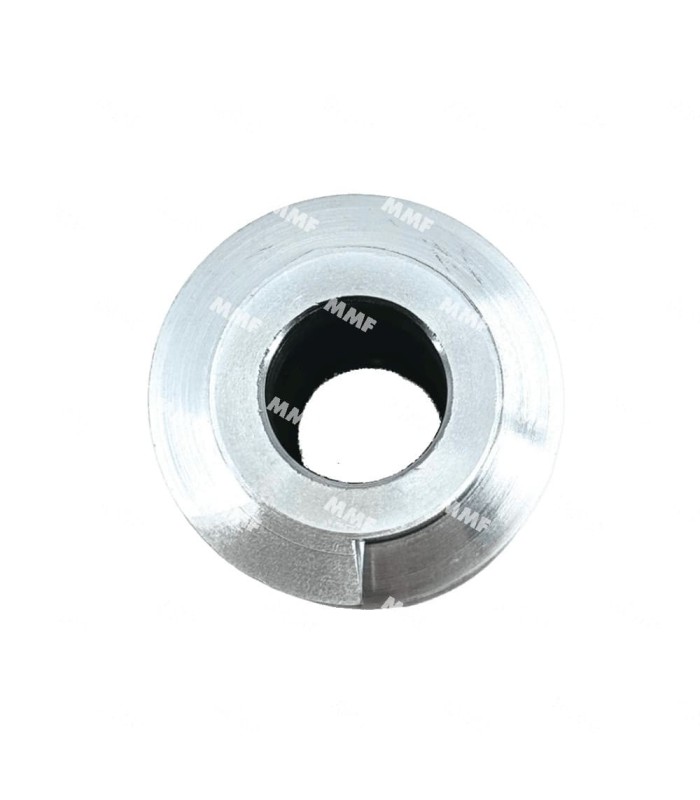

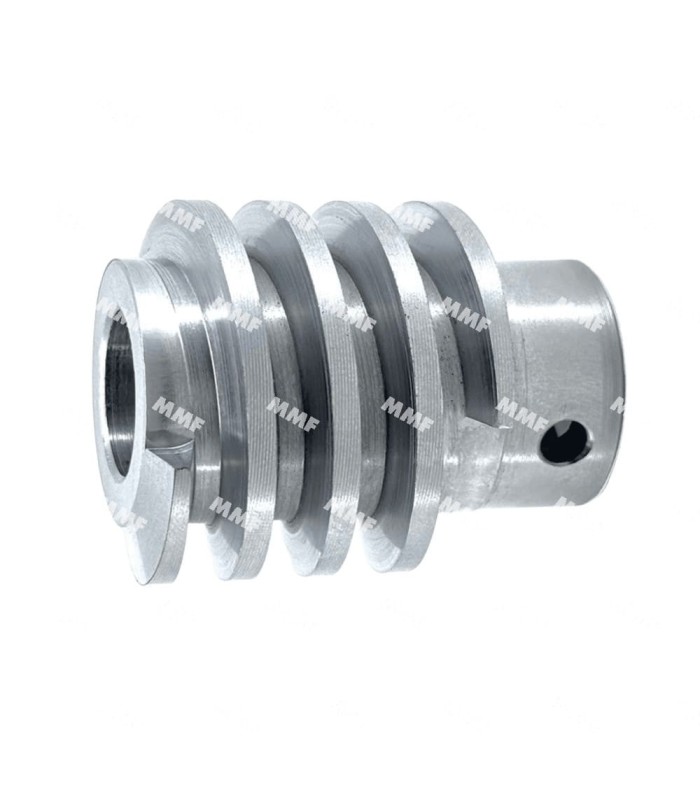

HARDENED STEEL WORM SCREW
HALF-MOON KEY
10-TOOTH PINION
THICK ACETAL SPACER
O-RING 2-112
CHAIN FOR ROTATION MECHANISM
SHAFT FOR ROTATION MECHANISM
SPRING WASHER
LOCK WASHER
BRACE WITH BRONZE SHOULDERS
THIN BEARING WASHER
THICK BEARING WASHER
NEEDLE ROLLER THRUST BEARINGTo access the individual parts, please refer to the interactive table on the KIT CONTENTS
PLANETARY GEAR 7:1 718262
Planetary gears for AKRON 7:1 RATIO SLT XT mechanisms.
Hex socket set screw with cone point 765186 3/8-24 x 1/2
Stainless steel hex socket set screw with cone point for AKRON mechanisms 765186 3/8-24 x 1/2.
O-RING 757313 2-112
Nitrile rubber O-ring for AKRON mechanisms 757313 N70 2-112.
12/24V PC logic board 34400054
12/24V PC logic board 34400054 for firefighting monitor DeckMaster 3440 U1 models (with or without position feedback).
Only on quote: contact us for personalized advice!
THICK ACETAL SPACER 769495 .246
Thick acetal spacer for AKRON mechanisms 769495 .246.
Retaining ring 758216
AKRON Smalley stainless steel retaining ring 758216 for gasket 714173
