Chain for lifting mechanism
Lifting chain for AKRON mechanisms 35782014 7.875.
Drive mechanism with belt for rotation system - monitor Stream Master II (3480-3482)
Detailed contents :
|
Part no |
Ref. MMF |
Designation |
Quantity included |
|
29 |
- |
85-TOOTH BELT |
1 |
|
56 |
- |
NOTCHED PULLEY SHAFT |
1 |
|
57 |
- |
PULLEY WHEEL |
1 |
|
58 |
34279 |
|
1 |
|
59 |
32809 |
|
1 |
|
60 |
- |
O-RING 2-164 |
1 |
O-RING 2-112
NEEDLE BEARING
To access the individual parts, please refer to the interactive table on the KIT CONTENTS
O-ring 757260 - 2-012
Carboxylated nitrile rubber O-ring for AKRON mechanisms 757260 CARBOXILATED NITRILE N1090 2-012
NEEDLE BEARING 704393 3/8 SCE65
Needle roller bearing for AKRON 3/8 SCE65 mechanisms.
Gears: rotation mechanism for monitor Stream Master II (3480-3482)
Detailed contents :
|
Part no |
Ref. MMF |
Designation |
Quantity included |
|
46 |
- |
AXIS OF ROTATION |
1 |
|
47 |
- |
TEFLON WORM SCREW |
1 |
|
48 |
34521 |
|
1 |
|
51 |
39138 |
7:1 PLANETARY GEAR |
3 |
|
52 |
- |
SHOULDER SLEEVE |
4 |
|
53 |
- |
HEXAGONAL SOCKET HEAD CAP SCREW WITH SHOULDER |
3 |
|
54 |
- |
PLANETARY GEAR RING |
1 |
|
55 |
- |
TEFLON SHOULDER SPACER |
1 |
SPRING PINTo access the individual parts, please refer to the interactive table on the KIT CONTENTS

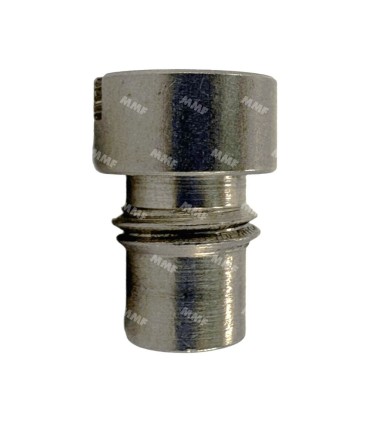

Stop screw 767078
Stainless steel slotted head stop screw for AKRON mechanisms 767078.
HALF-MOON KEY 727025 1/8 X 1/2 404.
Woodruff stainless steel half-moon key for AKRON mechanisms 727025 1/8 X 1/2 404.
THICK ACETAL SPACER 769495 .246
Thick acetal spacer for AKRON mechanisms 769495 .246.
