Outlet elbow S/A for monitors StreamMaster 3578-3579

2.5" outlet elbow for monitor StreamMaster II 3482
Inlet elbow for monitors StreamMaster II 3480-3482
2-AKRON®

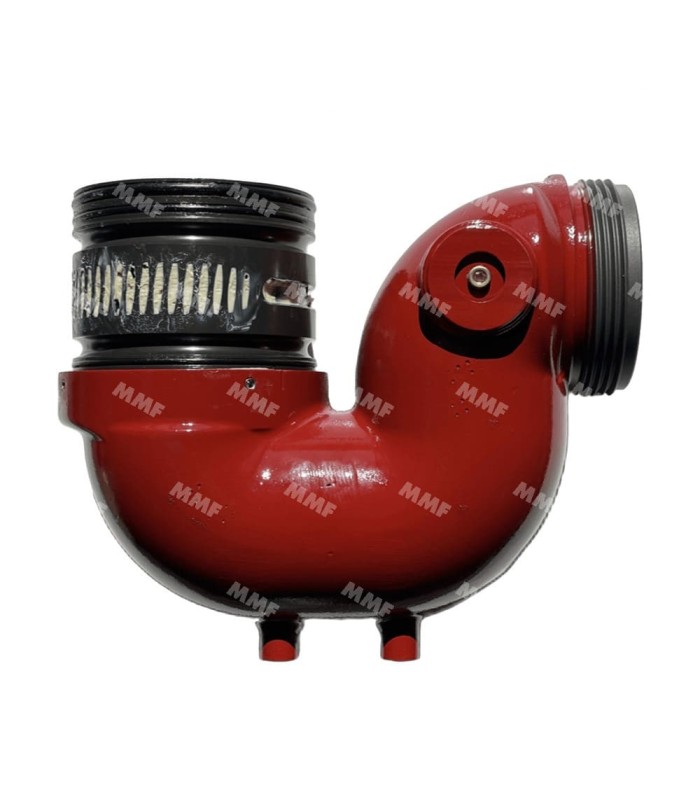

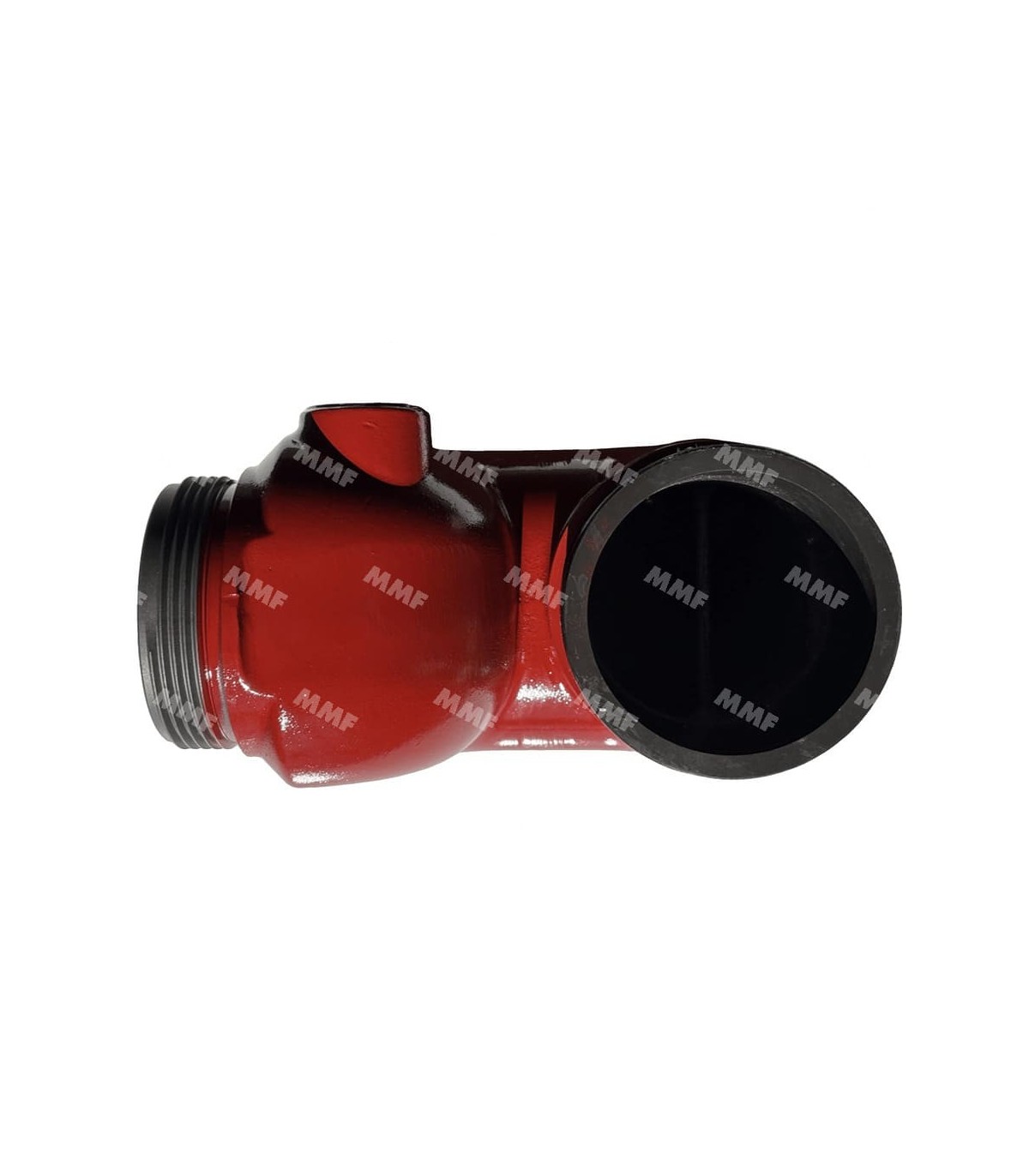

Maintenance/repair part: outlet elbow sub-assembly for monitors StreamMaster 3578 and 3579 with bosses [moulded mounting bracket (4 threaded holes)].

Read moreShow less
Reference:
34501
Guide de tailles
Color
  • Red
In stock (delivery time depends on choice of carrier) 1 Item
Create a quote
€1,924.80 (tax excl.)
€1,924.80 (tax excl.)



Download PDF

Partager cette fiche produit :

Add to compare0
Description

Outlet elbow sub-assembly 35780098 for monitors StreamMaster II AKRON® with bosses [moulded mounting bracket (4 threaded holes)]

  • Only suitable for monitors StreamMaster 3578 and 3579.

All AKRON® spare parts are available from MMF Protection et Sécuritéall spare parts are available from the brand's authorized dealers and repair centers.

Need advice or have a specific request? Just call us!

- by telephone on 04 78 00 00 25

- by e-mail at sav@mMF.fr

Read moreShow less
Product Details
34501

Data sheet

Compatible model
StreamMaster I - 3578
StreamMaster I - 3579
Part type :
casting part (barrel)

Specific References

MPN
35780098
Attachments

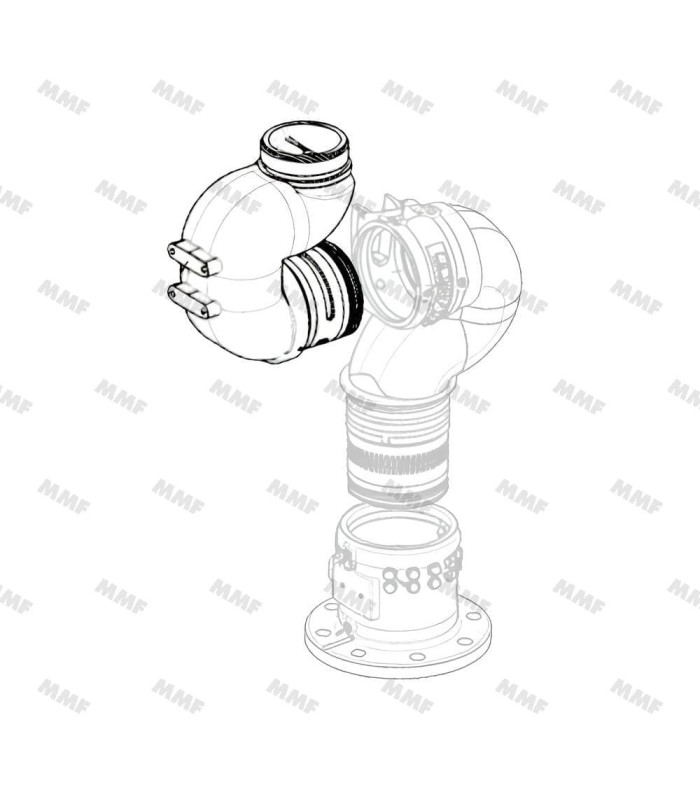

Éclaté Technique 3578-3579
StreamMaster 3578-3579 technical drawing
Download (3.05MB)
