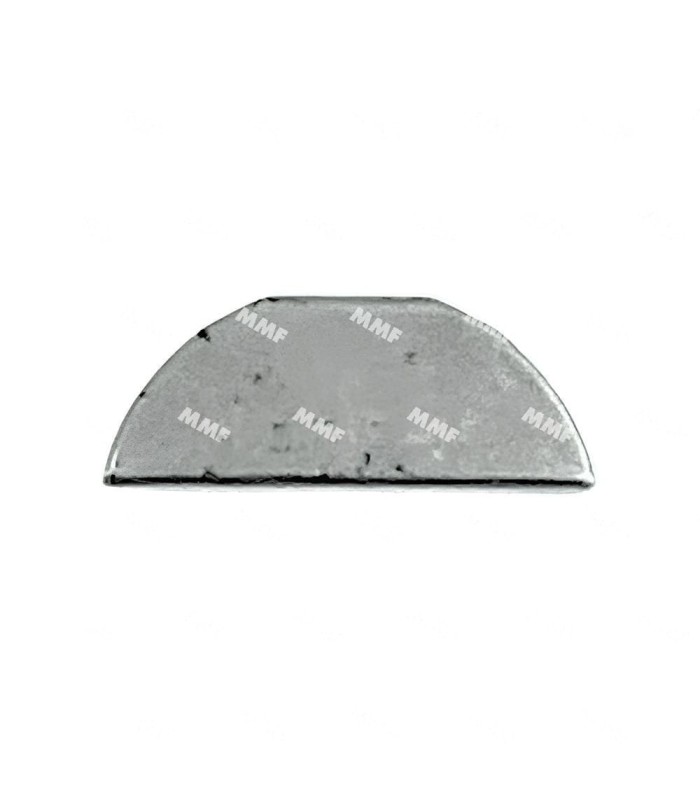

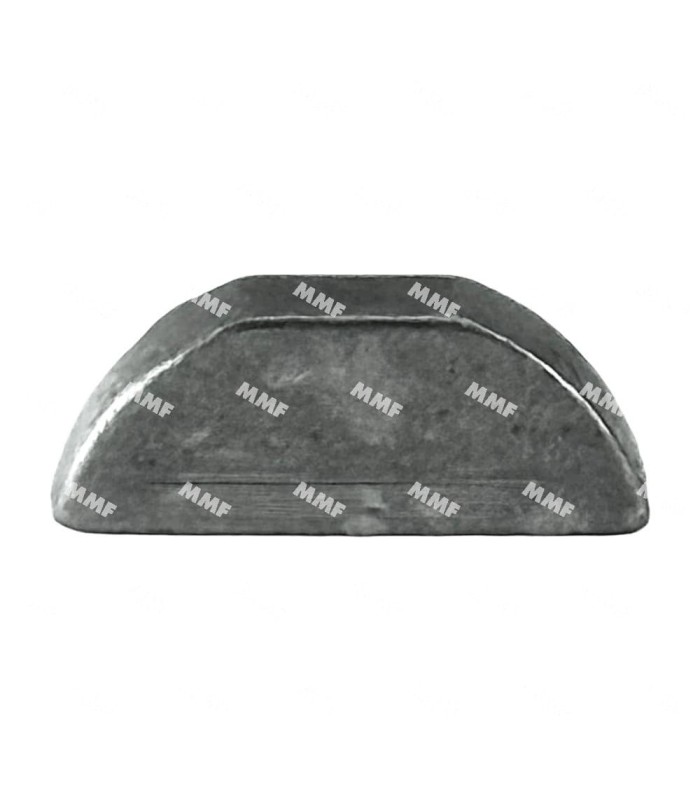

Woodruff stainless steel half-moon key for AKRON mechanisms.

HALF-MOON KEY 727025 1/8 X 1/2 404.

Woodruff stainless steel half-moon key for AKRON mechanisms 727025 1/8 X 1/2 404.

All AKRON® spare parts are available from MMF Protection et SécuritéaKRON® dealers and authorized repair centers.

Need advice or a specific request? Please contact us!

- by telephone on 04 78 00 00 25

- by e-mail at sav@mmf.fr
