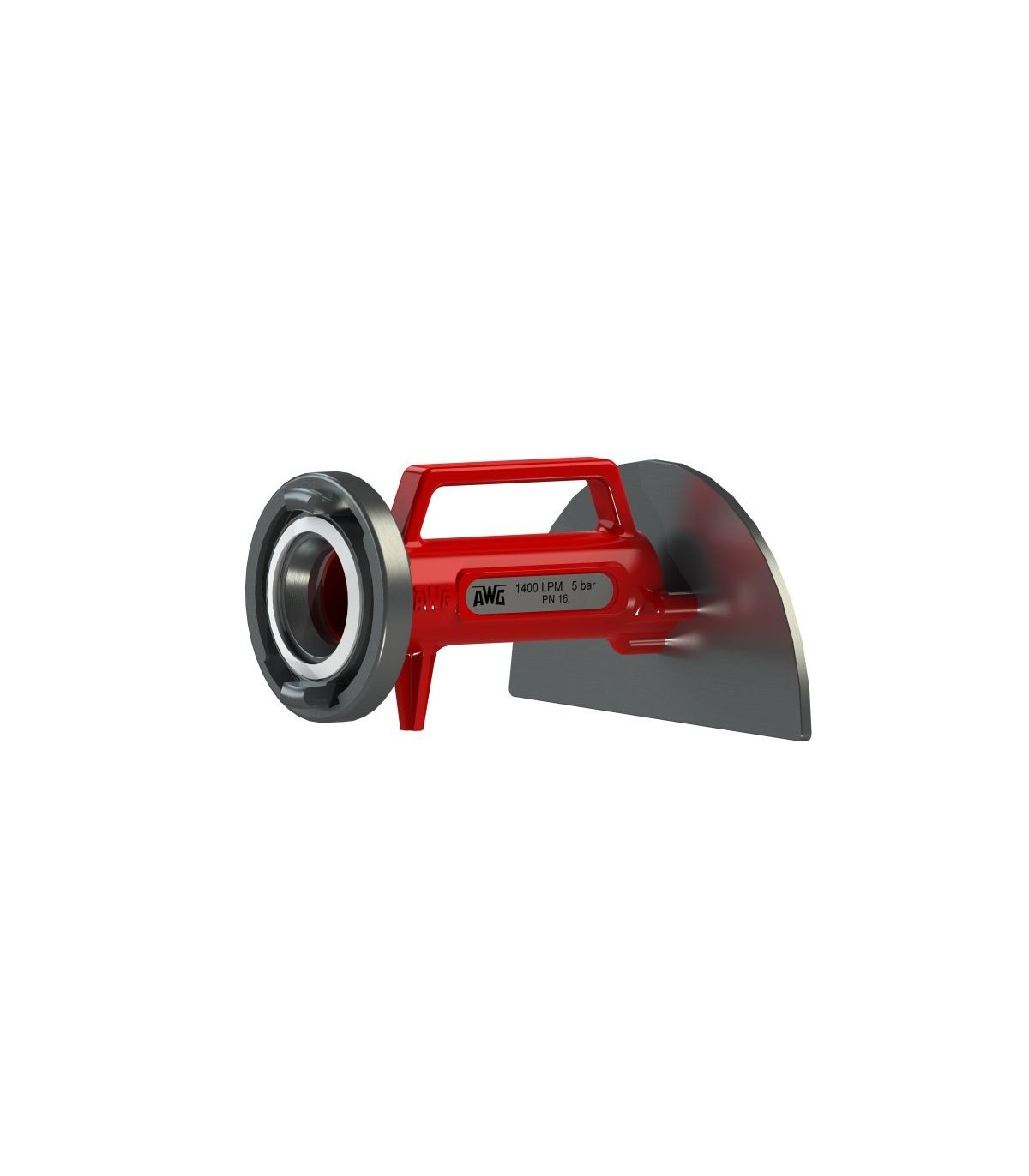

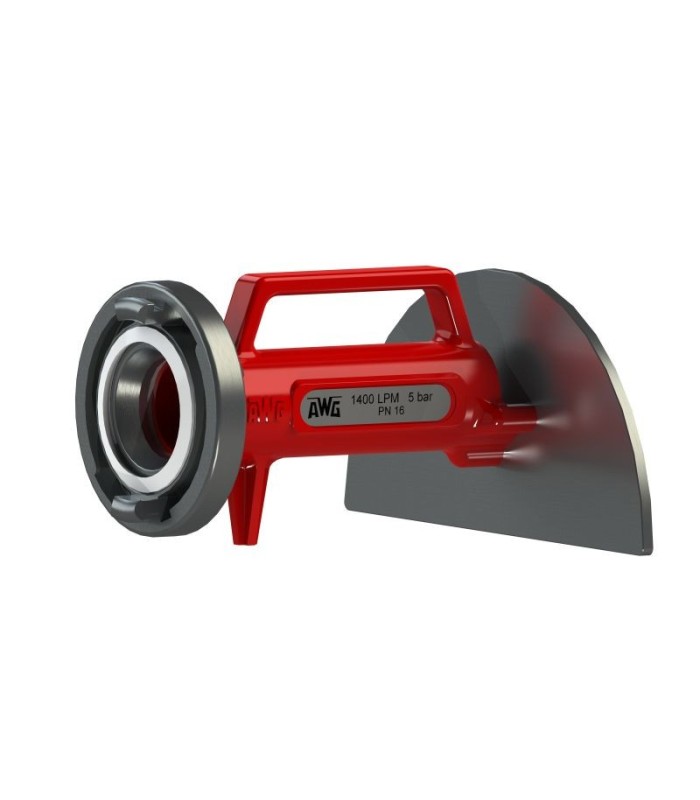

Peacock tail water curtain Storz fitting

Peacock tail water curtain
3-AWG

The AWG water curtain is an innovative solution for creating an effective barrier against gases and smoke, while providing optimum cooling. Made of lightweight, resistant aluminum, it is easy to install and handle. With a spray range of up to 31 m, it provides effective protection for fire safety and operations in high-risk environments. Modular, it can be combined with other curtains for extended coverage. Ideal for firefighters, industry and risk management.

Read moreShow less
Reference:
40627
Guide de tailles
Model
Create a quote
€460.65 (tax excl.)
€460.65 (tax excl.)



Download PDF

Partager cette fiche produit :

Add to compare0
Description

AWG water curtain - Gas and smoke protection, efficient cooling

The AWG water curtain is an innovative solution for creating a wall of water for gas and smoke protection. It is designed for optimum use in environments requiring an effective protective barrier, including fire safety and industrial risk management.

Thanks to its robust, lightweight aluminum design, this device is easy to install and handle. Its system also ensures optimum cooling of objects and infrastructures exposed to high temperatures.

    By aligning several AWG water curtains, it is possible to create wide and extensive barriers, tailored to the specific needs of safety and protection professionals.

      Features :

      • Material: Aluminum
      • Dimensions:
      • Length: 240 mm
      • Width: 260 mm
      • Height: 135 mm

      • Weight: 1.5 kg
      • Maximum permissible operating pressure: 16 bar
      • Reference pressure 1: 5 bar

      • Hydraulicperformance:
      • Jet width: 24.5 m
      • Jet height: 8.5 m
      • Spray range: 31 m

      Advantages of the AWG water curtain :

      • Optimum protection: Creates an effective water barrier against gases and smoke.
      • Efficient cooling: Limits heat propagation by cooling exposed surfaces.
      • Modularity and flexibility: Several curtains can be linked to form an extended protection system.
      • High-quality material: Aluminum ensures enhanced durability, corrosion resistance and reduced weight for easy handling.
      • Ease of installation: Designed for fast, efficient installation.

      Ideal applications

      The AWG water curtain is the equipment of choice for various sectors:

      • Fire safety: Protection of sensitive areas against toxic fumes and vapors.
      • Industry and sensitive sites: Cooling and prevention of high-temperature hazards.
      • Fire and rescue services: Strategic tool for managing operations in high-risk environments.

      Why choose AWG water curtains?

      Opting for the AWG water curtain means choosing high-performance, versatile equipment designed to guarantee maximum safety in emergency situations. Its proven effectiveness and innovative design make it an essential ally for risk prevention and protection professionals.

      Read moreShow less
      Product Details
      40627

      Data sheet

      Material
      Aluminum
      Weight
      1.5 kg
      Dimensions
      240 mm (L) × 260 mm (W) × 135 mm (H)
      Accessory type
      Water curtain
      Type of items
      Switching off
      Attachments
      WATER CURTAIN AWG 500 800 and 14
      Documentation Water curtain AWG
      Download (210.76KB)
      You may also like
      Peacock tail water curtain from 56 to 190L/min DN40 1''1/2 BSP male 34988 | MMF.fr

      Reference: 34988
      €87.70 (tax excl.)
      €87.70 (tax excl.)

      The Scotty Water Curtain creates a powerful water barrier (up to 12 m wide and 6 m high) to protect against heat and flames. Easy to install, it adapts to different flow rates (56, 113 or 190 L/min) and is suitable for fire departments, industries, sensitive areas or events. Robust and economical, it offers an effective solution for fire fighting and prevention.

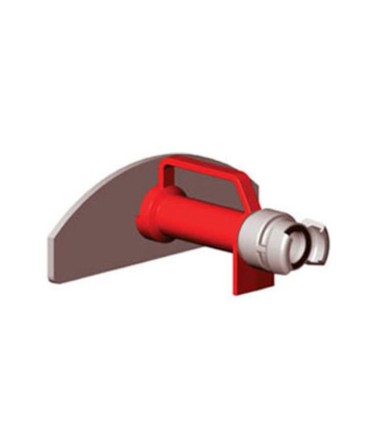

      Peacock tail water curtain | MMF.fr

      €390.46 (tax excl.)
      €390.46 (tax excl.)

      Water curtains are an effective solution for protecting equipment against heat by forming a barrier of sprayed water, mainly used in industrial environments and for fire protection. They limit heat propagation, protect sensitive equipment and reduce the risk of fire. Available in different flow rates and inlet types, these systems comply with safety standards and offer reliable protection. MMF Protection et Sécurité offers water curtains manufactured in France, guaranteeing quality and reliability.

      Water curtain pipe DN65 - 20 m

      Reference: 33822
      €2,637.35 (tax excl.)
      €2,637.35 (tax excl.)

      Discover the 20m DN65 water curtain fire hose with 3 support brackets: a high-performance solution for fire protection. Durable, effective and easy to install, it creates an ideal water barrier to protect your sensitive equipment and structures.

      8 other products in the same category:

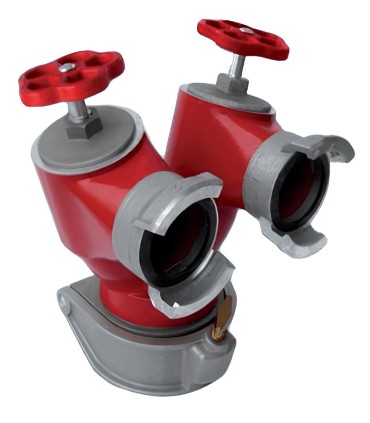

      2 x DSP65 / AR100 fire protection valve manifold
