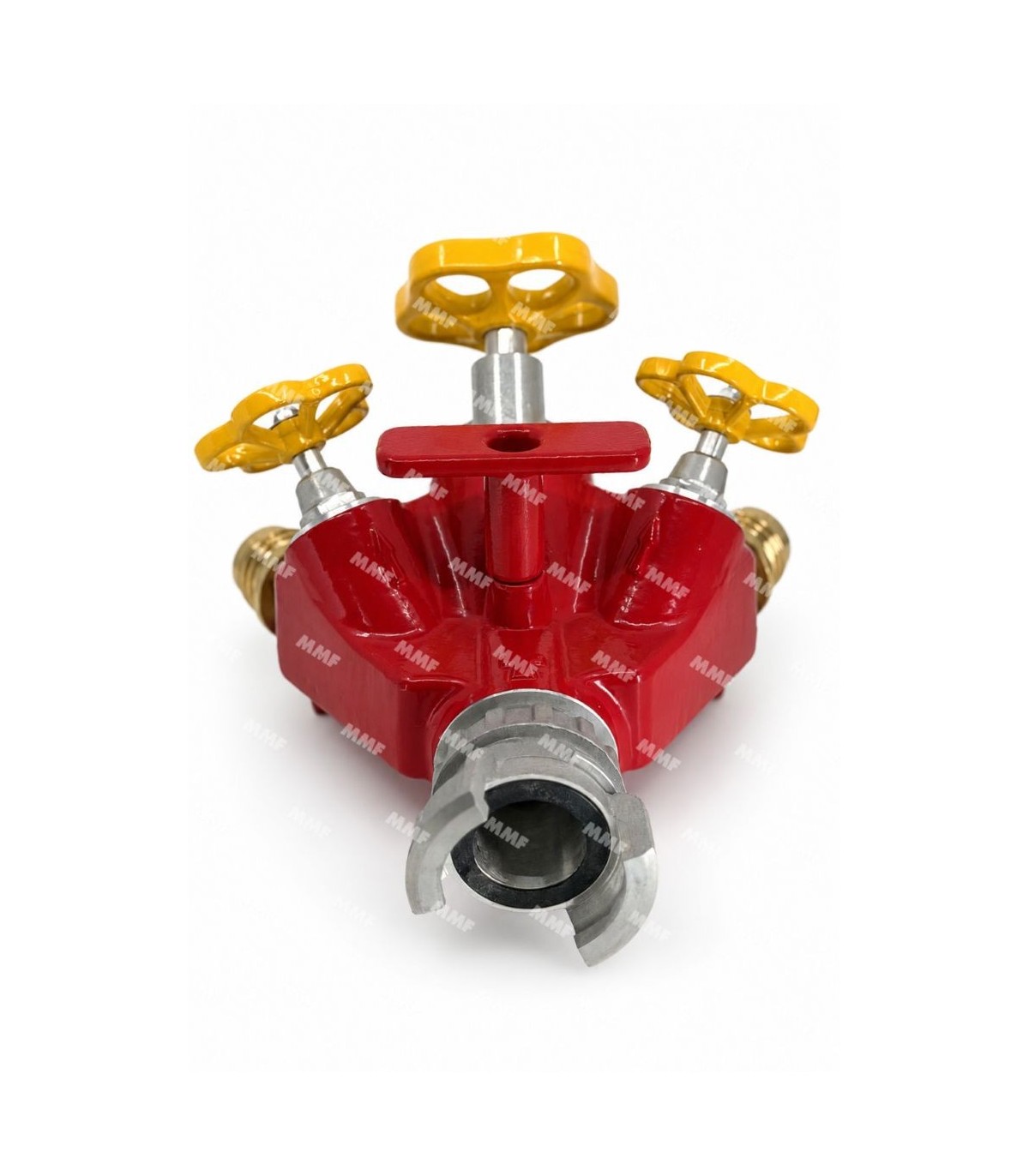

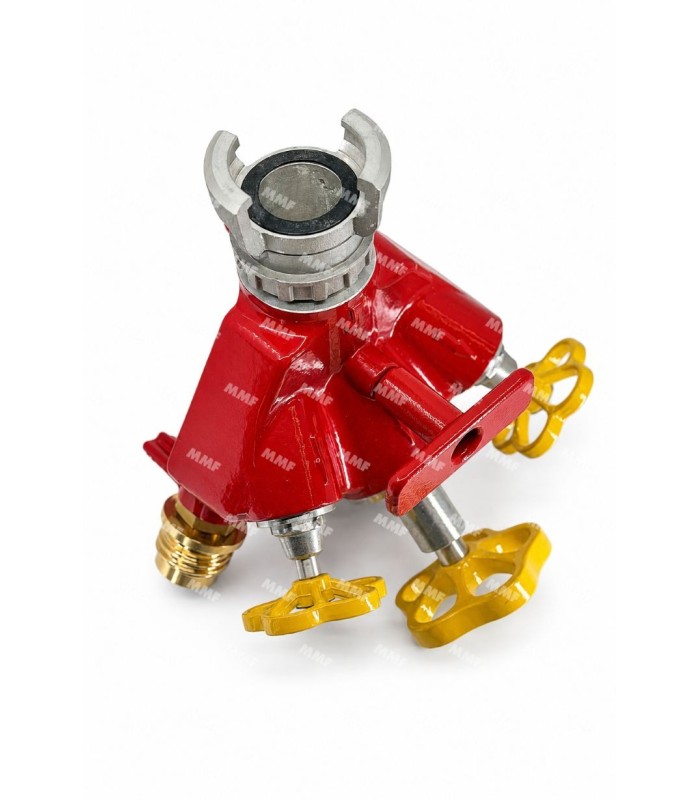

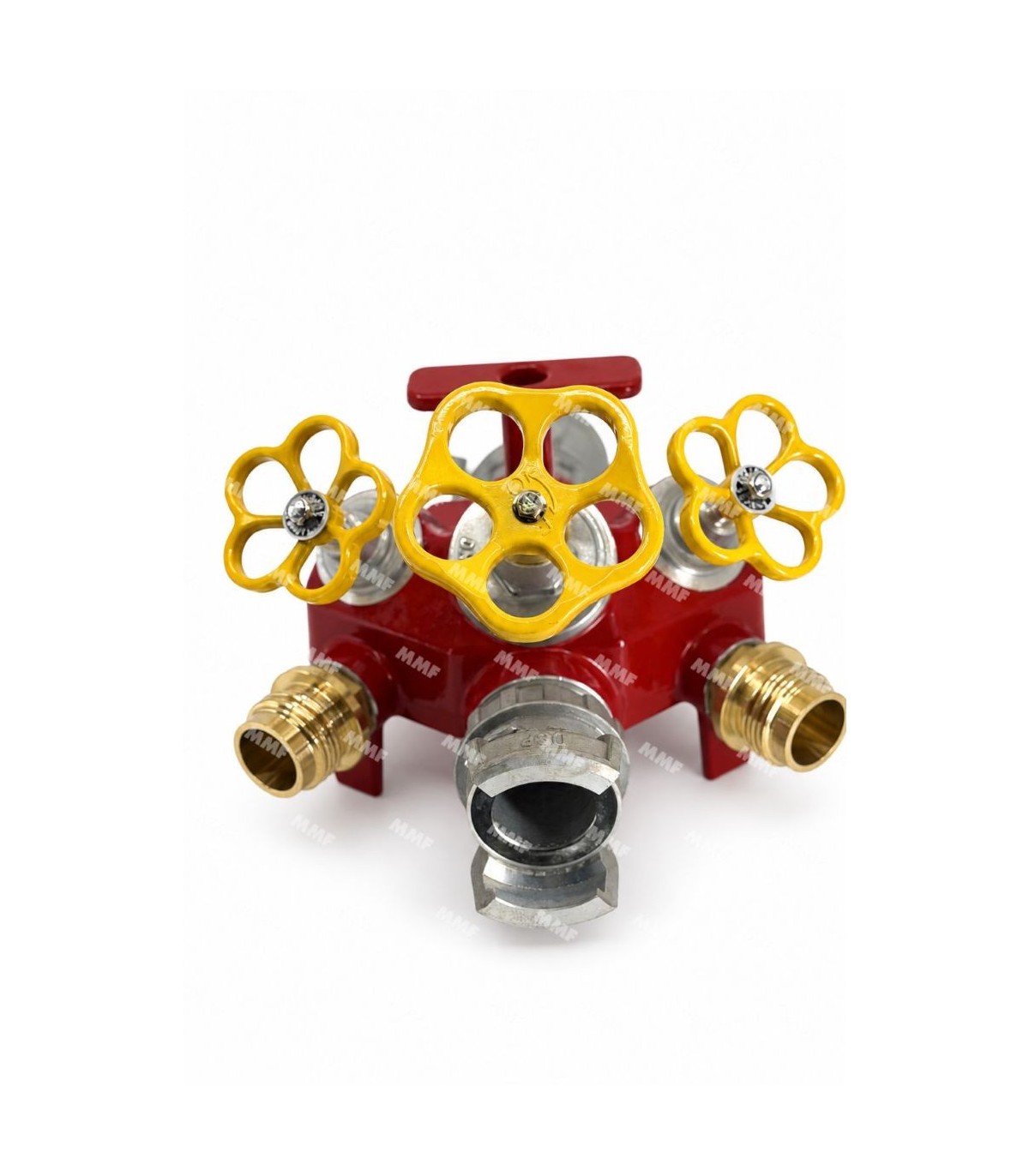

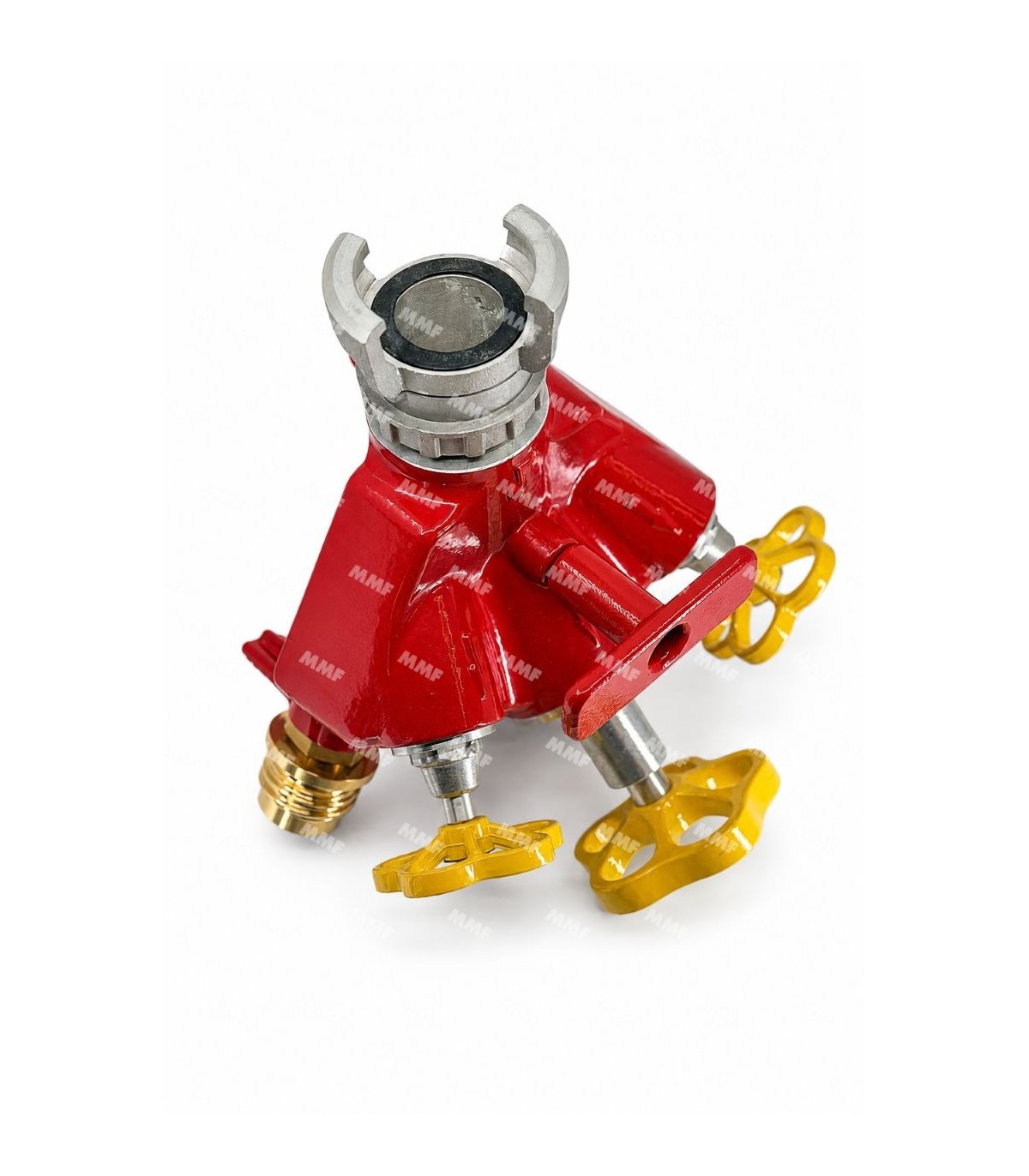

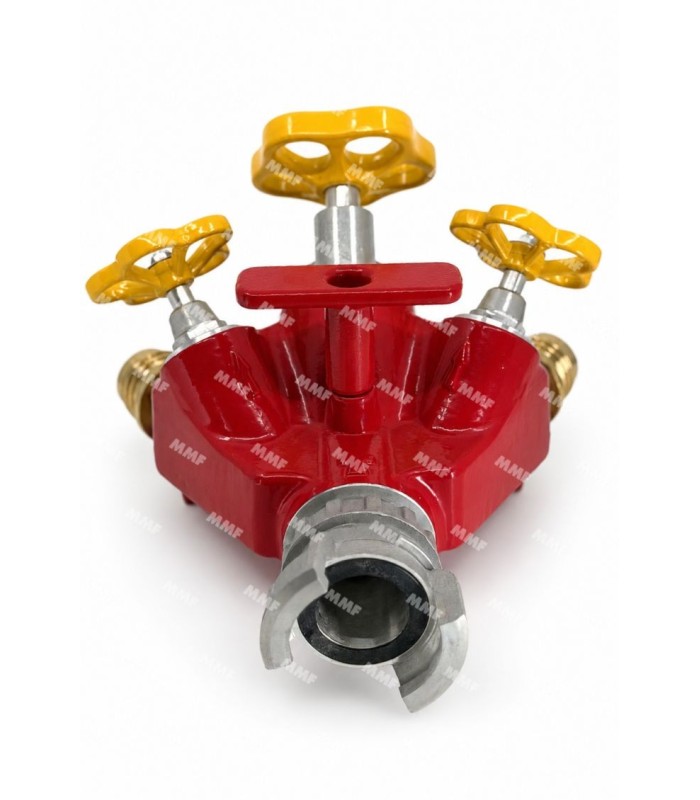

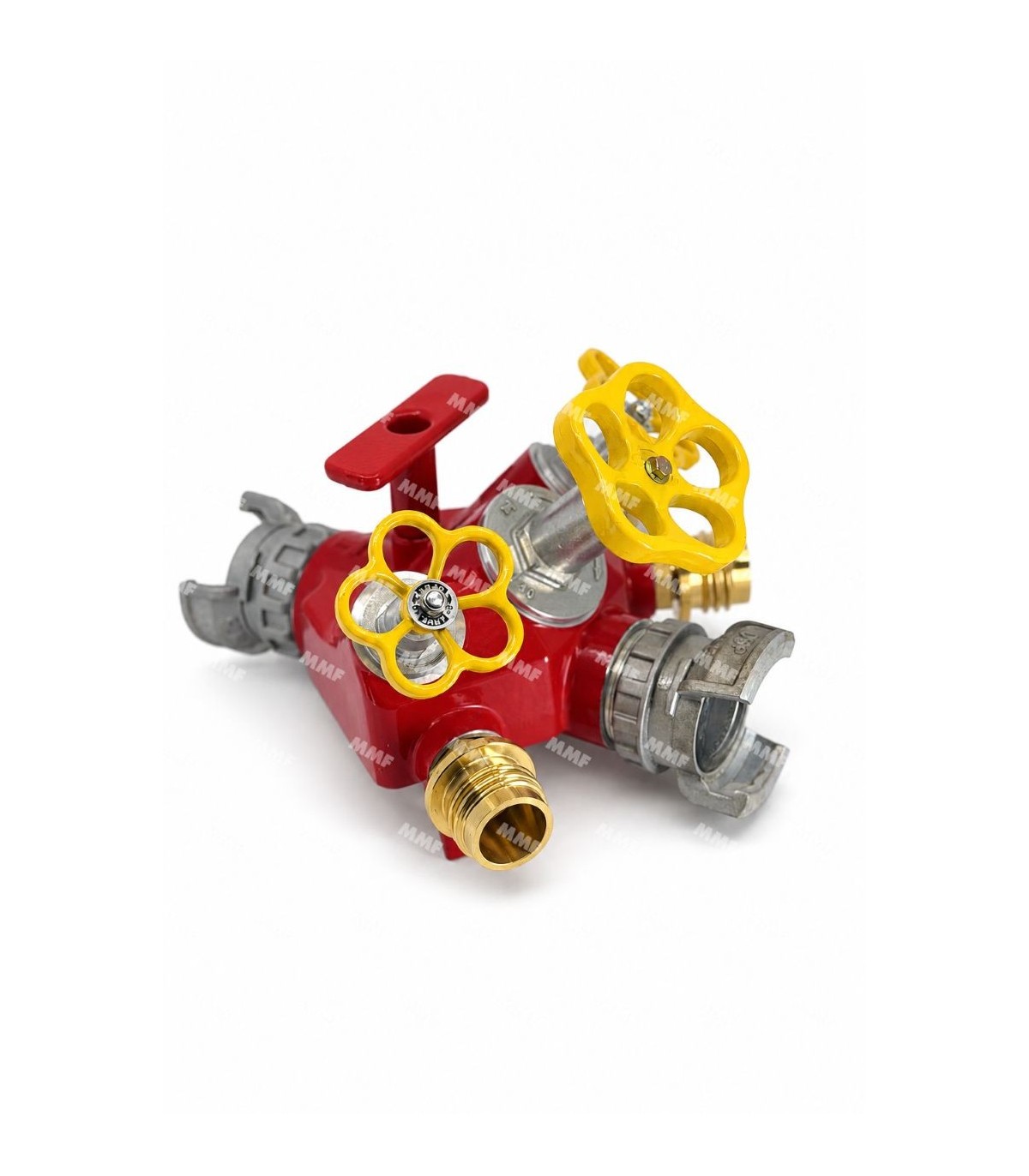

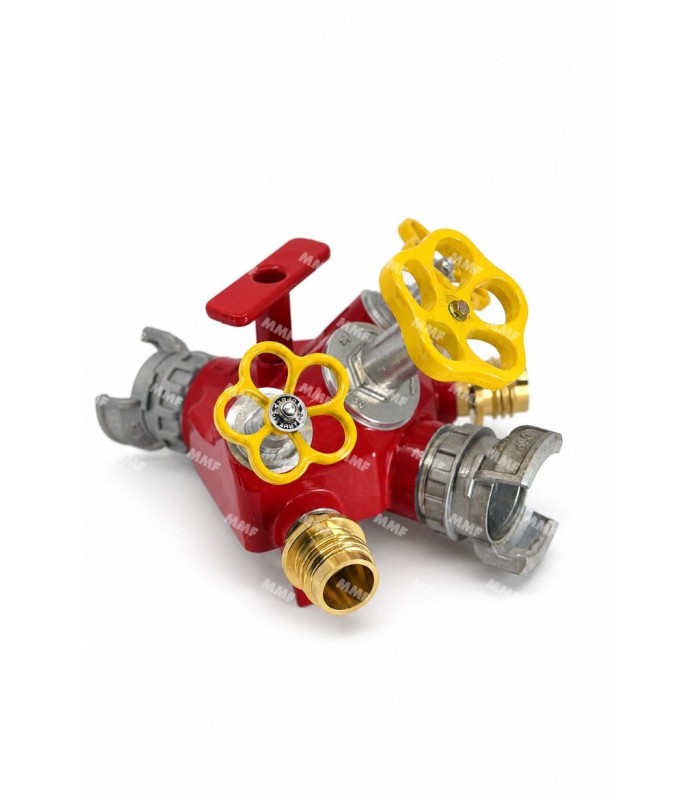

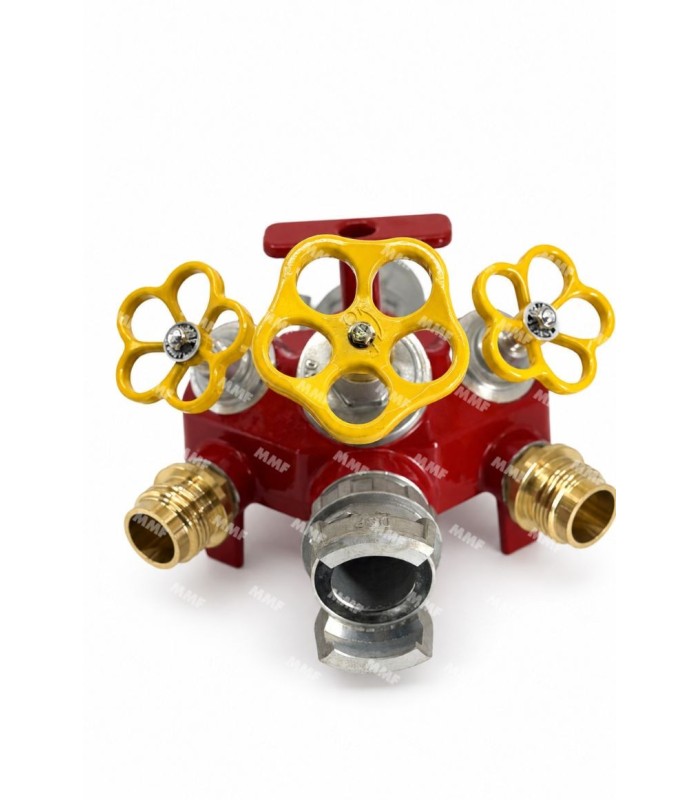

Red tri-division with three aluminum taps

The 3-faucet red tri-divider distributes a fire supply to three independent outlets. Designed in aluminum, it features a DSP 40 inlet with lock, a DSP 40 outlet with lock and 2 HP DN20/25 PN40 male GFR outlets. Its pressure rating is PN 16, and its RAL 1003 yellow handwheels enable progressive control of each line.

Read moreShow less
Reference:
41589
Guide de tailles
In stock (delivery time depends on choice of carrier) 1 Item
Create a quote
€1,141.16 (tax excl.)
€1,141.16 (tax excl.)

Partager cette fiche produit :

Add to compare0
Description

The red 3-faucet aluminum PN25 tri-division distributes a water supply to three separate outlets, with independent control via a handwheel valve. It is ideal for fire-fighting systems, intervention networks and distribution needs requiring a DSP DN40 inlet with lock and several outlets of different diameters.

This model is equipped with a DSP DN40 outlet with lock and two GFR male HP DN20/25 PN40 outlets, enabling connection of secondary lines or high-pressure compatible equipment. RAL 1003 yellow handwheels facilitate valve identification and operation in the field.

A compact tri-division for fire-fighting networks and field operations

This tri-division is designed for professionals who need to distribute water rapidly to several points of use. Each outlet has its own handwheel valve, enabling the flow to be opened, closed or gradually adjusted according to the needs of the intervention.

Its aluminum alloy construction with red polyester coating offers a good compromise between strength, controlled weight and visibility. Its compact size makes it easy to transport, set up and integrate into intervention equipment.

Technical specifications

Technical specifications - Tri-division aluminum 3 taps
Product type 3-outlet tri-division with handwheel valves
Pressure rating PN25
Inlet DSP DN40 with lock
Outlets 1 x DSP DN40 with lock + 2 x GFR male HP DN20/25 PN40
Valve type Handwheel valves
Handwheel colors Yellow RAL 1003
Material Aluminum alloy
Surface treatment Red polyester paint
Dimensions 295 x 280 x 230 mm
Weight 3.4 kg

Why choose this tri-divider?

This DSP 40 / GFR HP tri-divider is designed for applications requiring rapid division of a water supply into several separately controllable lines. It can be used for fire fighting, fire water systems, operational exercises, temporary systems or on-board equipment requiring compact, robust distribution.

FAQ - Red tri-divider with 3 PN25 aluminum valves

What is the purpose of a fire tri-divider?

A tri-division is used to distribute a water supply to several outlets. It is useful when several lines, accessories or equipment need to be supplied from a single inlet.

What are the advantages of handwheel valves?

Handwheel valves open and close progressively. This more controlled maneuvering helps limit sudden variations in flow and facilitates the adjustment of each outlet.

When should I choose a GFR HP outlet?

A GFR HP outlet is appropriate when the installation or equipment connected requires this type of high-pressure connection. It enables the division to be adapted to specific lines or accessories.

What should I check before ordering this tri-divider?

You need to check the type of inlet connection, the required outlet connections, the expected nominal pressure, the diameters compatible with the hoses used, and the integration constraints on the vehicle, network or intervention device.

Read moreShow less
Product Details
41589

Data sheet

Accessory type
Tri-division
Connection
DSP 40 avec Verrou
Raccord de sortie disponible
DSP 40 avec verrou + 2 GFR MALE HP DN20/25 PN40
