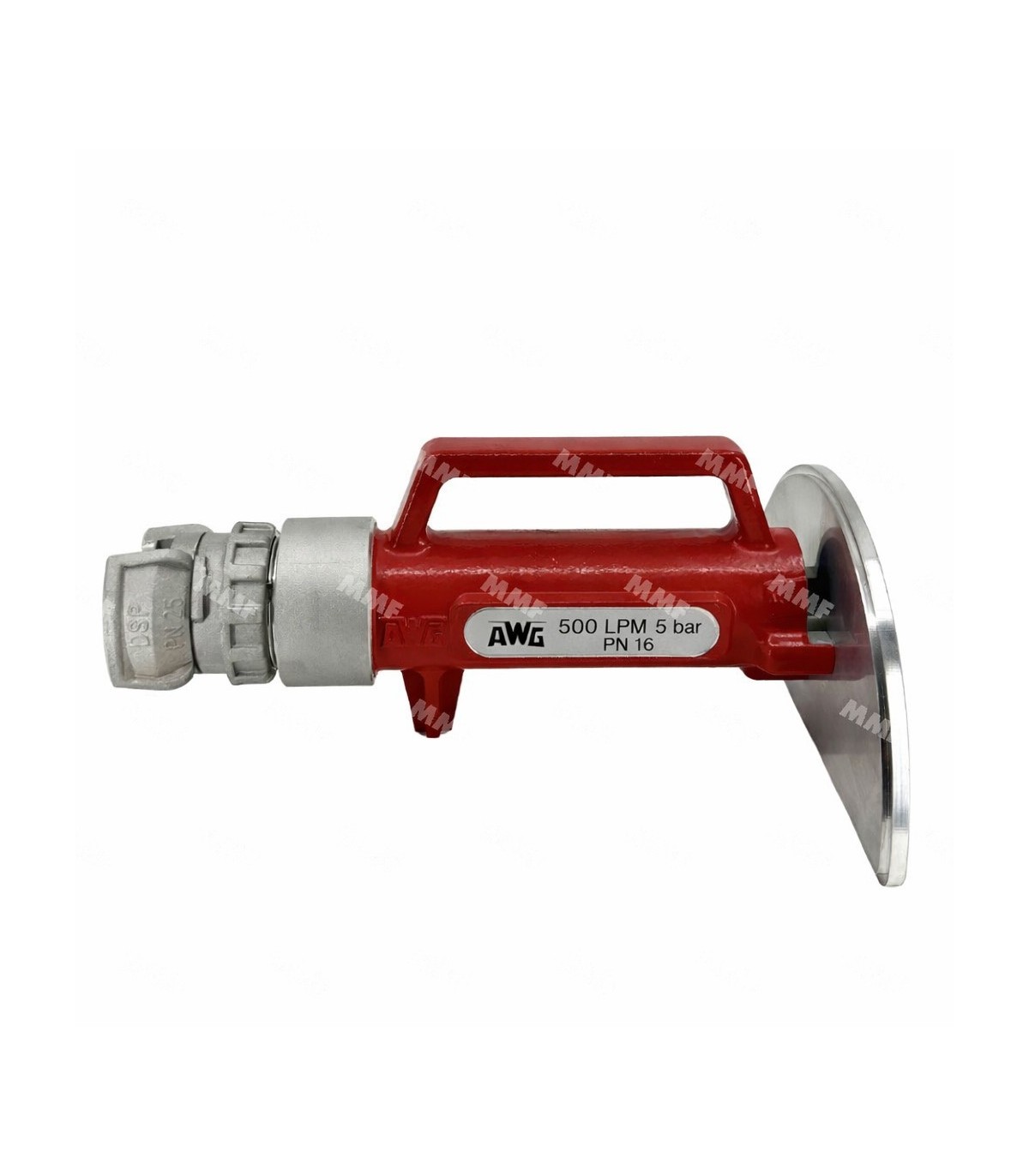

AWG peacock tail water curtain - 500 L/min flow rate

The AWG peacock tail water curtain - 500 L/min flow rate is a piece of fire-fighting equipment designed to create an effective water screen for thermal protection, limiting smoke propagation and protecting exposed structures.

Robust and high-performance, this 500-liter-per-minute water curtain screen is ideal for use by fire departments, industrial sites, local authorities and high-risk environments. It is a reliable solution for securing sensitive areas, protecting equipment exposed to heat and supporting fire defense operations.

500 L/min fire water curtain: performance and protection

Thanks to its peacock-tail effect, the water curtain generates a large hydraulic protective screen. This sheet-like diffusion creates a continuous water barrier, helping to reduce the thermal impact of an incident and protect people and installations alike.

Main applications

• Protection of facades and industrial tanks
• Limiting thermal propagation
• Protection of rescue teams
• Securing sensitive or exposed areas
• Creating a temporary water screen in industrial or urban environments

Its nominal flow rate of 500 L/min ensures even distribution of the water flow, with a good compromise between coverage efficiency, operational protection and water consumption control.

Available versions and references

The AWG 500 L/min water curtain is available with several types of inlets and fittings to suit different fire network configurations and equipment already in service.

DSP fitting DN40

41413 - Water curtain AWG peacock tail 500 L/min - DSP fitting DN40 inlet without lock

41396 - Water curtain AWG peacock tail 500 L/min - DSP DN40 inlet with lock

DSP connection DN65

41412 - Water curtain AWG peacock tail 500 L/min - Inlet DSP connection DN65 without lock

41397 - AWG peacock tail water curtain 500 L/min - DSP DN65 inlet with lock

AWG water curtain technical specifications

• Nominal flow rate: 500 liters per minute
• Type of jet: peacock tail - wide screen
• Applications: thermal protection, hydraulic shielding, fire containment
• Available configurations: Storz, BSP, DSP
• Versions: with or without lock depending on model

Advantages of the AWG 500 L/min peacock tail water curtain

Effective protection of exposed areas

The AWG fire-fighting water curtain forms a hydraulic barrier that limits heat transmission and helps protect sensitive installations, façades, technical storage or intervention zones.

Adaptability to fire networks

With different versions available in DSP DN40, DSP DN50, DSP DN65, Storz 52 or BSP 2 inch, this model can be easily integrated into a wide range of operational configurations.

Robust design for professional use

Designed for intensive use, the AWG water curtain meets the needs of emergency services, high-risk industries, petrochemical sites, local authorities and infrastructure operators requiring reliable fire protection.

Why choose a 500 L/min water curtain?

The 500 L/min peacock tail water curtain is the ideal solution for operators looking for equipment capable of providing good width of coverage while maintaining a controlled flow rate. It represents an excellent compromise for operations where thermal protection, securing an area and optimizing water resources are essential criteria.

Versatile, reliable and easy to integrate into existing fire-fighting systems, it is an essential piece of equipment for operational fire risk management and the protection of strategic infrastructures.
