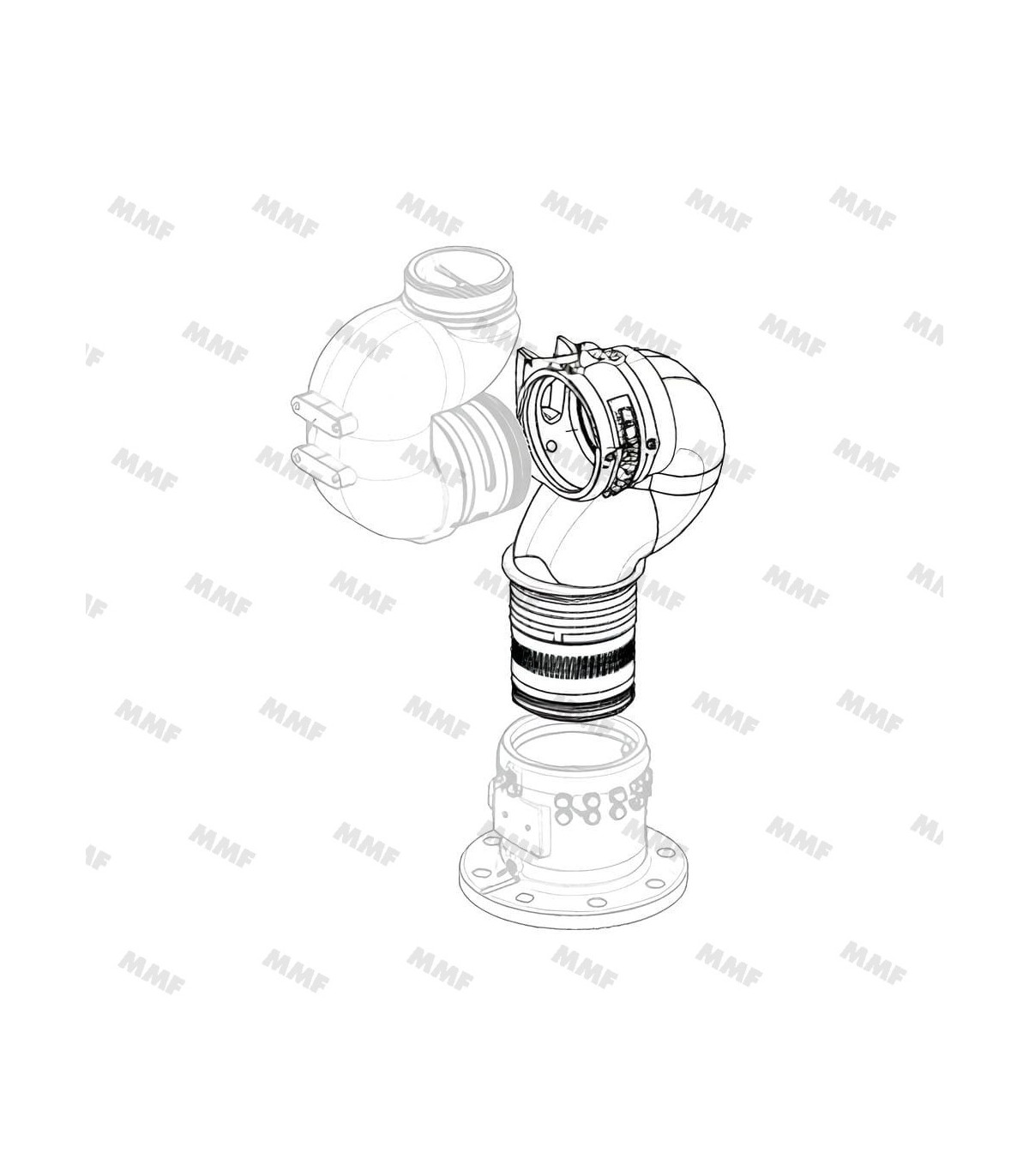

Inlet elbow repair pack for StreamMaster 3578 and 3579

Inlet elbow repair pack for StreamMaster 3578 and 3579

NICKEL MAGNET 731081 1/4D X 1/4LG

2-AKRON®

Maintenance/repair parts pack: repair pack for inlet elbow (elbow 121570 + magnet 731081) for firefighting monitors StreamMaster 3578 and 3579.

Read moreShow less

More about

Reference:

33809 + 33601

Guide de tailles

This pack contains

Angled inlet barrel for monitors StreamMaster 3578, 3579 33809 | MMF.fr

Inlet elbow for monitors StreamMaster 3578-3579

€2,707.90

x 1

NICKEL MAGNET 731081 1/4D X 1/4LG | MMF.fr

NICKEL MAGNET 731081 1/4D X 1/4LG

€28.45

x 1

€2,730.00 (tax excl.)

Instead of €2,736.35

€2,730.00 (tax excl.)

Partager cette fiche produit :

Add to compare0

Approved after-sales service

Spare parts stock

Technical consulting

Made in the USA

Description

Repair pack for inlet elbow (elbow 121570 + magnet 731081) for monitor StreamMaster AKRON®

Suitable only for monitors StreamMaster 3578 and 3579.

All AKRON® spare parts are available from MMF Protection et Sécuritéall spare parts are available from the brand's authorized dealers and repair centers.

Need advice or have a specific request? Just call us!

- by telephone on 04 78 00 00 25

- by e-mail at sav@mMF.fr

Read moreShow less

Product Details

Reference 33809 + 33601

Data sheet

Compatible model: StreamMaster I - 3578
StreamMaster I - 3579

Part type :: casting part (barrel)

Specific References

MPN: 121570 + 731081

Attachments

Éclaté Technique 3578-3579

StreamMaster 3578-3579 technical drawing

Download (3.05MB)
