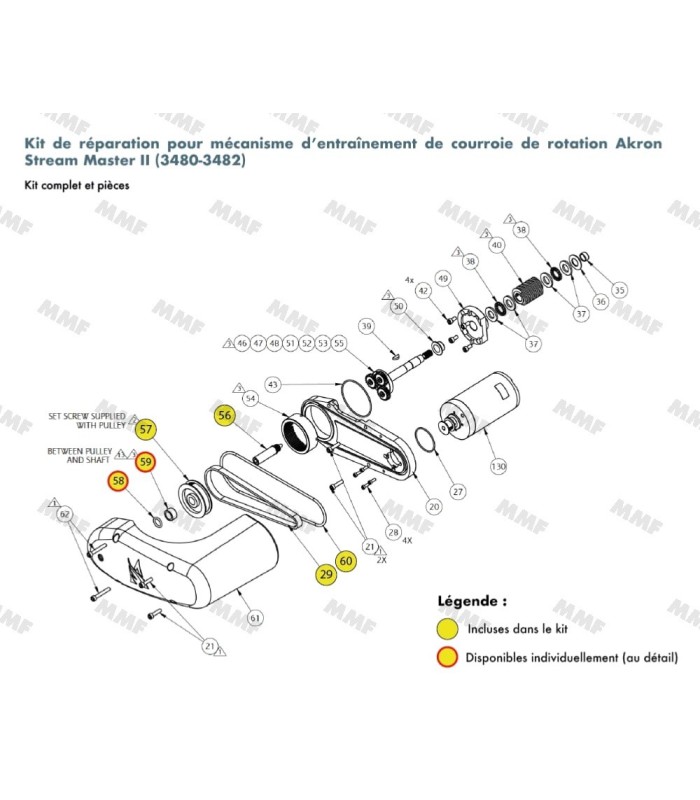

Belt drive for rotation system - monitor Stream Master II (3480-3482 with handwheel)
Detailed contents :
|
Part no |
Ref. MMF |
Designation |
Quantity included |
|
29 |
- |
85-TOOTH BELT |
1 |
|
56 |
39414 |
|
1 |
|
57 |
- |
PULLEY WHEEL |
1 |
|
58 |
34279 |
|
2 |
|
59 |
32809 |
|
1 |
|
60 |
- |
O-RING 2-164 |
1 |
|
100 |
39412 |
ELEVATION STOP |
2 |
To access the individual parts, please refer to the interactive table on the KIT CONTENTS

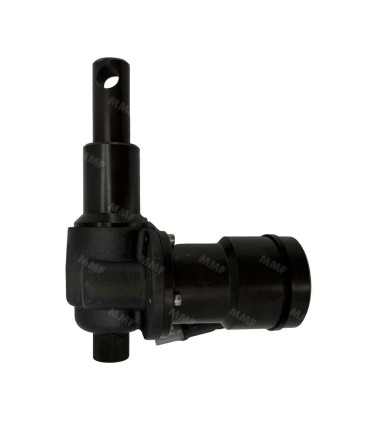

Elevation motor for firefighting monitors StreamMaster II 3480-3482
24V motor (Deutsch male connector) for elevation system on firefighting monitors AKRON StreamMaster II 3480 and 3482 models.
Washer 784072 7/16x.200x.031
Stainless steel washer for AKRON mechanisms 784072 10 ST STL 7/16 X .200X .031T
ROLL PIN 744341 302 .0625 x .375
Stainless steel split cylindrical roll pin for AKRON 302 mechanisms .0625 x .375.
O-ring 757376 (4-3/4 x 4-3/8) - 2-348
Nitrile rubber O-ring for AKRON mechanisms 757376: 4 3/4 X 4 3/8 BUNA N 70 2-348
Inlet elbow for monitors StreamMaster II 3480-3482
Maintenance/repair part: inlet elbow for monitors StreamMaster II 3480 and 3482.
Position sensor 34630228
Position sensor (Deutsch plug) for monitors AKRON DeckMaster 3440 (U1), FireFox 3463 and StreamMaster I (3578 and 3579).
O-RING 757210 2-241
Nitrile rubber O-ring for AKRON mechanisms 757210 N70 2-241.
