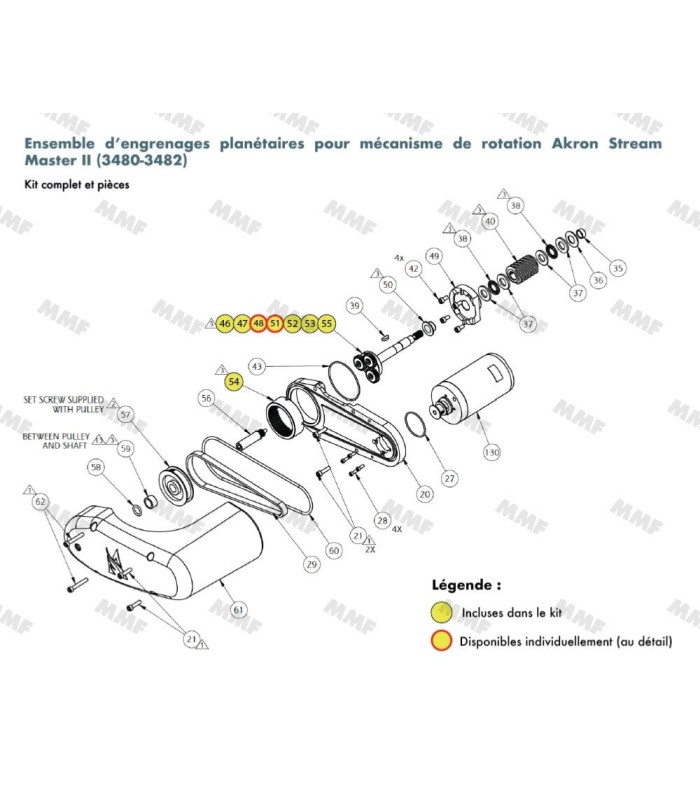

Gears: rotation mechanism for Stream Master II barrel (3480-3482) - exploded view
Zahnräder: Drehmechanismus für wasserwerfer Stream Master II (3480-3482) 39417 | MMF.fr
Zahnräder: Drehmechanismus für wasserwerfer Stream Master II (3480-3482) 39417 | MMF.fr
Gears: rotation mechanism for Stream Master II barrel (3480-3482) - exploded view
Zahnräder: Drehmechanismus für wasserwerfer Stream Master II (3480-3482) 39417 | MMF.fr
Zahnräder: Drehmechanismus für wasserwerfer Stream Master II (3480-3482) 39417 | MMF.fr

Gears: rotation mechanism for monitor Stream Master II (3480-3482)

Gears: lifting mechanism for monitor Stream Master II (3480-3482)
Maintenance/repair kit - monitor StreamMaster II (3480-3482)
2-AKRON®

Detailed contents :

Part no

Ref. MMF

Designation

Quantity included

46

-

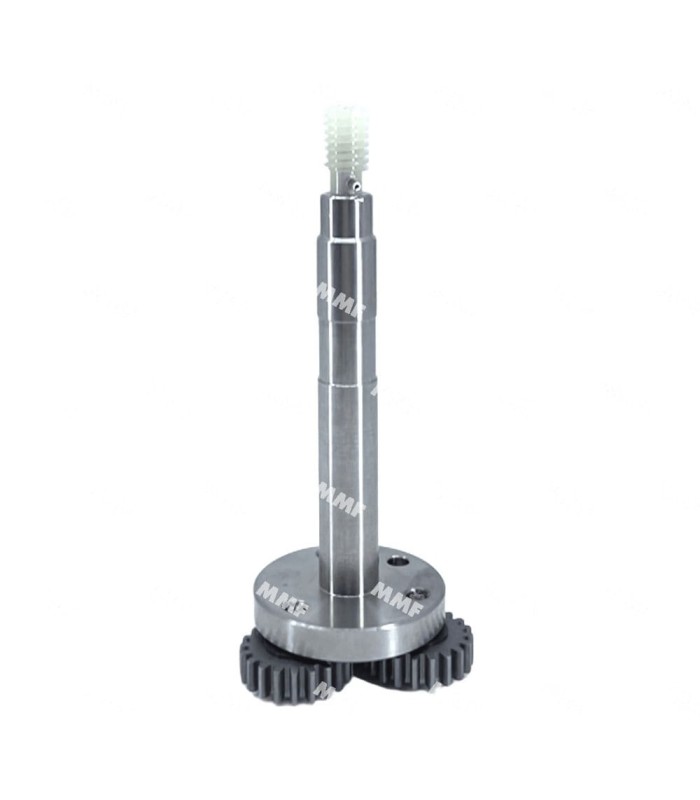

AXIS OF ROTATION

1

47

-

TEFLON WORM SCREW

1

48

34521

GOUPILLE ELASTIQUE 744341 302 .0625 x .375SPRING PIN

1

51

39138

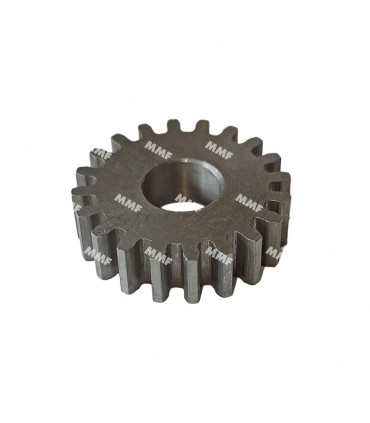

7:1 PLANETARY GEAR

3

52

-

SHOULDER SLEEVE

4

53

-

HEXAGONAL SOCKET HEAD CAP SCREW WITH SHOULDER

3

54

-

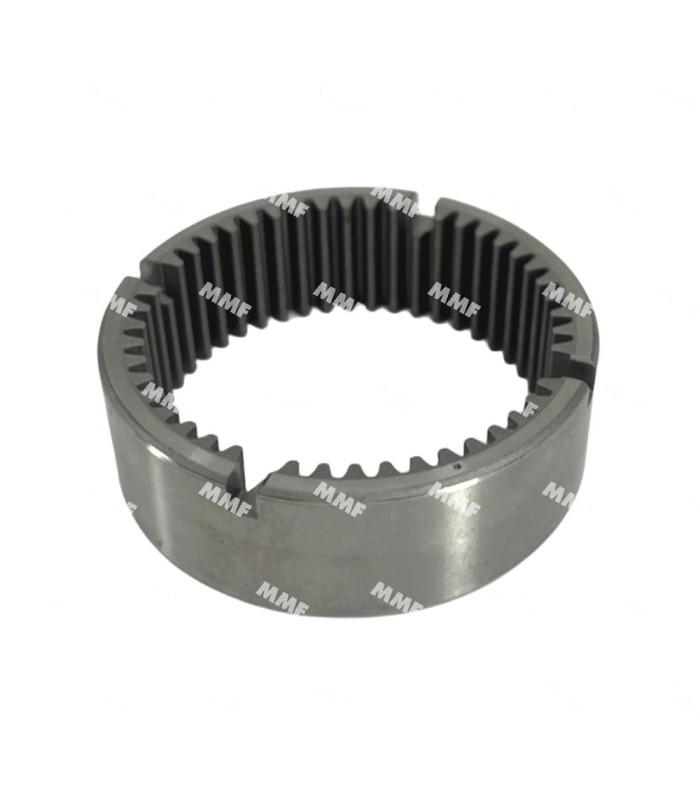

PLANETARY GEAR RING

1

55

-

TEFLON SHOULDER SPACER

1

To access the individual parts, please refer to the interactive table on the KIT CONTENTS

Read moreShow less
Reference:
39417
Guide de tailles
Create a quote
€598.54 (tax excl.)
€598.54 (tax excl.)



Download PDF

Partager cette fiche produit :

Add to compare0
Description

Optimize the rotation and precision of your firefighting monitor Stream Master II (3480-3482) with this replacement gear set. Designed to ensure smooth operation and efficient power transmission, this kit restores the original performance of the rotation mechanism.

A gear set designed for performance

Over time, gear wear can lead to malfunctions in the rotation of your firefighting monitor. This set of parts provides an effective, long-lasting repair. It includes :

  • Transmission gears: guarantee smooth, jolt-free rotation.
  • Reinforced bearings: ensure longer life and reduce premature wear.
  • Axles and fasteners: for secure, precise assembly.
  • High-performance lubricants: optimize mechanism operation.

Why trust MMF Protection et Sécurité?

As AKRON's main dealer and authorized repair center in France, we guarantee :

  • Genuine AKRON parts: certified compatibility and quality.
  • Expert technical support: installation and maintenance assistance.
  • Availability and responsiveness: customer service at your disposal for any questions you may have.

Technical specifications

Features Description
Compatibility Stream Master II guns (models 3480 and 3482)
Composition Gears, bearings, axles, fasteners and lubricants
Materials High-strength metal alloy
Installation Easy to assemble, with technical assistance available

Order your kit now

Keep your monitor Stream Master II running smoothly with this replacement gear kit. If you have any questions or need advice, please contact our experts. MMF Protection et Sécurité is your trusted partner for fire equipment maintenance and repair.

Read moreShow less
Product Details
39417

Data sheet

Compatible model
StreamMaster II - 3480
StreamMaster II - 3482
Parts kit for
rotation gears

Specific References

MPN
34800113 - K kit
