24V motor for monitor nozzles - repair assembly

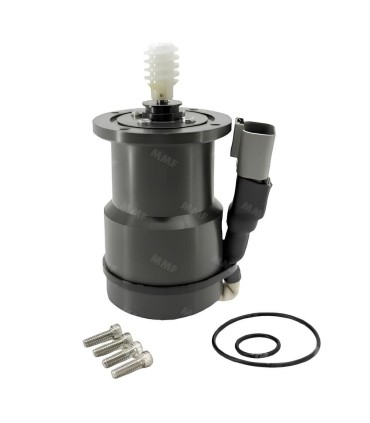

Complete maintenance kit for motorization of monitor nozzles AKRON models including:
- ● 1 24V motor (Deutsch female connector[33560010] or Speed Clip[50770030])
- ● 1 O-ring 2-015 (757112)
- ● 1 O-ring 2-029(757056)
- ● 1 worm screw actuator(785021)
- ● 1 spring pin 1/16" x 3/8"(744341)
- ● 4 socket head cap screws 6-32 x 1/2"(765052)
NEEDLE BEARING 704393 3/8 SCE65
Needle roller bearing for AKRON 3/8 SCE65 mechanisms.
O-RING 757245 2-024
O-ring for AKRON mechanisms 757295 1 1/4 "X 1 1/8 "N-818-70 IM 2-024.
Gears: rotation mechanism for monitor Stream Master II (3480-3482)
Detailed contents :
|
Part no |
Ref. MMF |
Designation |
Quantity included |
|
46 |
- |
AXIS OF ROTATION |
1 |
|
47 |
- |
TEFLON WORM SCREW |
1 |
|
48 |
34521 |
|
1 |
|
51 |
39138 |
7:1 PLANETARY GEAR |
3 |
|
52 |
- |
SHOULDER SLEEVE |
4 |
|
53 |
- |
HEXAGONAL SOCKET HEAD CAP SCREW WITH SHOULDER |
3 |
|
54 |
- |
PLANETARY GEAR RING |
1 |
|
55 |
- |
TEFLON SHOULDER SPACER |
1 |
SPRING PINTo access the individual parts, please refer to the interactive table on the KIT CONTENTS
Retaining ring 758216
AKRON Smalley stainless steel retaining ring 758216 for gasket 714173
Lubricating grease for AKRON mechanisms
IRIX EVO CSX 100-2 FG food-grade lubricating grease for greasing and lubricating AKRON parts and mechanisms.
O-RING 757041 2-014
O-ring for AKRON mechanisms 757041 2-014.
Hex socket head cap screw 767126 10-24 X 1 3/4
Stainless steel hex socket head cap screw (partial thread) for AKRON mechanisms 767126 10-24 X 1 3/4 LG.
