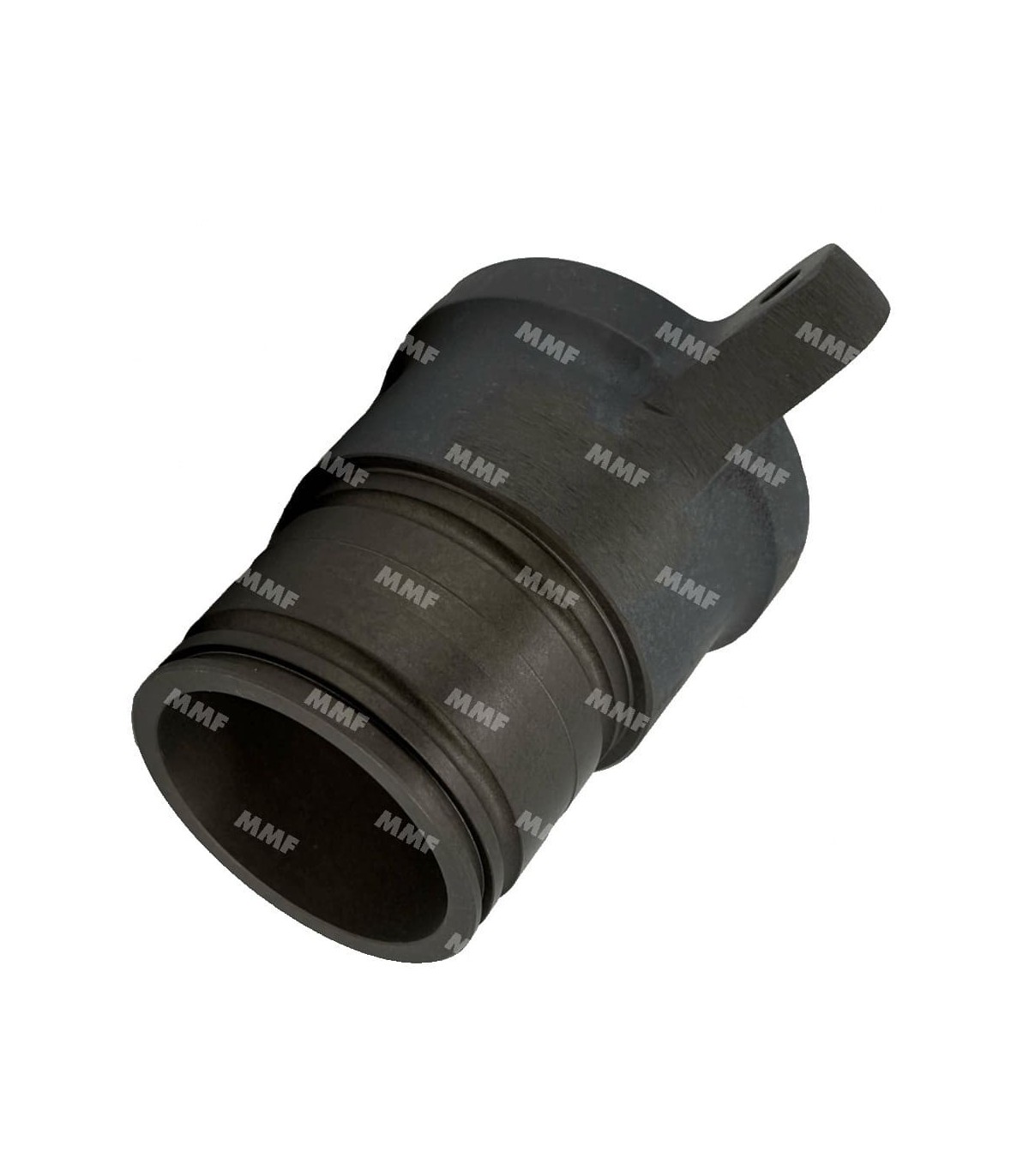

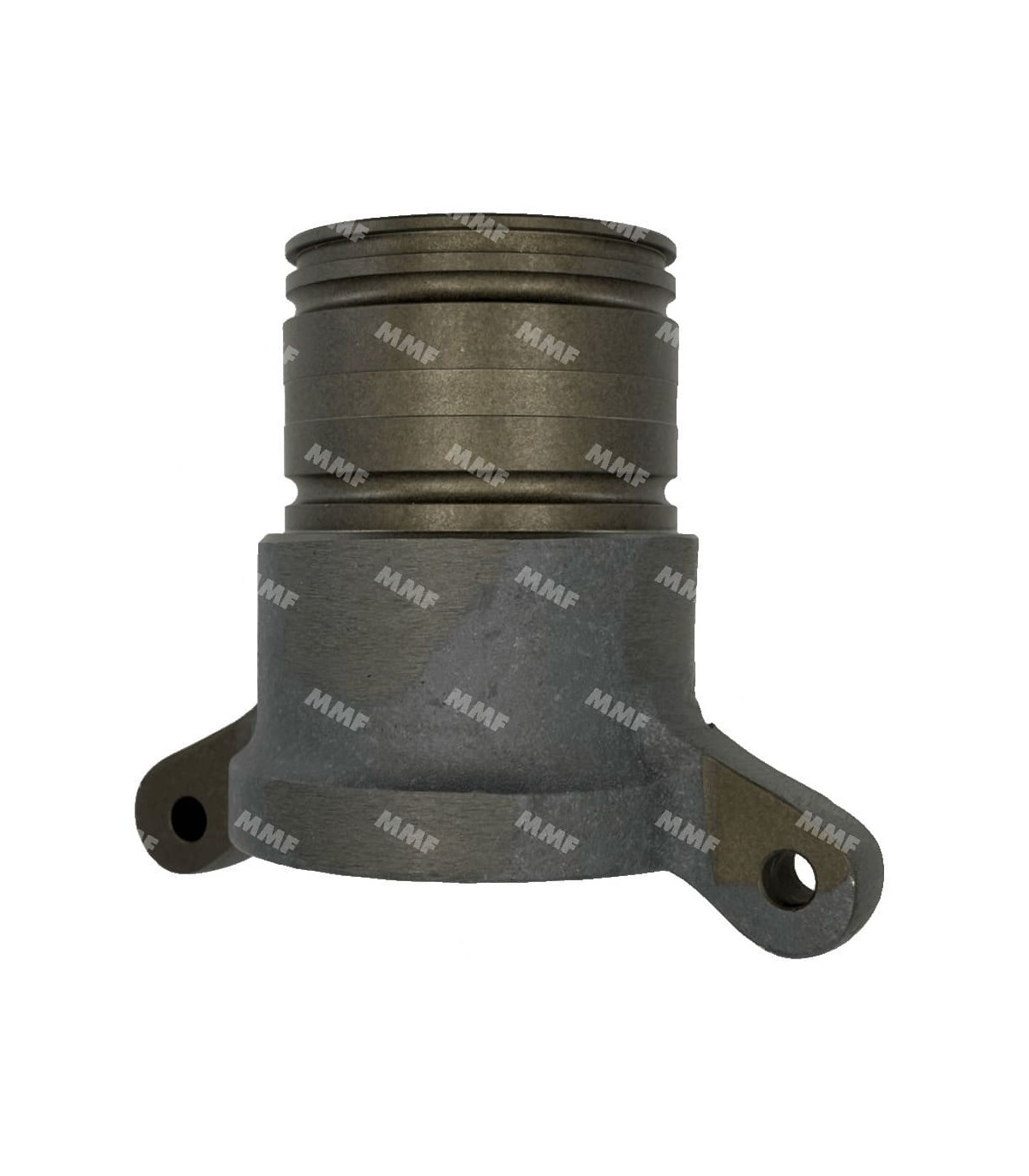

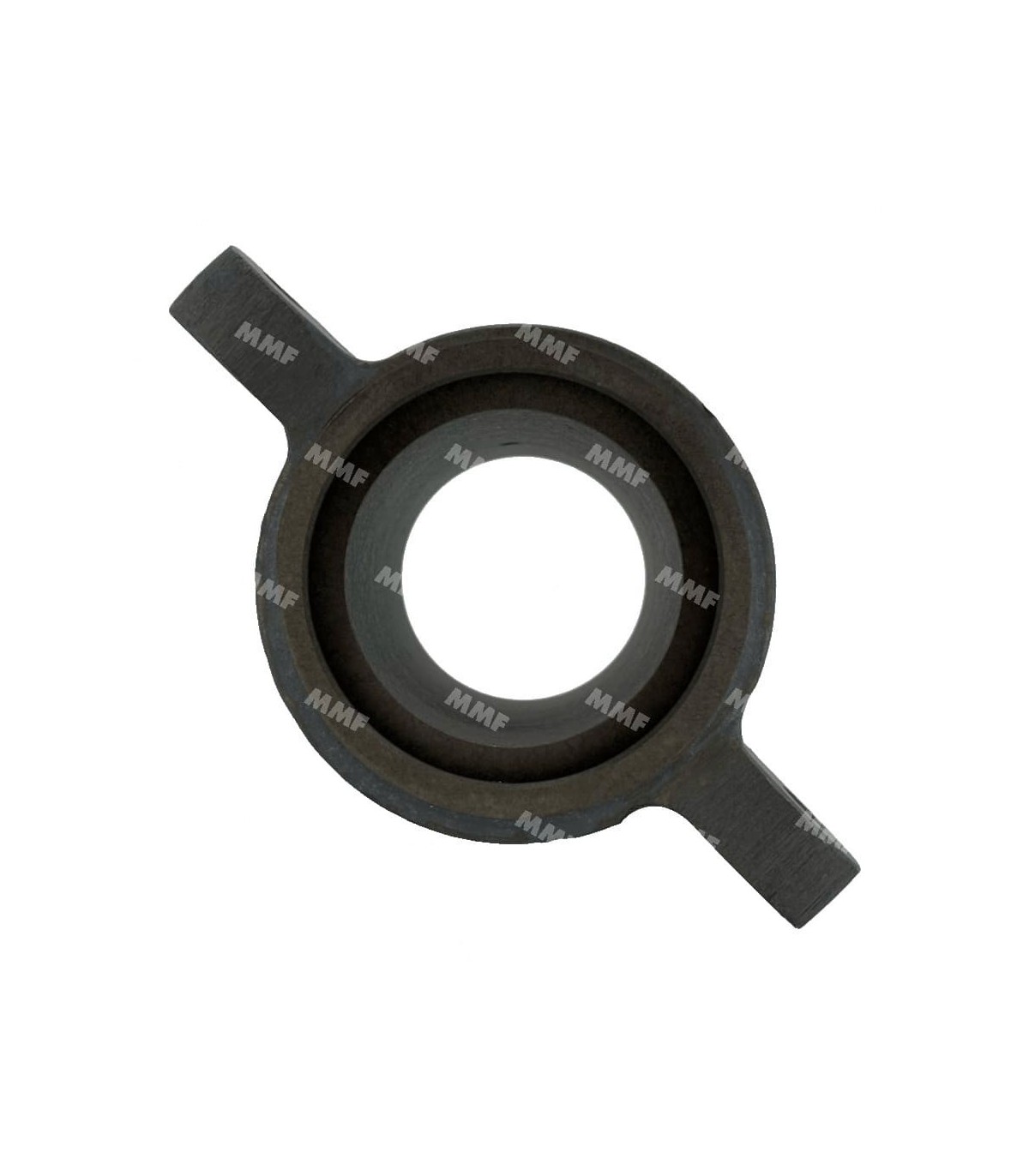

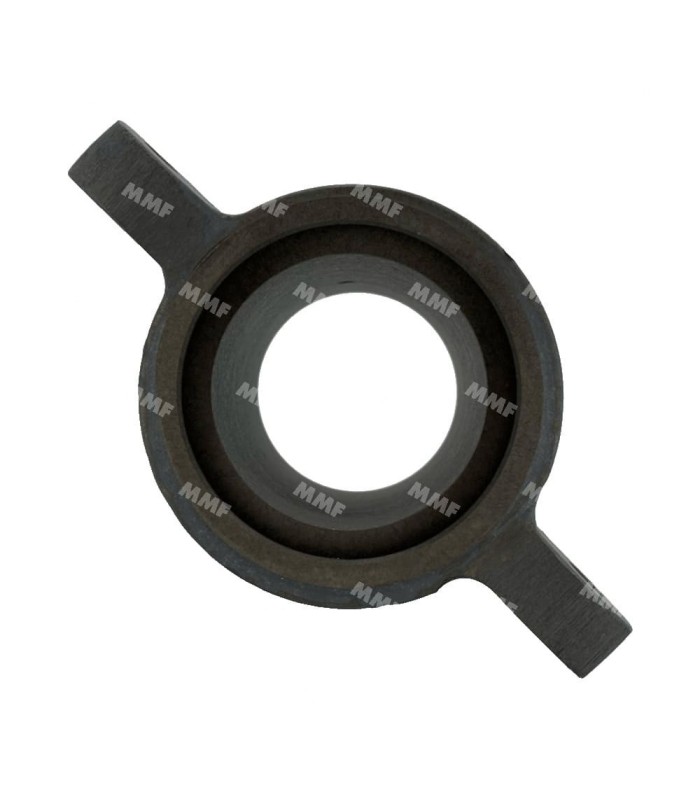

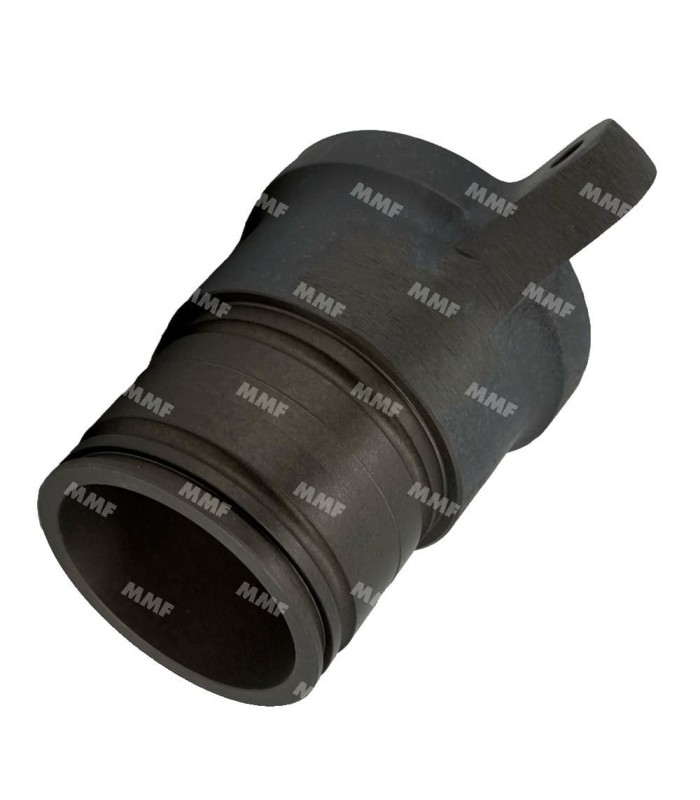

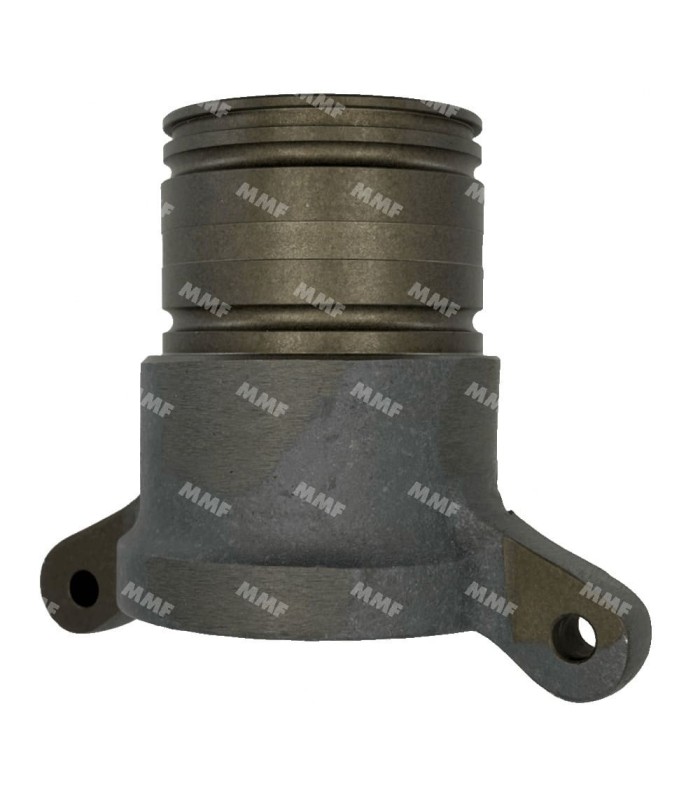

Inlet connector for firefighting monitor Apollo

Maintenance/repair part: inlet connector with drilled lugs (locking pin fixing) 104404 for adaptation to mounting flange - firefighting monitors Apollo 3414, 3416, 3421 and 3423.

Read moreShow less
Reference:
34888
Guide de tailles
Color
  • Raw (unpainted)
Create a quote
€270.88 (tax excl.)
€270.88 (tax excl.)

Partager cette fiche produit :

Add to compare0
Description

Inlet connector with drilled lugs (locking pin fixing) 104404 for adaptation to mounting flange - firefighting monitors Apollo AKRON®

  • Fits monitors Apollo 3414, 3416, 3421 and 3423.

All AKRON® spare parts are available from MMF Protection et Sécuritéall spare parts are available from the brand's authorized dealers and repair centers.


Need advice or have a specific request? Please contact us!

- by telephone on 04 78 00 00 25

- by e-mail at sav@mMF.fr

Read moreShow less
Product Details
34888

Data sheet

Compatible model
Apollo - 3414
Apollo - 3416
Apollo - 3421
Apollo - 3423
Part type :
casting part (barrel)

Specific References

MPN
104404
Attachments

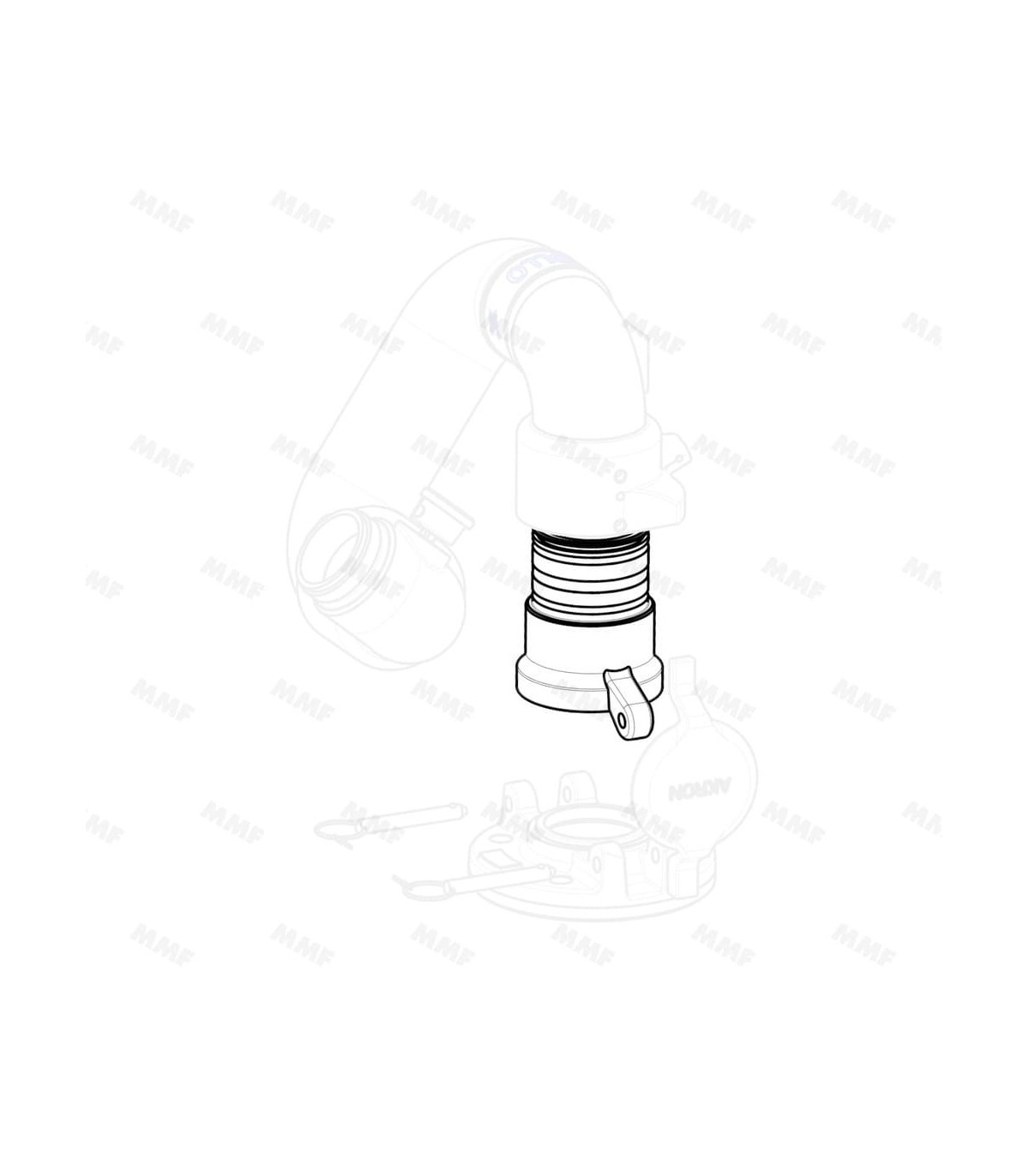

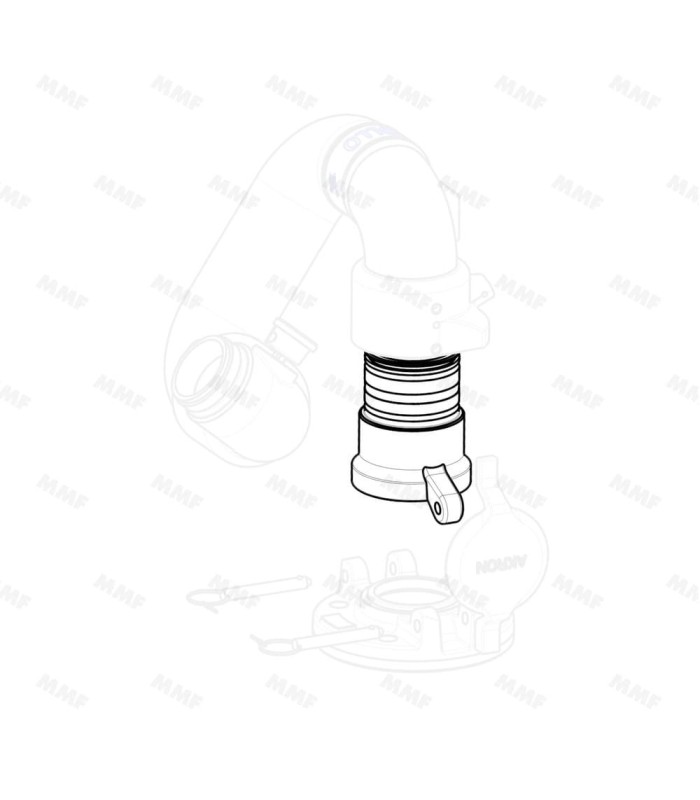

Éclaté Technique 3414-16-21-23
Apollo Technical Splinter 3414-3416-3421-3423
Download (906.86KB)
You may also like

Reference: 34104
€5,683.35 (tax excl.)
€5,683.35 (tax excl.)

The Monitor Apollo 3414 from Akron Brass is a versatile water firefighting monitor portable designed for emergency response. It allows 360° rotation in fixed mode and 180° in portable mode, with elevation from 90° above to 15° below horizontal, including a 35° safety stop. Its water inlet with integrated fins ensures an efficient flow rate of up to 4,800 L/min in fixed mode and 3,800 L/min in portable mode. Made from Pyrolite, it is both lightweight and durable, ideal for fire departments requiring a reliable, adaptable solution.

Reference: 21473
€5,093.12 (tax excl.)
€5,093.12 (tax excl.)

The monitor AKRON® Apollo 3421 is a versatile, high-performance firefighting monitor water pump, ideal for emergency response. This model is distinguished by its dual water inlet, which enhances flexibility and optimizes flow management according to needs in the field. Lightweight and compact, the Apollo 3421 is suitable for both portable and fixed installation, offering great mobility and rapid set-up. Its sturdiness and Pyrolite construction material guarantee enhanced resistance in the most demanding environments. With its powerful flow capacity and exceptional maneuverability, the Apollo 3421 is an essential piece of equipment for fire-fighting professionals, combining efficiency and practicality.

8 other products in the same category:

Reference: 40914
€1,258.34 (tax excl.)
€1,258.34 (tax excl.)

Detailed contents :

Part no

Ref. MMF

Designation

Quantity included

13

34839

VIS SANS FIN EN ACIER TREMPÉ 718273 HL1056HARDENED STEEL WORM SCREW

1

73

34478

CLAVETTE DEMI-LUNE 727025 1/8 X 1/2 404.HALF-MOON KEY

2

74

34479

PIGNON À 10 DENTS 769499 X1/2 BORE X3510-TOOTH PINION

2

75

34481

ENTRETOISE ÉPAISSE EN ACÉTAL 769495 .246THICK ACETAL SPACER

1

76

34279

JOINT TORIQUE 757313 2-112O-RING 2-112

1

77

34471

CHAÎNE POUR MÉCANISME DE ROTATION 35780001 8.625CHAIN FOR ROTATION MECHANISM

1

79

34473

AXE POUR MÉCANISME DE ROTATION 769525 303-304SHAFT FOR ROTATION MECHANISM

1

80

34397

RONDELLE-RESSORT 769276 B1000-050S SPRING WASHER

2

81

34398

RONDELLE DE CALAGE 769494 STL.010LOCK WASHER

1

82

34472

ENTRETOISE ÉPAULÉE EN BRONZE 703461BRACE WITH BRONZE SHOULDERS

1

137

34476

RONDELLE DE ROULEMENT FINE 784114 0.63 TRB613THIN BEARING WASHER

2

138

34475

RONDELLE DE ROULEMENT ÉPAISSE 784113 0.94 TRC613THICK BEARING WASHER

2

139

34428

BUTÉE À AIGUILLES 704437 3/8ID NTA613NEEDLE ROLLER THRUST BEARING

2

To access the individual parts, please refer to the interactive table on the KIT CONTENTS

Reference: 39417
€598.54 (tax excl.)
€598.54 (tax excl.)

Detailed contents :

Part no

Ref. MMF

Designation

Quantity included

46

-

AXIS OF ROTATION

1

47

-

TEFLON WORM SCREW

1

48

34521

GOUPILLE ELASTIQUE 744341 302 .0625 x .375SPRING PIN

1

51

39138

7:1 PLANETARY GEAR

3

52

-

SHOULDER SLEEVE

4

53

-

HEXAGONAL SOCKET HEAD CAP SCREW WITH SHOULDER

3

54

-

PLANETARY GEAR RING

1

55

-

TEFLON SHOULDER SPACER

1

To access the individual parts, please refer to the interactive table on the KIT CONTENTS
