Rotating mechanism for monitor Stream Master II (3480-3482)
Detailed contents :
|
Part no |
Ref. MMF |
Designation |
Quantity included |
|
35 |
- |

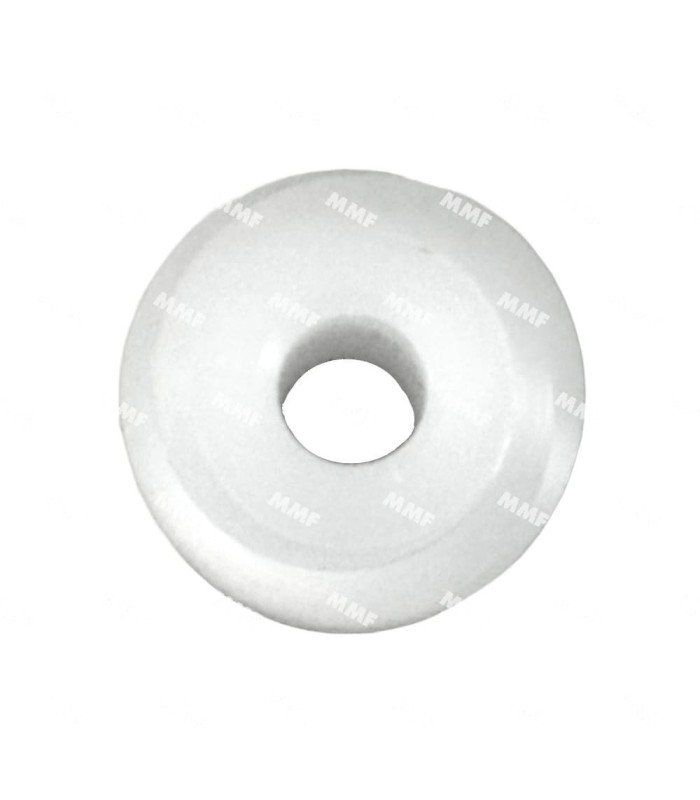

TEFLON SPACER |
1 |
|
36 |
34397 |
|
1 |
|
37 |
32804 |
|
4 |
|
38 |
33649 |
|
2 |
|
39 |
34478 |
|
1 |
|
40 |
34839 |
|
1 |
|
42 |
- |
SOCKET HEAD CAP SCREW |
4 |
|
43 |
32790 |
|
1 |
|
47 |
- |

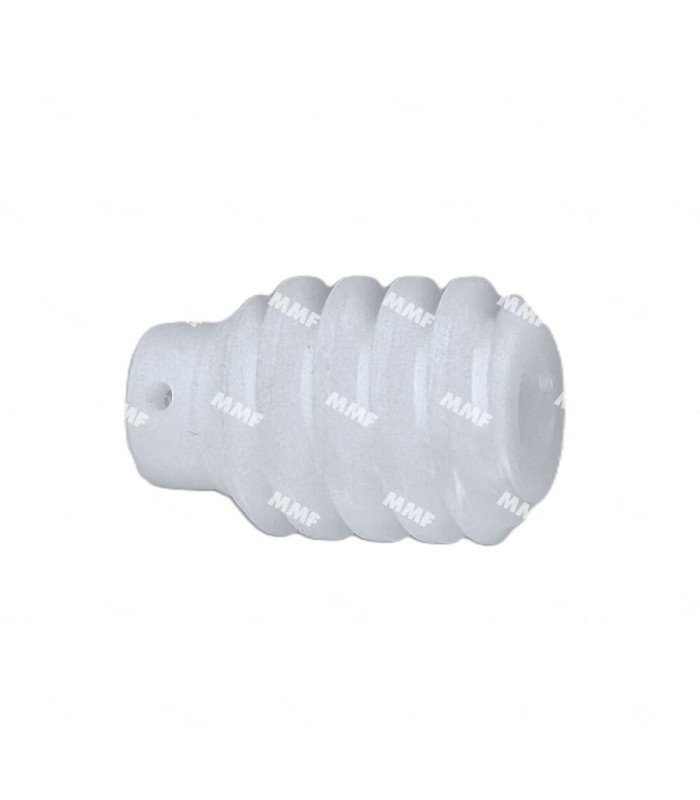

TEFLON WORM SCREW |
1 |
|
48 |
34521 |
|
1 |
|
49 |
- |
OBTURATOR |
1 |
SPRING WASHER
To access the individual parts, please refer to the interactive table on the KIT CONTENTS
Position sensor 33520003
Position sensor (ITT Sure-Seal plug) for AKRON roof and bumper turrets TuckAway 3352, 3353, 3354 and 3355.
TEFLON BEARING SEAL 803058 4.835
Teflon bearing seal for AKRON mechanisms 803058 UHMW 4.835 ID.
Roll pin 744078
Stainless steel split cylindrical roll pin for AKRON mechanisms 744078: ESN ST STL 18-879-022-094-0750
Hex socket set screw with cup point 765025 10-24 x 1/4
Stainless steel hex socket set screw with cup point for AKRON mechanisms 765025 10-24 X 1/4.
SHAFT FOR ROTATION MECHANISM 769525 303-304
Rotating axle for AKRON mechanisms 769525 303-304.
O-ring 757081 (3-5/8 x 3-3/8) - 2-237
Nitrile rubber O-ring for AKRON mechanisms 757081: 3 5/8 X 3 3/8 BUNA N70 2-237
Hex socket set screw with cone point 765186 3/8-24 x 1/2
Stainless steel hex socket set screw with cone point for AKRON mechanisms 765186 3/8-24 x 1/2.
