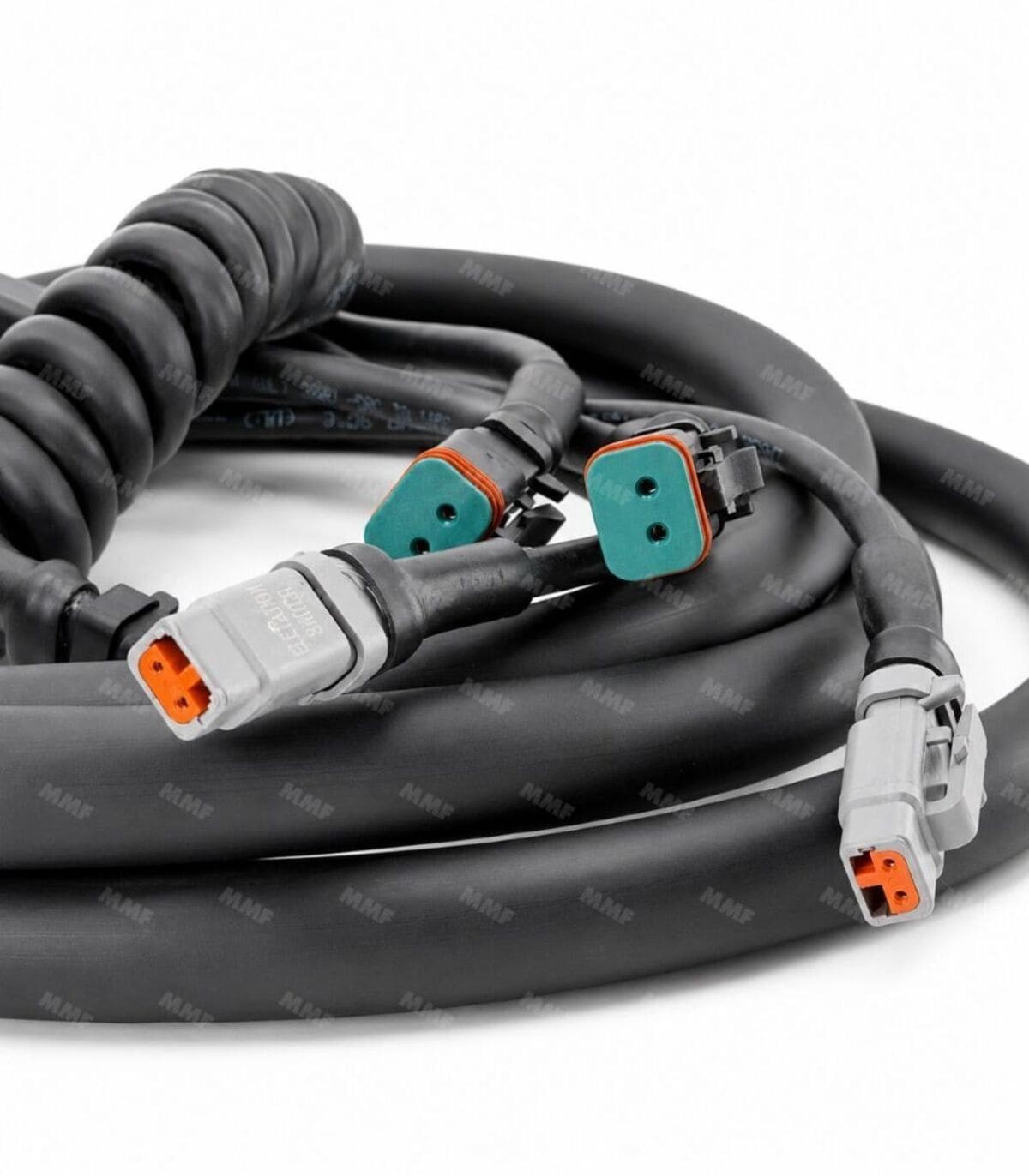

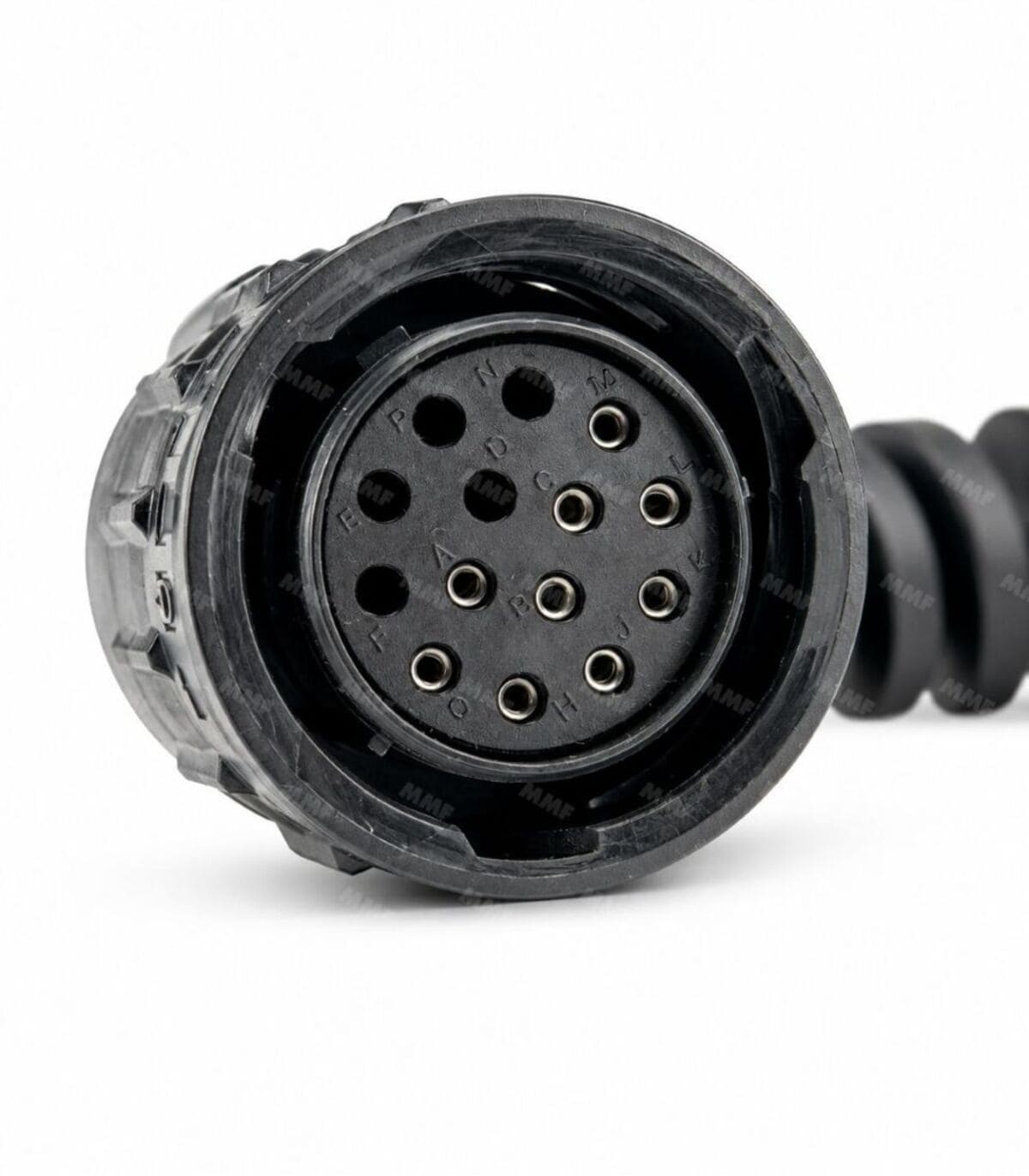

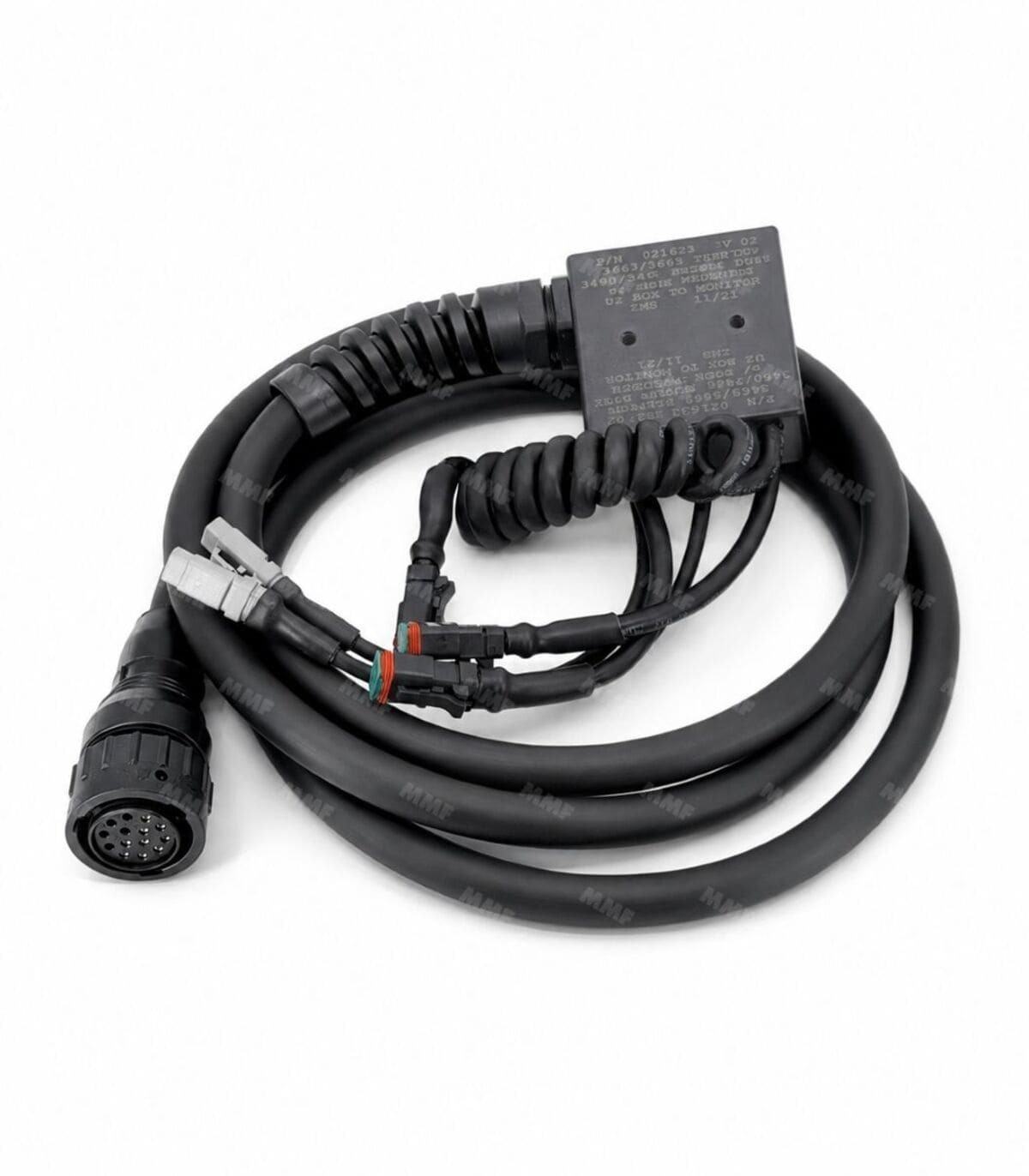

Wiring harness with position feedback for FireFox U2 monitor

Complete wiring harness with position feedback (Deutsch connectors) for the following U2 monitor models:

  • FireFox 3463 and 3563
  • Severe-Duty 3490 and 3491

BE SURE TO CHECK THE HARNESS'S COMPATIBILITY WITH YOUR Monitor

Read moreShow less
Reference:
39375
Guide de tailles
In stock (delivery time depends on choice of carrier) 1 Item
Create a quote
€718.05 (tax excl.)
€718.05 (tax excl.)

Partager cette fiche produit :

Add to compare0
Description

Complete wiring harness 721623 with position feedback for AKRON Firefox and Severe-Duty U2 monitors.


All AKRON® replacement parts and accessories are available at MMF Protection et Sécurité. Trust an authorized dealer or repair center for this brand!


Need advice or have a specific request? Contact us!

- by phone at 04 78 00 00 25

- by email at sav@mMF.fr

Read moreShow less
Product Details
39375

Data sheet

Length
2.44 meters
Compatible model
Firefox - Style 3463
Firefox - Style 3563
Severe-Duty 3490
Severe-Duty 3491
Part type :
connectors
wiring harness

Specific References

MPN
721623
Attachments
tech-serv-parts-3463_117906
Technical details - monitor AKRON FireFox 3463 and 3563 U1
Download (1.8MB)
tech_serv_parts-3490_1-120915
Technical Exploded View: monitor AKRON Severe-Duty - Styles 3490 & 3491
Download (1.57MB)
