Discharge hose for hydrocarbons and industrial use

High-performance anti-static discharge hose

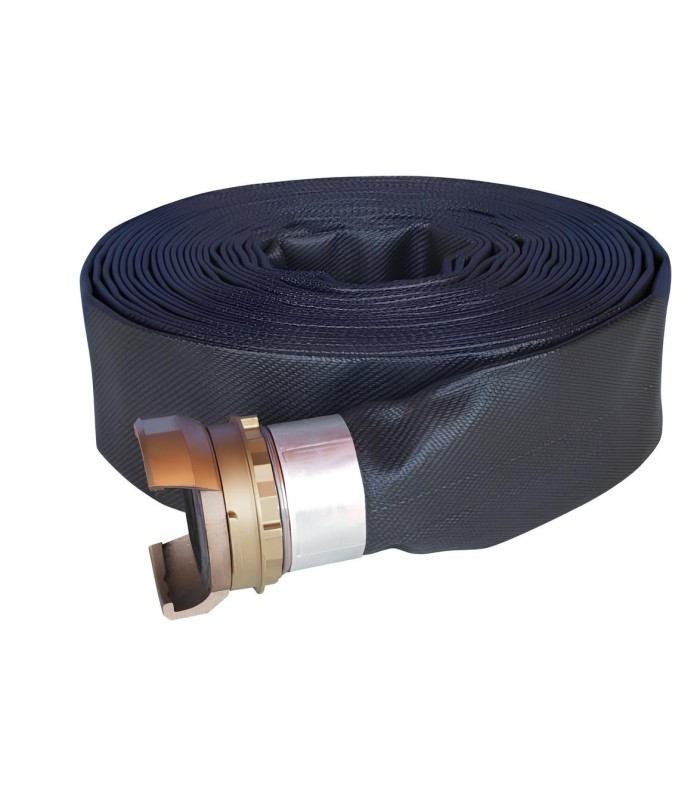

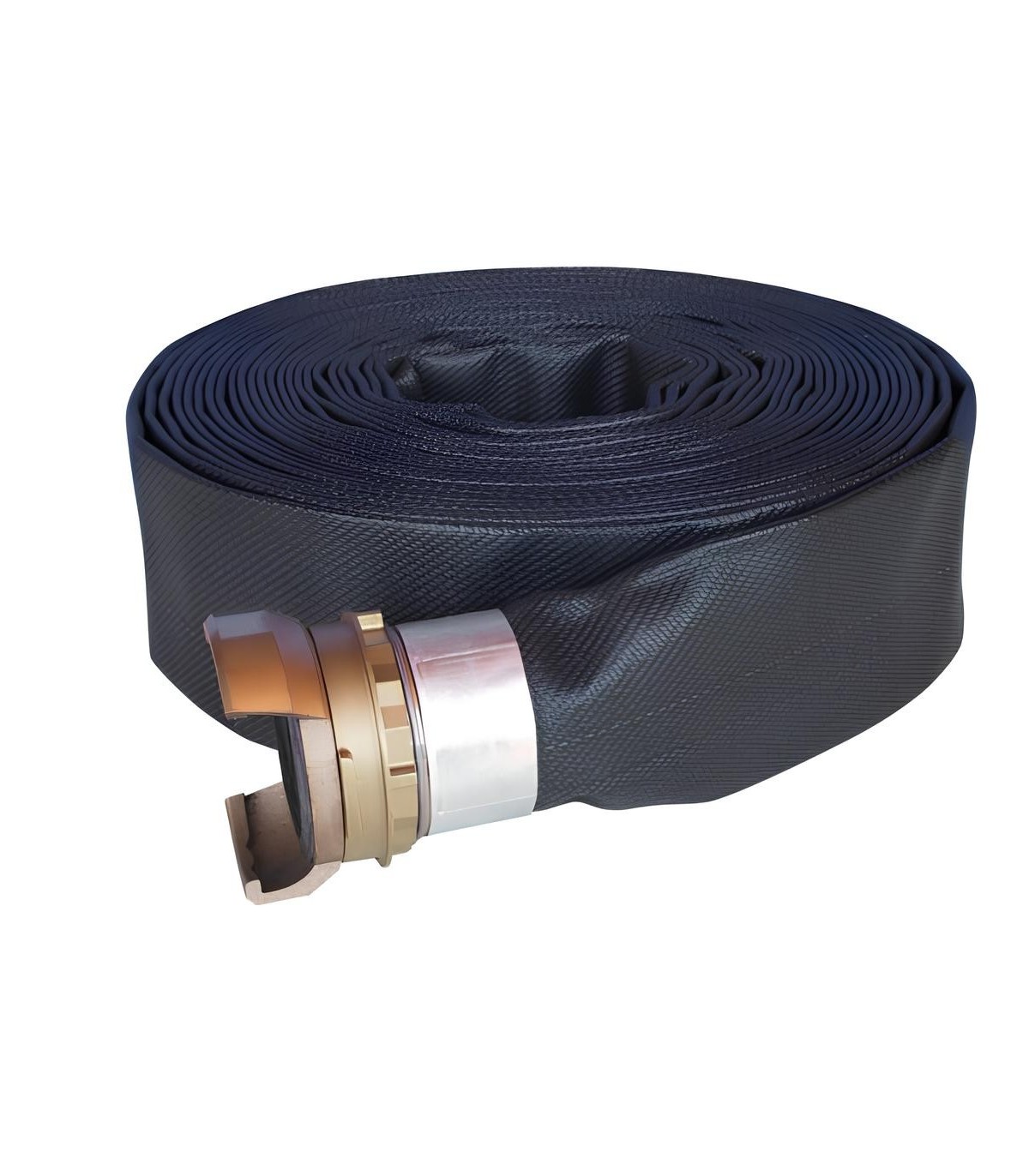

POLYFLUID is a reinforced flexible hose specially designed for conveying and discharging hydrocarbon liquids, and for firefighting in high-risk industrial environments. Its conductive NBR rubber lining and 3 integrated electrical continuity wires ensure conductivity <¹⁰⁶ Ω, preventing the build-up of static electricity. It combines robustness, flexibility and excellent resistance to abrasion, ageing and chemical agents.

Main technical features

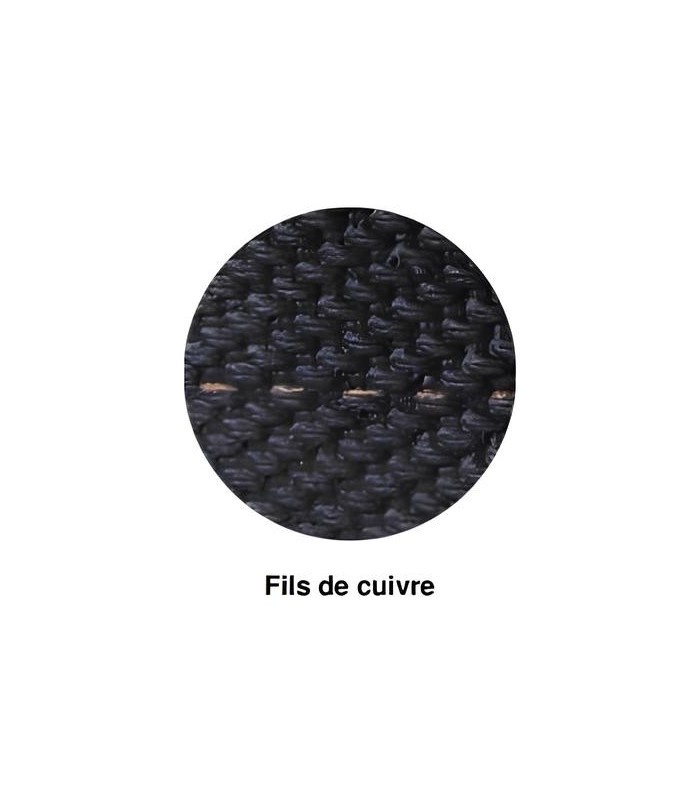

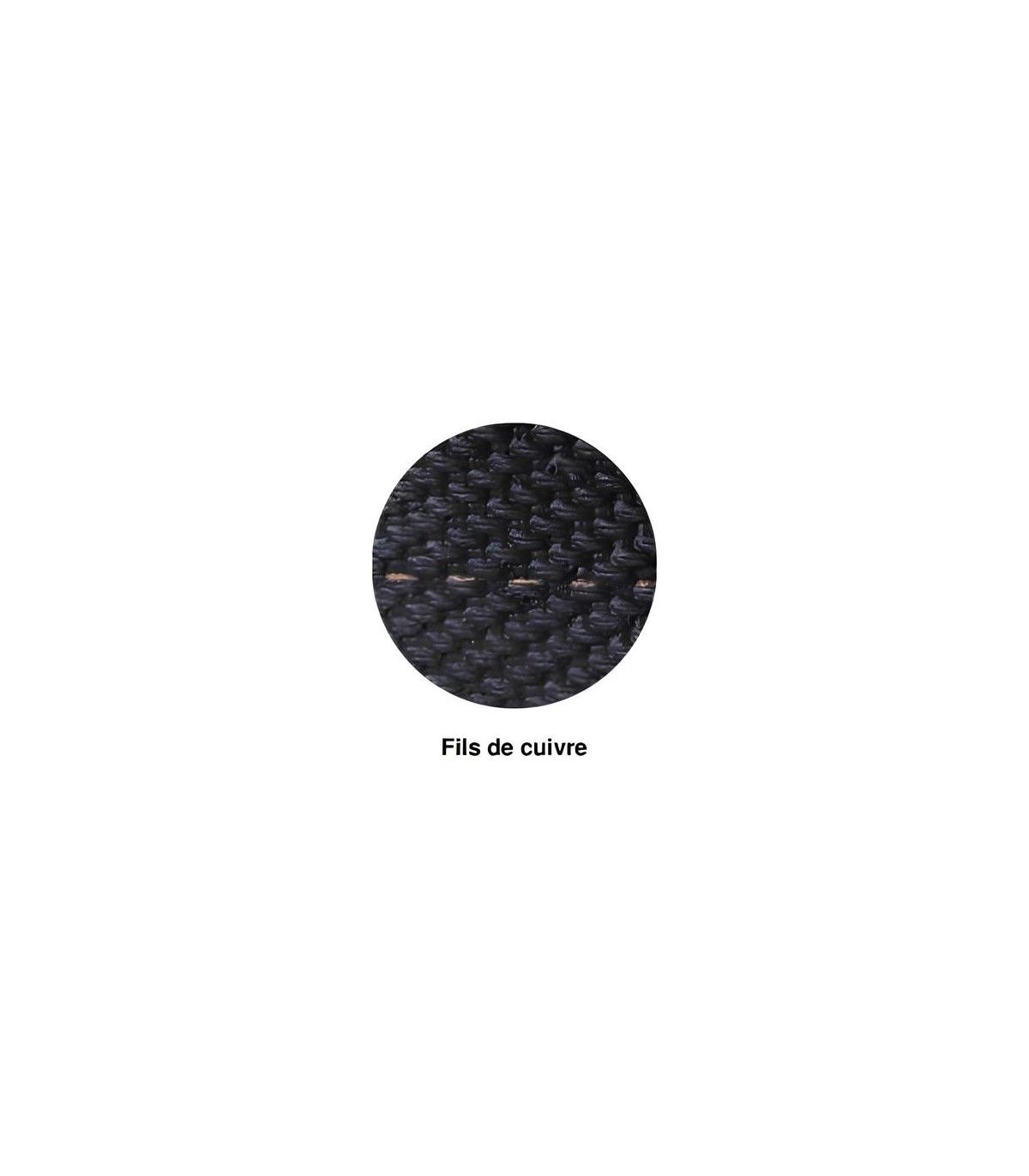

• Textile weave: 100% high-tenacity polyester, circular weave, 2-end warp, twill weave, with 3 electrical continuity wires
• Elongation: longitudinal max. 3%, transverse max. 3
• Inner coating: high-quality, conductive NBR synthetic rubber, resistant to oils and hydrocarbons
• Outer coating: black polyurethane coating, resistant to abrasion, weathering, ozone and ageing - easy to maintain and repairable
• Anti-static properties: electrical conductivity <¹⁰⁶ Ω, PTB-tested
• Operating pressure: up to 16 bar (depending on diameter)
• Burst pressure: 30 to 60 bar
• Operating temperature: -30°C to +80°C
• Resistance: no twisting - low pressure drop
• Standard lengths: 20 m and 40 m - other lengths on request
• Color: black (other colors available from 500 m)

Dimensions and pressures

Fittings and accessories

• Available systems: DSP, Symmetrical Guillemin, Storz
• Materials: aluminum or bronze
• Can be connected with or without bonding to copper wires (NBR coating guarantees electrical conductivity)
• Repair kit and vulcanizing machine available on request

Application sectors

• Fire department
• Industry
• Merchant marine
• Refineries and petrochemicals
• Mining

Standards and certifications

• DIN 14811
• Electrical conductivity tested and validated by PTB (Physikalische Technische Bundesanstalt)
• ISO 9001-certified manufacturing

Distribution MMF Protection et Sécurité

Available from MMF Protection et SécuritémR POLYFLUID pipe is a highly technical, reliable product for the most demanding environments. Full compliance with standards and proven robustness.
