copy of DB100 DL fire hydrant flowmeter with valve

The DB100 DL hydrant flowmeter is a professional device for precise measurement of flow, pressure and volume during hydrant inspections. Thanks to its Woltmann turbine technology and IP68 digital display, it guarantees reliable measurements even in demanding conditions.

Robust, self-contained (10 years) and easy to use, it is ideal for fire network maintenance and inspection operations carried out by local authorities and professionals.

Read moreShow less
Reference:
38661
Guide de tailles
Out of stock (estimated delivery time: 1 to 2 weeks)
Create a quote
€2,928.12 (tax excl.)
€2,928.12 (tax excl.)

Partager cette fiche produit :

Add to compare0
Description

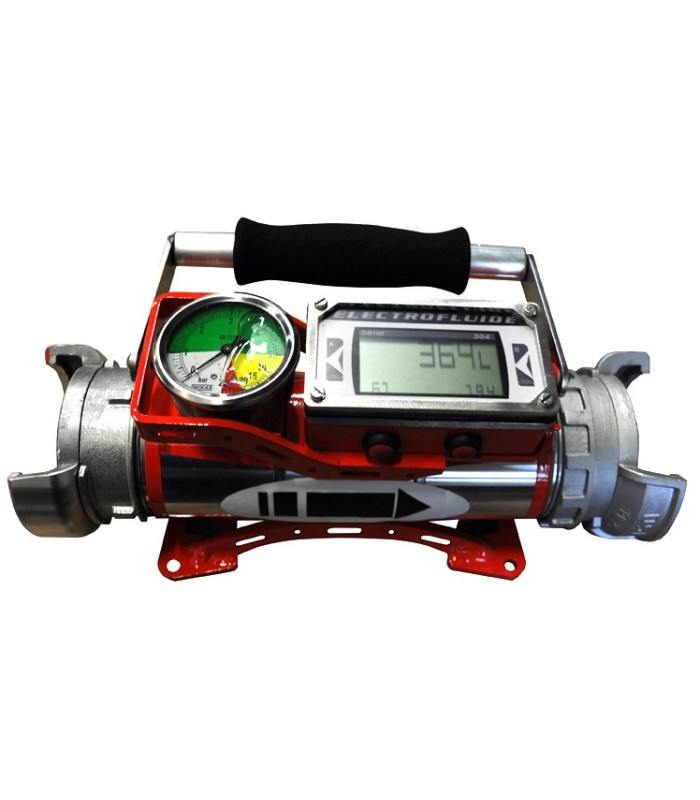

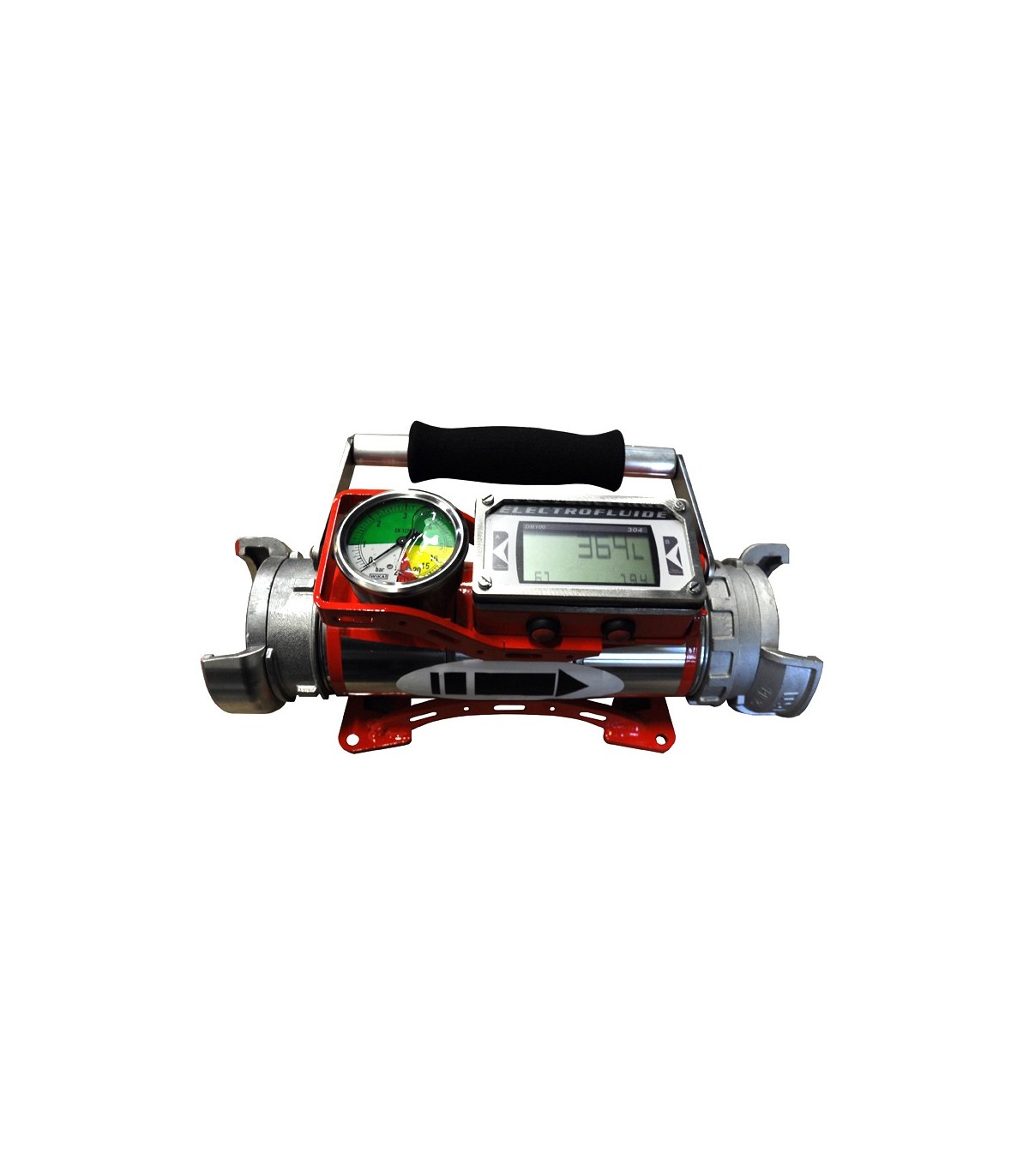

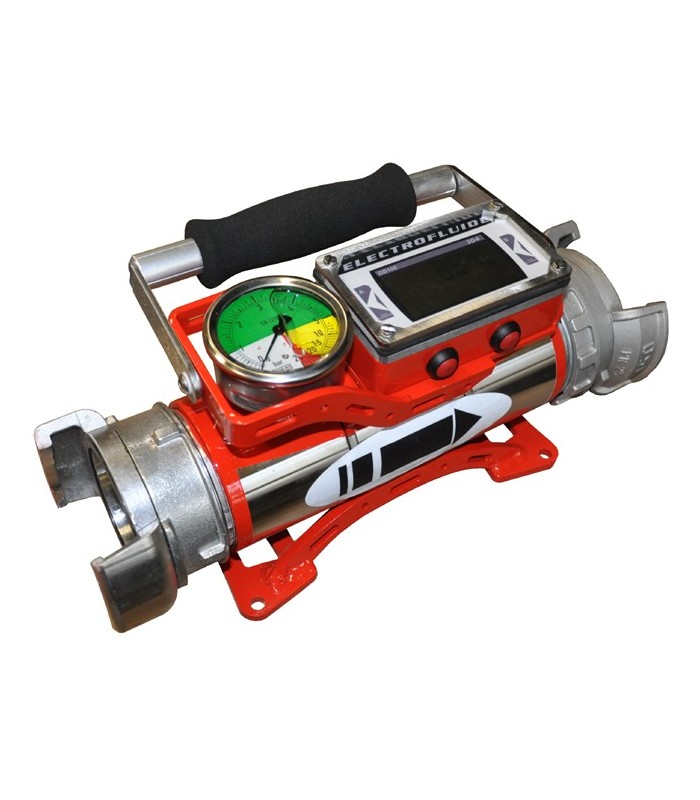

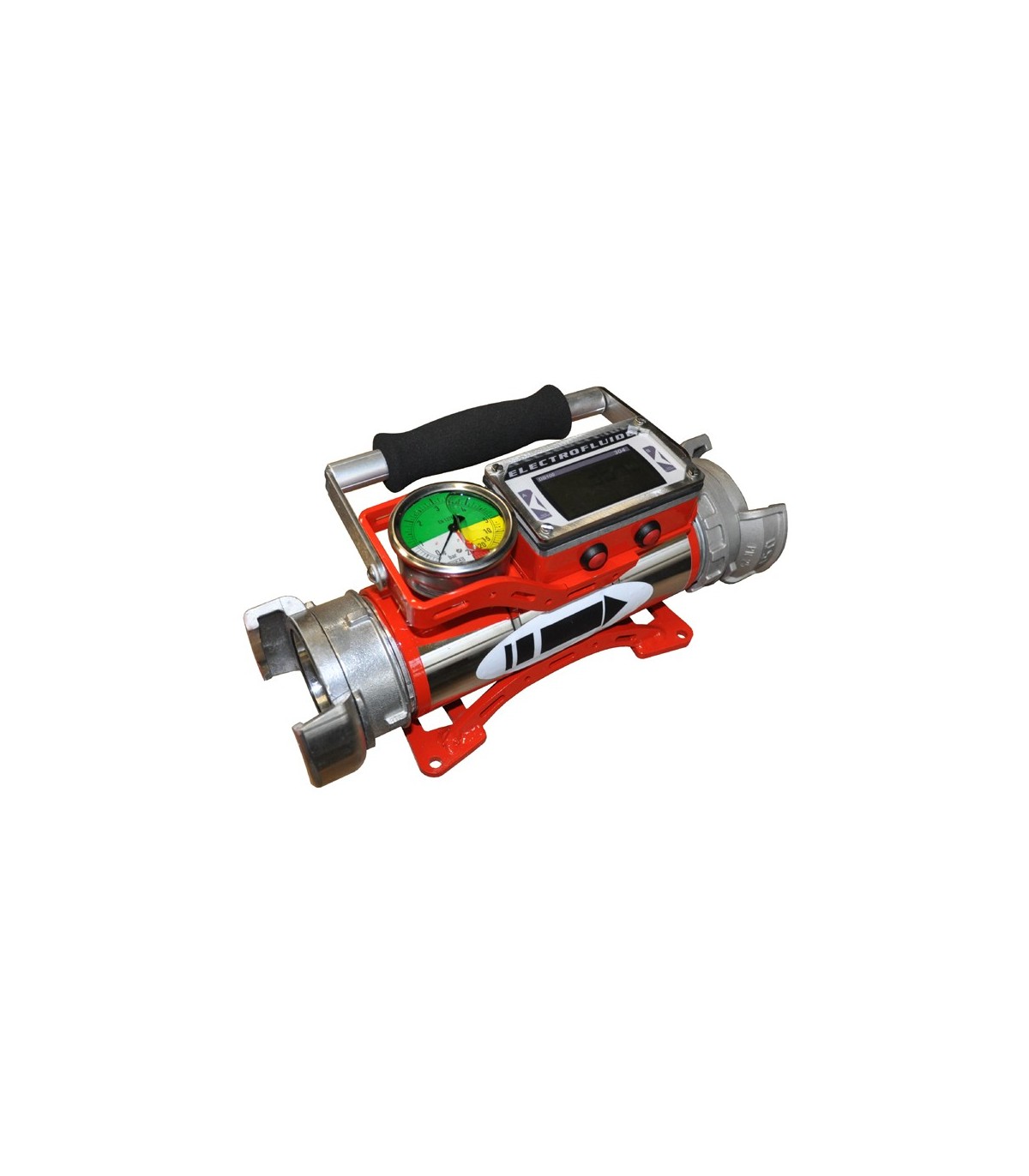

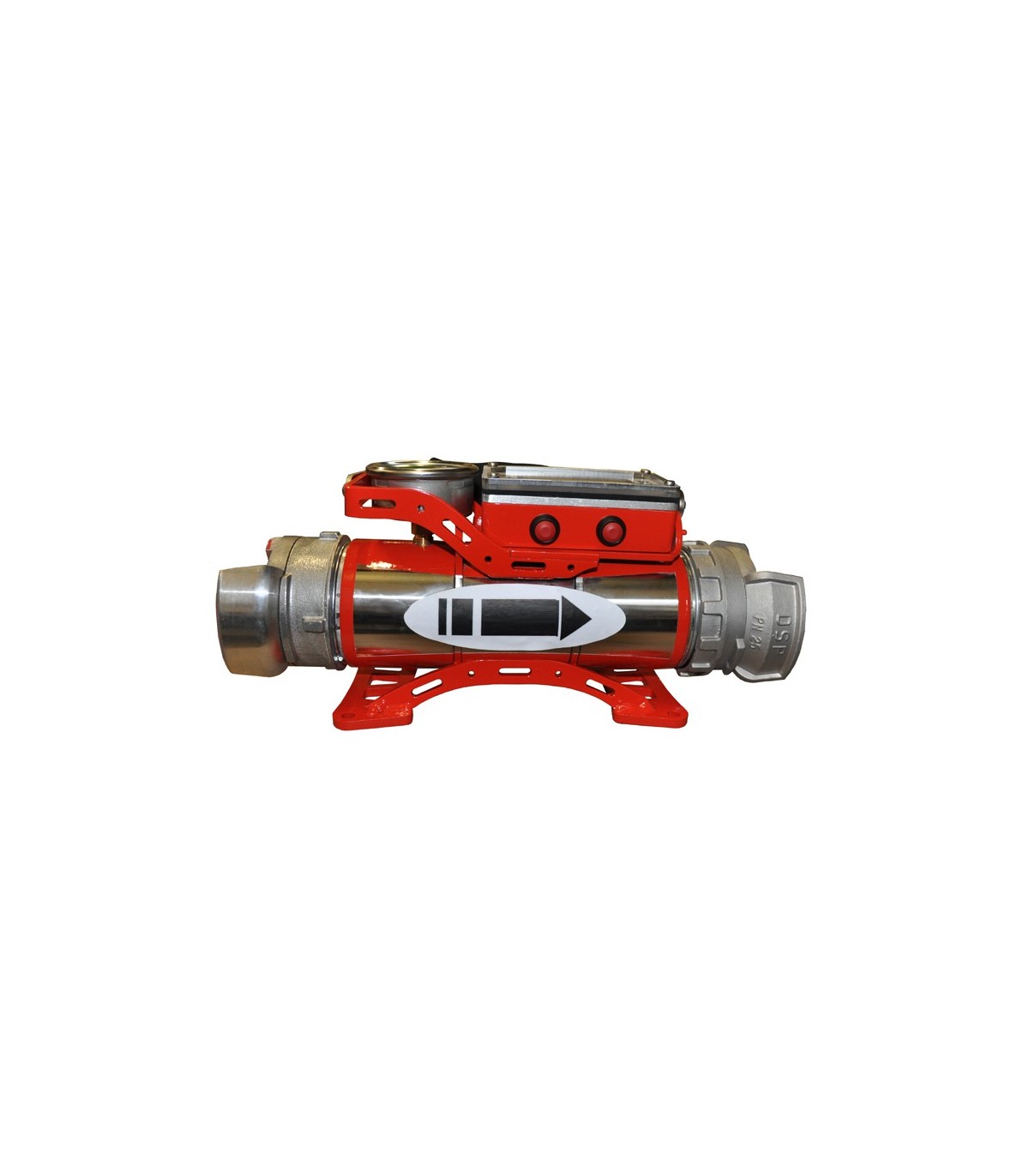

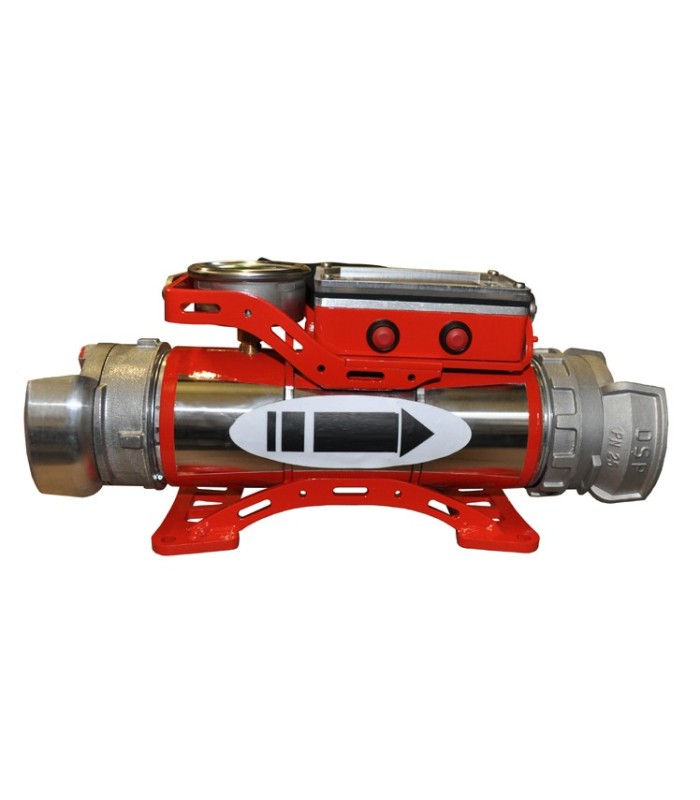

DB100 DL fire hydrant flowmeter with valve

The DB100 DL flowmeter is a professional measuring device designed for monitoring and checking fire hydrants. Fully digital, it enables precise measurement of water flow, pressure and volume during regulatory testing or maintenance operations.

Robust, autonomous and adapted to the most demanding field conditions, this fire hydrant controller is a reliable solution for network operators, local authorities and fire safety professionals.

How a flowmeter works

A flowmeter is a device used to measure the volume of fluid flowing through a pipe over a given period of time. In the case of the DB100 DL, measurement is based on a Woltmann-type turbine, renowned for its accuracy in high-flow hydraulic applications.

When water flows through the device, it causes the turbine to rotate. This rotation is converted into digital data, which is displayed in real time:

  • Instantaneous flow rate (m³/h)
  • Total volume flowed
  • Network pressure

This principle guarantees reliable, reproducible measurement, essential for hydrant performance control and regulatory compliance.

DB100 DL technical specifications

Characteristic Value
Product type Hydrant flowmeter with valve
Measuring technology Industrial Woltmann turbine (stainless steel + ceramic)
Maximum flow rate 300 m³/h
Accuracy Up to 99% of flow and pressure
Internal accuracy 0.05 m³/h - 0.05 bar
Maximum pressure 16 bar in use / 25 bar overpressure
Pressure sensor Up to 100 bar
Display Waterproof IP68 digital (flow, volume, pressure)
Functions Real-time display + end-of-test summary
Operating life 10 years (lithium battery - approx. 5000 h)
Weight 9.5 kg
Construction Stainless steel reinforcements + reinforced stainless steel inlet filter
Feet 6 mm thick stainless steel
Dimensions Approx. 350 to 400 mm (depending on configuration)
Mounting Direct to hydrant (fire hydrant)
Protection class IP68

Operational benefits

The DB100 DL is designed to simplify hydrant monitoring operations and make them more reliable:

  • Precise, reliable measurement of network performance
  • Direct data reading without additional instrumentation
  • Resistant to field conditions (shock, humidity, intensive use)
  • Time-saving verification operations
  • Exceptional autonomy without energy maintenance

Business applications

  • Regulatory inspection of fire hydrants
  • Fire network maintenance
  • Local authorities and water services
  • Industry and sensitive sites

A complete range of fire-fighting equipment with MMF

MMF supports professionals with a selection of technical equipment dedicated to the measurement, control and performance of fire networks. By integrating solutions such as the DB100 DL flowmeter, MMF offers reliable products adapted to field requirements.

With a view to standardization and compatibility, MMF is also developing a complete range of fittings and equipment that comply with European standards, enabling it to meet the needs of local authorities, operators and industrialists with the highest technical standards.

Read moreShow less
Product Details
38661

Data sheet

Waterproofing
IP65
Weight
4,9 kg
Dimensions
34 cm
Accessory type
Débitmètre
