copy of Fire division with two aluminum valves

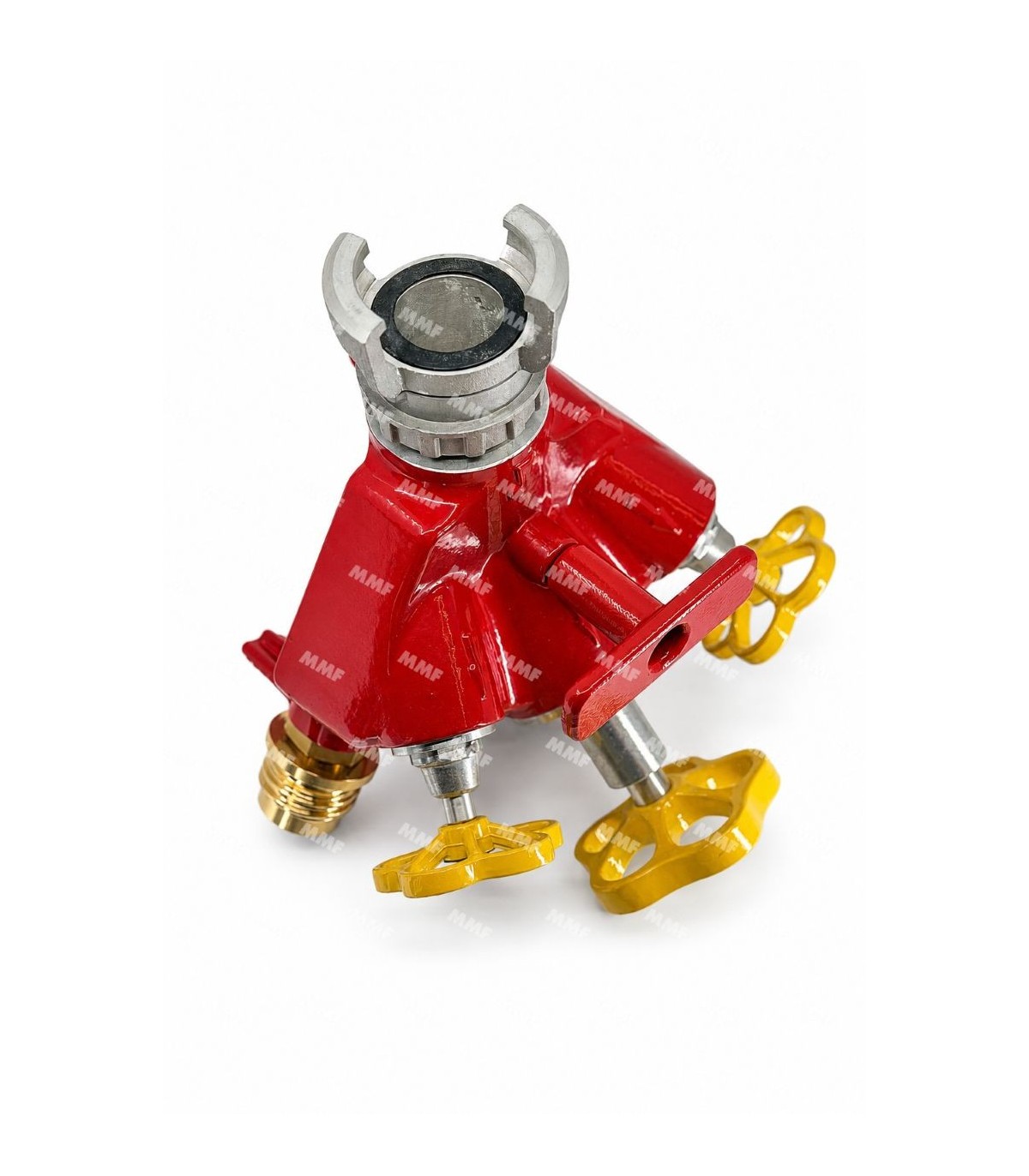

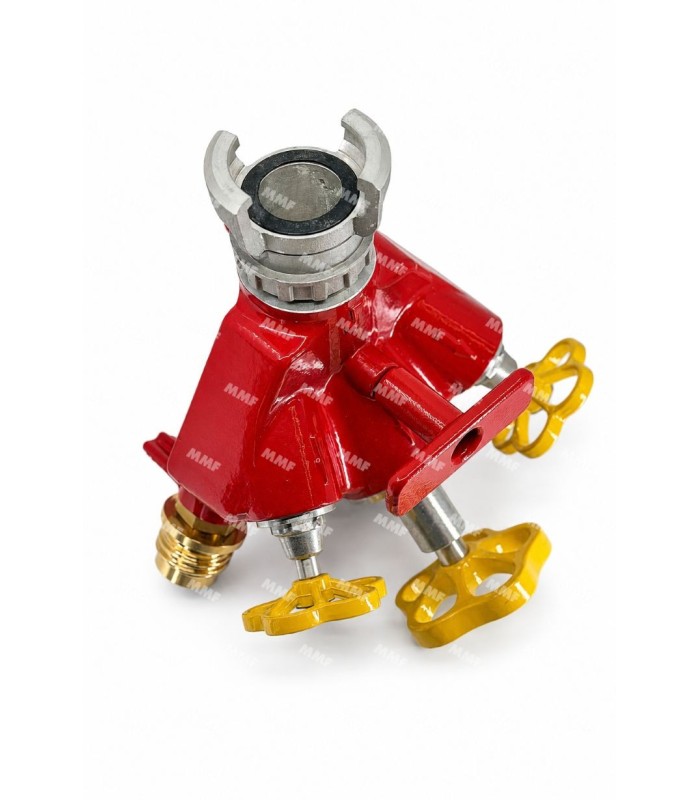

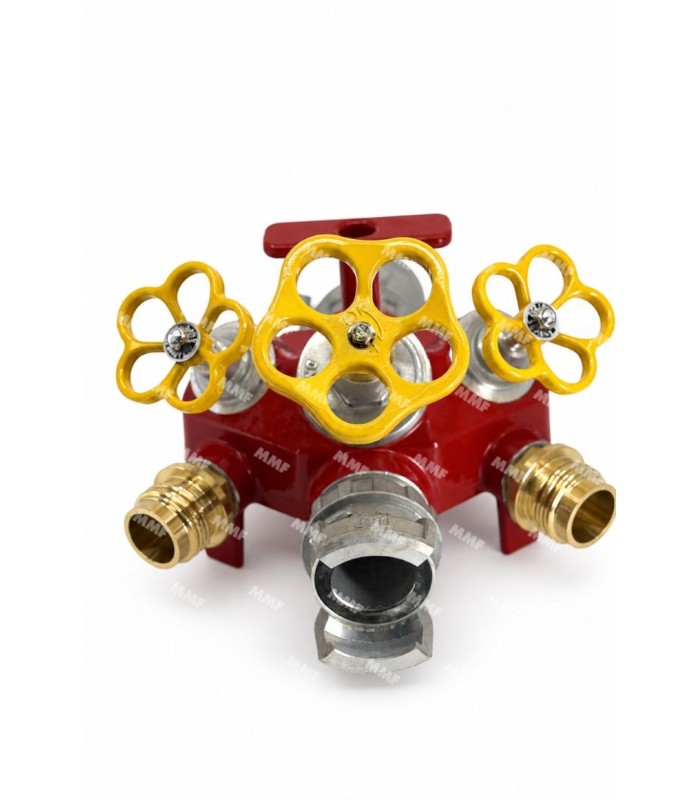

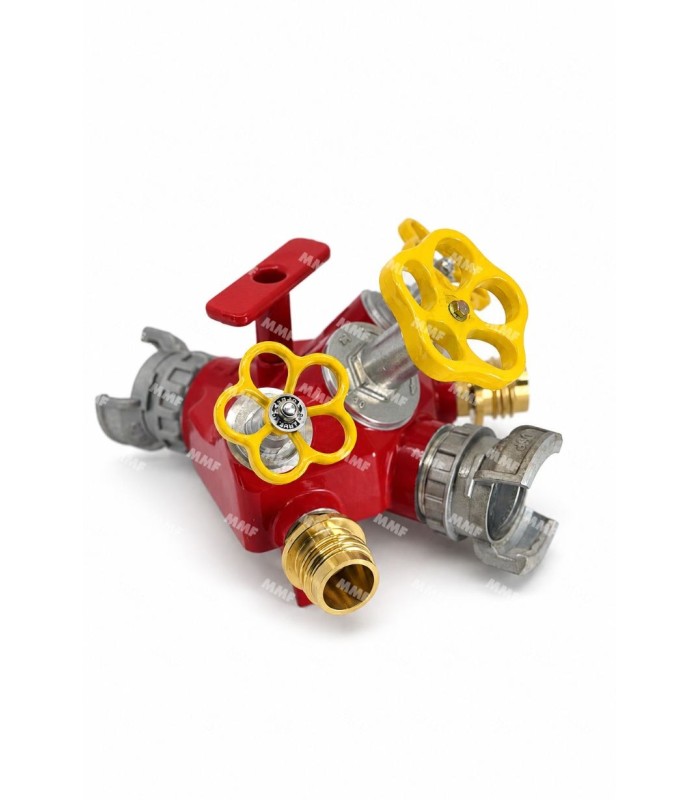

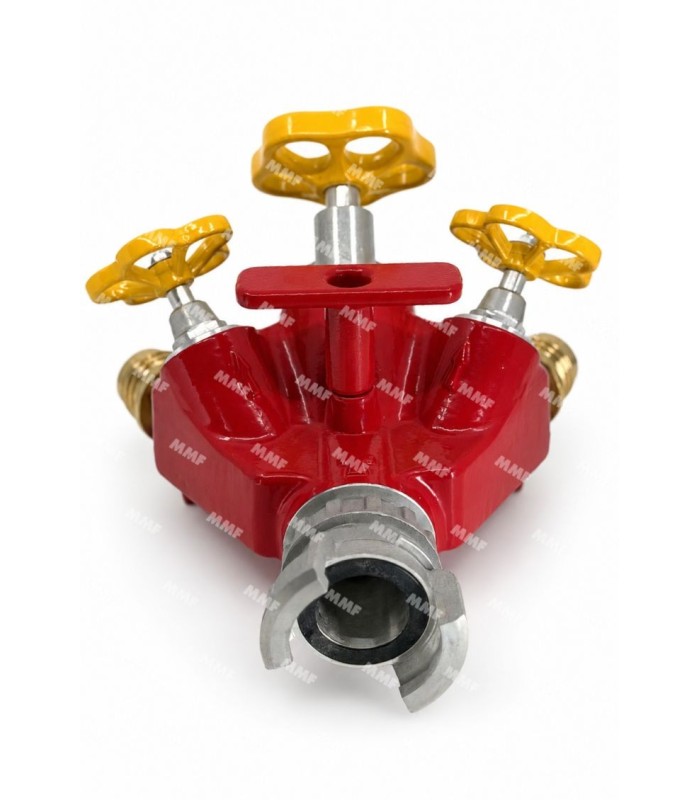

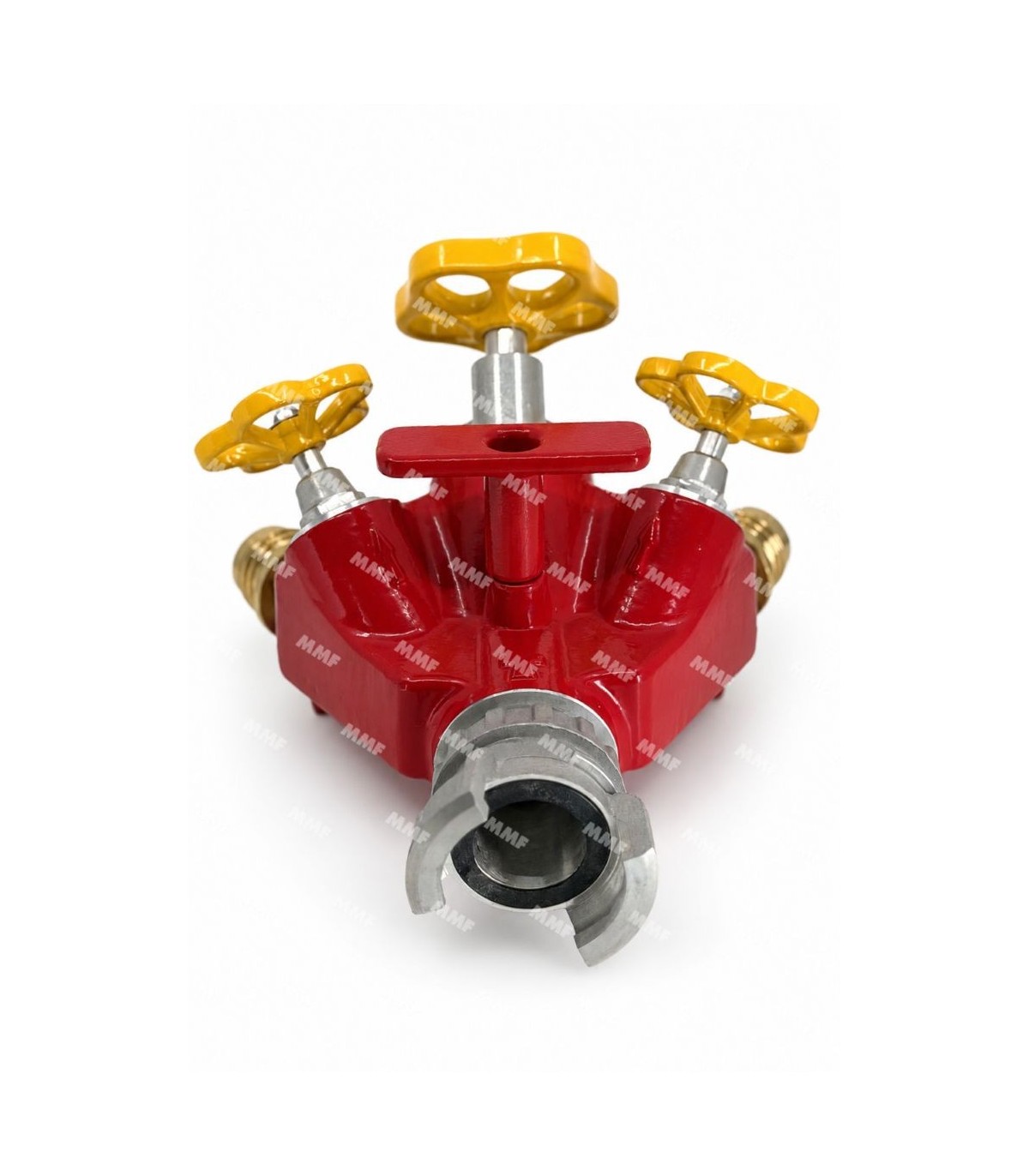

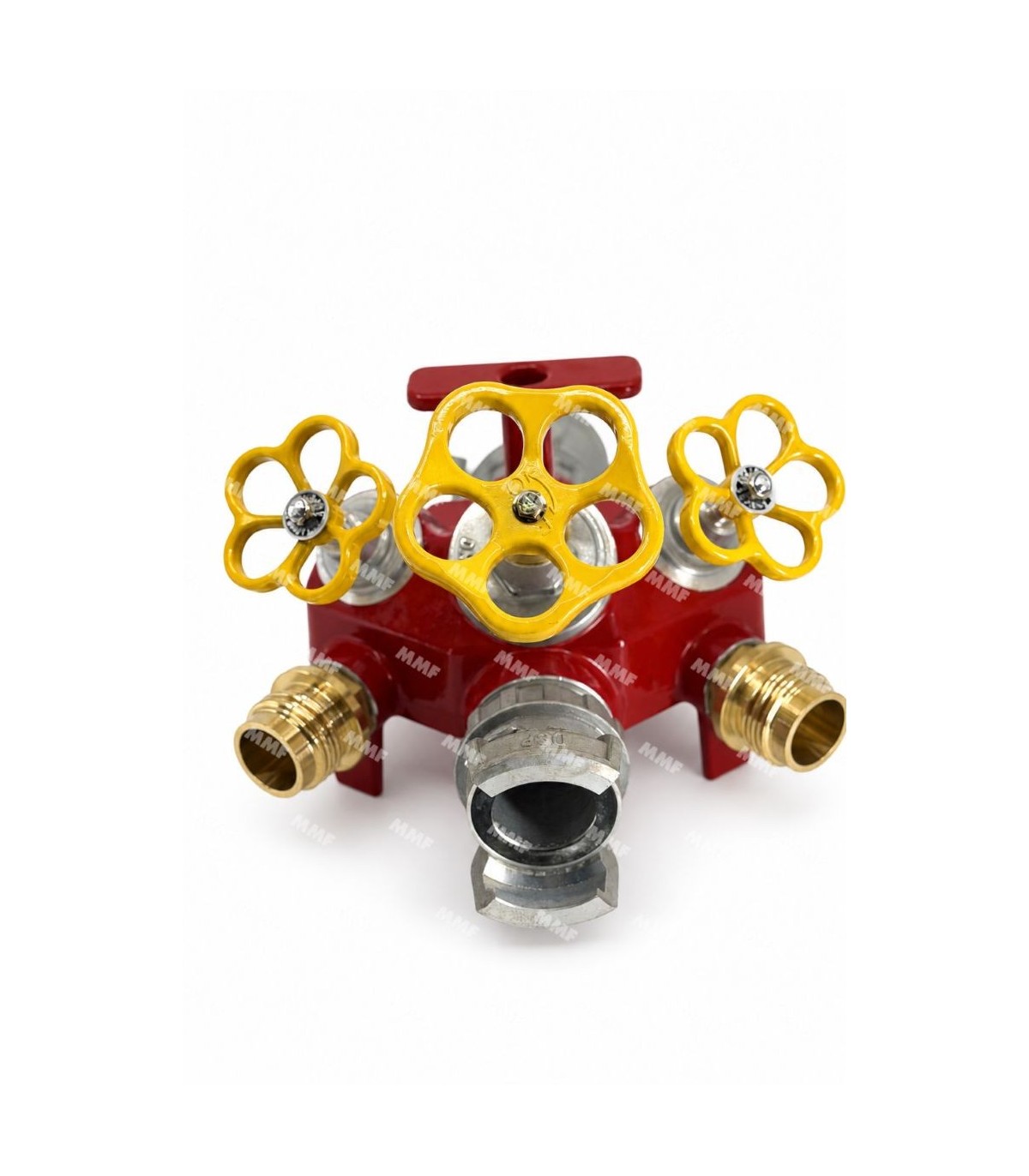

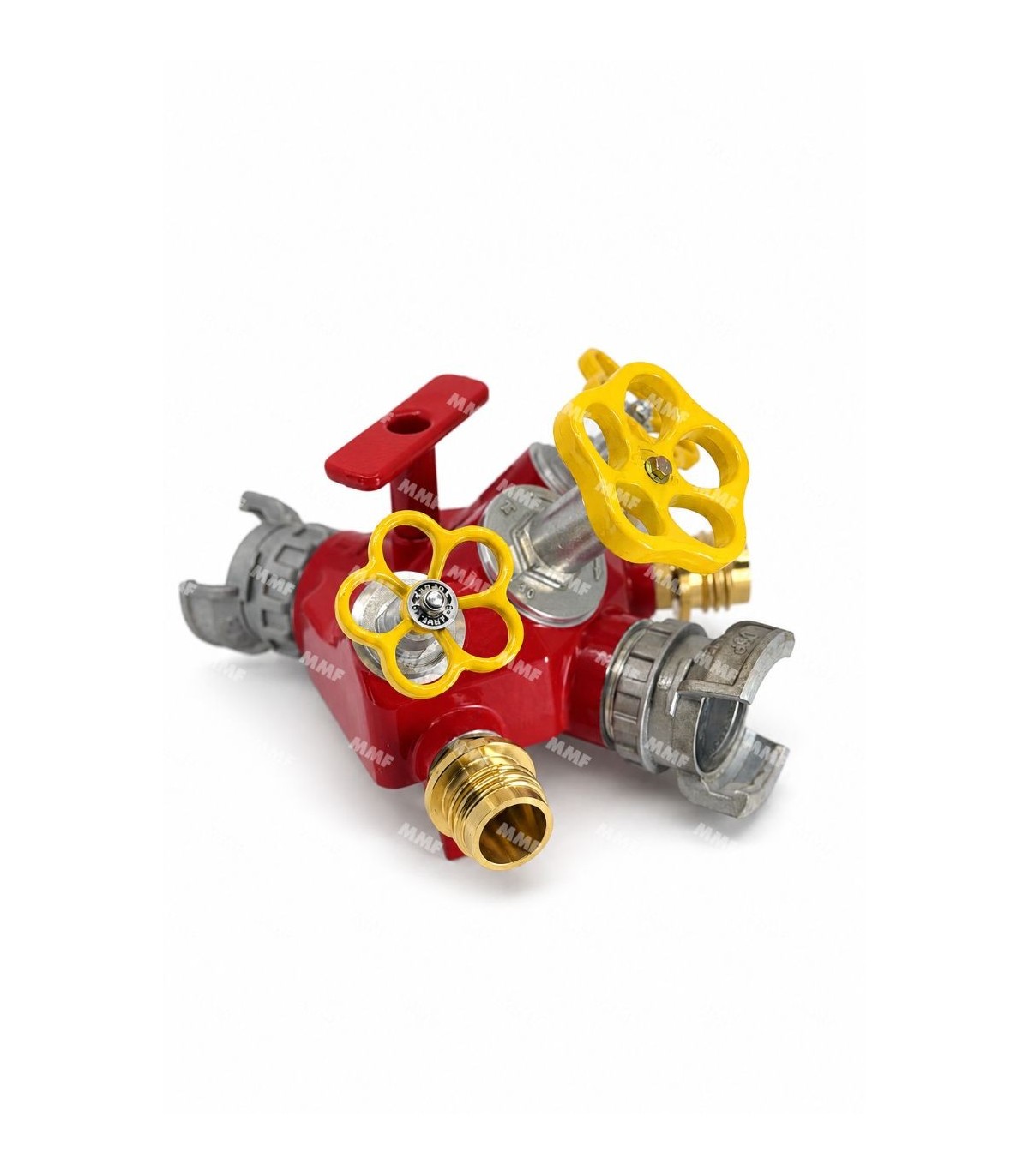

The red 3-faucet aluminum PN25 tri-division distributes a water supply to three separate outlets, with independent control via a handwheel valve. It is ideal for fire-fighting systems, intervention networks and distribution needs requiring a DSP DN40 inlet with lock and several outlets of different diameters.

This model is equipped with a DSP DN40 outlet with lock and two GFR male HP DN20/25 PN40 outlets, enabling connection of secondary lines or high-pressure compatible equipment. RAL 1003 yellow handwheels facilitate valve identification and operation in the field.

A compact tri-division for fire-fighting networks and field operations

This tri-division is designed for professionals who need to distribute water rapidly to several points of use. Each outlet has its own handwheel valve, enabling the flow to be opened, closed or gradually adjusted according to the needs of the intervention.

Its aluminum alloy construction with red polyester coating offers a good compromise between strength, controlled weight and visibility. Its compact size makes it easy to transport, set up and integrate into intervention equipment.

Technical specifications

Why choose this tri-divider?

This DSP 40 / GFR HP tri-divider is designed for applications requiring rapid division of a water supply into several separately controllable lines. It can be used for fire fighting, fire water systems, operational exercises, temporary systems or on-board equipment requiring compact, robust distribution.

FAQ - Red tri-divider with 3 aluminum valves PN25

What is the purpose of a fire tri-divider?

A tri-division is used to distribute a water supply to several outlets. It is useful when several lines, accessories or equipment need to be supplied from a single inlet.

What are the advantages of handwheel valves?

Handwheel valves open and close progressively. This more controlled maneuvering helps limit sudden variations in flow and facilitates the adjustment of each outlet.

When should I choose a GFR HP outlet?

A GFR HP outlet is appropriate when the installation or equipment connected requires this type of high-pressure connection. It enables the division to be adapted to specific lines or accessories.

What should I check before ordering this tri-divider?

You need to check the type of inlet connection, the required outlet connections, the expected nominal pressure, the diameters compatible with the hoses used, and the integration constraints on the vehicle, network or intervention device.
