Rotation motor for firefighting monitors StreamMaster II 3480-3482
24V motor (Deutsch male connector) for rotation system of firefighting monitors AKRON StreamMaster II 3480 and 3482 models.
NEEDLE ROLLER CLUTCH 703453 NTA-815 1/2ID
Torrington needle bearing for AKRON NTA-815 1/2ID mechanisms.
BRONZE BALL FOR ROLLER 109342 3/8" (pack of 50)
Pack of 50 bronze balls for 109342 3/8" AKRON bearings.
Belt drive for rotation system - monitor Stream Master II (3480-3482 with handwheel)
Detailed contents :
Part no |
Ref. MMF |
Designation |
Quantity included |
29 |
- |
85-TOOTH BELT |
1 |
56 |
39414 |
|
1 |
57 |
- |
PULLEY WHEEL |
1 |
58 |
34279 |
|
2 |
59 |
32809 |
|
1 |
60 |
- |
O-RING 2-164 |
1 |
100 |
39412 |
ELEVATION STOP |
2 |
To access the individual parts, please refer to the interactive table on the KIT CONTENTS
Gears: rotation mechanism for monitor Stream Master II (3480-3482)
Detailed contents :
Part no |
Ref. MMF |
Designation |
Quantity included |
46 |
- |
AXIS OF ROTATION |
1 |
47 |
- |

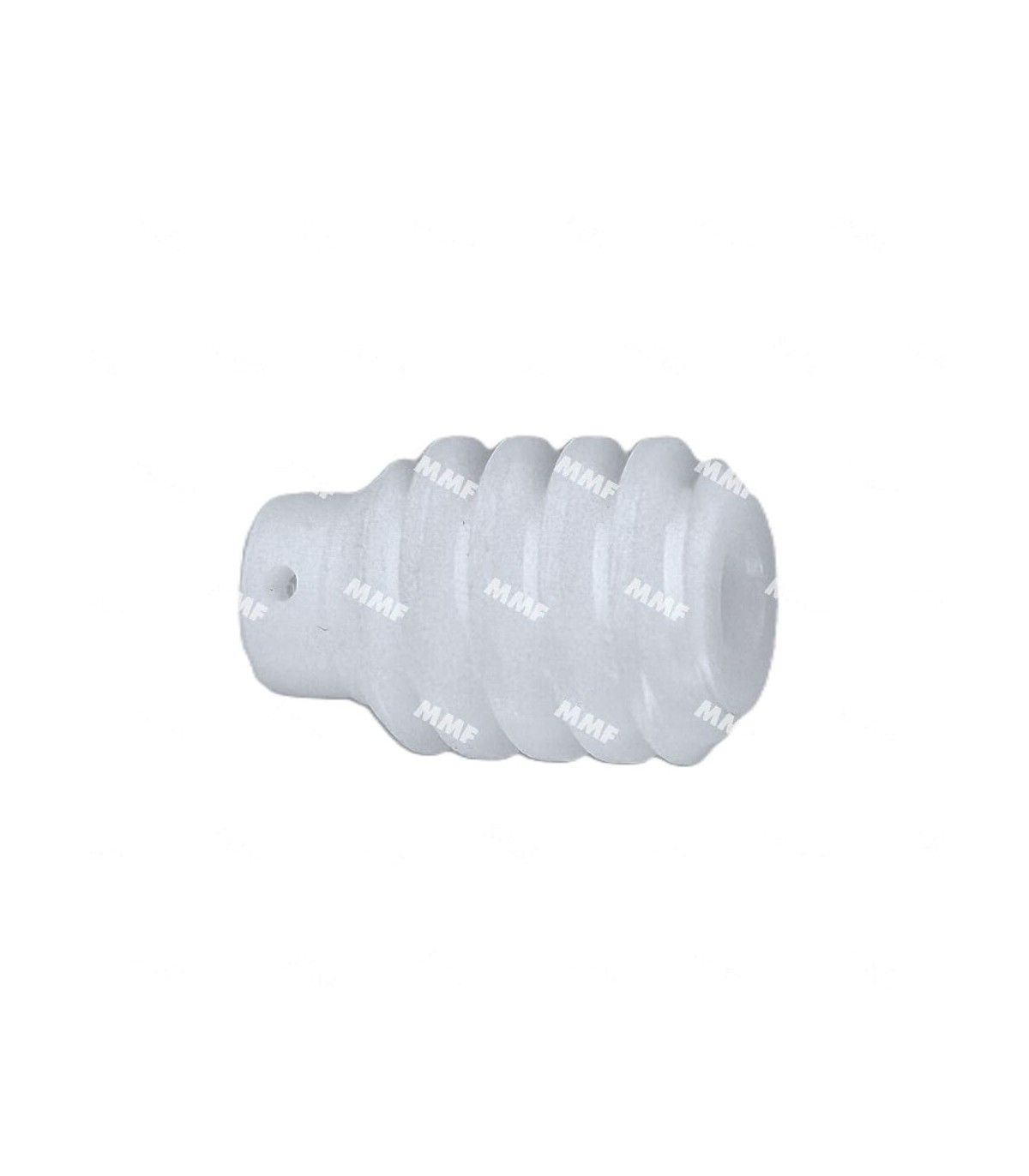

TEFLON WORM SCREW |
1 |
48 |
34521 |
|
1 |
51 |
39138 |
7:1 PLANETARY GEAR |
3 |
52 |
- |
SHOULDER SLEEVE |
4 |
53 |
- |
HEXAGONAL SOCKET HEAD CAP SCREW WITH SHOULDER |
3 |
54 |
- |
PLANETARY GEAR RING |
1 |
55 |
- |
TEFLON SHOULDER SPACER |
1 |
To access the individual parts, please refer to the interactive table on the KIT CONTENTS
Chain for lifting mechanism
Lifting chain for AKRON mechanisms 35782014 7.875.
THICK THRUST WASHER 784130 0.126 TRD1220
Thick thrust washer for AKRON mechanisms 784130 0.126 TRD1220.
Gears: lifting mechanism for monitor Stream Master II (3480-3482 with handwheel)
Detailed contents :
Part no |
Ref. MMF |
Designation |
Quantity included |
44 |
- |
PLANETARY GEAR RING |
1 |
52 |
- |
SHOULDER SLEEVE |
8 |
53 |
- |
HEXAGONAL SOCKET HEAD CAP SCREW WITH SHOULDER |
8 |
90 |
- |
AXIS OF ROTATION |
1 |
91 |
- |
PLANETARY GEAR |
8 |
92 |
- |
DRIVE SUPPORT |
1 |
93 |
- |
SHOULDERED SPACER |
1 |
To access the individual parts, please refer to the interactive table in the 'KIT CONTENTS' tab ('Find out more' button below)
