24V (7:1) motor for Trident firefighting monitor
24V motor (Deutsch female connector), ratio 7:1, for the following firefighting monitor AKRON model:
- Monitor Trident 3356
Rotating mechanism for monitor DeckMaster (3440)
Detailed contents :
|
Part no |
Ref. MMF |
Designation |
Quantity included |
|
13 |
34839 |
|
1 |
|
73 |
34478 |
|
2 |
|
74 |
34479 |
|
2 |
|
75 |
34481 |
|
1 |
|
76 |
34279 |
|
1 |
|
77 |
34471 |
|
1 |
|
79 |
34473 |
|
1 |
|
80 |
34397 |
|
2 |
|
81 |
34398 |
|
1 |
|
82 |
34472 |
|
1 |
|
137 |
34476 |
|
2 |
|
138 |
34475 |
|
2 |
|
139 |
34428 |
|
2 |

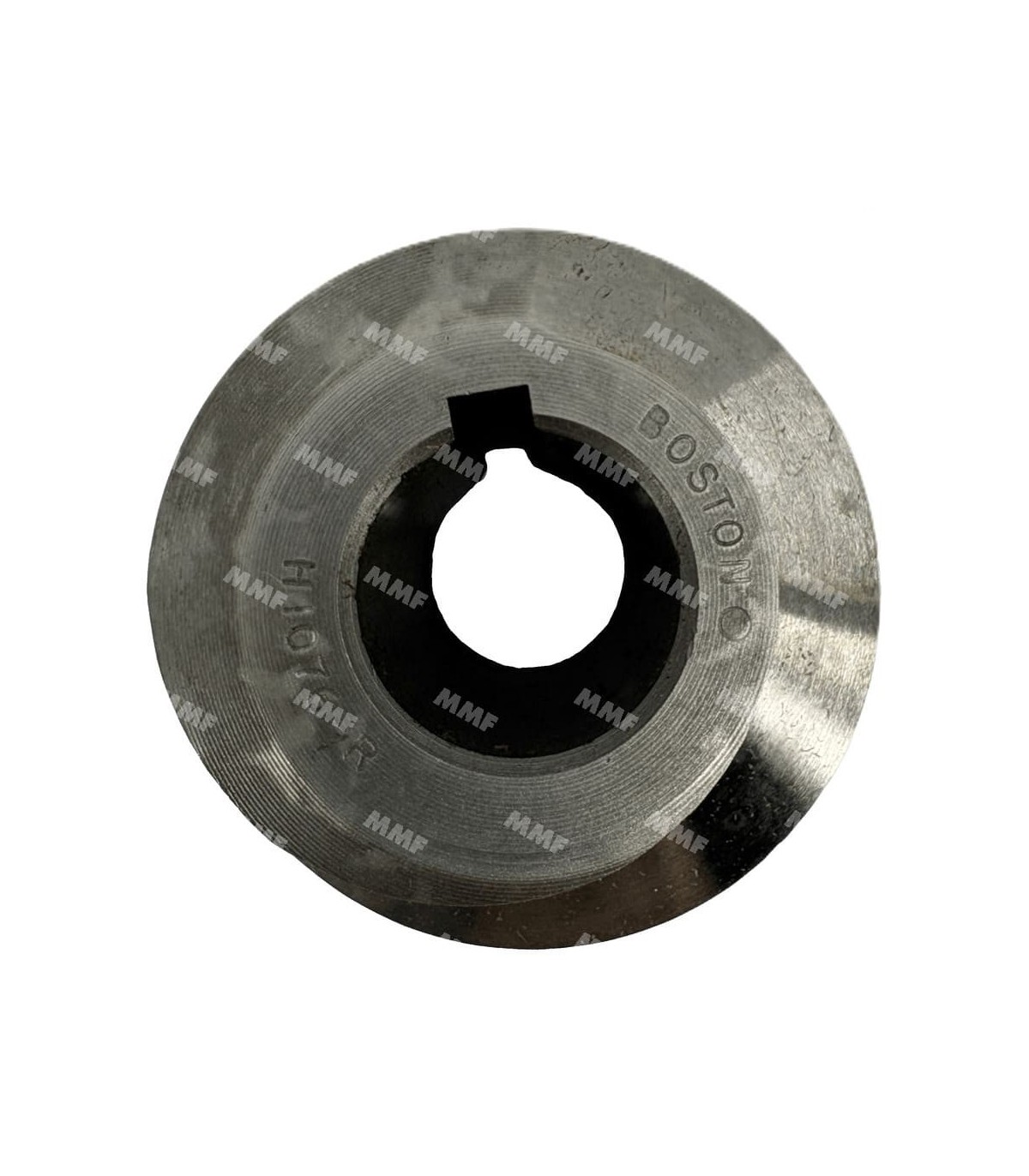

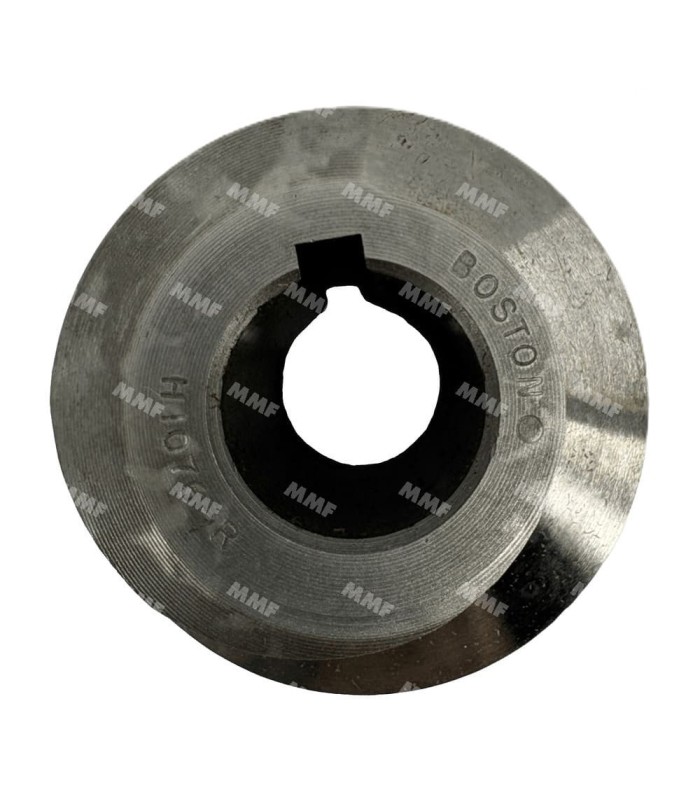

HARDENED STEEL WORM SCREW
HALF-MOON KEY
10-TOOTH PINION
THICK ACETAL SPACER
O-RING 2-112
CHAIN FOR ROTATION MECHANISM
SHAFT FOR ROTATION MECHANISM
SPRING WASHER
LOCK WASHER
BRACE WITH BRONZE SHOULDERS
THIN BEARING WASHER
THICK BEARING WASHER
NEEDLE ROLLER THRUST BEARINGTo access the individual parts, please refer to the interactive table on the KIT CONTENTS
ELEVATION BEARING HUB 116465 SER.06SF
Lift bearing hub for AKRON mechanisms 116465 SER.06SF.
BRONZE BALL BEARINGS 109041 1/4" (pack of 50)
Pack of 50 bronze balls (with plug) for 109041 1/4" AKRON bearing.
Hex socket set screw with cup point 765042 8-32 X 3/16
Stainless steel hex socket set screw with cup point for AKRON mechanisms 765042 8-32 X 3/16.
Square cut gasket 714020 (2 -15/16 x 2-1/4 x 3/16)
Rubber gasket (square-section ring) for AKRON mechanisms 714020 : 2-15/16 X 1/4 X 3/16 #105
Square cut gasket 714173 (style 3420-3422)
Nitrile rubber gasket (square-section ring) for AKRON mechanisms 714173 : STYLE 3420-3422
Motor for firefighting monitor DeckMaster 3440 (elevation / rotation)
24V motor for elevation and rotation systems from firefighting monitor AKRON DeckMaster 3440 (U1 version with ITT male connector, U2 version with Deutsch female connector).
