Pattern sleeve with control ring 17450017

Pattern sleeve with control ring 17450017

PLANETARY GEAR 35780371 (elevation)

ROLL PIN 744080 1/8 x 1 1/8 SS 18-8

2-AKRON®

Maintenance/repair part: pattern sleeve with control ring for TurboMaster 1745 v1 nozzle.

Read moreShow less

More about

Reference:

39344

Guide de tailles

€932.51 (tax excl.)

€932.51 (tax excl.)

Partager cette fiche produit :

Add to compare0

Approved after-sales service

Spare parts stock

Technical consulting

Made in the USA

Description

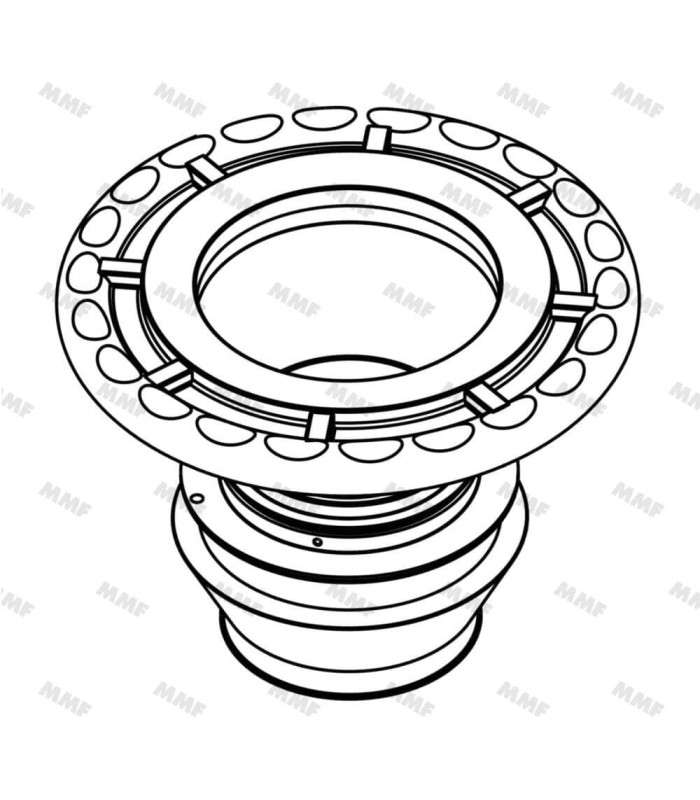

Pattern sleeve with control ring for TurboMaster nozzle 17450017 AKRON®

Fits only first-generation monitor nozzle TurboMaster 1745.

All AKRON® spare parts are available from MMF Protection et Sécuritéall spare parts are available from the brand's authorized dealers and repair centers.

Need advice or a specific request? Just call us!

- by telephone on 04 78 00 00 25

- by e-mail at sav@mMF.fr

Read moreShow less

Product Details

Reference 39344

Data sheet

Compatible model: TurboMaster 1745 (v1)

Part type :: casting part (barrel)

Specific References

MPN: 17450017

Attachments

Éclaté Technique 1745

TurboMaster 1745 Technical Exploded View

Download (839.38KB)
