AKRON 3060 In-Line Foam Eductor - 230 L/min

PN16 Valves with Two Valves for Fire Hydrants
2-AKRON®

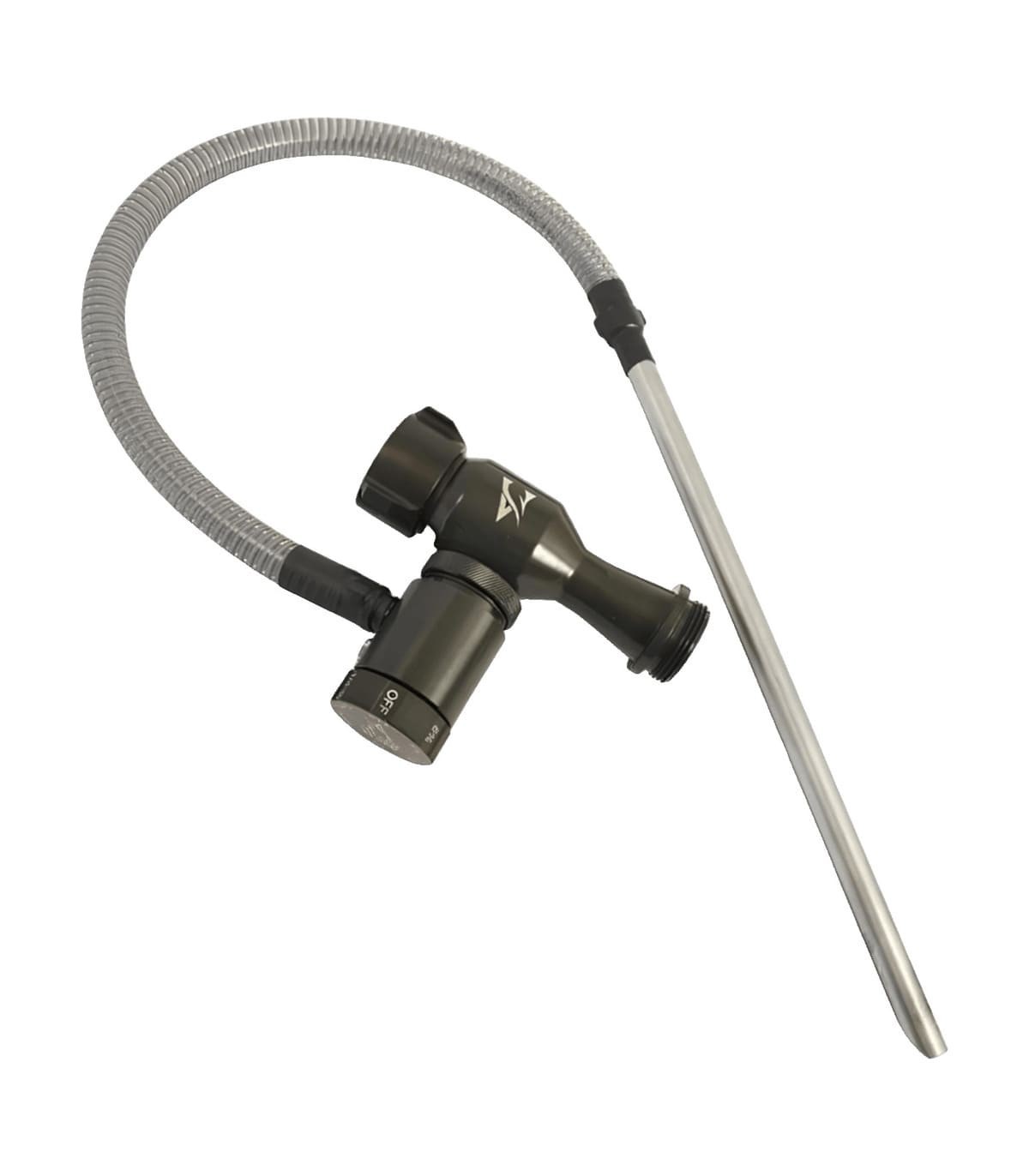

The AKRON 3060 in-line foam eductor is a foam proportioning injector that uses the Venturi effect to draw in the foam concentrate and mix it into the water flow. Made of Pyrolite, it offers a nominal flow rate of 230 L/min and selectable dosing rates of 0.25%, 0.5%, 1%, 3%, and 6%. Its generously sized selector knob makes adjustment easy during operations, while the supplied suction hose allows the foam concentrate to be drawn directly from its container. Compact and easy to use, it is a suitable solution for mobile foam applications. To achieve the desired dosage, it must be paired with a nozzle of the same flow rate.

Read moreShow less
Reference:
20326
Guide de tailles
Out of stock (availability: please contact us)
Create a quote
€2,559.95 (tax excl.)
€2,559.95 (tax excl.)



Download PDF

Partager cette fiche produit :

Add to compare0
Description

AKRON 3060 In-Line eductor for foam solution

The AKRON Style 3060 in-line premixer is used to incorporate a foam concentrate into the water flow to supply a foam production line. It functions as a metering injector: the flow of water through the Venturi system creates the vacuum needed to draw in the foam concentrate, which is then mixed with the water flow.

Made of Pyrolite, this model is calibrated for a nominal flow rate of 230 L/min. Its selector allows you to choose from several concentrations: 0.25%, 0.5%, 1%, 3%, or 6%. The reference inlet pressure is 14 bar. To achieve the intended dosage and maintain proper hydraulic operation, the premixer must be paired with a nozzle having a compatible nominal flow rate, typically with an operating pressure of 5 or 7 bar.

Operation and Use

The foam concentrate is drawn directly from its container via the suction hose connected to the premixer. As water flows through the Venturi, a vacuum is created that draws the foam concentrate into the main flow. The selected setting then determines the proportion of foam concentrate mixed with the water.

Proper operation of the system depends on the balance between the flow rate of the premixer, the flow rate of the nozzle being used, the available pressure, and the pressure drops in the line. The associated nozzle must remain fully open during operation. Excessive backpressure downstream reduces the suction of the foam concentrate and may even interrupt the premixing process.

Technical Specifications

Characteristic Description
Model AKRON Style 3060
Type In-line premixer / foam eductor
Material Pyrolite
Nominal Flow Rate 230 L/min
Reference inlet pressure 14 bar
Available dosages 0.25%, 0.5%, 1%, 3%, and 6%
Matching head Nominal flow rate corresponding to the premixer
Recommended head pressure 5 or 7 bar
Inlet Swivel 1.5" or 2.5" depending on configuration
Outlet 1.5" male
Suction hose Standard length 750 mm (1.22 m available as an option)

Compatibility with foam concentrates

The premixer can be used with Class A and B foam concentrates. However, the actual injection rate depends on the viscosity of the foam concentrate used. With certain more viscous foam concentrates—particularly some formulations designed for polar liquids—the actual percentage injected may be lower than the selected setting.

For reliable operation, it is therefore important to ensure consistency between the type of foam concentrate, the desired injection rate, and the hydraulic configuration of the line.

Read moreShow less
Product Details
20326

Data sheet

Material
Pyrolite
Inlet diameter
1.5" (DN40)
2.5" (DN65)
Accessory type
Premixer
Outlet diameter
1.5" (DN40)

Specific References

MPN
30600200
Attachments
oper-mainten-3060_124988
Installation, Operation, and Maintenance Manual: AKRON Premixer - Model 3060
Download (75.38KB)
tech-serv-parts-3060_118296
Exploded View - AKRON Premixer - Model 3060
Download (689.8KB)
tech-serv-parts-3060_128465
Exploded View - AKRON Premixer - Model 3060
Download (371.08KB)
