DBM 65 pressure flowmeter from 1 to 1800L/MN

Red tri-division with three aluminum taps
Form stripper 500 mm

The DBM 65 pressure flowmeter is designed for checking fire hydrants, pumps and dry standpipes, measuring flow rates up to 110 m³/h, or around 1,800 L/min. Compact, self-contained and made in France, it combines a flow/volume display, a pressure gauge up to 25 bar, IP65 protection and a 3-year warranty for field inspections of fire networks.

Read moreShow less
Reference:
38661
Guide de tailles
Out of stock (estimated delivery time: 1 to 2 weeks)
Create a quote
€2,928.12 (tax excl.)
€2,928.12 (tax excl.)



Download PDF

Partager cette fiche produit :

Add to compare0
Description

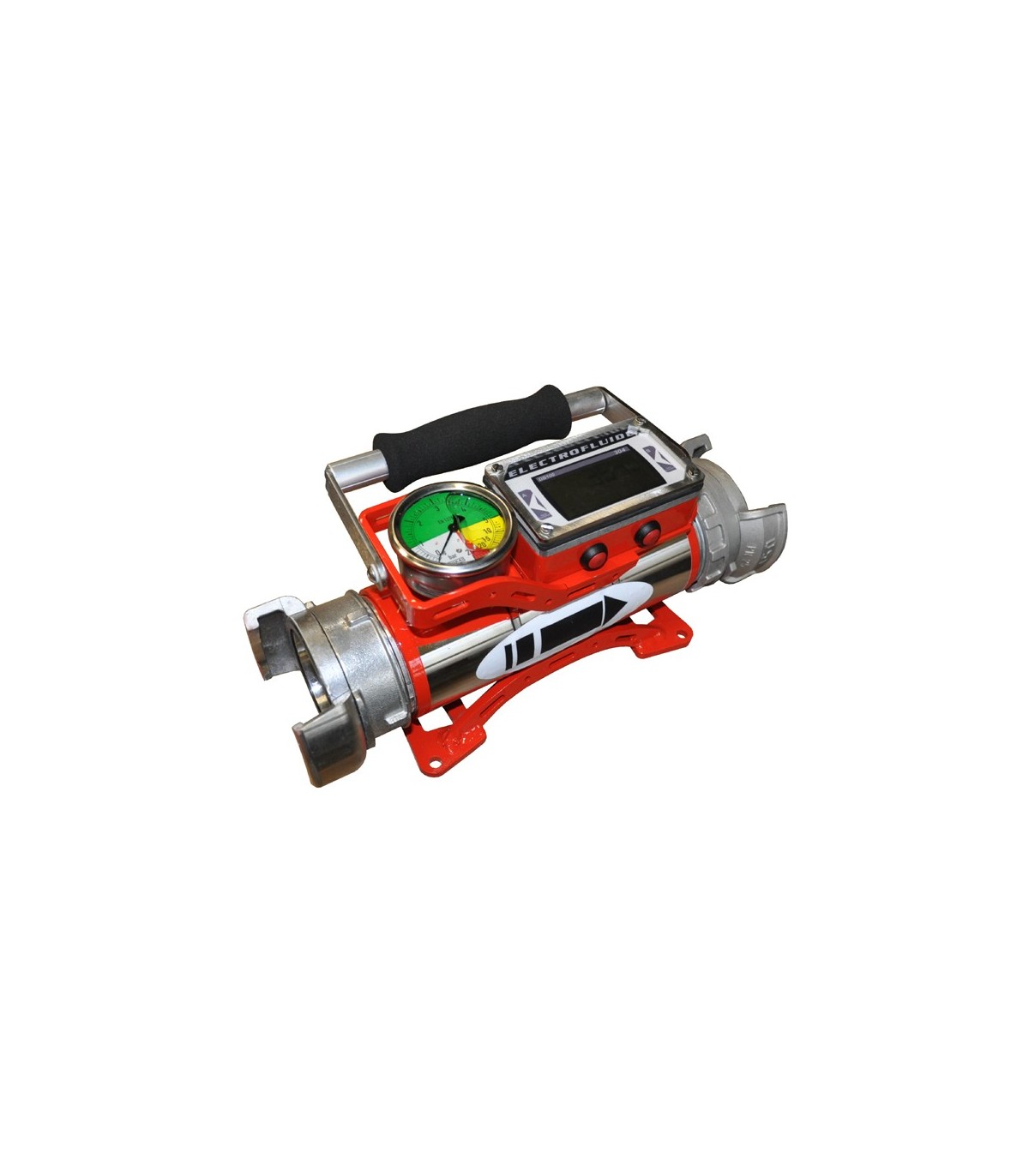

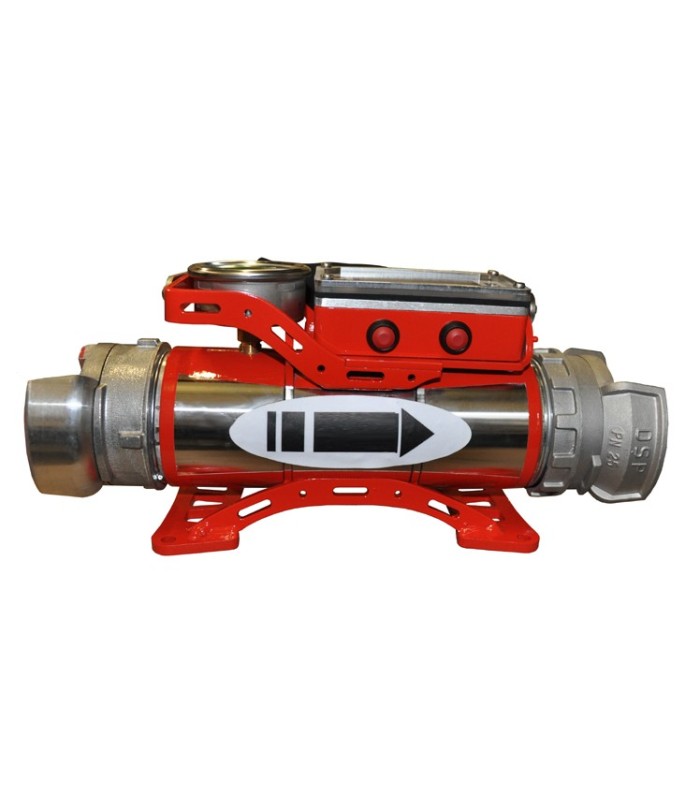

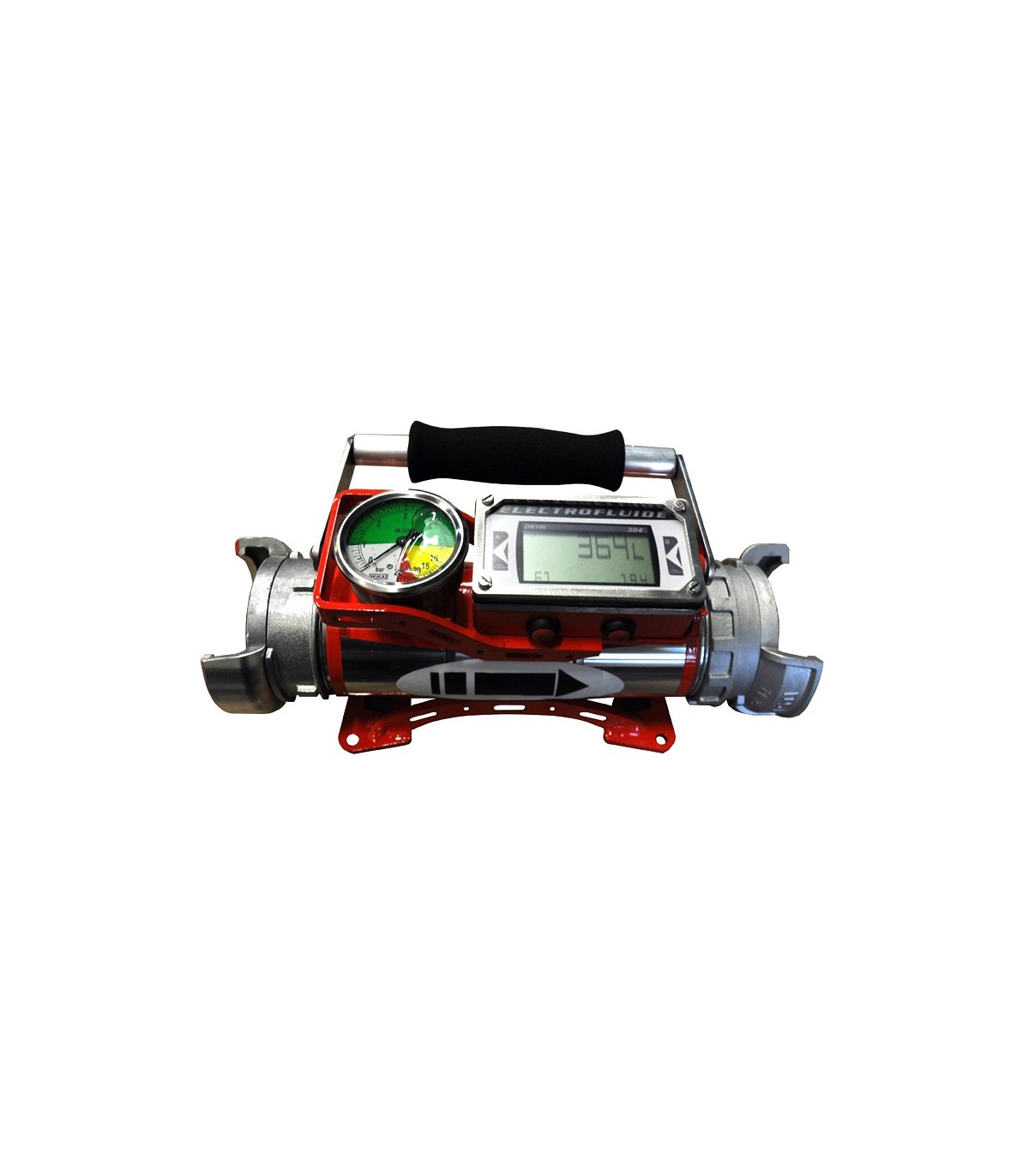

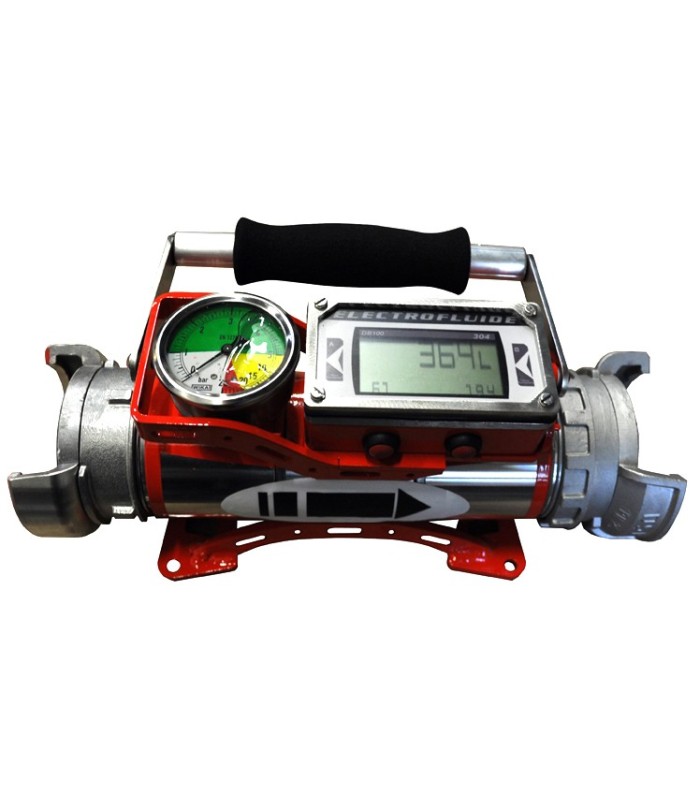

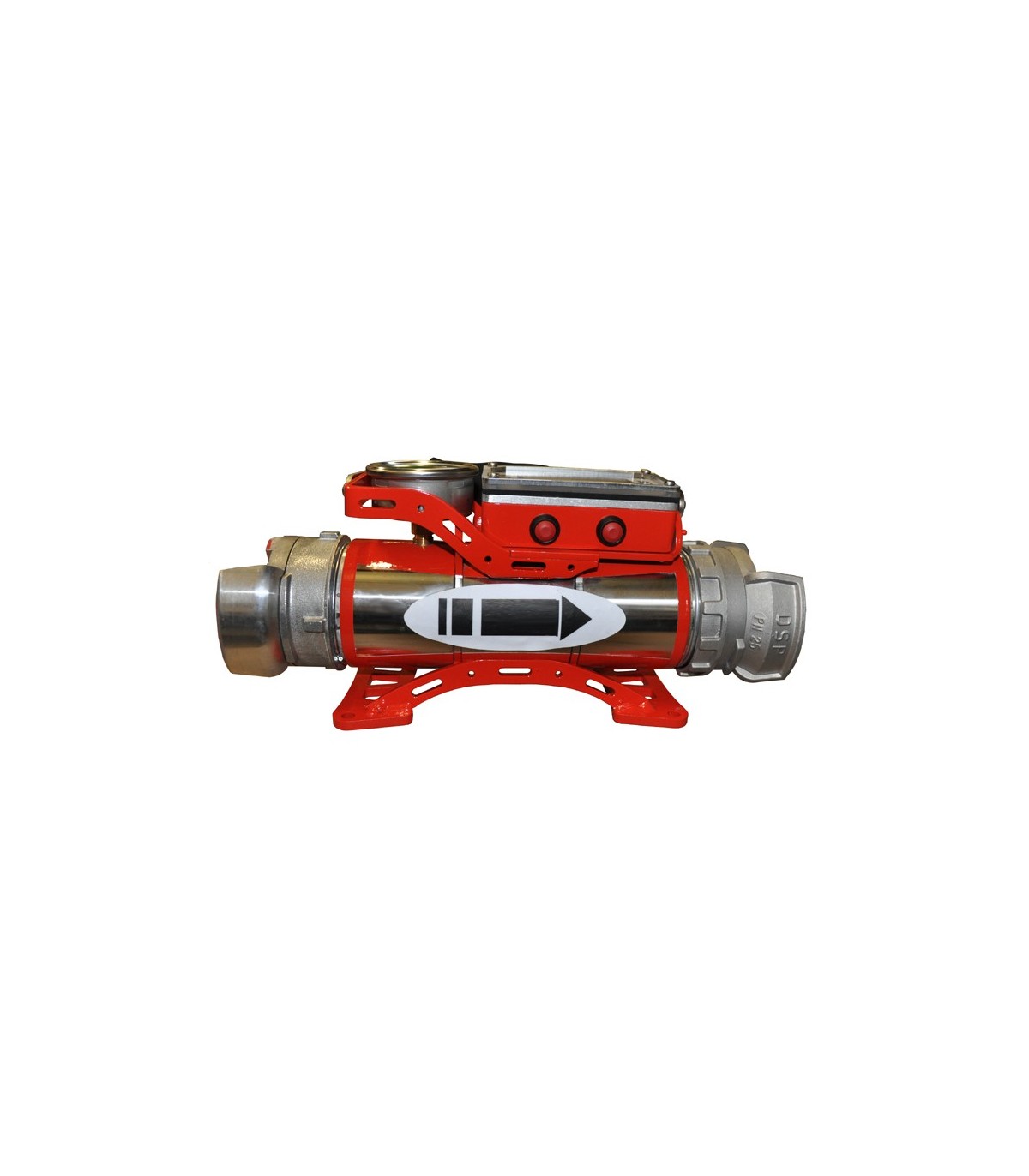

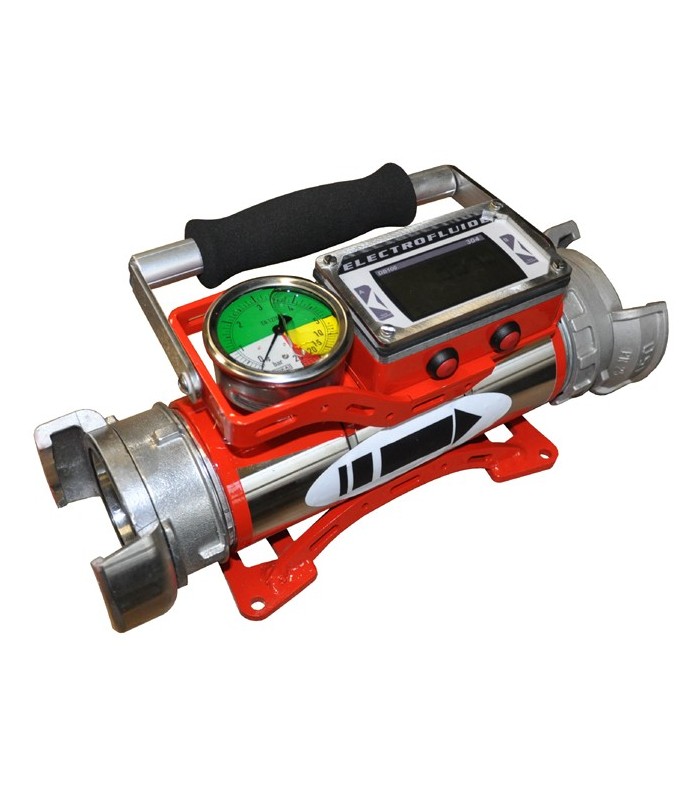

The DBM 65 pressure flowmeter is a control device for testing and measuring fire-fighting systems. It can be used to check flow and pressure on fire hydrants, pumps and dry standpipes, with a measurement range of up to 110 m³/h, or around 1,800 L/min.

Designed for field use, the DBM 65 combines flow measurement, flow volume metering and pressure reading in a compact, easy-to-transport device. Its stainless-steel protected body, IP65 watertight display and long battery life make it the ideal tool for professionals in charge of monitoring fire hydrants.

A flowmeter for fire hydrant control

The DBM 65 is designed for users who need to carry out reliable checks on fire systems. It quickly provides the information needed for testing: instantaneous flow rate, volume flowed and pressure measured.

The Woltmann turbine displays flow rate and volume in a precise, easy-to-read format. The color manometer makes it easy to read static or dynamic pressure during test operations.

Technical specifications

Technical data - DBM 65 pressure flowmeter
Product code DBM 65
Product type Pressure flowmeter for fire-fighting systems
Applications Control of fire hydrants, pumps and dry standpipes
Flow range 1 to 110 m³/h, i.e. approx. 1 to 1,800 L/min depending on field use
Flow accuracy 99,5 %
Flow display accuracy 0.1 m³/h
Pressure reading 0.1 to 25 bar
Pressure accuracy 0.05 bar to 1 bar
Display Flow, test volume and cumulative volume
Protection class IP65
Operating life 10 years, 3 V lithium batteries
Operating mode Automatic on/off
Protections 304 stainless steel, foam and hardened polycarbonate
Internal stabilizer Stainless steel
Maximum pressure 16 bar
Dimensions 340 mm
Weight 4.9 kg
Manufacture 100% French

Why choose the DBM 65?

The DBM 65 is ideal for professionals carrying out flow and pressure tests on fire-fighting systems. It is ideal for technical departments, industrial site operators, inspection service providers, local authorities, fire brigades or teams responsible for checking the hydraulic availability of fire hydrants.

FAQ - DBM 65 pressure flowmeter

Does the DBM 65 measure flow only?

No. The DBM 65 can measure flow, flow volume and pressure, facilitating comprehensive checks on fire hydrants, pumps or dry standpipes.

When should I choose a DBM 65 over a larger flowmeter?

The DBM 65 is ideal for checks requiring a compact, lightweight and easily transportable device. For higher flow rates or special configurations, a larger-diameter model may be more appropriate.

Is the DBM 65 suitable for regular field testing?

Yes, its low weight, ergonomic handle, long autonomy and IP65 display make it a practical device for repeated field testing campaigns.

Read moreShow less
Product Details
38661

Data sheet

Waterproofing
IP65
Weight
4,9 kg
Dimensions
34 cm
Accessory type
Débitmètre
