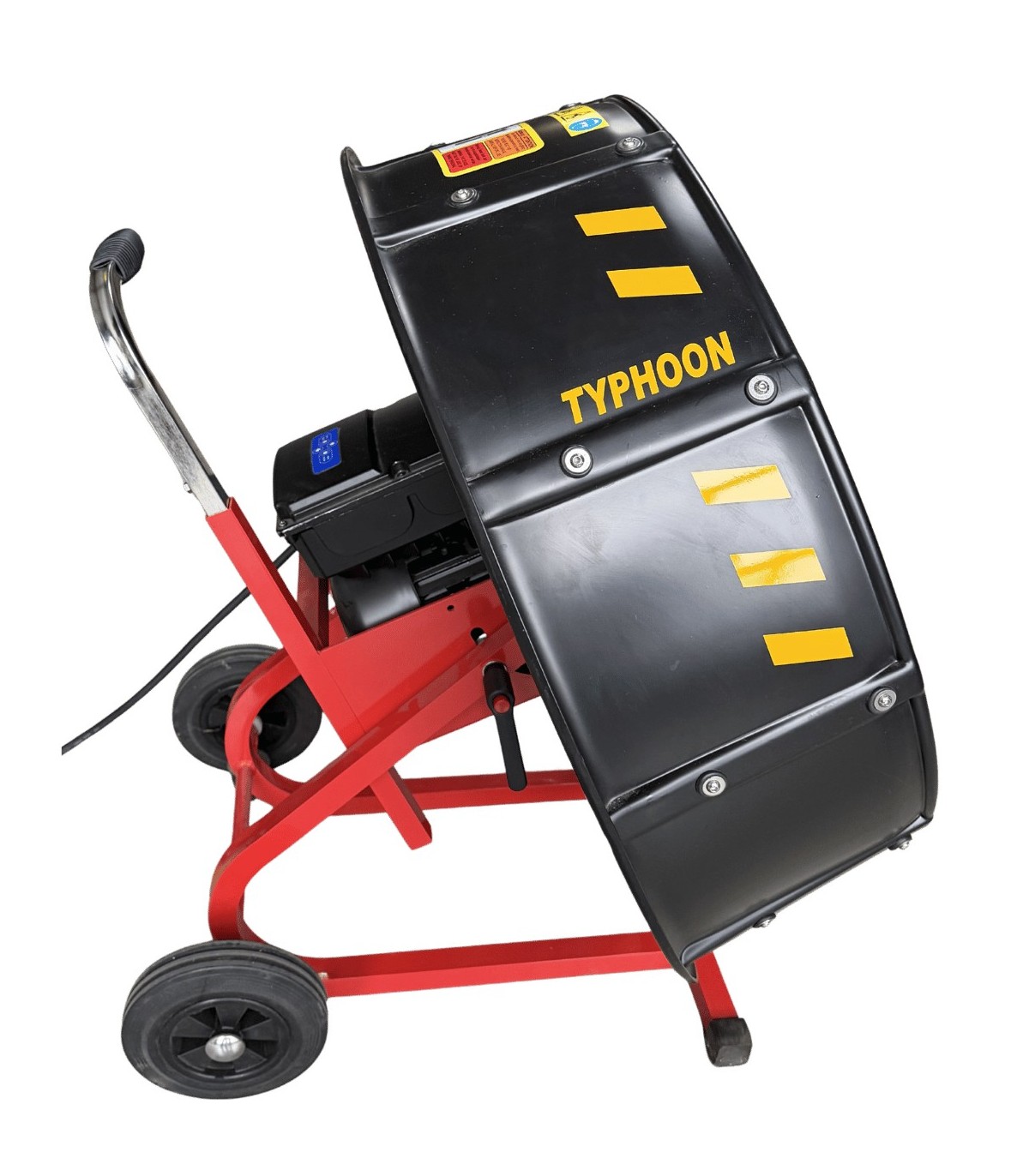

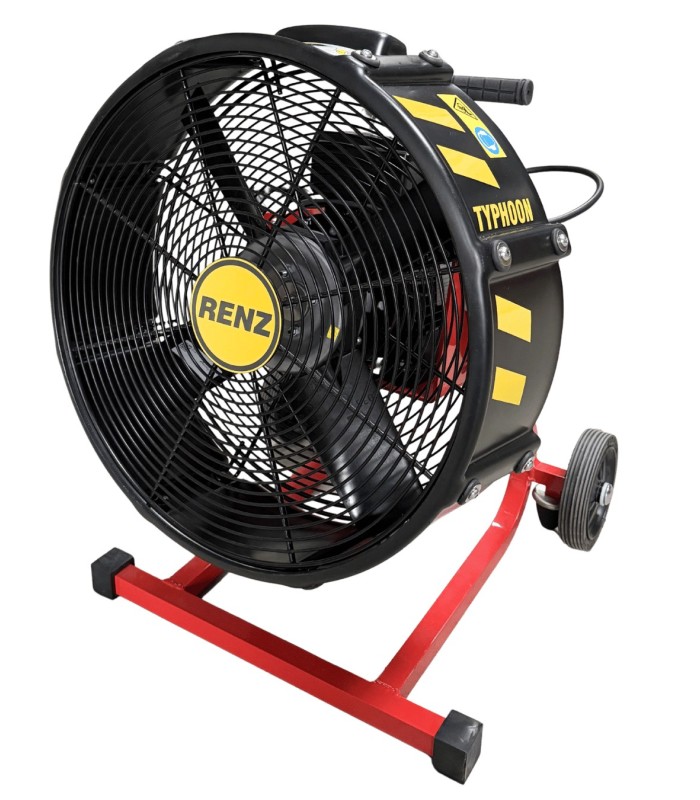

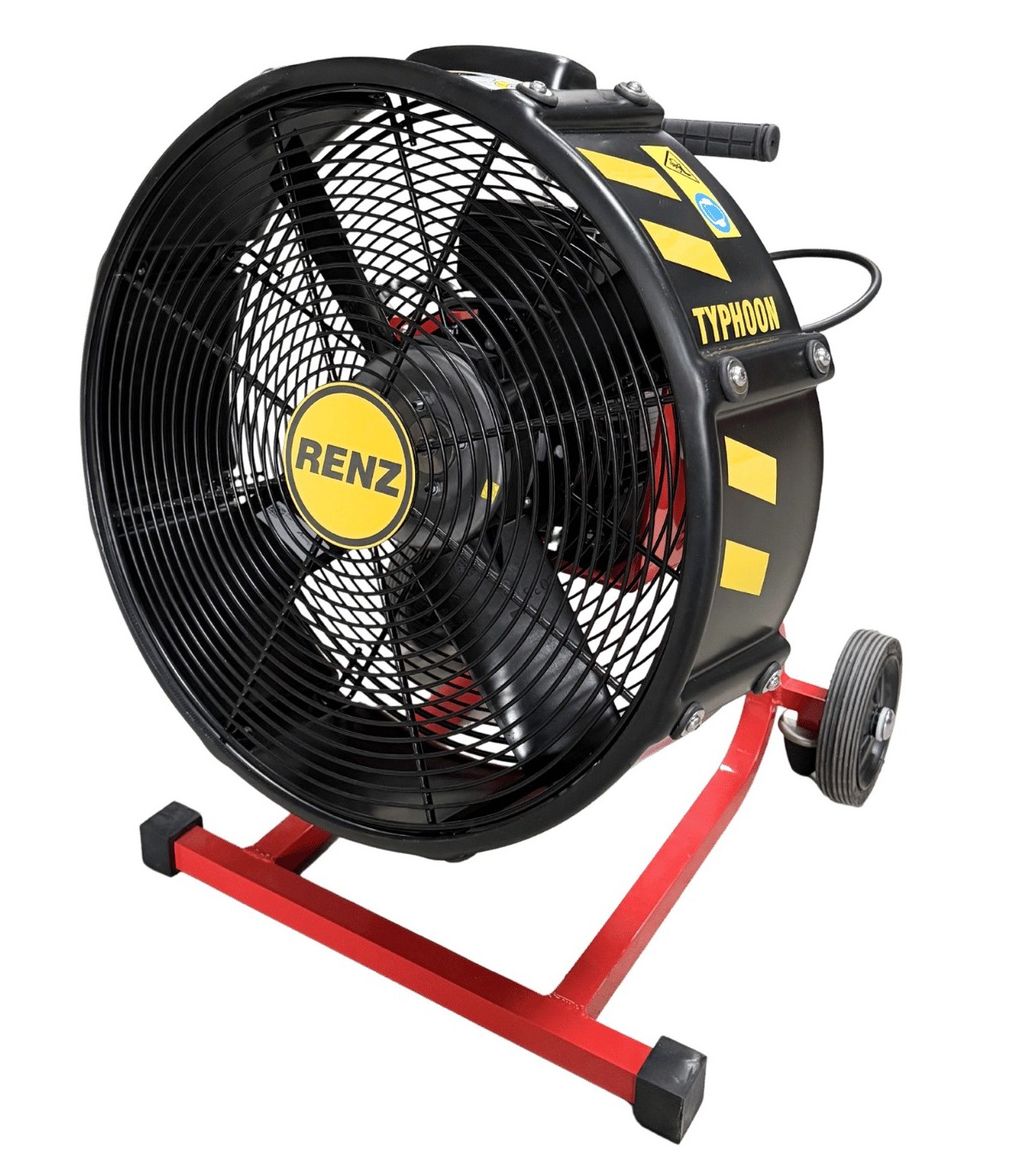

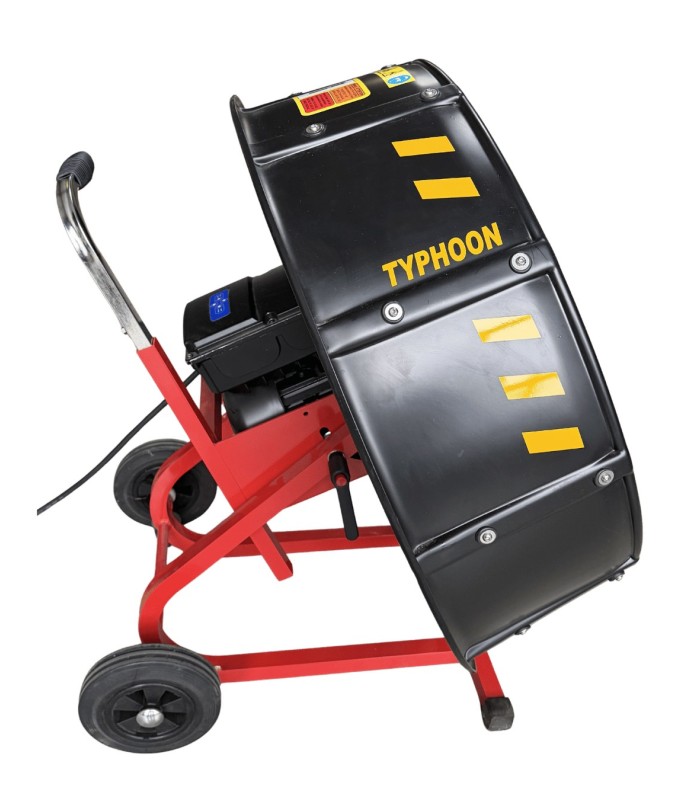

The TYPHOON 18E2.2 positive pressure fan is a high-performance solution designed for smoke extraction and ventilation in indoor environments. Equipped with a 2.2 kW, 230 V electric motor, it operates without fuel and produces no direct exhaust emissions, making it particularly well-suited for buildings, technical facilities, and workshops.
Compact, portable, and easy to set up, it meets the needs of fire departments, industrial sites, infrastructure operators, commercial facilities, and maintenance crews requiring powerful ventilation powered by a standard electrical supply.
A solution for ventilating indoor spaces
Mounted on wheels, the TYPHOON 18E2.2 can be quickly deployed and positioned in front of a door, bay, or ventilation opening. It is suitable for homes, apartment buildings, control rooms, workshops, parking garages, mechanical rooms, and industrial buildings with a standard electrical outlet.
Its 457 mm (18") size, compliant with DIN 14963-EM—size class 1—delivers an airflow of 14,000 m³/h, which can reach up to 20,000 m³/h depending on operating conditions. Its adjustable tilt range of -20° to +50° allows the airflow to be precisely directed toward the opening to be ventilated.
An electric motor suitable for extended operations
Unlike a thermal fan, this model does not directly produce exhaust gases and requires no fuel storage. This design improves operating conditions during indoor operations, particularly in occupied buildings, mechanical rooms, or areas where emissions from a combustion engine must be avoided.
Its fixed-speed electric motor ensures smooth operation as long as a suitable 230 V power supply is available. Its wheeled base and weight of 24.6 kg make it easy to move and position as close as possible to the area to be ventilated.
Technical Specifications
| Technical Specifications – TYPHOON 18E2.2 Positive Pressure Fan |
| Product Type |
Electric positive pressure fan |
| Model |
TYPHOON 18E2.2 |
| Drive |
Fixed-speed electric motor |
| Power Supply |
230 V |
| Motor power |
2.2 kW |
| Airflow |
14,000 m³/h, up to 20,000 m³/h depending on operating conditions |
| Weight |
24.6 kg |
| Nominal diameter |
18" / 457 mm |
| Tilt |
From -20° to +50° |
| Specified standard |
DIN 14963-EM – Size Class 1 |
| Mobility |
Wheel-mounted |
| Typical applications |
Indoor smoke extraction, ventilation of technical rooms, workshops, and industrial buildings |
Applications
- Smoke extraction from residential homes, apartment buildings, and commercial buildings;
- Temporary ventilation of technical rooms and control rooms;
- air exchange in workshops with an electrical supply;
- Ventilation of parking garages, basements, and interior spaces;
- removal of smoke, odors, or stale air following a service call or maintenance operation;
- extended operations requiring ventilation without direct exhaust gas emissions.
FAQ – TYPHOON 18E2.2 Positive Pressure Fan
Why choose an electric fan over a combustion-powered model?
An electric fan does not require fuel and does not directly produce exhaust gases. It is therefore particularly well-suited for indoor operations, occupied buildings, and extended operations where a mains power supply is available.
Is this fan intended solely for fire departments?
No. It also meets the needs of industry and building operators: ventilation of workshops, air exchange in technical rooms, control rooms, parking garages, basements, and maintenance areas.
What is the purpose of the adjustable tilt range from -20° to +50°?
The tilt allows the airflow to be precisely directed based on the height and configuration of the opening. Proper adjustment improves ventilation efficiency and minimizes air leakage around the door or opening.
What are the main advantages for an industrial site?
This fan combines high airflow, portability, and fuel-free operation. It is an ideal solution for sites seeking reliable equipment that is easy to position and suitable for extended indoor use.
