Monitor nozzle AKRON FireFox 3293 | MMF.fr

Monitor nozzle AKRON FireFox 3293

Monitor nozzle AKRON AquaStream 4450 BRONZE (FM approval)

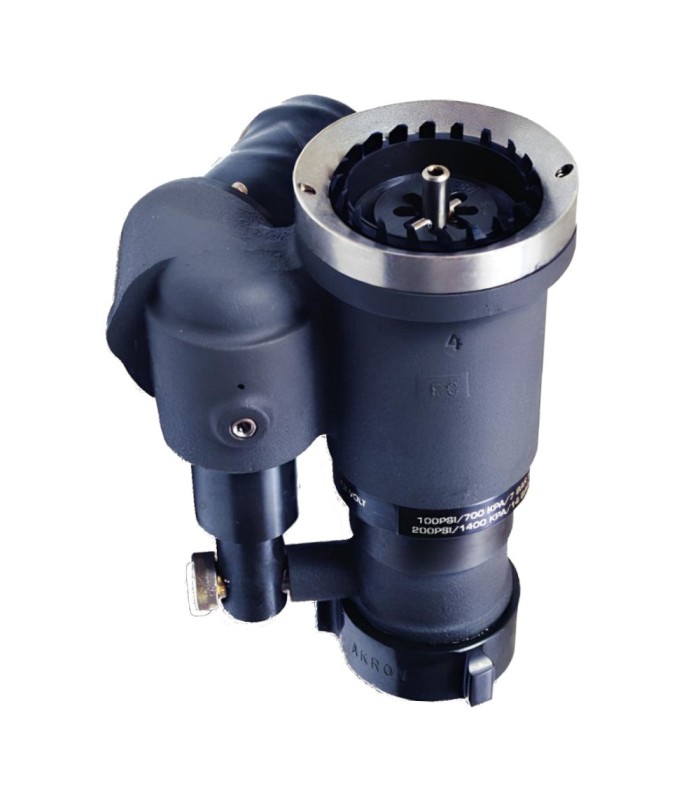

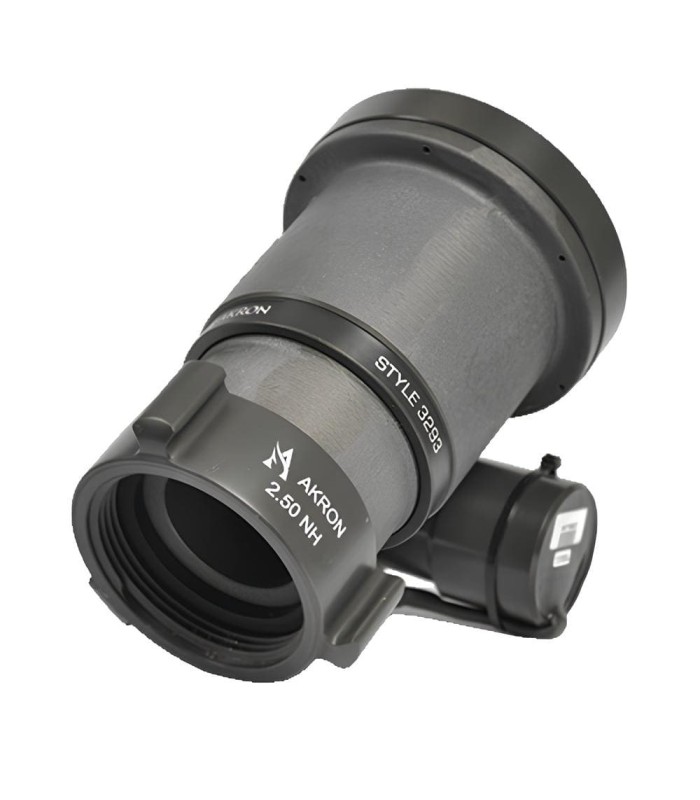

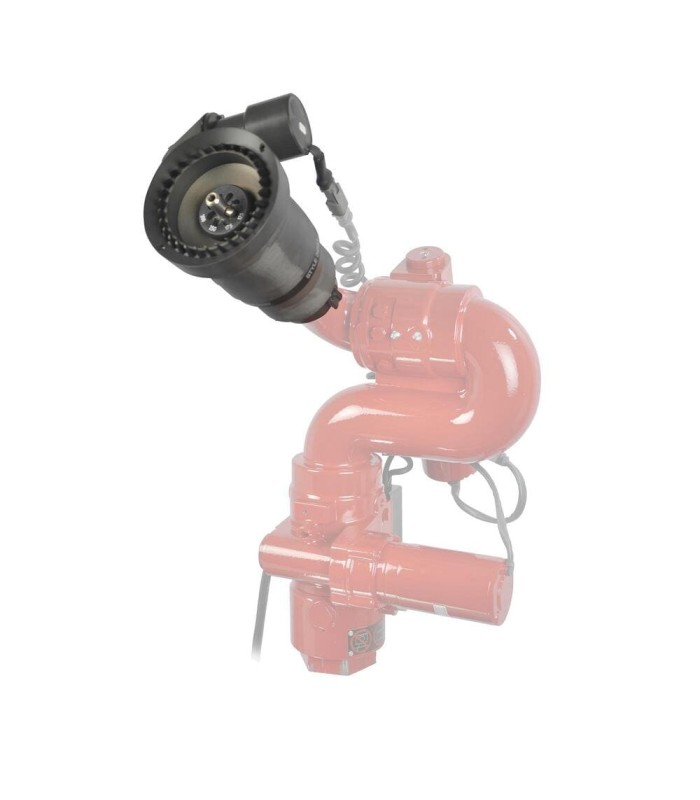

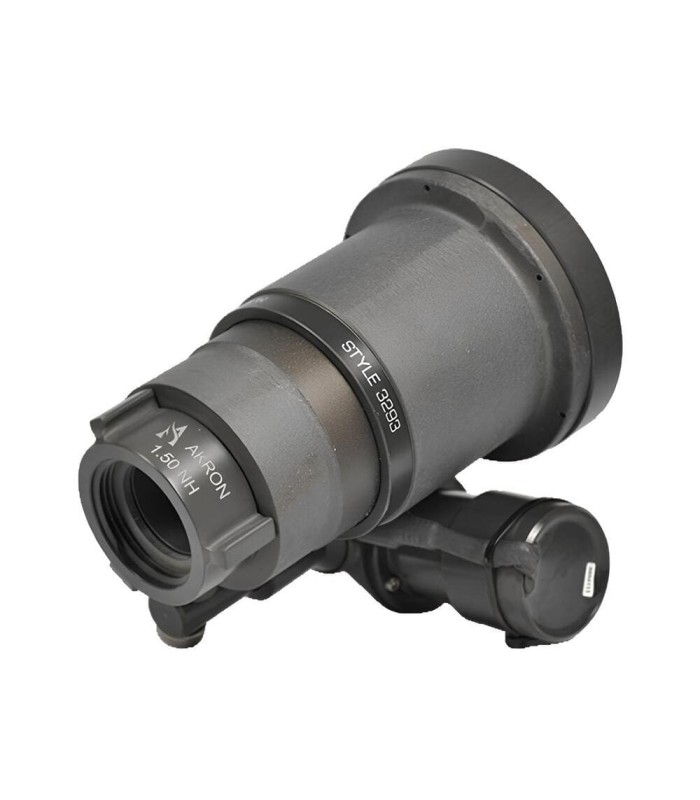

The monitor nozzle FireFox 3293 fromAkron Brass is a high-performance, versatile solution for fire-fighting professionals. Designed to offer adjustable flow and high precision, it can be adapted to a wide range of firefighting situations, from structural fires to forest fires. Thanks to its intuitive electric control, it provides optimum jet control, improving operational efficiency. Compatible with several types of firefighting monitors, it meets the requirements of emergency services and high-risk industries.

Key features

Adjustable flow rate: The monitor nozzle FireFox 3293 offers variable flow rate options, with configurations allowing flow rates of up to 2000 LPM, at an operating pressure of 7 bar (100 psi).
Robust design: Featuring a DN40 or DN65 swivel inlet, this handheld nozzle is made from high-quality materials to withstand the demanding conditions of emergency response.
Compact dimensions: With a length of 187 mm and a weight of less than 4 kg, this monitor nozzle combines lightness and compactness, making it easy to integrate on various types of motorized monitors.

Technical specifications

Features	Value
Available flow rates	115 - 230 - 360 - 475 LPM 475 - 660 - 950 - 1325 LPM 500 - 1000 - 1500 - 2000 LPM 1325 - 1525 - 1700 - 1900 LPM
Operating pressure	7 bars
Swivel inlet	DN40 or DN65
Max. weight	3.4 kg
Length	187 mm

Advantages of FireFox 3293

Operational versatility: Thanks to its adjustable flow rates, the FireFox 3293 can be adapted to a variety of intervention situations, enabling operators to modulate the flow rate to suit the specific needs of each mission
Precise electric controls: The electric controls make it easy to adjust the spray pattern, providing a smooth transition between different spraying modes, improving precision and efficiency during operations
Versatility of use: Equipped with rotating teeth for better water dispersion, the monitor nozzle FireFox 3293 can also be fitted with an optional flat spray tip or additional foam tubes.

Preferred areas of application

Fighting structural fires: The FireFox 3293 is ideal for use on residential, commercial or industrial buildings, where flow modulation and jet precision are essential for effective flame control.
Forest fires and rural areas: Its ability to adjust flow makes it suitable for vegetation fires, enabling large areas to be covered while keeping water consumption under control.
Airport applications (ARFF): In emergency situations on runways or in the vicinity of aircraft, the FireFox 3293 offers the speed and precision required to extinguish fires and ensure the safety of passengers and personnel.
Specialized vehicles: Integrated into specific intervention vehicles, this monitor nozzle enhances extinguishing capabilities, particularly in complex industrial environments or high-risk installations.

MMF Protection et Sécurité your trusted partner

As an authorized dealer and repair center, Akron Brass, MMF Protection et Sécurité offers its expertise to advise you on the integration of monitor nozzle FireFox 3293 into your fire-fighting arsenal.

Our team is available to answer your questions, carry out installation and provide quality after-sales service, guaranteeing the performance and durability of your equipment.

The addition of monitor nozzle FireFox 3293 to your equipment enhances the efficiency of your operations by offering precise control of flow and jet, adapted to the different situations encountered in the field.

For further information or personalized advice, please do not hesitate to contact MMF Protection et Sécuritéakron Brass, your trusted partner for Akron Brass fire-fighting solutions.
