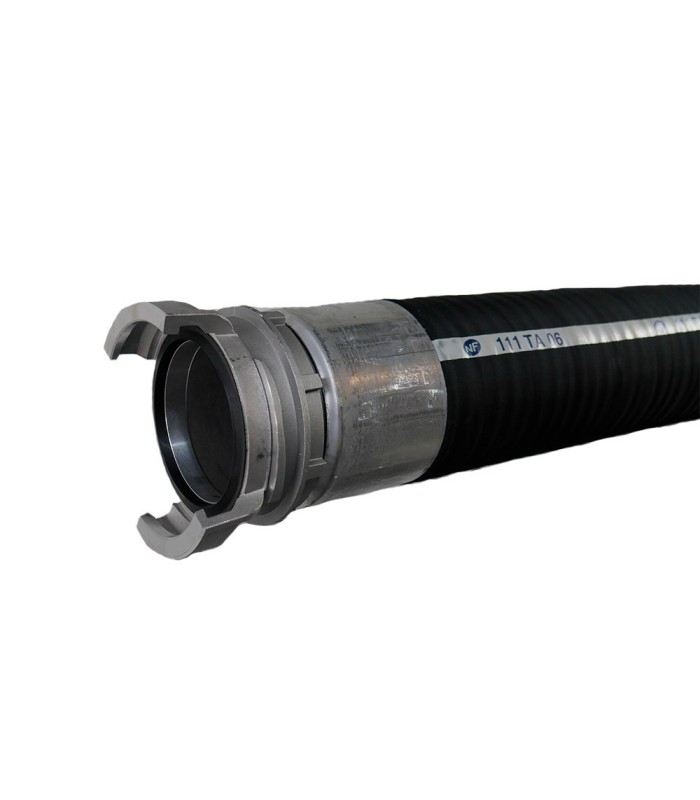

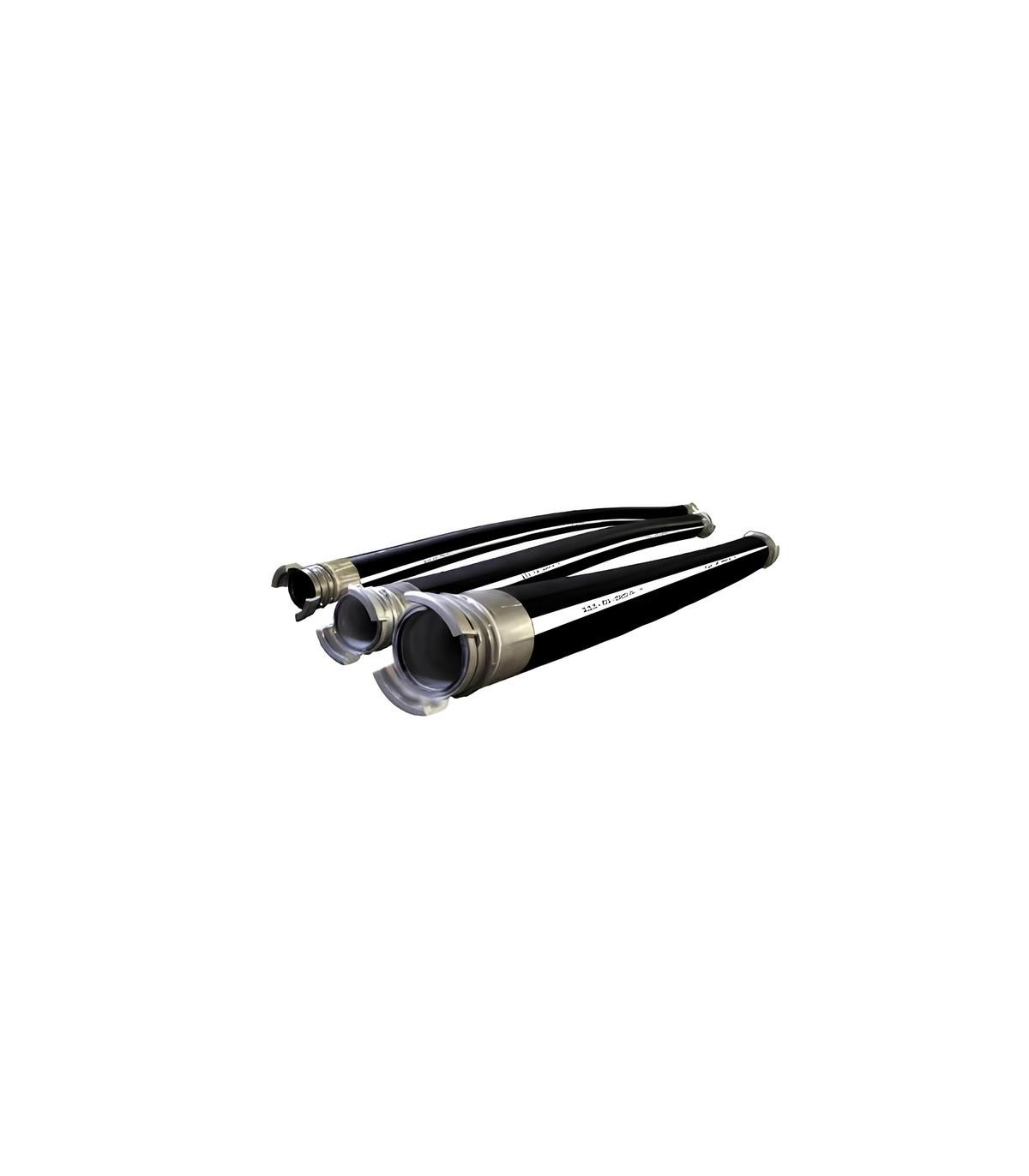

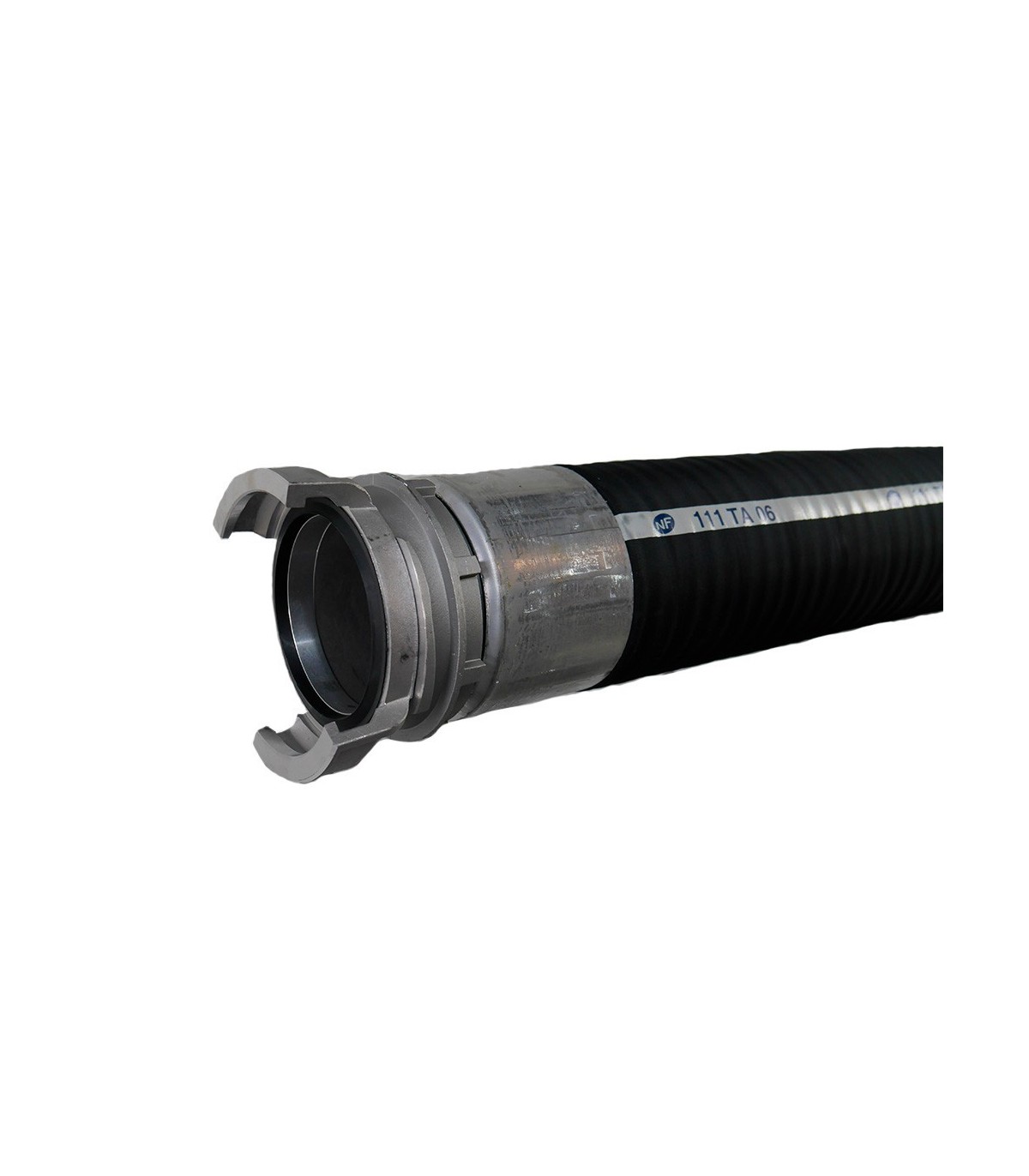

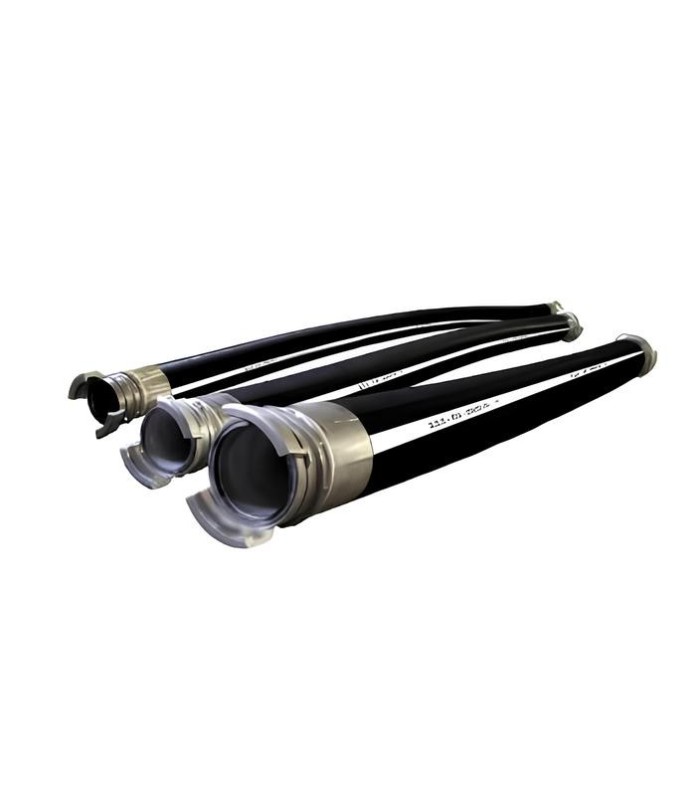

Standard fire-fighting suction hose 5 m

Flat hose for drinking water - Aquaflex Star
PN16 Semi-Rigid Low-Pressure Fire Hose (Discharge)

Standardized 5 m suction hose, compliant with NFS 61113 and NF EN ISO 14557 standards, with Guillemin fittings, ideal for fire-fighting operations.

Read moreShow less
Reference:
41531
Guide de tailles
Pipe diameter
  • DN 110
Connection type
Out of stock (estimated delivery time: 1 to 2 weeks)
Create a quote
€543.27 (tax excl.)
€543.27 (tax excl.)



Download PDF

Partager cette fiche produit :

Add to compare0
Description

Adapted to the needs of firefighters

Distributed by MMF Protection et Sécuritéthis standardized 5 m suction hose is designed to meet the critical needs of fire-fighters. Certified to current standards, it ensures effective suction from any water point (hydrant, tank, stream).

Robust, durable construction

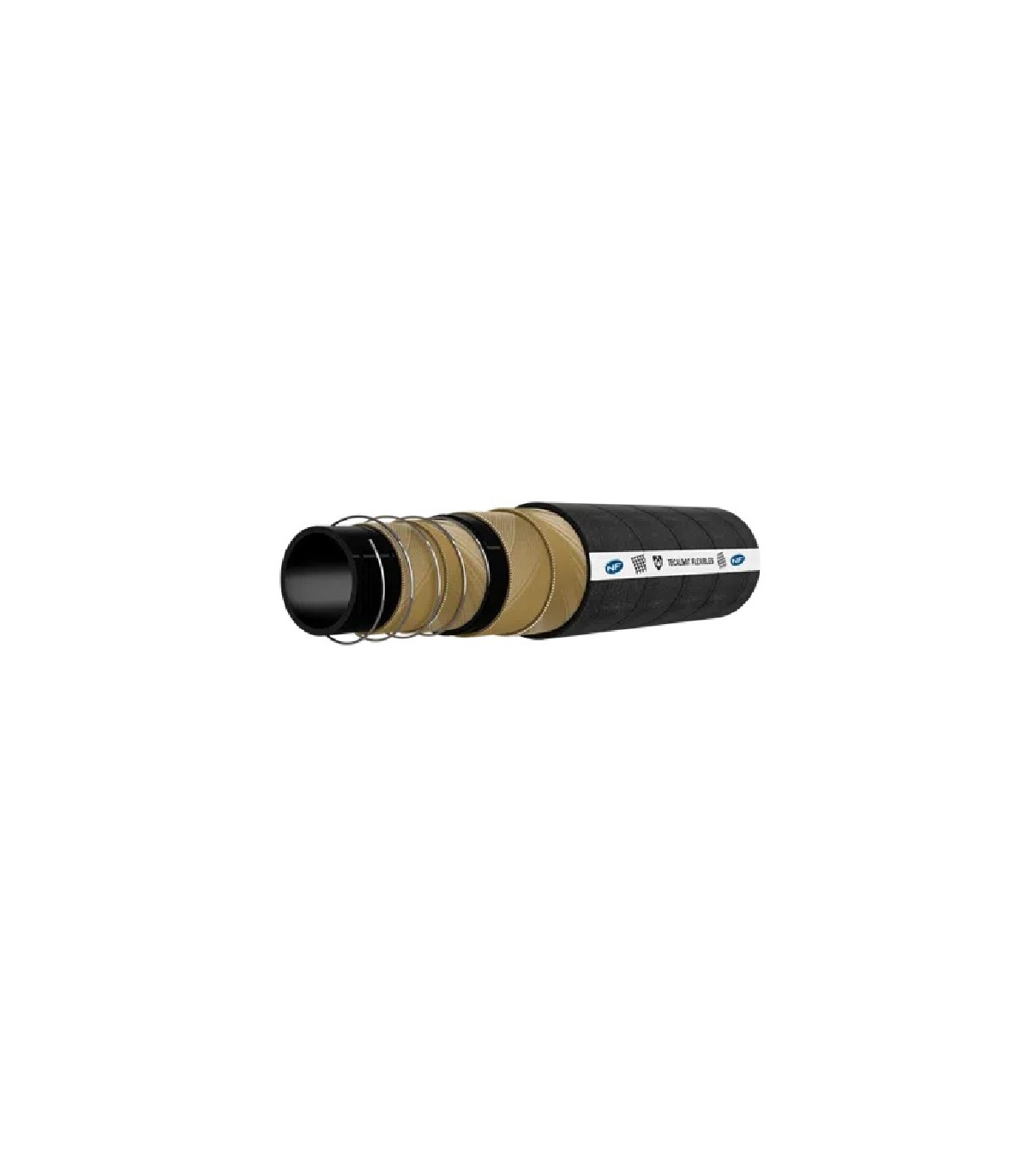

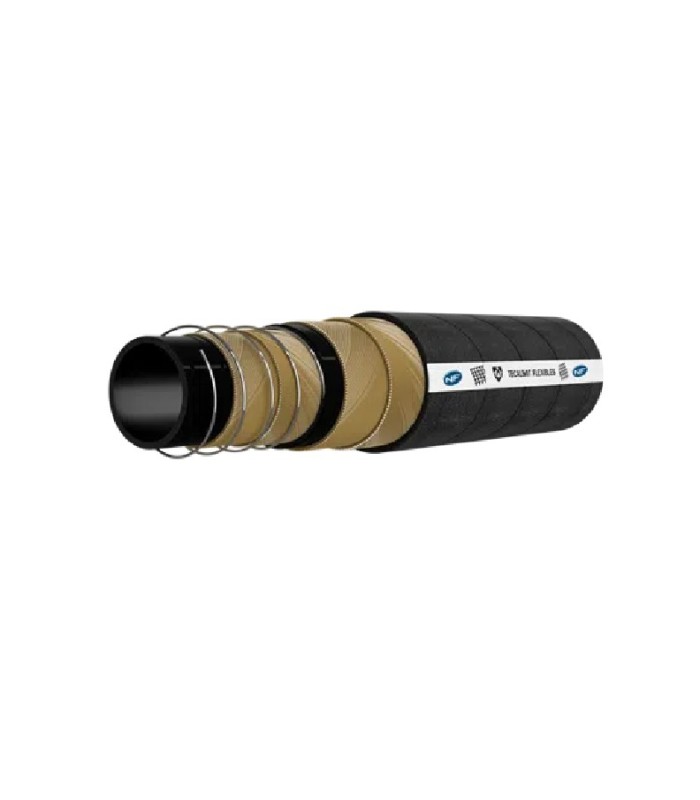

The hose consists of a smooth SBR rubber inner tube, a 4-ply textile reinforcement and a metal spiral. It is covered by an SBR rubber jacket resistant to abrasion, weather and temperatures up to 90°C, guaranteeing exceptional durability in extreme conditions.

Technical performance

System specifications

Length 5 m
Diameter Choose from DN 45, DN 70 or DN 110
Connections Guillemin SYM / APM (for DN 45 and 70), AR for DN 110
Operating pressure 6 bar
Permissible vacuum 0.9 bar
Max. operating temperature 90 °C
Construction Smooth SBR inner tube, 4 textile plies, metal spiral, SBR outer coating
Marking Conforms to NFS 61113 and NF EN ISO 14557 standards, white transfer strip

Applications

This 5 m hose is particularly well-suited to water suction operations for fire-fighters, on vehicles, motor-driven pumps or in response to natural or artificial water sources. It is also suitable for training, public works, sanitation and demanding industrial applications.

Benefits

Why choose this hose?

  • Certified standards for guaranteed safety
  • Reinforced structure for long service life
  • Excellent pressure/cold/heat resistance
  • Fast, reliable Guillemin connections
  • Clear marking for traceability and operational compliance
  • Supplied by MMF Protection et Sécuritéthe fire equipment specialist

Read moreShow less
Product Details
41531

Data sheet

Length
5 meters
Environment
Fire - fire department
Pipe category
Suction
Usage Pipe
Standard
Operating pressure
6 bar
Resistance (temperature)
up to 90°C
Color
Black
Exterior cladding
abrasion- and weather-resistant SBR rubber
Interior lining
smooth SBR rubber
Reinforcement
4 textile plies and metal spiral
