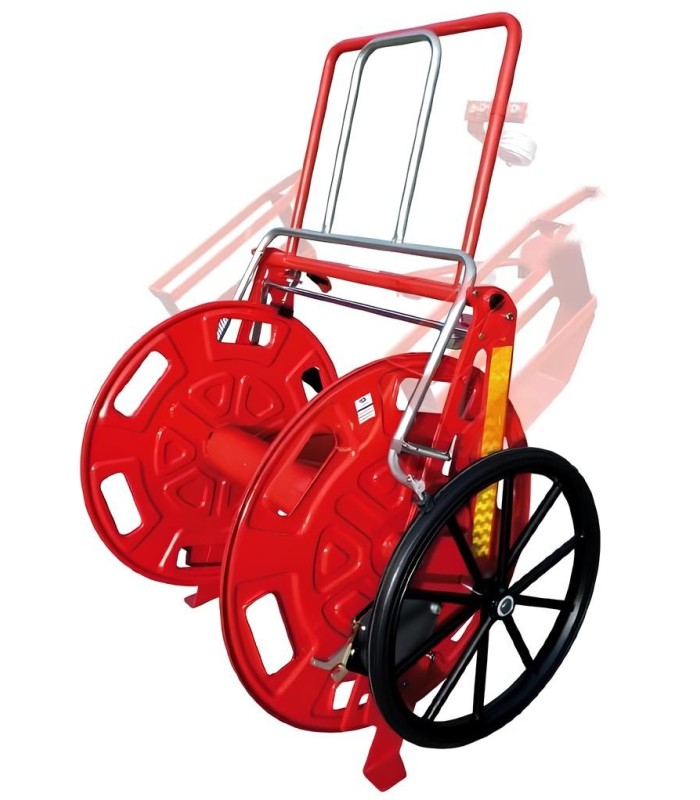

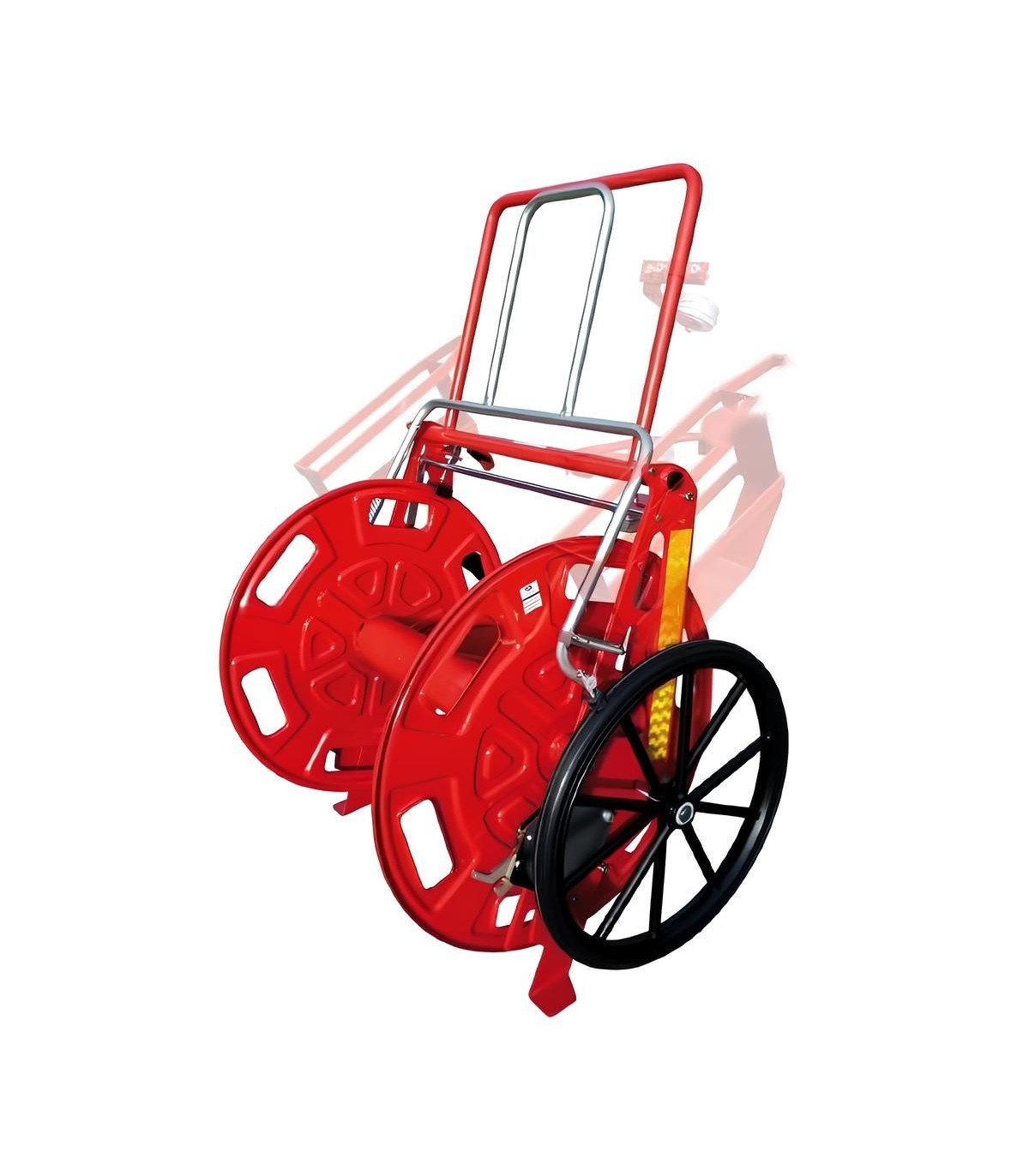

Wheeled hose reel for fire engines

200-meter-capacity fire hose reel on wheels for DN70 hoses, designed for fire departments and demanding industrial environments. Robust and easy to handle, it can transport and quickly set up 5 lengths of 40 m.

High-strength steel structure with welded drum, rubber-tyred spoked wheels and automatic vehicle lashing system. Available with brake (NF S 61-521 certified) for optimum control, or without brake for standard use.

A reliable, durable solution for fire safety professionals, distributed by MMF with technical support.

Read moreShow less
Reference:
39661
Guide de tailles
Model
Out of stock (estimated delivery time: 1 to 2 weeks)
Create a quote
€2,785.71 (tax excl.)
€2,785.71 (tax excl.)

Partager cette fiche produit :

Add to compare0
Description

200-meter fire hose reel DN70 - with or without brake

The 200-meter fire hose reel on wheels is an indispensable piece of equipment for fire and rescue services, designed for the storage, transport and rapid deployment of DN70 fire hoses.

This model can accommodate up to 5 lengths of 40-meter hose, i.e. 200 meters of flat hose fitted with half-couplings, guaranteeing fast, efficient intervention in the field.

Its robust design is based on a steel structure with monobloc flanges and welded drum, ensuring excellent resistance to impact, wear and intensive operating conditions. The fire-retardant plasticized coating offers enhanced protection against corrosion.

Design and equipment

  • Frame with automatic vehicle-mounted lashing system
  • Ergonomic drawbar for easy manual pulling
  • Steel wheels with high-strength rubber tires
  • Coil locking device
  • Stabilizing legs in stop position
  • DSP DN65 plug with removable lock
  • Retro-reflective beaconing for improved visibility

Available in the following versions

Version with brake (certified NF S 61-521)

  • Integrated braking system with deceleration aid
  • Optimized control of unwinding and movement
  • Compliant with fire service requirements
  • NF Matériels Sapeurs-Pompiers certification

Version without brake

  • Lighter, more economical version
  • Easy to use in a controlled environment
  • Sturdiness identical to the version with brake

Technical specifications

  • Capacity: 200 meters of DN70 hose
  • Configuration: 5 x 40 meters
  • Material: high-strength steel
  • Wheels: steel with rubber tyres
  • Ground clearance: 144 mm
  • Tensile force: 100 N (less than 200 N standard)
  • Tested load: up to 250 kg
  • Coating: anti-corrosion red plastification

Weight according to version

  • Without brake: 67.5 kg
  • With brake: 69.9 kg
  • Reinforced version: 73.4 kg

Applications

This hose reel is designed for demanding professional environments:

  • Fire and rescue services (SDIS)
  • Industry and high-risk sites
  • SEVESO and petrochemical sites
  • Railway infrastructures
  • Logistics platforms

MMF expertise

Distributed by MMF, a specialist in professional fire-fighting equipment, this hose reel benefits from technical support, recognized industry expertise and maintenance and spare parts support.

Read moreShow less
