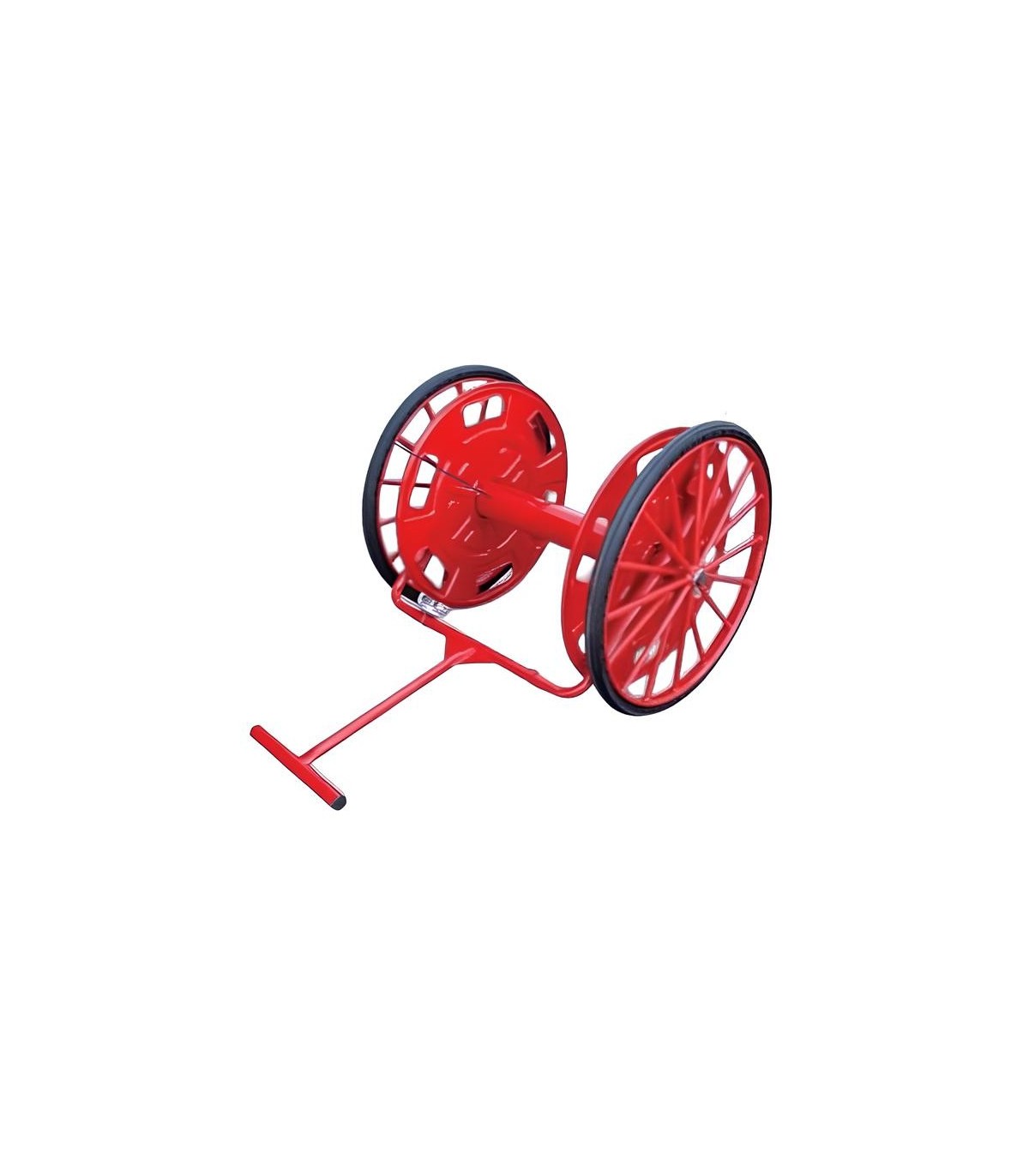

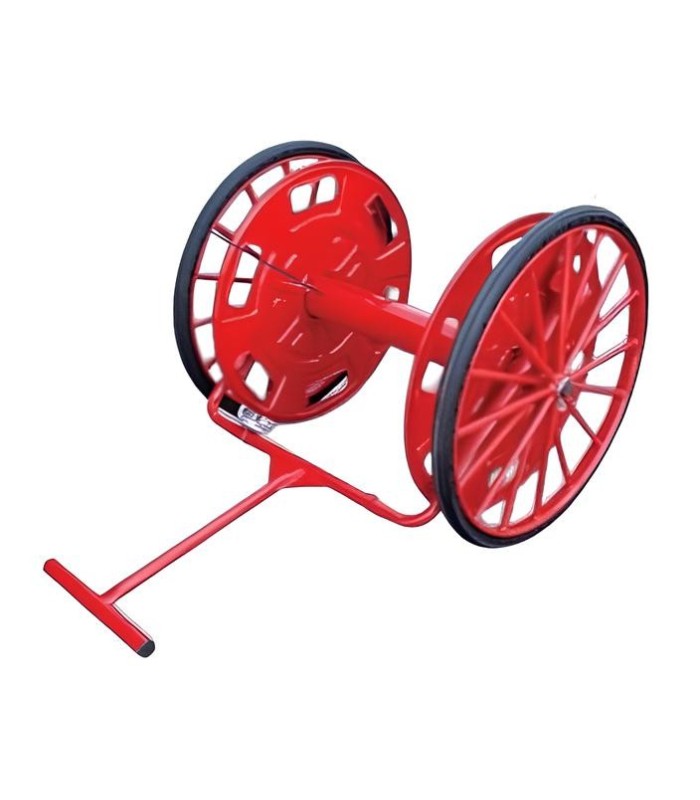

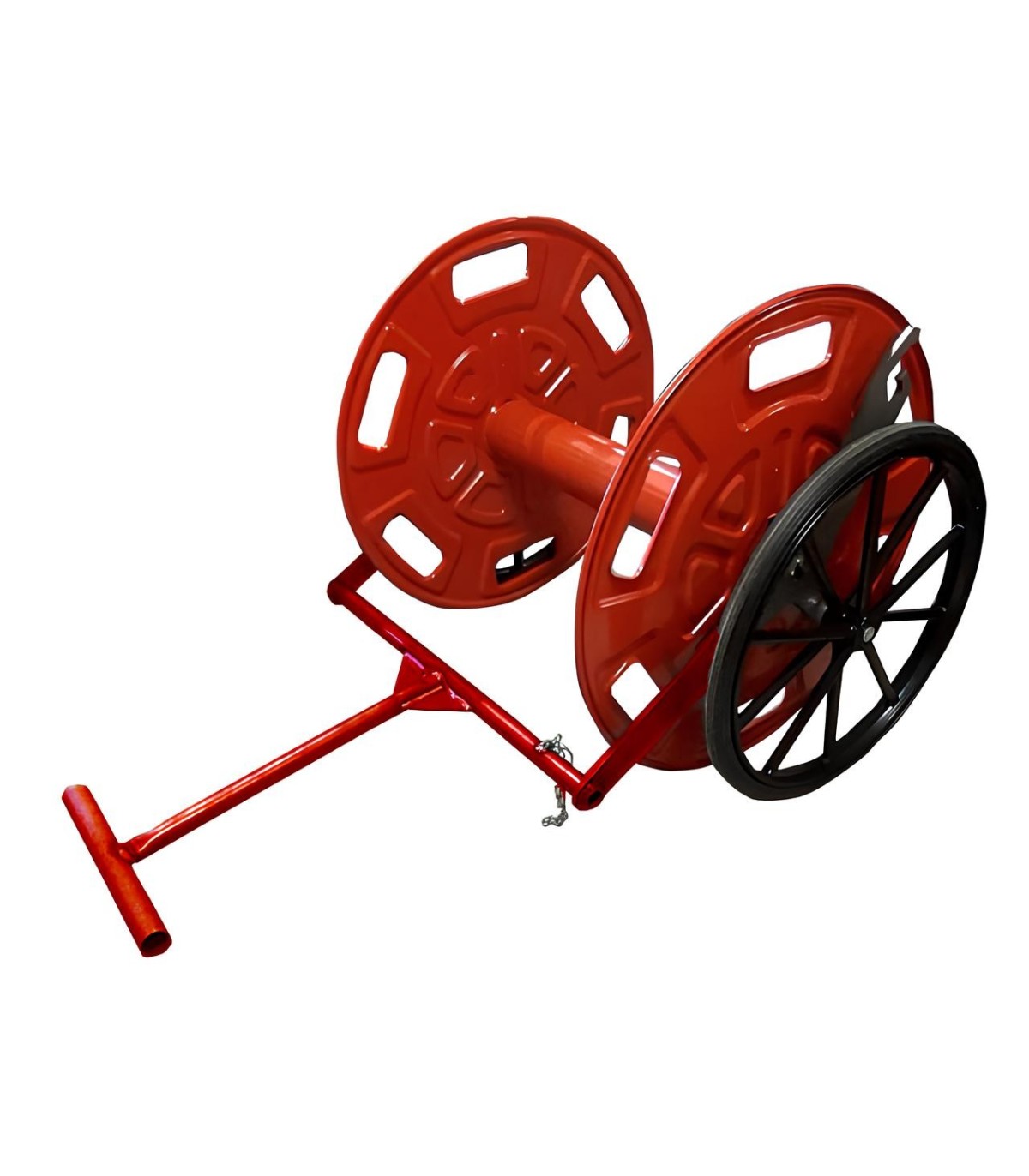

Mobile fire hose reel 200 m DN70 with brake

Professional towable hose reel - With integrated reel brake

This towable hose reel is specially designed for transporting and rapidly deploying 200 meters of DN70 flat hose, enabling autonomous intervention even in difficult terrain or without a fixed fire network.

The version equipped with an integrated reel brake offers a real operational advantage: it allows you to control or block the rotation of the reel while the hose is being unwound or rewound. This safety system prevents jerks, accidental unwinding or loss of control on sloping ground.

Robust design and enhanced mobility

• All-metal structure with anti-corrosion red plastic coating
• Welded steel spool with reinforced central drum and one-piece flanges
• Easy-to-operatemechanical spool brake to block or release rotation
• Ø800 mm castor wheels with rubber tyres for excellent stability
• Drawbar with standardized drawbar eye, suitable for manual or motorized towing
• Secure lashing system for vehicle mounting
• Frame-mounted DSP DN65 plug for immediate hose connection

Technical data

General data

Available accessories (on request)

• Storage box 600 x 400 x 230 mm for accessories
• Swivel division support with lockable plug
• Support basket for hoses DN45 and handheld nozzles
• Coil brake kit (included in this version)
• Protective covers with retro-reflective strips

Recommended applications

• Municipal fire departments
• Industrial and logistics platforms
• Isolated areas or areas without a fire network
• Agricultural, forestry and event applications
