Mobile fire hose reel 200 m DN70 without brake

Essential equipment for firefighters

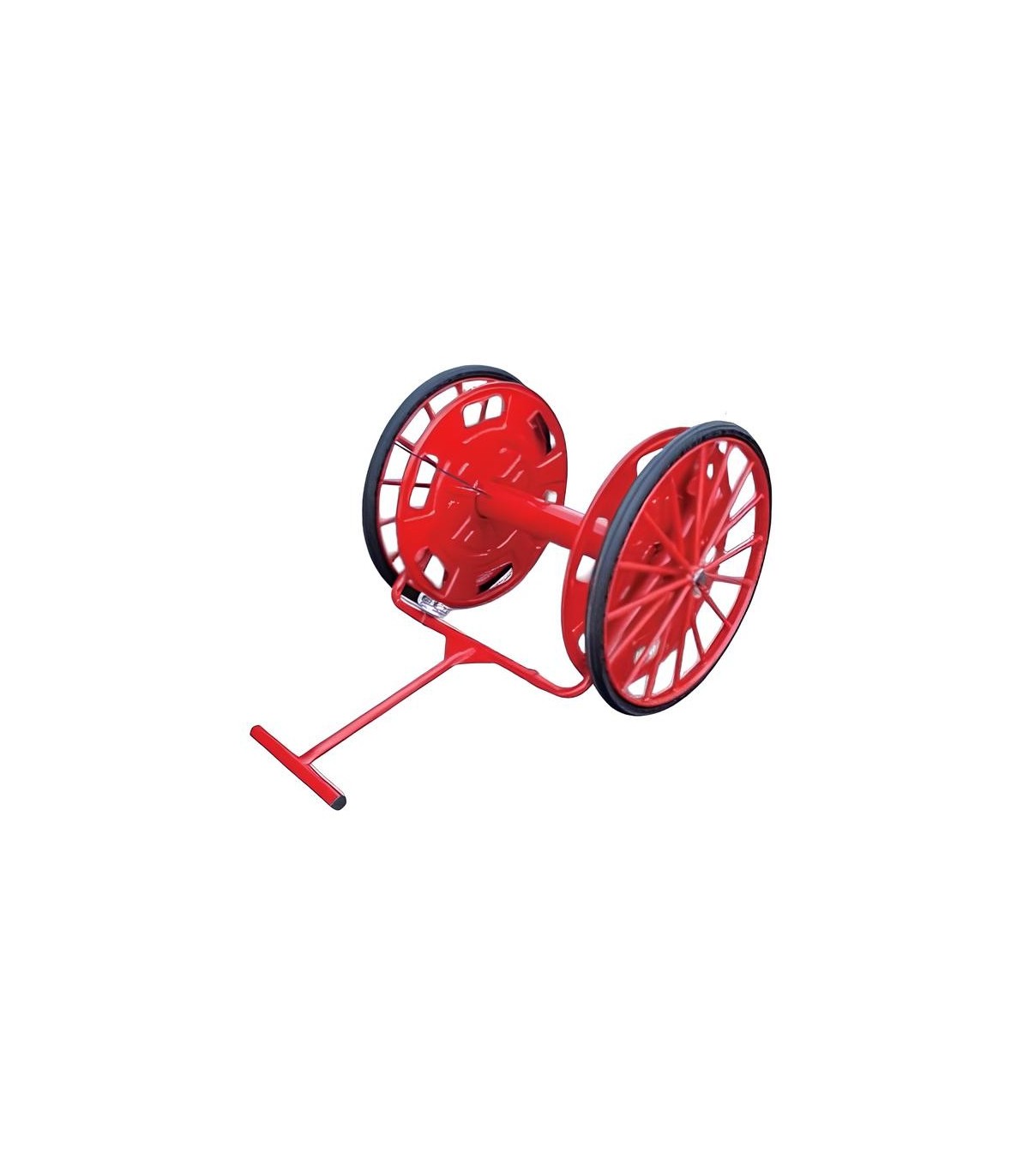

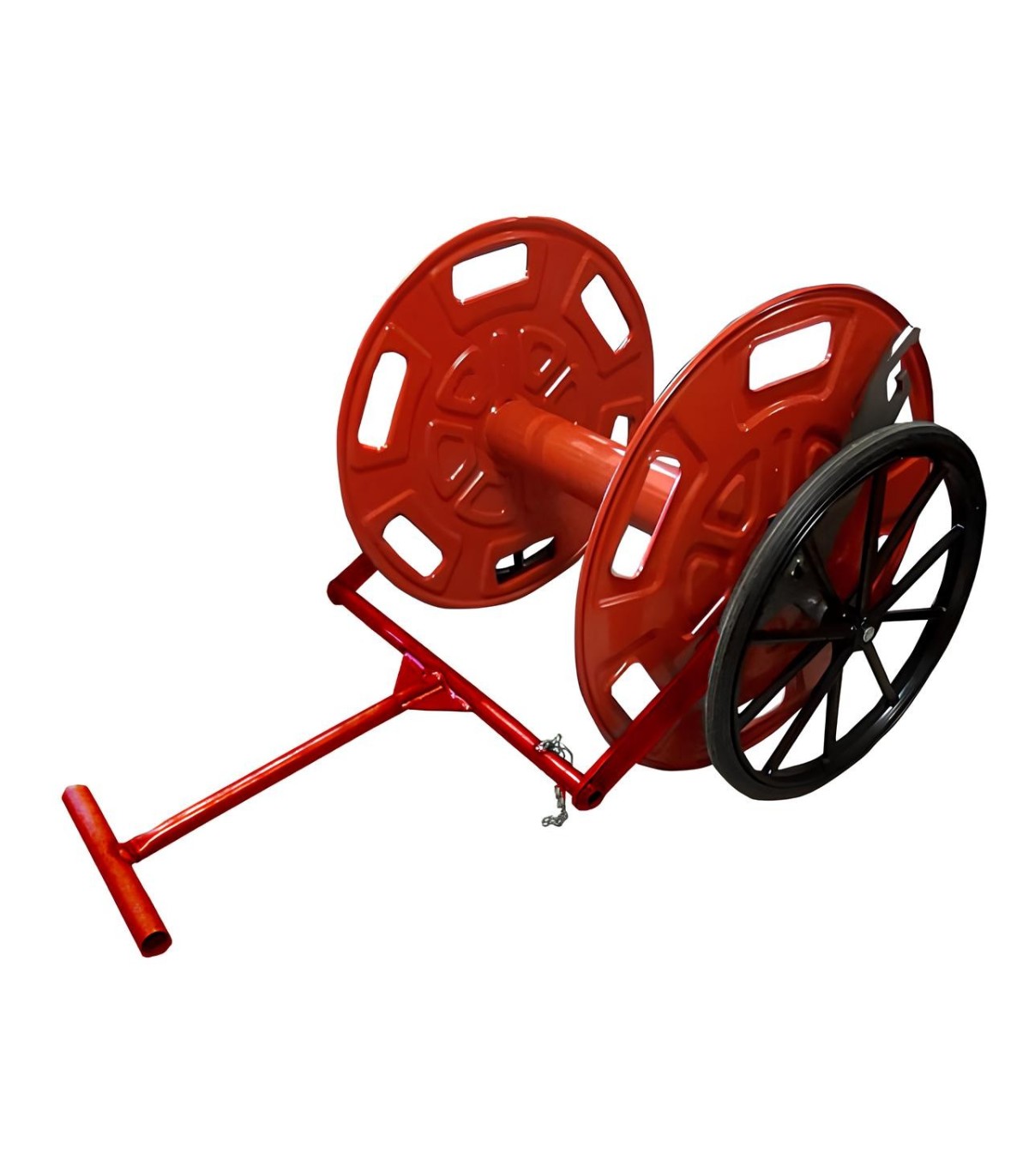

This mobile hose reel, available without reel brake, is designed to equip fire and rescue service vehicles. It can store, transport and rapidly unwind five 40-meter lengths of DN70 flat hose (200 meters in total).

Its all-metal design and fire-engine red plastic finish guarantee excellent durability, even under intensive conditions.

Robust, standards-compliant construction

The frame and coil are made of steel with a corrosion-resistant coating (lead-free, UV-resistant). This material complies with standard NF S 61.521 (pre-2002 version).

Reel components

• Frame with anti-unhooking lashing system for vehicle (fixing forks)
• Steel spool with one-piece flanges and welded drum
• Drawbar for easy manual traction
• Two Ø800 mm castor wheels with rubber tyres
• DSP DN65 frame-mounted plug for hose connection
• This model does not include the coil braking system (version without brake)

Technical data

Optional accessories

• Swiveling division support with DSP DN65 locking plug
• Support basket for 2 hoses DN45 (20 m) + 2 handheld nozzles
• Kit for locking coil in position
• Right/left protective covers in red polyester fabric with retro-reflective stripes

Application and benefits

Suitable for all operating environments

Designed for rapid deployment of hose lengths during fire-fighting operations, this reel is a reliable, stable and easy-to-handle tool. It ensures perfect organization of hoses on board vehicles.

French quality manufacturing

Each unit undergoes an individual quality control, guaranteeing reliability and conformity. The thick steel structure, meticulous surface treatment and robust components make this a benchmark piece of equipment for fire safety professionals.
