Peacock tail water curtain 56L/min DN40 1''1/2 BSP male

Water curtain pipe DN65 - 20 m
Peacock tail water curtain
91-SCOTTY

The Scotty Water Curtain creates a powerful water barrier (up to 12 m wide and 6 m high) to protect against heat and flames. Easy to install, it adapts to different flow rates (56, 113 or 190 L/min) and is suitable for fire departments, industries, sensitive areas or events. Robust and economical, it offers an effective solution for fire fighting and prevention.

Read moreShow less
Reference:
34989
Guide de tailles
Max. flow
Create a quote
€80.87 (tax excl.)
€80.87 (tax excl.)



Download PDF

Partager cette fiche produit :

Add to compare0
Description

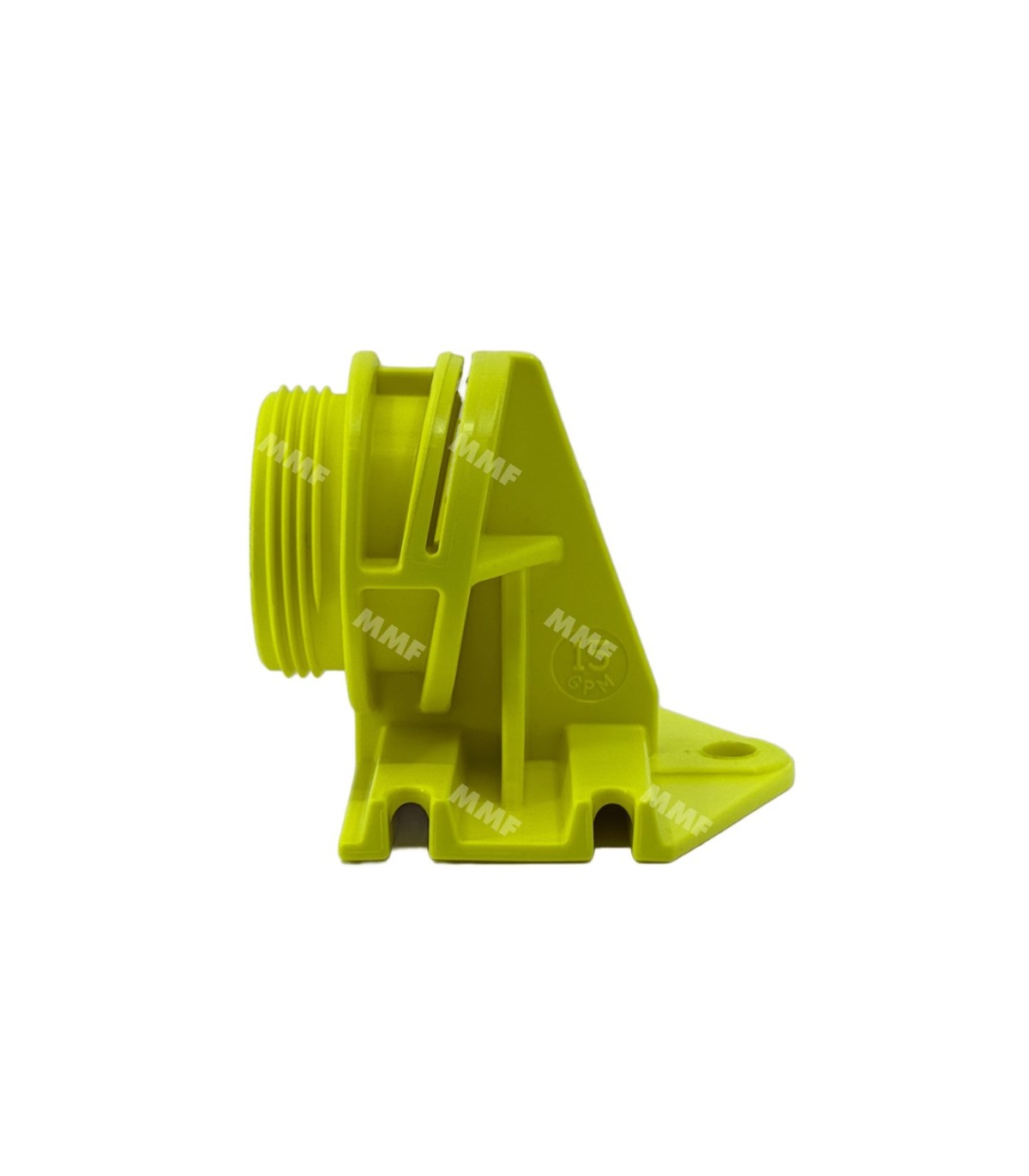

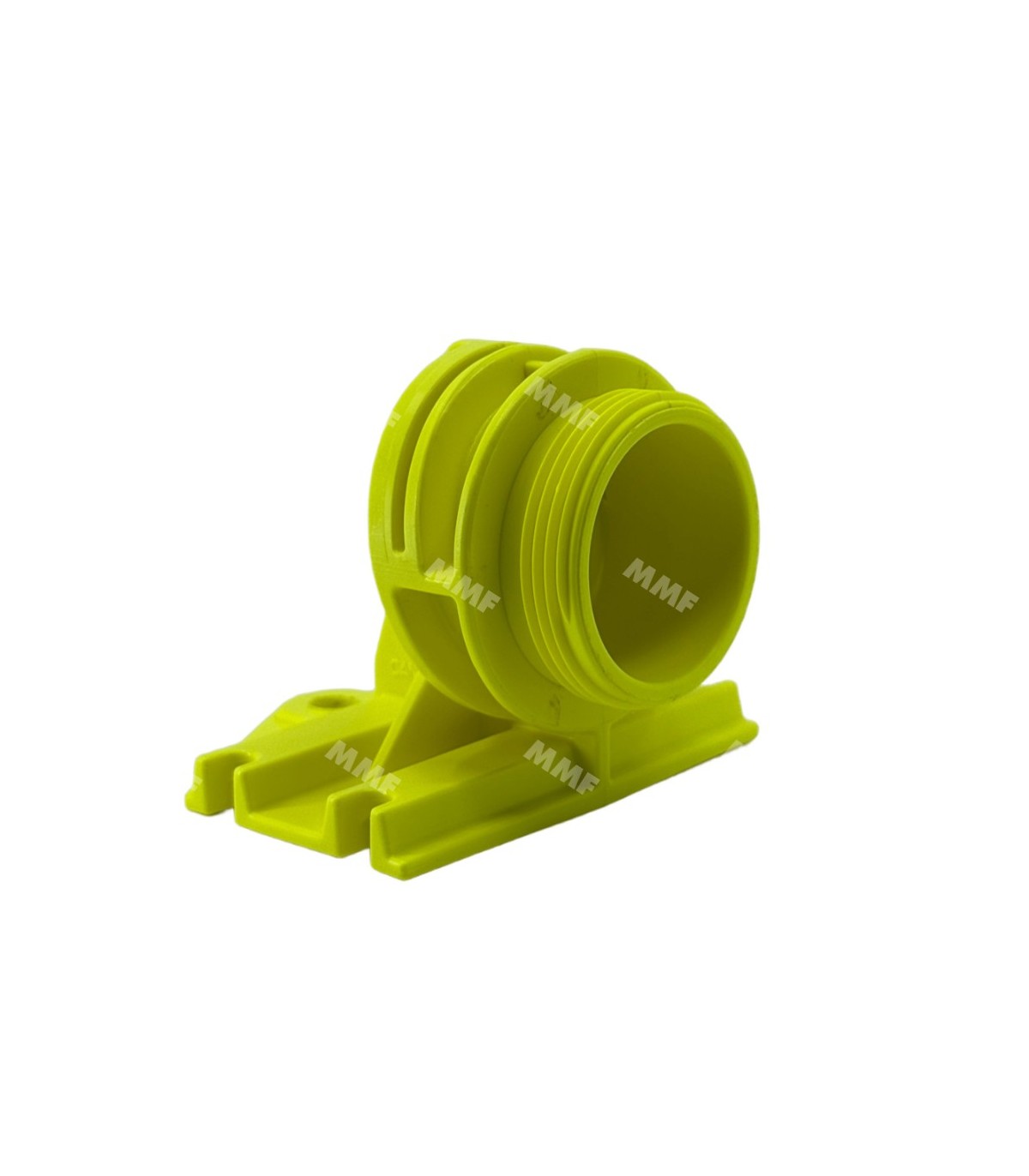

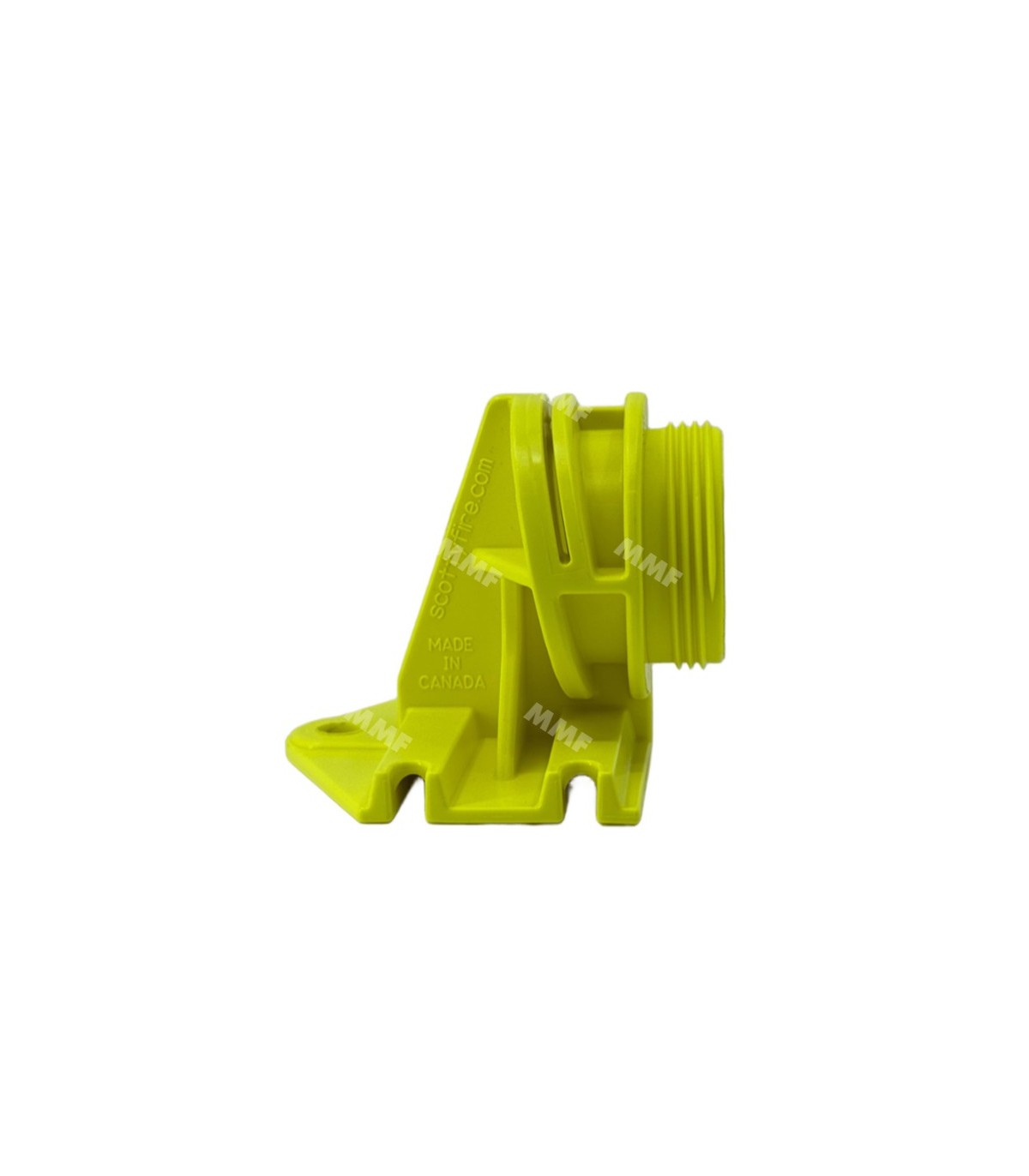

SCOTTY WATER CURTAIN - 56 / 113 / 190 L/min - 1''1/2 BSP male thread (without fitting)

The Scotty Water Curtain is an innovative device for creating a wall of water to effectively humidify and protect areas exposed to flames and heat. Designed for use with a pressurized water line, it generates a powerful water barrier, ideal for fire-fighting interventions and preventive protection of sensitive infrastructure.

Technical specifications:

  • Available flow rates:
  • 56 L/min (15 GPM)
  • 113 L/min (30 GPM)
  • 190 L/min (50 GPM)
  • Water wall dimensions: up to 12 m wide and 6 m high (depending on flow rate used).
  • Fixing: quick installation with three screws or a single stake for optimum stabilization.
  • Connection: 1"1/2 BSP male thread. Other versions available with double female connector.
  • Materials: resistant and durable for use in extreme conditions.

Advantages :

  • Effective protection: limits flame propagation, reduces thermal intensity.
  • Fast installation: simple, safe installation in just a few minutes.
  • Versatility: suitable for firefighters, high-risk industries and sensitive areas.
  • Water savings: consumption optimized according to need.
  • Robustness: designed to withstand harsh environments and intense heat.

Applications :

  • Fire services: active protection during response operations.
  • Industrial sites: enhanced safety in high-risk areas.
  • Residential and commercial areas: prevention during dry spells.
  • Outdoor events: improved thermal comfort and fire safety.
Read moreShow less
Product Details
34989
You may also like

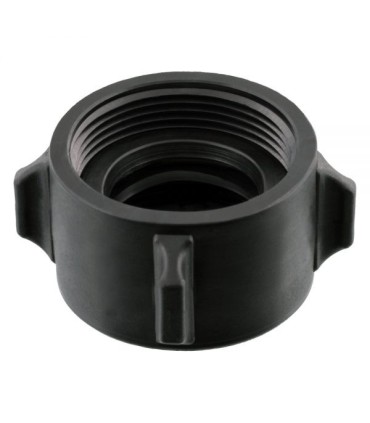

1"1/2 BSP Female-Female Connector with gasket | MMF.fr

Reference: 38759
€23.50 (tax excl.)
€23.50 (tax excl.)

Scotty Firefighter double female connectors are made of tough, lightweight, corrosion-resistant engineering polymers, ideal for fire-fighting applications. Available in NPSH and NHT 1 ½" versions, they ensure reliable, watertight connections between pipes and equipment. Their robustness and compatibility make them a high-performance choice for demanding professionals.

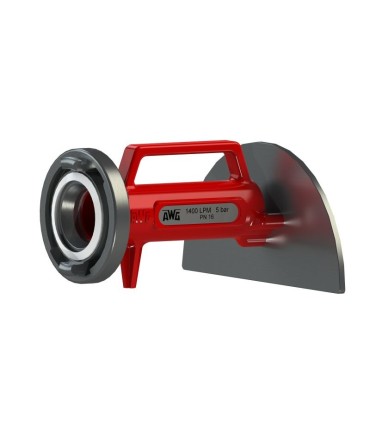

Peacock tail water curtain | MMF.fr
