DN65 - 2½" Threaded Steel Strainer

SG DN 65 stainless steel suction strainer with check valve
DN 65 Suction Strainer with Check Valve

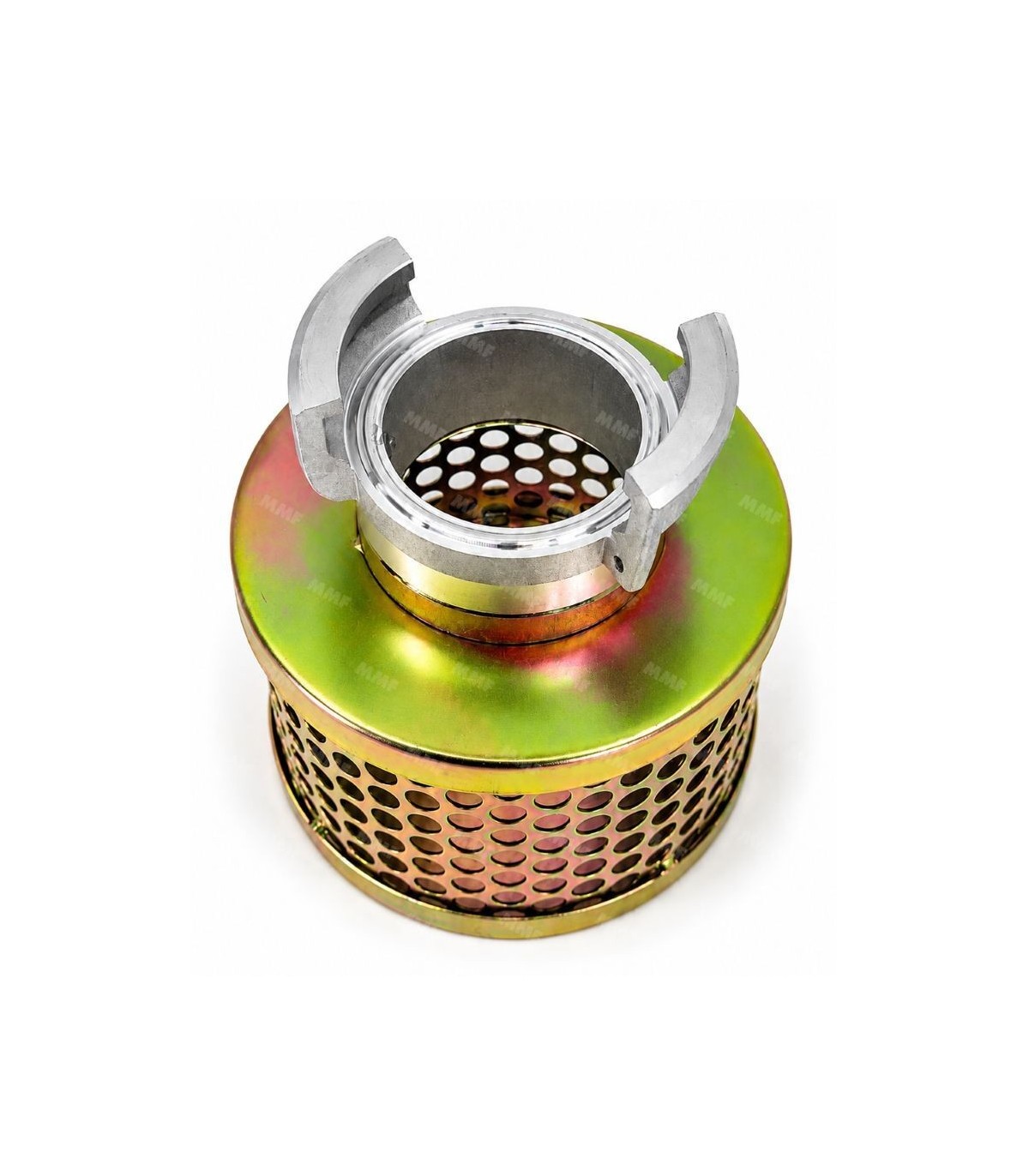

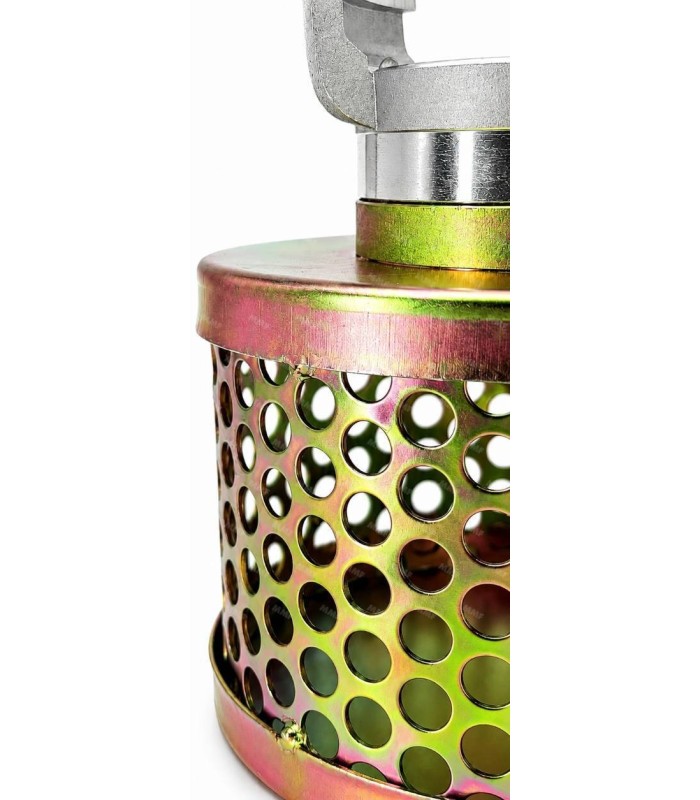

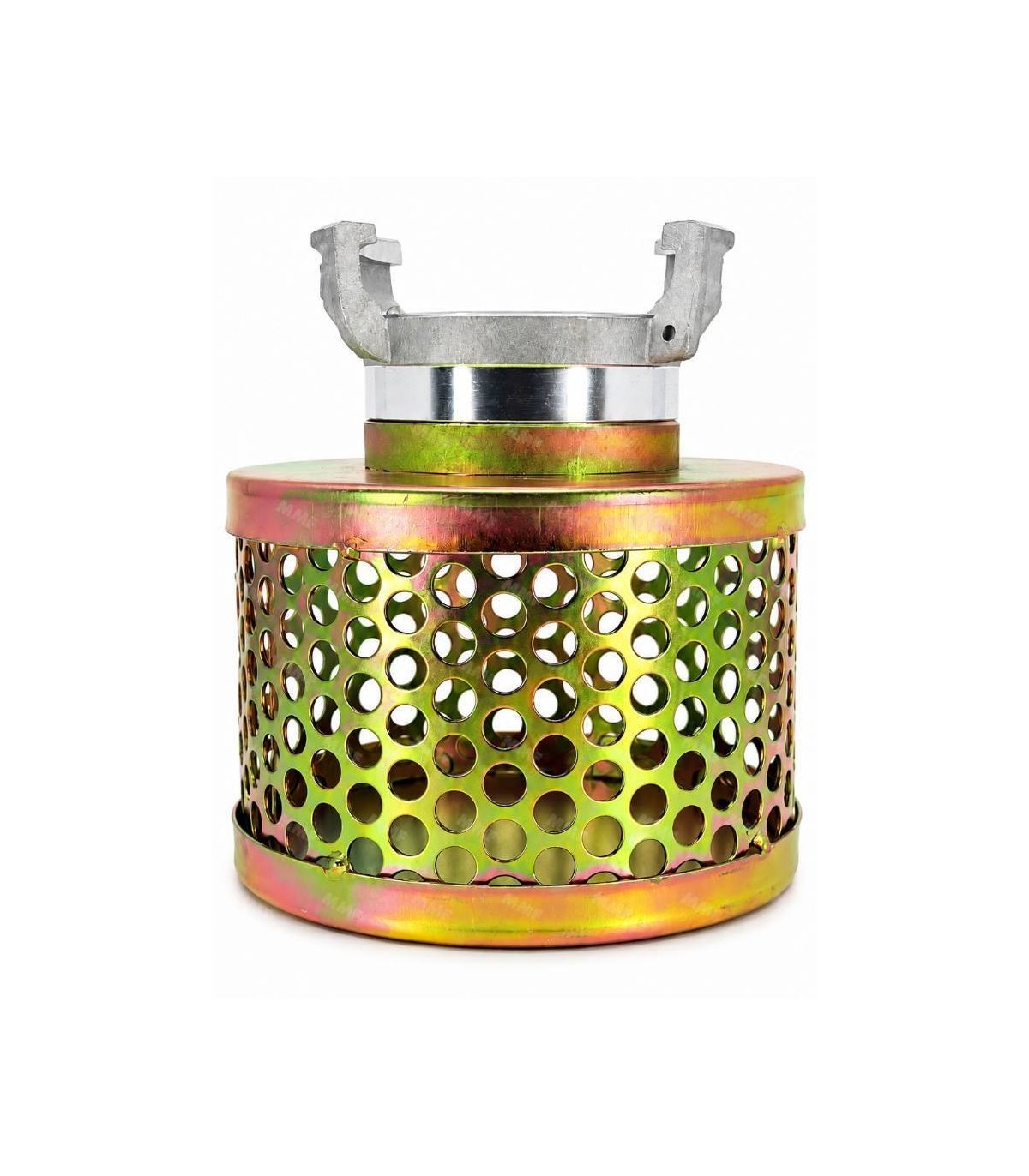

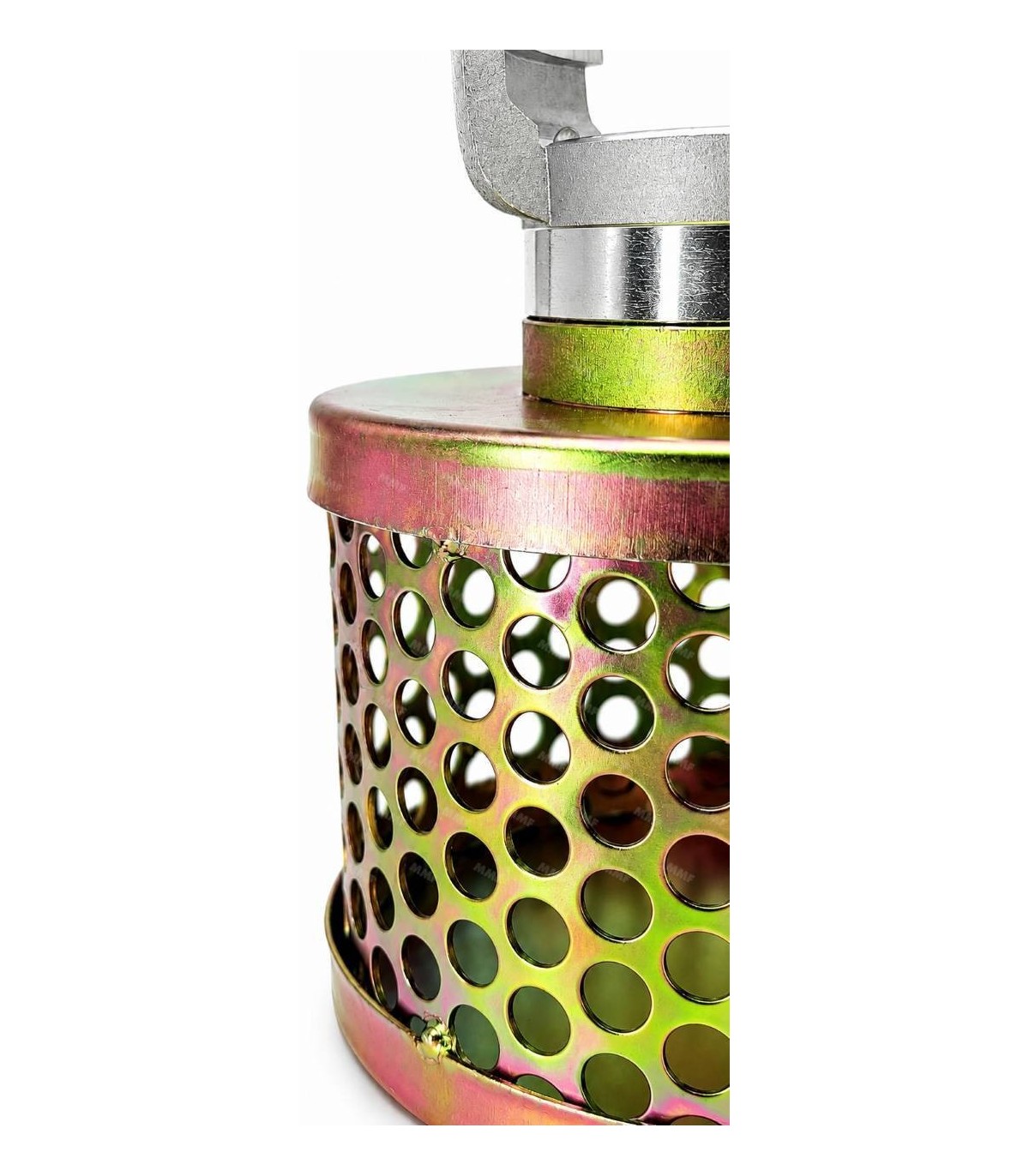

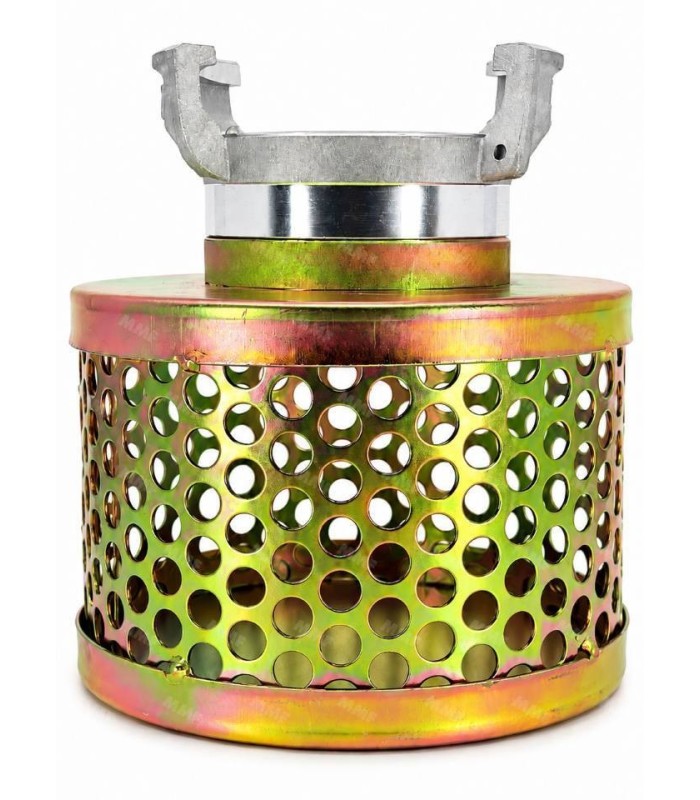

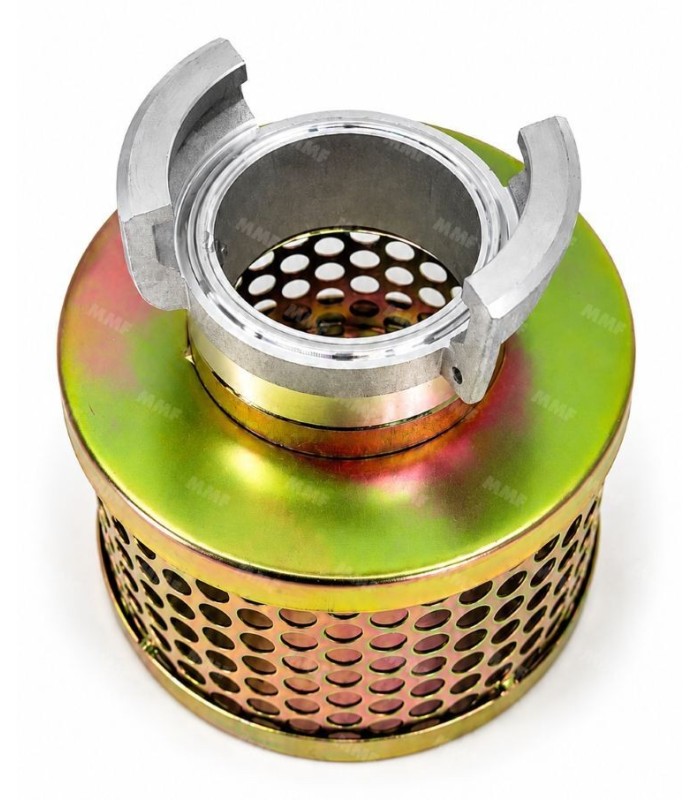

The DN40 – 2½" steel strainer with threaded connection is designed to protect a suction or pumping line by limiting the entry of debris into the system. Its steel body, threaded connection, and robust design make it easy to integrate into a DN40-compatible system. It measures 10.10 cm in height without the fitting, 14.50 cm with the fitting, and has an outer diameter of 12.55 cm, with a mesh size of 0.95 cm. Compatible with water pumps for contaminated water

Read moreShow less
Reference:
21360
Guide de tailles
In stock (delivery time depends on choice of carrier) 1 Item
Create a quote
€69.90 (tax excl.)
€69.90 (tax excl.)



Download PDF

Partager cette fiche produit :

Add to compare0
Description

The DN65 – 1"1/2 threaded steel strainer is designed to protect a suction or pumping line by limiting the entry of debris into the system. Its steel body and threaded connection allow for easy integration into a DN40-compatible system.

With a height of 10.10 cm without the fitting, a height of 14.50 cm with the fitting, and an outer diameter of 12.55 cm, this strainer provides robust protection at the system inlet. Its 0.95 cm mesh provides initial filtration against large debris.

Key Features

  • DN40 steel strainer, suitable for compatible lines.
  • 1½" threaded fitting for screw-on installation.
  • Steel body, robust and suitable for technical applications.
  • 0.95 cm mesh to limit debris entry into the system.
  • Mechanical protection at the inlet of the suction or pumping line.

Technical Specifications

Technical Specifications – DN40 Threaded Steel Strainer – 1"1/2
Product Type Threaded strainer
Nominal diameter DN40
Material Threaded steel
Height without fitting 10.10 cm
Height with connector 14.50 cm
Outer diameter 12.55 cm
Mesh size 0.95 cm
Function Filtration of debris during suction or at the circuit inlet

Application

  • Protection of a suction or pump line;
  • filtering debris before it enters a pump or system;
  • Installation on a compatible 1"1/2 threaded connection;
  • technical, hydraulic, or industrial use;
  • installation on a DN40-compatible configuration.

FAQ – DN40 Threaded Steel Strainer – 1"1/2

What is this DN40 steel strainer used for?

It is used to limit the entry of debris into a suction line, a pump, or a hydraulic circuit. It acts as a first mechanical barrier against large foreign objects.

What does “threaded connection” mean?

The threaded connection refers to an internal thread that allows for screw-on installation onto a compatible fitting or piece of equipment.

What is the purpose of the 0.95 cm mesh?

The 0.95 cm mesh size traps the largest debris while allowing the fluid to pass through. This strainer provides protective filtration without replacing a fine filter.

Read moreShow less
Product Details
21360

Data sheet

Material
Threaded steel
Connection type
Symmetrical connection
Standard
DN 40
Motor pump category
Accessory
