24V electric ignitor

The 24V Rotary Vane Pri mer is a rotary vane vacuum pump designed for fire-fighting pumps, offering rapid priming up to 7m. Available in lubricated or non-lubricated versions, and resistant to both fresh and salt water (bronze version), it combines robustness, performance and respect for the environment. Ideal for emergency vehicles, it is easy to install and works with 24V electrical systems.

Read moreShow less
Reference:
32714
Guide de tailles
lubricated
resistance
Out of stock (estimated delivery time: 1 to 2 weeks) 0 Item
Create a quote
€3,518.96 (tax excl.)
€3,518.96 (tax excl.)

Partager cette fiche produit :

Add to compare0
Description

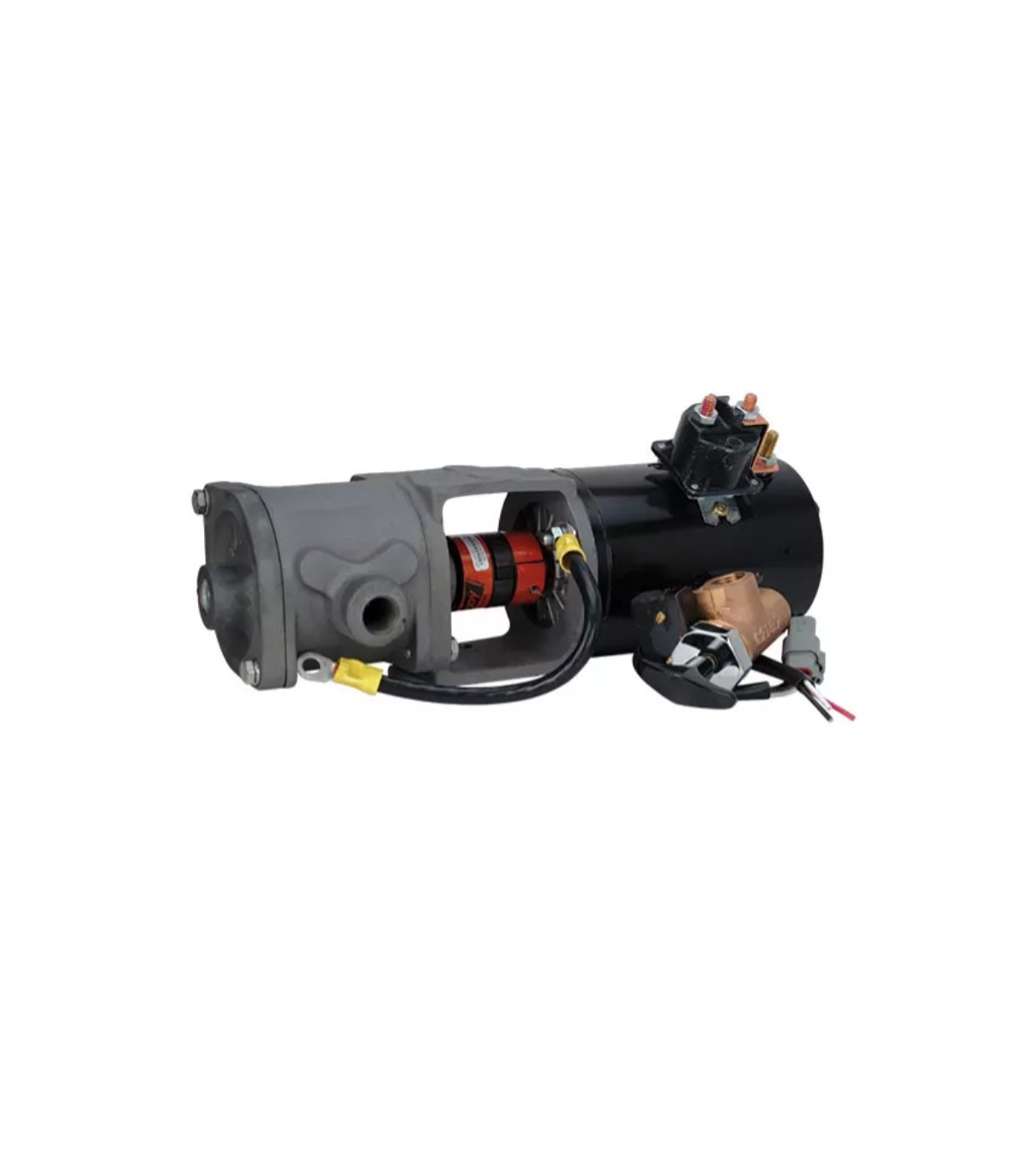

24V Electric Primer - Rotary Vane Primer

Rotary vane vacuum pump for fire-fighting pumps - up to 7 m suction capacity

The 24V Rotary Vane Primer is a positive-displacement vacuum pump designed for fire-fighting applications. Offering fast, reliable priming at suctions of up to 7 meters, it is available in lubricated and non-lubricated versions, and in both freshwater and seawater resistant versions - adapting to all response environments.

Robust, durable design

Made from hard-anodized, heat-treated aluminum alloy, this primer is designed to withstand intensive use. A marine bronze version is also available for optimum resistance to salt water.

Technical specifications :

  • Technology: Rotary vane vacuum pump (positive displacement)
  • Suction height: Up to 7 meters at sea level
  • Materials: Anodized aluminum / Bronze for salt water
  • Versions: Lubricated / Non-lubricated
  • Liquid compatibility: Fresh water / Salt water
  • Motor: Electric 24V - Solenoid (easy integration with vehicle systems)
  • Environmentally-friendly: Non-lubricated version with no oil discharge
  • Kit supplied: Bronze push-button valve, electric switch, complete installation guide
  • Weight: 13 to 18 kg

Key benefits:

  • Fast, efficient priming up to 7 m
  • Environmentally-friendly, non-lubricated version (zero oil discharge)
  • Lubricated and bronze versions for demanding marine environments
  • Rugged construction for use in difficult terrain
  • Compatible with 24V emergency vehicle systems
  • Supplied with all accessories required for installation

Areas of use :

  • Firefighting vehicles on land or sea
  • Pumps portable or trailer-mounted
  • Operations in coastal areas or difficult environments
  • Situations requiring fast, powerful priming

Reliable, high-performance and suitable for all types of terrain, the Rotary Vane Primer 24V pump is the preferred choice of emergency professionals looking for robustness, simplicity and efficiency.

Read moreShow less
Product Details
32714

Data sheet

Weight
From 13 to 18 kg
