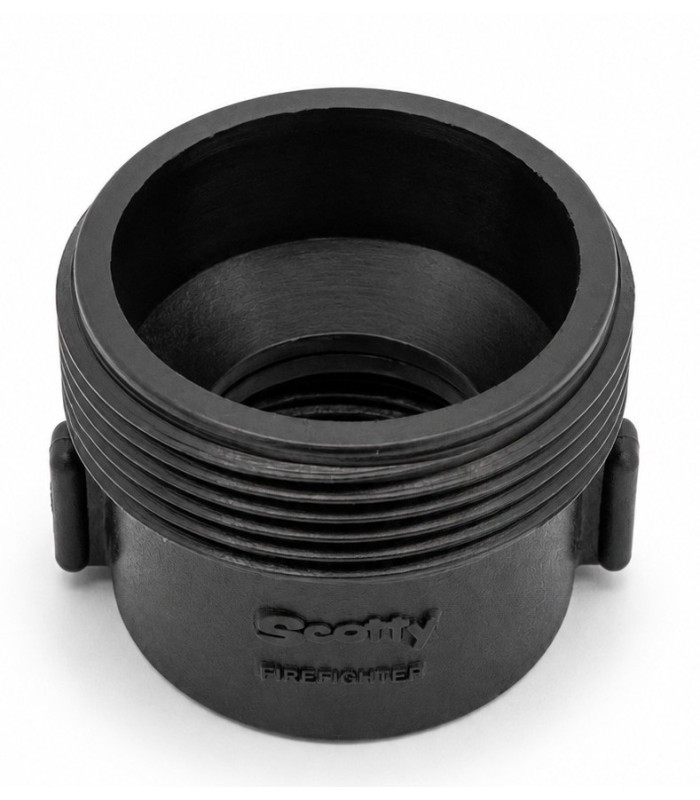

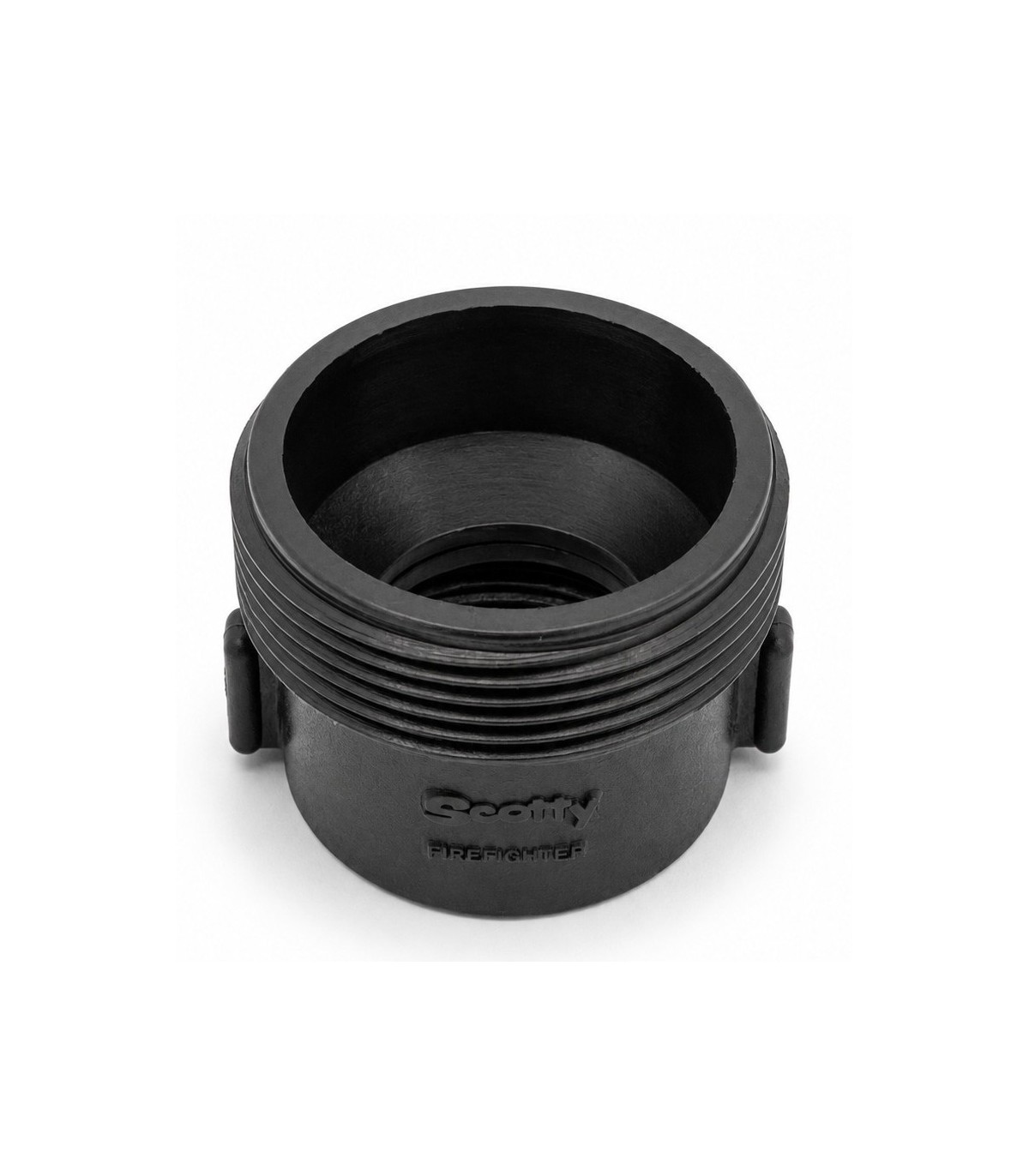

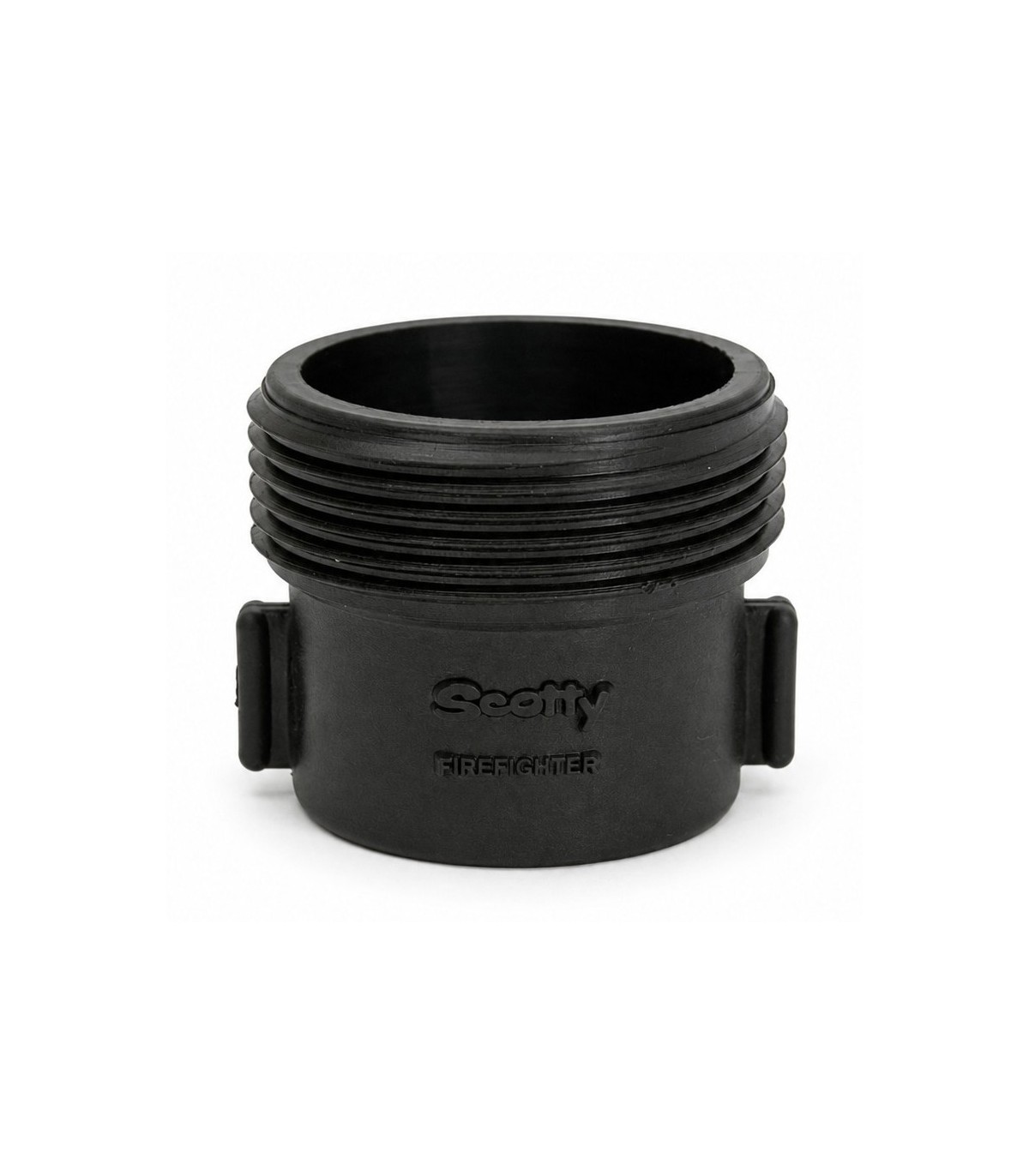

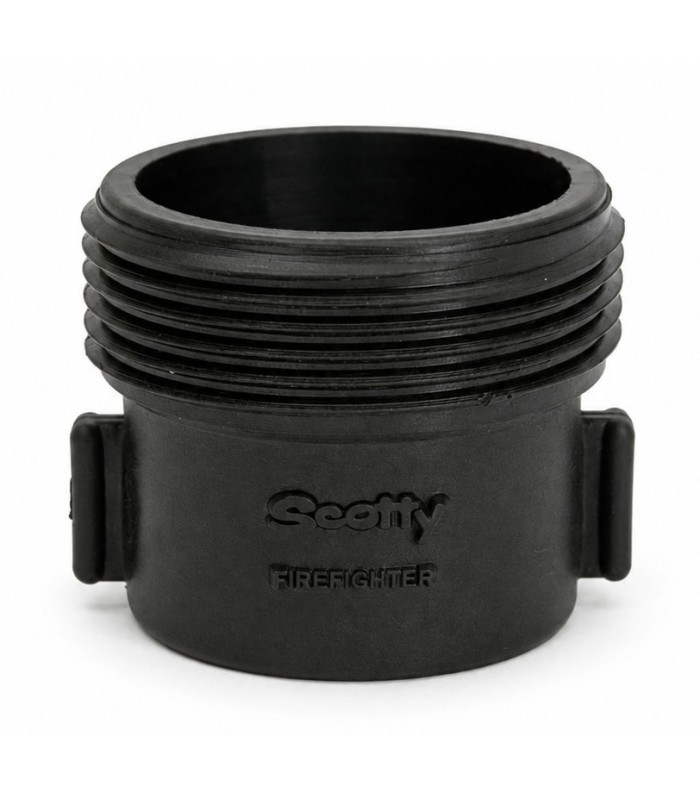

1-1/2" BSP Male-Female Connector with Gasket

The 1-1/2" male BSP x 1" female BSP reducer with gasket allows you to adapt a 1-1/2" diameter BSP threaded connection to a 1" outlet. Made of lightweight, corrosion-resistant engineering polymer, it is equipped with a gasket to ensure a leak-tight connection. It is suitable for water lines, valves, handheld nozzles, foam injectors, or BSP-compatible firefighting accessories that require a reduction in diameter.

Read moreShow less
Reference:
40187
Guide de tailles
In stock (delivery time depends on choice of carrier) 37 Items
Create a quote
€28.95 (tax excl.)
€28.95 (tax excl.)

Partager cette fiche produit :

Add to compare0
Description

The 1-1/2" male BSP x 1" female BSP reducer with gasket is designed to adapt a 1-1/2" threaded connection to a 1" connection. It makes it easier to connect a line, valve, handheld nozzle, foam injector, or compatible accessory when the available diameters do not match directly.

This model features a 1"1/2 male BSP end on one side and a 1" female BSP end on the other. It is equipped with a gasket to ensure the connection is leak-tight when installed on a compatible system.

A BSP threaded reducer for adapting a fire protection line

This reducer allows you to connect a 1"1/2 BSP fitting to a 1" BSP fitting while maintaining the same type of thread. It is useful for connecting smaller-diameter equipment to a 1"1/2 line or fitting.

Its engineering polymer construction offers a good balance between light weight, mechanical strength, and corrosion resistance. This makes it suitable for field use, firefighting equipment, water systems, and installations requiring a lightweight, easy-to-handle fitting.

Check Thread Compatibility

The connection is BSP. Before use, you must verify the exact thread type of the equipment to be connected to avoid any incompatibility. The included gasket helps ensure the assembly is leak-tight, provided it is properly assembled and tightened.

This reducer is particularly well-suited for BSP-compatible firefighting accessories, especially for small-diameter lines, foam mixing systems, or setups requiring a reduction between two threaded fittings.

Technical Specifications

Technical Specifications – 1"1/2 Male BSP x 1" Female BSP Reducer with Gasket
Product Type Fire-rated threaded reducer/adapter
Connection on side 1 1-1/2" male BSP
Connection on side 2 1" female BSP
Thread type BSP
Gasket Yes, gasket included to ensure a leak-tight installation
Function Reduces the diameter between a 1-1/2" BSP connection and a 1" BSP connection
Material Lightweight engineering polymer
Durability Corrosion-resistant
Compatibility Equipment, hoses, valves, fire- handheld nozzles, or accessories with compatible BSP threads
Application Connection adapter, diameter reducer, fire protection installation, or water line

Application

  • Adapting a BSP-threaded fire protection line;
  • Adapter from a 1"1/2 male BSP connection to a 1" female BSP connection;
  • installation on a compatible fire protection fitting;
  • Connecting a valve, handheld nozzle, foam injector, or small-diameter equipment;
  • reducing the diameter in a system requiring a lightweight, leak-tight, and corrosion-resistant fitting.

FAQ – 1"1/2 Male BSP x 1" Female BSP Reducer with Gasket

What is this BSP reducer used for?

It is used to adapt a 1"1/2 male BSP connection to a 1" female BSP connection, for example, to connect a smaller-diameter fitting to a compatible fire protection line.

Does the reducer come with a gasket?

Yes. This model is equipped with a gasket designed to ensure a leak-tight seal when installed on a compatible connection.

What material is this reducer made of?

It is made of lightweight engineering polymer, a corrosion-resistant material suitable for field use.

When should this coupling be used?

It can be used to adapt a line, valve, fire handheld nozzle, foam injector, or firefighting accessory when the installation requires a reduction from 1½" BSP to 1" BSP.

Read moreShow less
Product Details
40187

Data sheet

Accessory type
Connector
