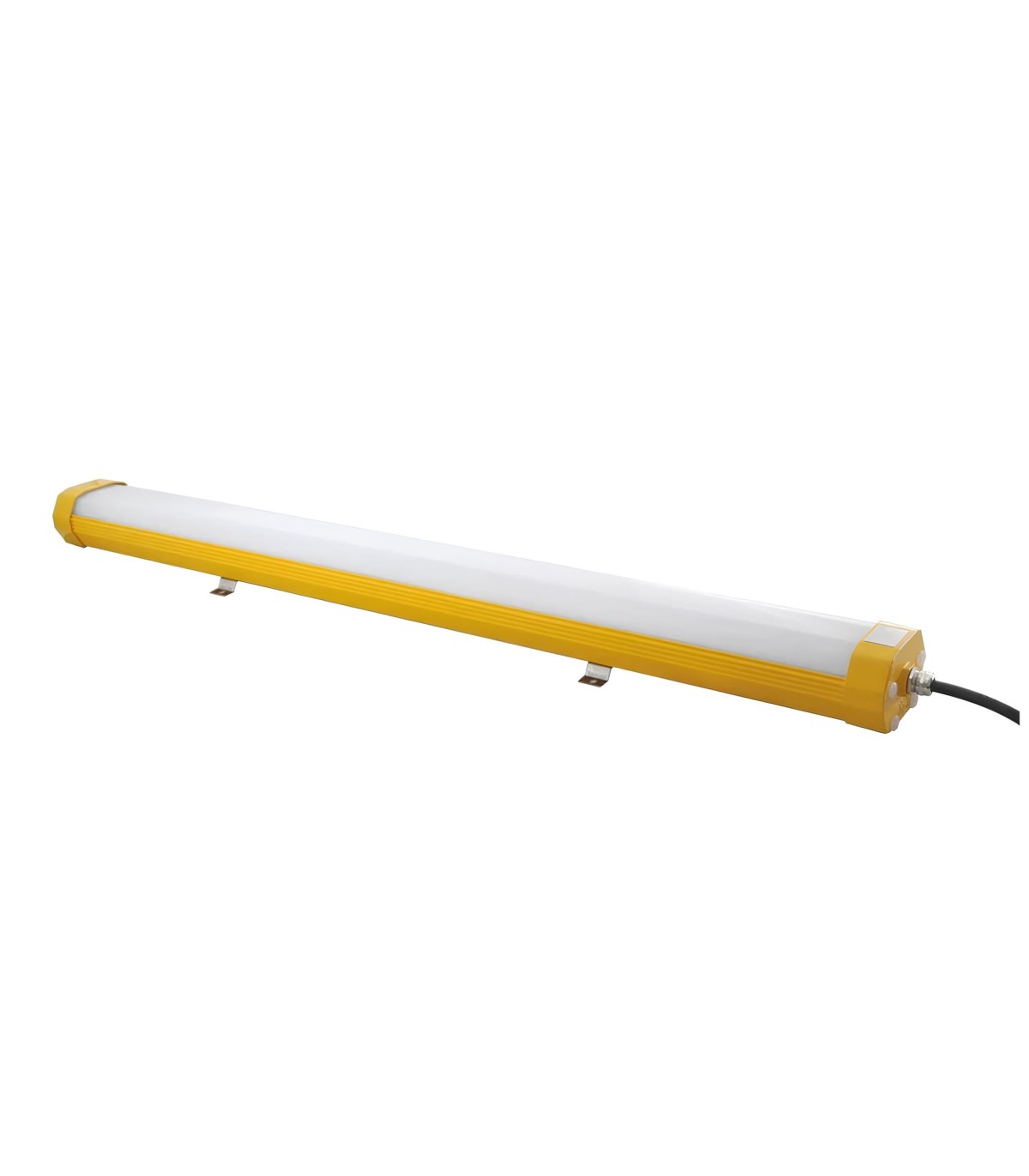

Neon lighting ATEX Zone 1 - Titan Linear

This ATEX Z1 Titan Linear neon fixture is an explosion-proof 60 W linear LED luminaire designed for Zones 1, 2, 21 and 22. With its luminous flux of 7,380 lumens, AC 110-277 V power supply, IP66 rating and format suitable for replacing older ATEX fluorescent luminaires, it is ideal for fixed industrial installations in demanding environments.

Read moreShow less
Reference:
39248
Guide de tailles
Out of stock (estimated delivery time: 1 to 2 weeks)
Create a quote
€848.65 (tax excl.)
€848.65 (tax excl.)

Partager cette fiche produit :

Add to compare0
Description

Cat neon lighting ATEX Z1 Titan Linear is an explosion-proof linear LED luminaire for fixed lighting in ATEX-classified industrial environments. Its elongated format enables even illumination of work areas, technical corridors, platforms, workshops or industrial premises.

Designed as a modern alternative to older ATEX fluorescent luminaires, it integrates easily into installations requiring reliable, long-lasting lighting that complies with the constraints of explosive atmospheres. Its robust design makes it suitable for demanding industrial sites, particularly in environments exposed to combustible gases, vapors or dusts.

ATEX-compliant linear luminaire for fixed installations

The Titan Linear is particularly well suited to areas where homogeneous lighting is preferable to spot lighting. It can cover a length of work, a passageway or a technical station without multiplying the number of light points.

Ceiling mounting and single-ended connection make it easy to integrate into new installations or replace existing luminaires.

Advantages of the ATEX Z1 neon floodlight

  • Linear format suitable for long areas, corridors, platforms and extended workstations.
  • LED solution for replacing old ATEX fluorescent luminaires.
  • Even light distribution for improved visual comfort on site.
  • Fixed installation with ceiling mounting bracket.
  • Robust industrial design for demanding environments.
  • Simplified single-endedconnection.

Technical specifications

Technical specifications - ATEX Z1 Titan Linear neon floodlight
Model Titan Linear
Type Linear ATEX neon LED luminaire
ATEX zones Zones 1, 2, 21 and 22
Wattage 60 W
Luminous flux 7,380 lumens
Power supply AC 110-277 V - 50/60 Hz
Protection class IP66
Temperature class T6
Overvoltage protection 6-12 kV as standard
Housing Aluminum
Lens Diffuse, impact-resistant
Mounting Stainless steel bracket for ceiling mounting
Connection Single-ended
Cable supplied 0,6 m
Dimensions 1285 x 126 x 88 mm
Weight 7.5 kg
Battery No

Recommended applications

This luminaire is designed for industrial sites requiring fixed, durable ATEX lighting: production areas, maintenance workshops, technical platforms, industrial corridors, storage areas, chemical, petrochemical or dusty environments.

FAQ - ATEX Z1 Titan Linear neon floodlight

Is this fixture intended to be moved regularly?

No. This is a fixed fixture, designed for long-term installation on an industrial site. For mobile use, a portable or rechargeable ATEX spotlight is preferable.

Can it be used to upgrade an existing installation?

Yes, it can be used to replace an existing ATEX luminaire, provided that the mounting, power supply and ATEX classification of the site are compatible.

Who should install this type of luminaire?

Installation must be carried out by an authorized professional, in compliance with the rules applicable to ATEX zones and the site's electrical regulations.

Read moreShow less
Product Details
39248
