Intelligent lighting management for professional lighting balloons

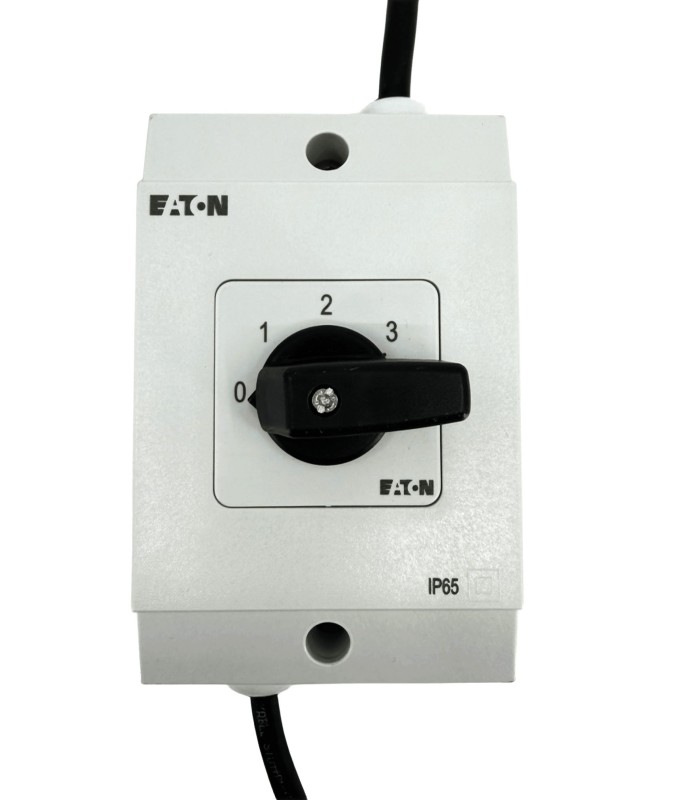

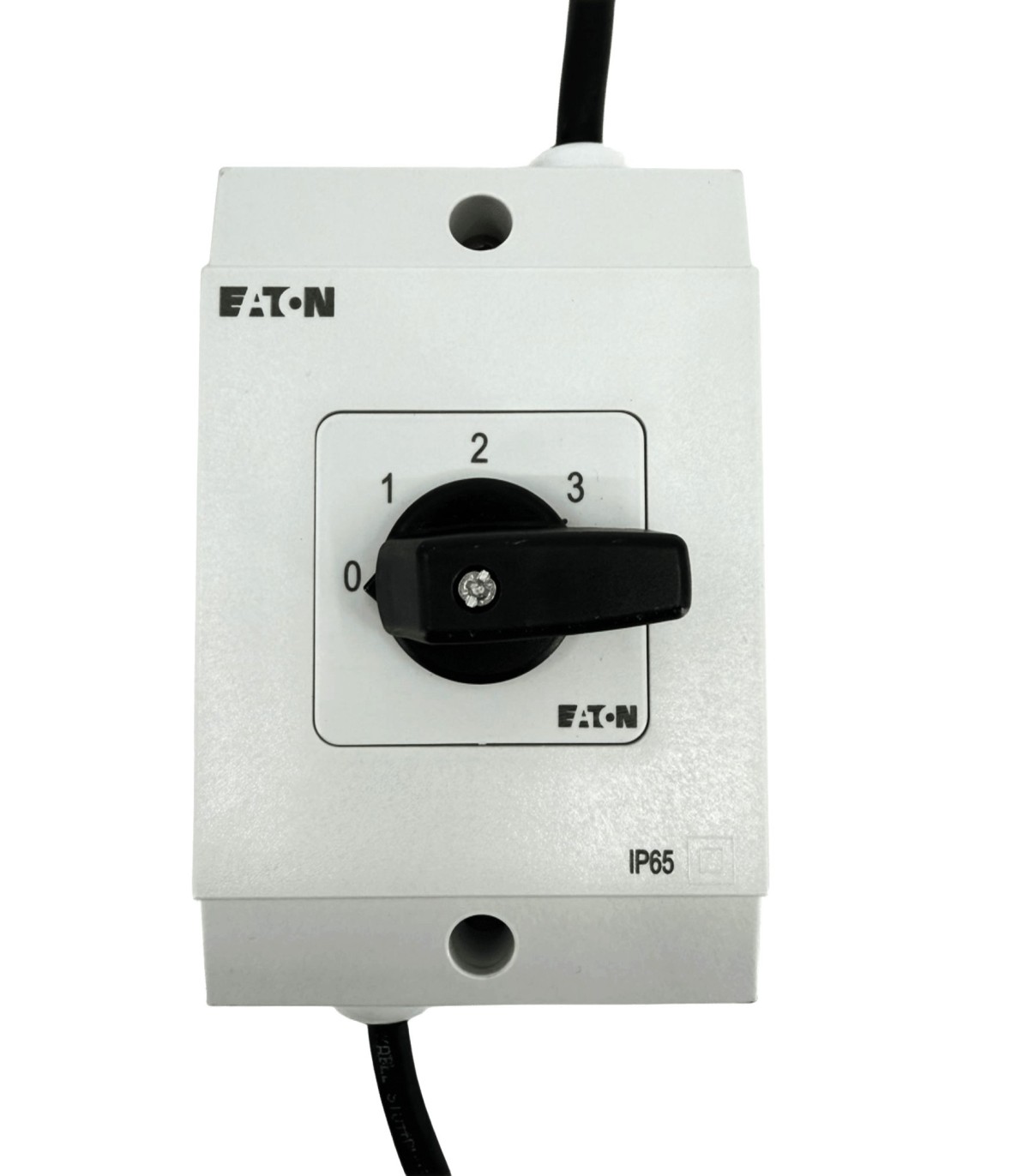

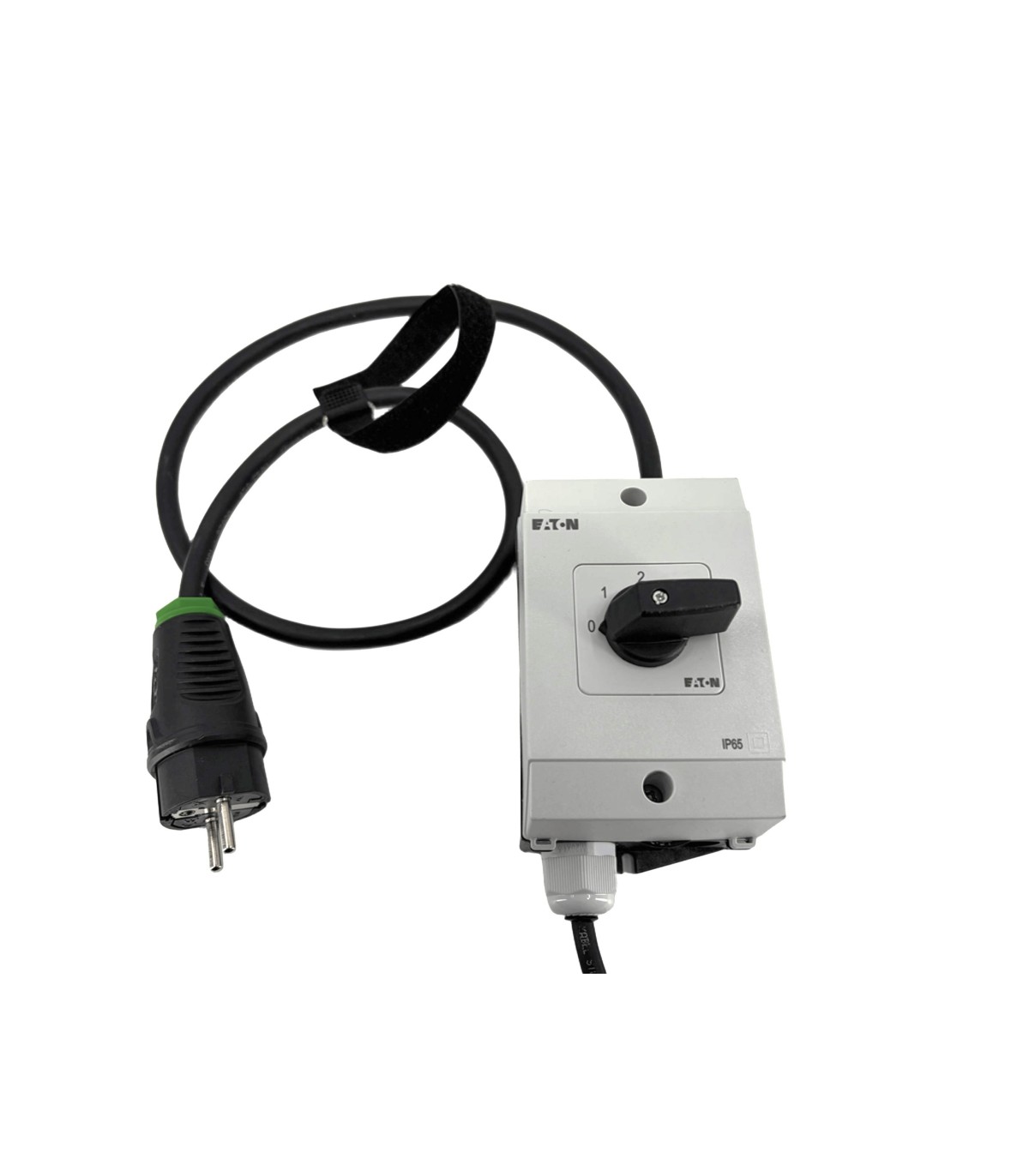

This 3-position control module is specially designed to control a professional lighting balloon powered by an energy case or stand-alone unit. It activates three distinctlighting levels, divided into three thirds of power, to optimize power consumption and extend battery life.
Robust, easy-to-use and protected against water and dust (IP65), this module is ideal for use in demanding environments: construction sites, emergency services, industrial maintenance, public works, railways or technical events.
3-level operation
Position 0: Off
Complete power cut-off to the lighting balloon.
Position 1: Lighting at 1/3 power
Activates the first lighting third. Ideal for beaconing, area surveillance or low-consumption auxiliary lighting.
Position 2: 2/3 power lighting
Activation of the first two lighting circuits for an optimum compromise between lighting power and energy autonomy.
Position 3: Full power (100%)
Full activation of the lighting balloon for maximum illumination of the intervention area.
Optimized autonomy on energy case
Thanks to its step-by-step management, this module enables you to adapt light output precisely to real needs in the field. This 3-tier modulation makes it possible to :
- Significantly increase battery autonomy
- Reduce deep discharge cycles
- Optimize the life of energy cases
- Reduce power consumption on generators
This system is particularly recommended for long-duration interventions, night-time emergency operations, temporary worksites or areas not connected to the electrical grid.
Technical specifications
- 4-position rotary switch (0 - 1 - 2 - 3)
- Power management by lighted thirds
- Robust housing for outdoor use
- Protection rating: IP65
- In-line installation on lighting balloon power supply
- Compatible with multi-circuit LED balloons Size S - M - L - XL
IP65 protection - Intensive field use
The IP65-rated housing guarantees complete protection against dust and water splashes. It is perfectly suited to demanding outdoor environments: rain, construction dust, industrial atmospheres.
Professional applications
- Emergency services and civil protection
- Public works and construction sites
- Industrial maintenance
- Railway industry
- Technical events
- Night-time emergency response
An essential module for controlling your mobile lighting
This 3-position control module is an essential part of any energy-powered lighting system. It ensures rational management of light output, enhances safety and optimizes energy performance in the field.
