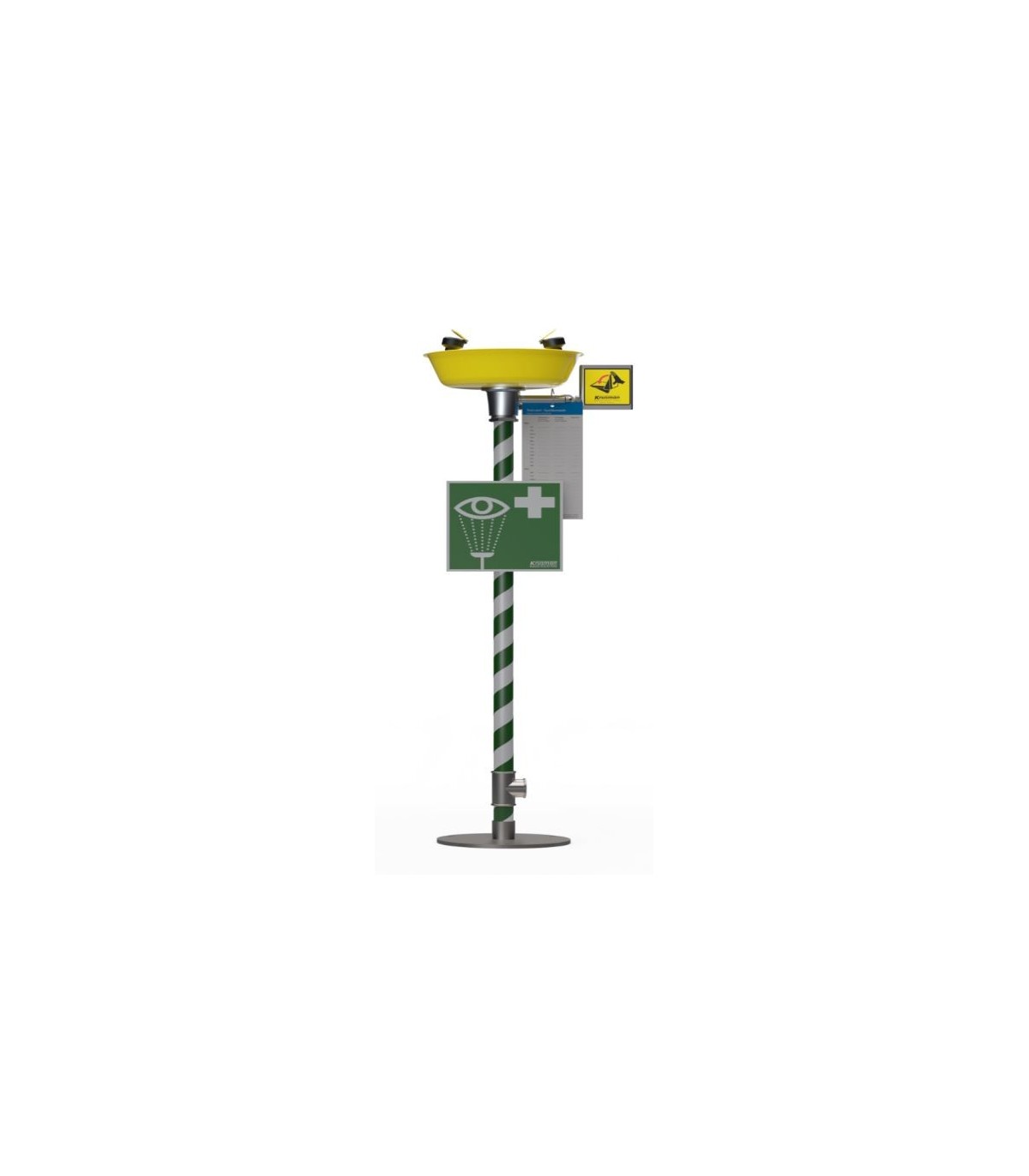

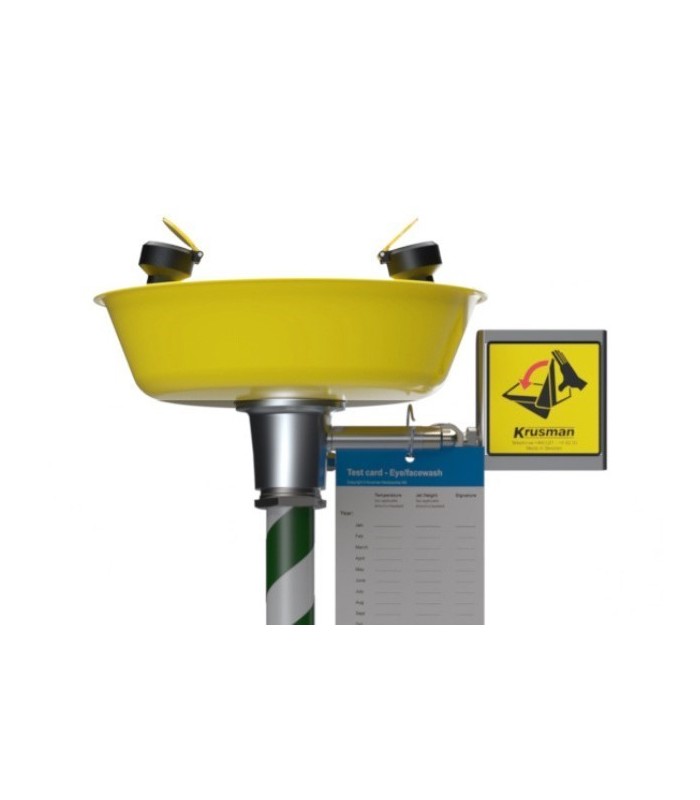

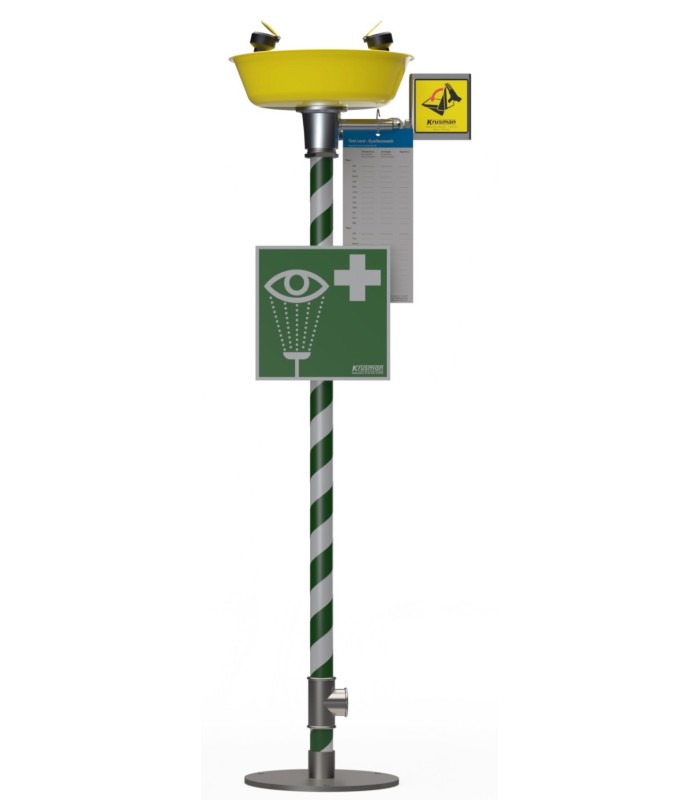

Krusman 3870 free-standing eye & face wash station - EN 15154 and ANSI Z358.1 compliant emergency station
Visit Krusman Eyewash/Facewash 3870 is a free-standing rinsing station designed to provide immediate eye and face wash in the event of chemical contamination or accidental splashes. Its robust, multi-functional design and compliance with international standards make it perfect for high-risk industrial environments.
Advantages of the 3870 eye & face wash stand - Functional, robust and automatic
- Controlled flow : about 14 L/min by rinse head, with internal regulation and anti-dirt filter
- Self-draining system ball valve without spring return, operated by a pressure plate, for automatic draining after use
- Sustainable construction stainless steel bowl with powder coating, galvanized steel pipes with green-white or stainless steel stripes, brass fittings
- Complete station including drip tray and illuminated emergency warning sign
- Floor installation ideal when wall mounting is not possible or for greater mobility.
Krusman 3870 technical data - Flow rate, connections, dimensions
Features |
Detail |
Product number |
3870 |
Mounting type |
Floor-standing |
Flow |
Approx. 14 L/min |
Water pressure required |
Min. 2.4 bar |
Power supply connection |
½″ female |
Drain connection |
1″ female |
Dimensions (W×H×D) |
380 × 1,100 × 288 mm |
Net weight |
10 kg |
Materials |
Stainless steel, galvanized steel, brass |
Accessories included |
Illuminated safety sign |
Installation instructions for 3870 eye & face wash stand
- Position the station on a flat, stable surface, with nozzle height at approx 1,100 mm from the ground
- Provide a drinking water supply ≥14 L/min at 2.4 bar pressure
- Connect to an exhaust system via a 1″ outlet
- Test flow and operation after installation
Standards compliance - EN 15154-2 and ANSI/ISEA Z358.1
The station 3870 meets the following requirements:
- EN 15154-2 : minimum flow rate, jet height and uniformity, self-draining
- ANSI/ISEA Z358.1 flow rate of at least 1.5 L/min per head for at least 15 minutes, adequate spray height
These standards guarantee long, generous and safe rinsing.
FAQ - Frequently asked questions
Is this model suitable for corrosive chemicals ?
Yes, the 3870 is designed for hazardous environments, conforming to EN 15154-2 and ANSI/ISEA Z358.1.
What type of pressure is required ?
A water pressure of 2.4 bar or more is required to maintain the flow rate of 14 L/min.
Does the station come with signage ?
Yes, a emergency light panel is included.
