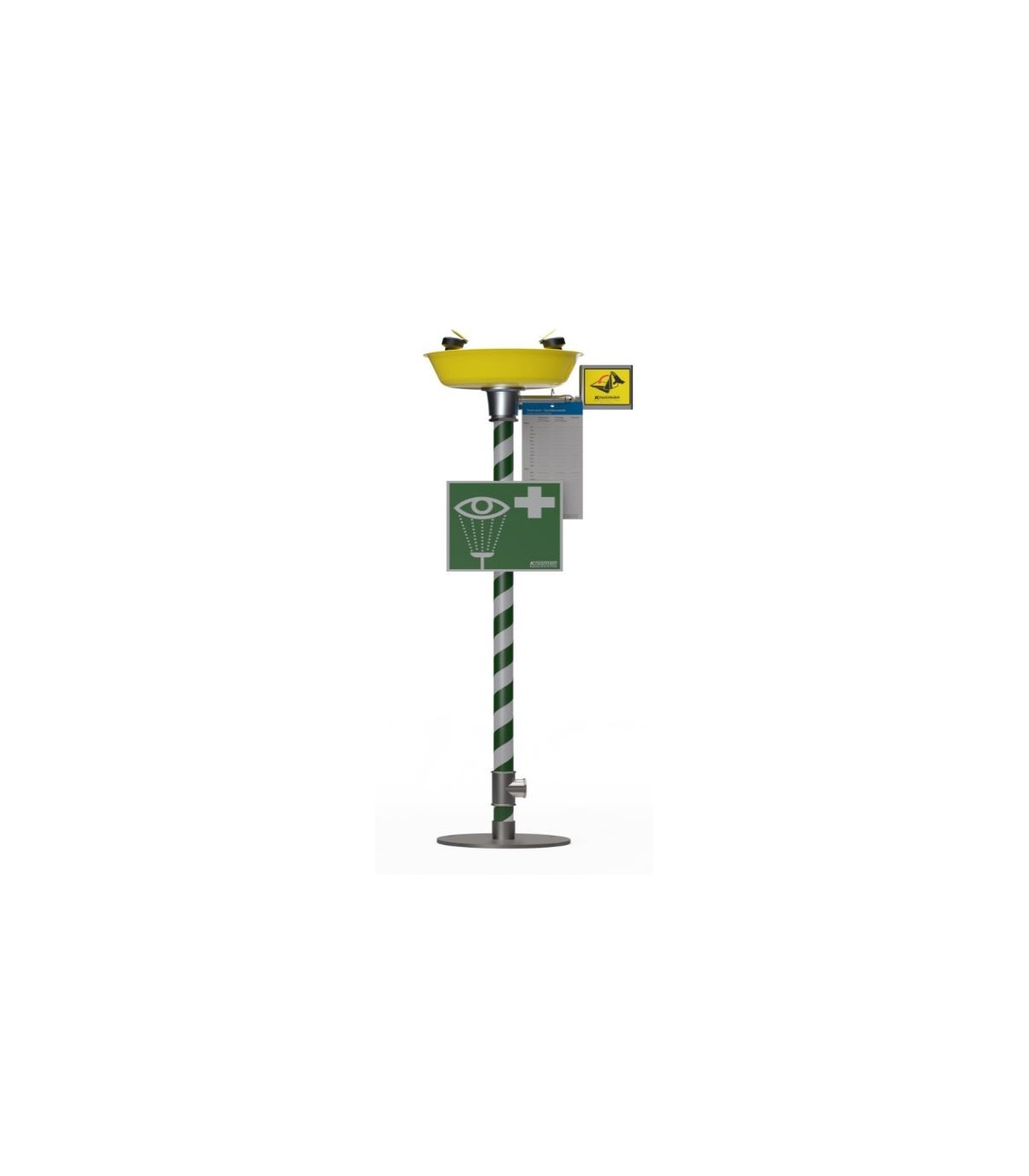

Krusman 3870 free-standing eye and face washer

Krusman 3870 free-standing eye & face wash station - EN 15154 and ANSI Z358.1 compliant emergency station

Visit Krusman Eyewash/Facewash 3870 is a free-standing rinsing station designed to provide immediate eye and face wash in the event of chemical contamination or accidental splashes. Its robust, multi-functional design and compliance with international standards make it perfect for high-risk industrial environments.

Advantages of the 3870 eye & face wash stand - Functional, robust and automatic

• Controlled flow : about 14 L/min by rinse head, with internal regulation and anti-dirt filter
• Self-draining system ball valve without spring return, operated by a pressure plate, for automatic draining after use
• Sustainable construction stainless steel bowl with powder coating, galvanized steel pipes with green-white or stainless steel stripes, brass fittings
• Complete station including drip tray and illuminated emergency warning sign
• Floor installation ideal when wall mounting is not possible or for greater mobility.

Krusman 3870 technical data - Flow rate, connections, dimensions

Installation instructions for 3870 eye & face wash stand

• Position the station on a flat, stable surface, with nozzle height at approx 1,100 mm from the ground
• Provide a drinking water supply ≥14 L/min at 2.4 bar pressure
• Connect to an exhaust system via a 1″ outlet
• Test flow and operation after installation

Standards compliance - EN 15154-2 and ANSI/ISEA Z358.1

The station 3870 meets the following requirements:

• EN 15154-2 : minimum flow rate, jet height and uniformity, self-draining
• ANSI/ISEA Z358.1 flow rate of at least 1.5 L/min per head for at least 15 minutes, adequate spray height

These standards guarantee long, generous and safe rinsing.

FAQ - Frequently asked questions

Is this model suitable for corrosive chemicals ?
Yes, the 3870 is designed for hazardous environments, conforming to EN 15154-2 and ANSI/ISEA Z358.1.

What type of pressure is required ?
A water pressure of 2.4 bar or more is required to maintain the flow rate of 14 L/min.

Does the station come with signage ?
Yes, a emergency light panel is included.
