Wall-mounted eye and face washer Krusman 3868 | MMF.fr
Wall-mounted eye and face washer Krusman 3868 | MMF.fr

Wall-mounted eye and face washer Krusman 3868

Wall-mounted eye-washer Krusman 3863
Portable safety shower
KRUSMAN
Reference:
33430
Guide de tailles
Material
Create a quote
€708.43 (tax excl.)
€708.43 (tax excl.)



Download PDF

Partager cette fiche produit :

Add to compare0
Description

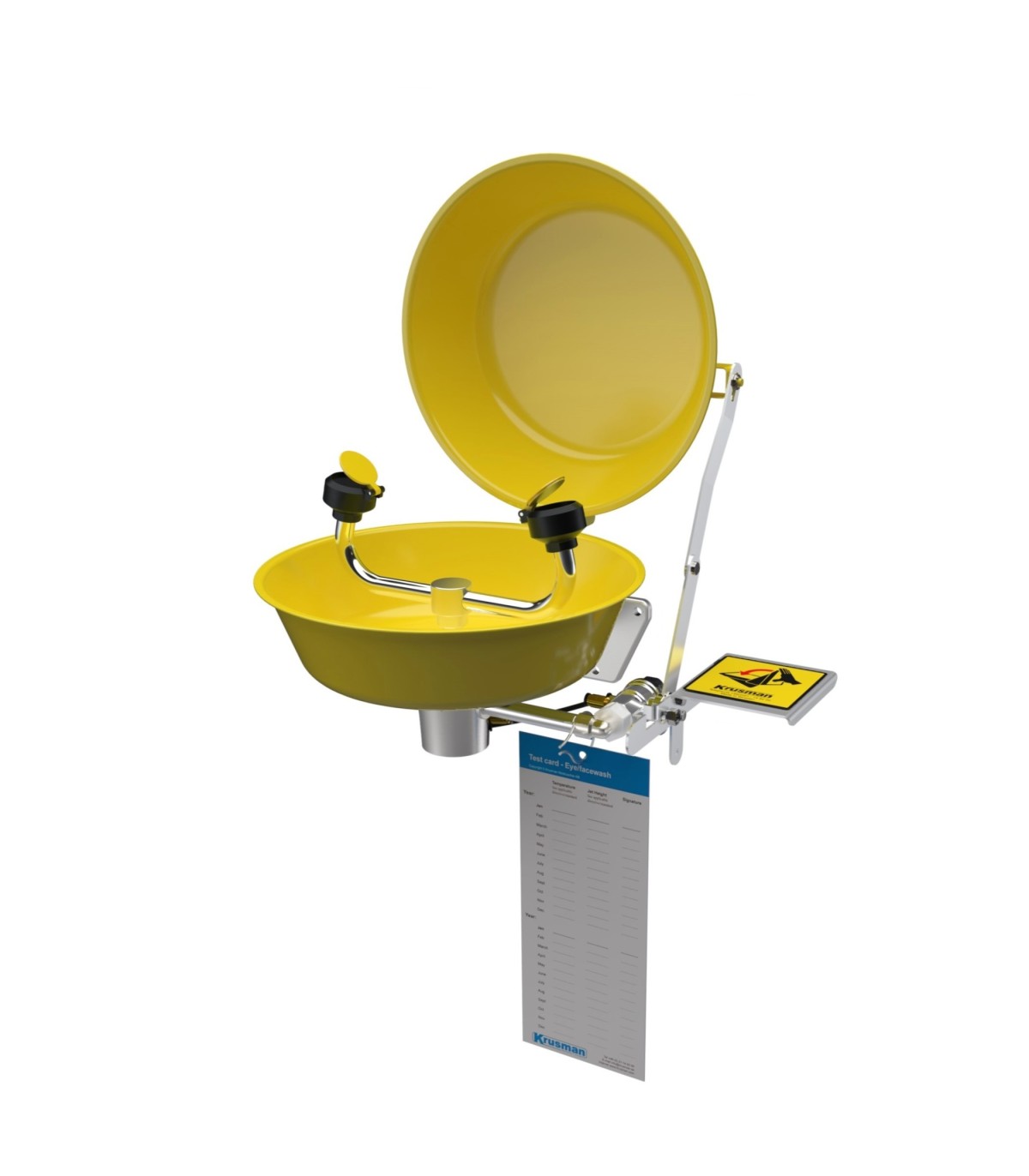

Wall-mounted eye and face wash station Krusman 3868 - EN 15154 & ANSI Z358.1 compliant emergency station

Introducing the Krusman 3868 eye and face washer - Professional eye/face safety device

Visit Krusman Eyewash 3868 is a wall-mounted eye and face washer designed for rapid, effective intervention after chemical exposure or industrial accidents. Reliable and durable, it complies with European EN 15154-2 and American ANSI/ISEA Z358.1 standards, guaranteeing maximum protection in an emergency.

Advantages of the 3868 wall-mounted eye and face washer - Performance, sturdiness and simplicity

  • Controlled flow : about 14 L/min, with regulated flow and integrated filter on each nozzle.
  • Automatic draining self-draining ball valve (without spring) to prevent water stagnation.
  • Sustainable materials : powder-coated stainless steel bowl, brass tap, aluminium wall bracket.
  • Signage included emergency light panel supplied with each unit.

Krusman 3868 technical data - Dimensions, pressure, connections

Features Detail
Product number 3868
Installation Mural
Flow ≈ 14 L/min
Required pressure Min. 2.4 bar
Water connection ½″ female
Drain connection 1 ¼″ female
Dimensions (W×H×D) 380 × 230 × 365 mm
Net weight 4 kg
Materials Powder-coated stainless steel, brass, aluminum
Accessories included Lid, bowl, illuminated panel

Installation instructions - Height, connections and testing

  • Set at about 1,100 mm from ground to nozzle level.
  • Ensure a water supply ≥ 14 L/min at 2.4 bar minimum.
  • Also connect to a drain via 1 ¼″ outlet.
  • Perform a function test after installation.

Safety standards complied with - EN 15154-2 and ANSI/ISEA Z358.1

  • Compliance EN 15154-2 for permanent eyewash units (flow rate, height & duration).
  • Compliant ANSI/ISEA Z358.1 guaranteeing a minimum flow rate (>= 1.5 L/min) for at least 15 minutes.

These standards ensure adequate rinsing for the entire duration required.

Professional FAQ - Frequently asked questions

Is this eye and face washer suitable for chemical workshops?
Yes, it meets EN 15154-2 and ANSI Z358.1 standards, perfectly designed for hazardous environments.

What supply pressure do I need?
A pressure of at least 2.4 bar is required to maintain the flow rate of 14 L/min.

Is the illuminated sign included?
Yes, an illuminated emergency sign is supplied with each unit.

Read moreShow less
Product Details
33430

Data sheet

Safety shower type
Eye and face washer
Single-lever mixers
Without
Attachments
Detailed drawing 3868
Download (295.43KB)
You may also like
No items

8 other products in the same category:

Pedestal safety shower with eye wash station without basin| MMF.fr

Reference: 33441
€1,484.69 (tax excl.)
€1,484.69 (tax excl.)

Krusman's free-standing safety shower with eyewash station is an essential piece of equipment for ensuring the safety of workers exposed to hazardous substances. Made from durable materials, it offers a water flow rate of 76 l/min at 2.4 bar and an eye wash station with a flow rate of 28 l/min. Its self-draining design and illuminated emergency signs ensure optimum use and visibility in the event of an incident. Suitable for various sectors such as the chemical industry, laboratories and construction sites, it is an indispensable asset for a safe working environment.

Wall-mounted eye-washer Krusman 3863
NEW

€520.71 (tax excl.)
€520.71 (tax excl.)

Wall-mounted eye washer Krusman 3863 - flow rate ≈14 L/min, self-draining, stainless steel bowl + brass tap, EN 15154 & ANSI compliantZ358.1. Supplied with illuminated pictogram. Ideal for industrial environments.
