Wall-mounted eye and face washer 3868

Wall-mounted eye and face wash station Krusman 3868 - EN 15154 & ANSI Z358.1 compliant emergency station

Introducing the Krusman 3868 eye and face washer - Professional eye/face safety device

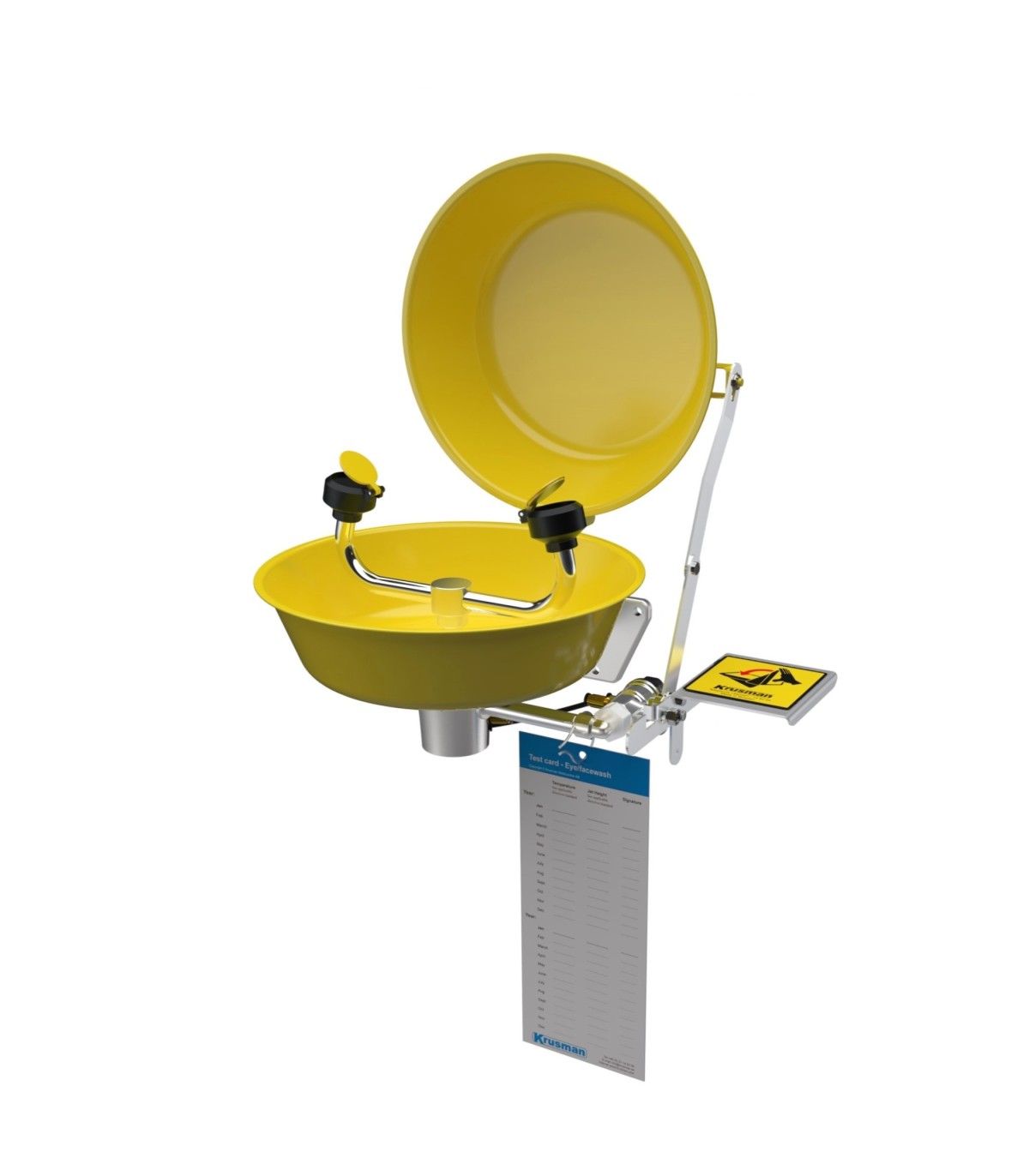

Visit Krusman Eyewash 3868 is a wall-mounted eye and face washer designed for rapid, effective intervention after chemical exposure or industrial accidents. Reliable and durable, it complies with European EN 15154-2 and American ANSI/ISEA Z358.1 standards, guaranteeing maximum protection in an emergency.

Advantages of the 3868 wall-mounted eye and face washer - Performance, sturdiness and simplicity

• Controlled flow : about 14 L/min, with regulated flow and integrated filter on each nozzle.
• Automatic draining self-draining ball valve (without spring) to prevent water stagnation.
• Sustainable materials : powder-coated stainless steel bowl, brass tap, aluminium wall bracket.
• Signage included emergency light panel supplied with each unit.

Krusman 3868 technical data - Dimensions, pressure, connections

Installation instructions - Height, connections and testing

• Set at about 1,100 mm from ground to nozzle level.
• Ensure a water supply ≥ 14 L/min at 2.4 bar minimum.
• Also connect to a drain via 1 ¼″ outlet.
• Perform a function test after installation.

Safety standards complied with - EN 15154-2 and ANSI/ISEA Z358.1

• Compliance EN 15154-2 for permanent eyewash units (flow rate, height & duration).
• Compliant ANSI/ISEA Z358.1 guaranteeing a minimum flow rate (>= 1.5 L/min) for at least 15 minutes.

These standards ensure adequate rinsing for the entire duration required.

Professional FAQ - Frequently asked questions

Is this eye and face washer suitable for chemical workshops?
Yes, it meets EN 15154-2 and ANSI Z358.1 standards, perfectly designed for hazardous environments.

What supply pressure do I need?
A pressure of at least 2.4 bar is required to maintain the flow rate of 14 L/min.

Is the illuminated sign included?
Yes, an illuminated emergency sign is supplied with each unit.
