A motor-driven pump designed for fire-fighting situations

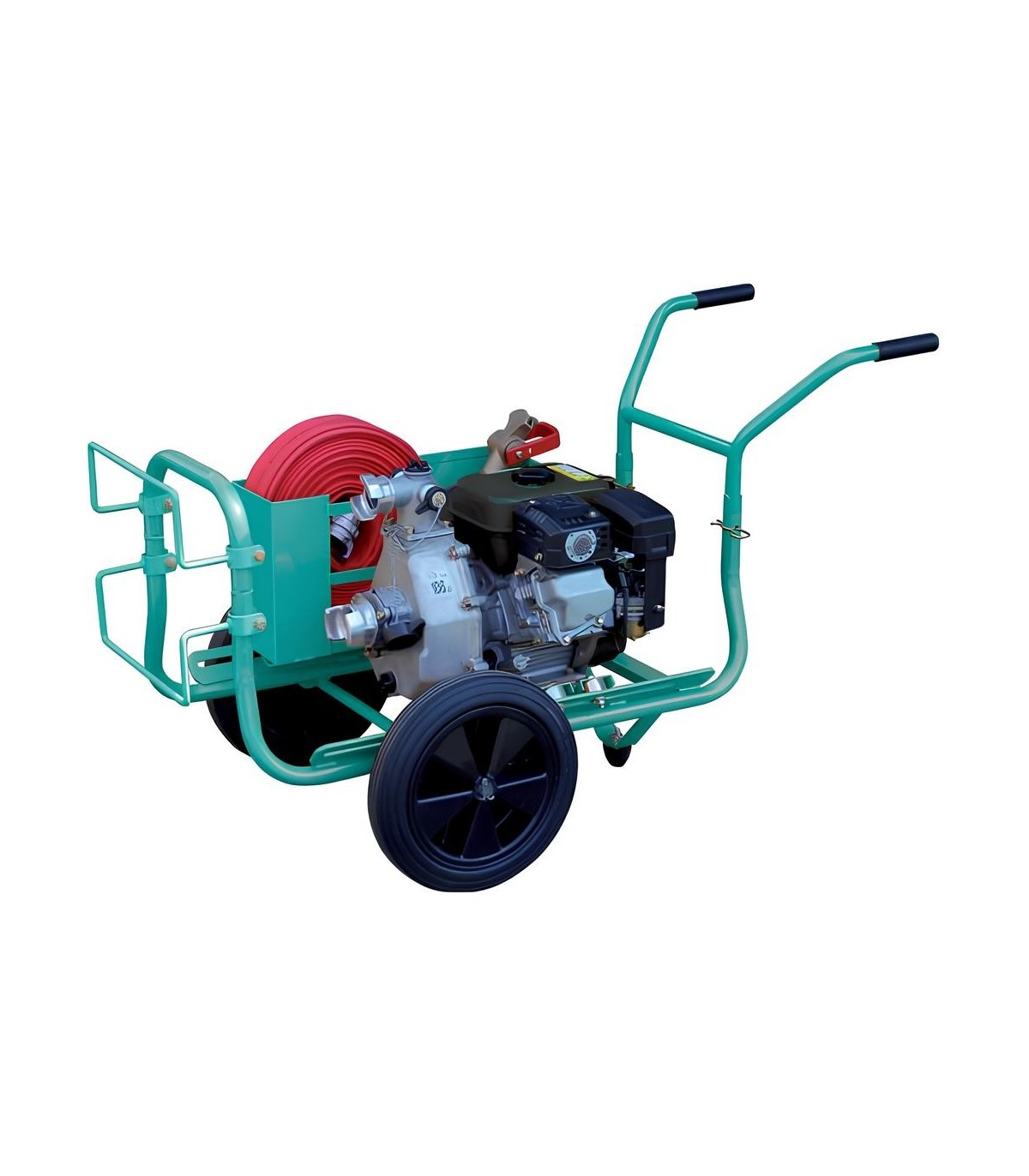

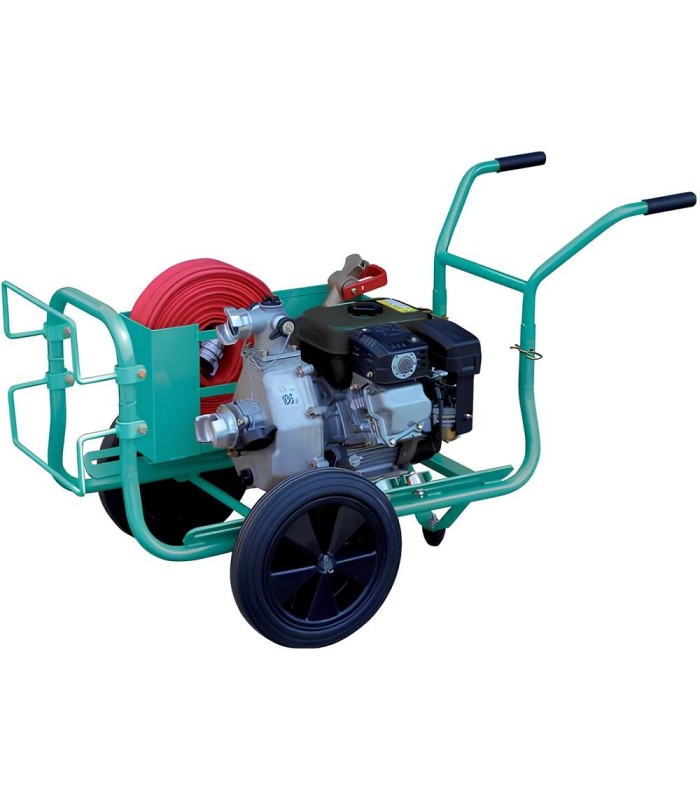

The Jet 70 EX is a high-pressure motor-driven pump manufactured in France, designed for fire-fighting situations. It has a flow rate of 24 m³/h (400 L/min) and a pressure of 5 bar, making it particularly efficient for supplying several pipes simultaneously via its three discharge outlets.
Self-priming, it can be used at depths of up to 8 m. Versatile, it can also be used for emergency pumping or intensive irrigation operations.
Technical performance and reliability
The Jet 70 EX is powered by a 4-stroke WORMS EX17 petrol engine with recoil start. Its carbon ceramic mechanical seal ensures long service life, even in tough conditions. It also features an electronic low-oil safety system for safe use in the field.
Technical specifications
Specifications
| Pump type |
Self-priming |
| Maximum flow rate |
400 L/min (24 m³/h) |
| Pressure |
5 bar |
| Total head |
50 m |
| Suction height |
8 m |
| Particle size |
5.5 mm |
| Suction connection |
Ø 50 mm (2") |
| Discharge connection |
Ø 25/25/40 mm |
| Engine type |
Worms EX17, 4-stroke petrol |
| Fuel |
Unleaded 95 gasoline |
| Fuel tank capacity |
3,2 L |
| Average range |
≈ 2 h 20 |
| Dimensions |
1230 × 770 × 830 mm |
| Net dry weight |
52 kg |
Standard equipment
- OHC 4-stroke petrol engine with manual starter
- Electronic low-oil cut-out
- Carbon ceramic packing
- Plastic strainer, fittings and clamps supplied
- Wheelbarrow kit with large wheels
- 3 discharge outlets
- Firefighter connections
- Handheld nozzle with shut-off valve
- Key for fireman's coupling
- 5 m suction hose + 20 m discharge hose
Fields of application
The Jet 70 EX motor-driven pump is ideal for fire departments, local authorities, farmers, construction sites and isolated areas. It enables rapid response in the event of fire, intensive pumping or water supply in difficult terrain.
Benefits
- High power: 400 L/min at 5 bar
- Mobility assured thanks to wheelbarrow kit
- Three discharge outlets for versatile use
- Robust equipment, designed for demanding conditions
- Complete equipment, delivered ready to use
