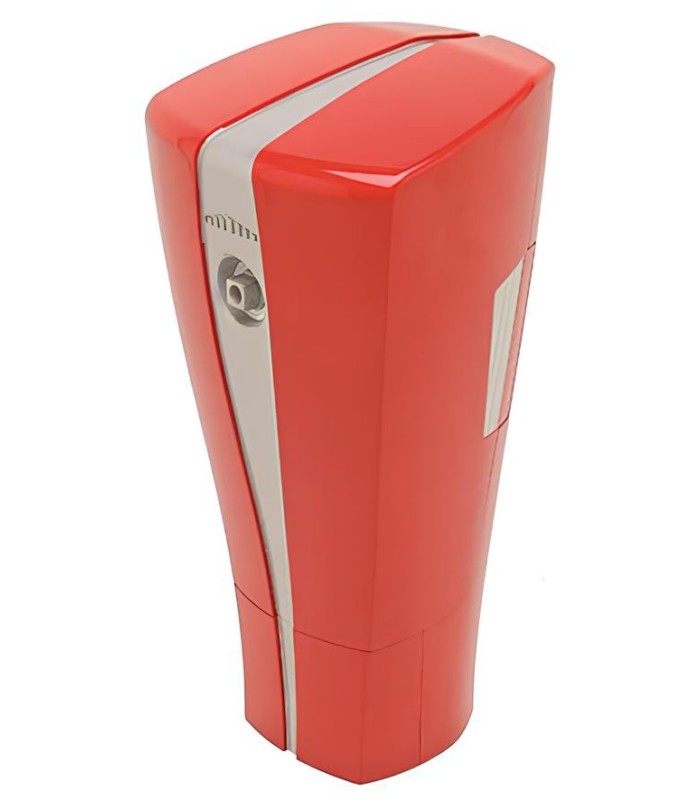

Elancio DN80 Non-Reversible Fire Pole - Straight Box or Angled Box Versions
Product summary:
Elancio DN80 non-reversible fire hydrant, robust and compliant with NF and CE standards. Available in several configurations: straight or angled box, with DN40 or DN65 sockets. The Elancio range combines design, safety and durability. Distributed by MMF Protection et Sécurité.

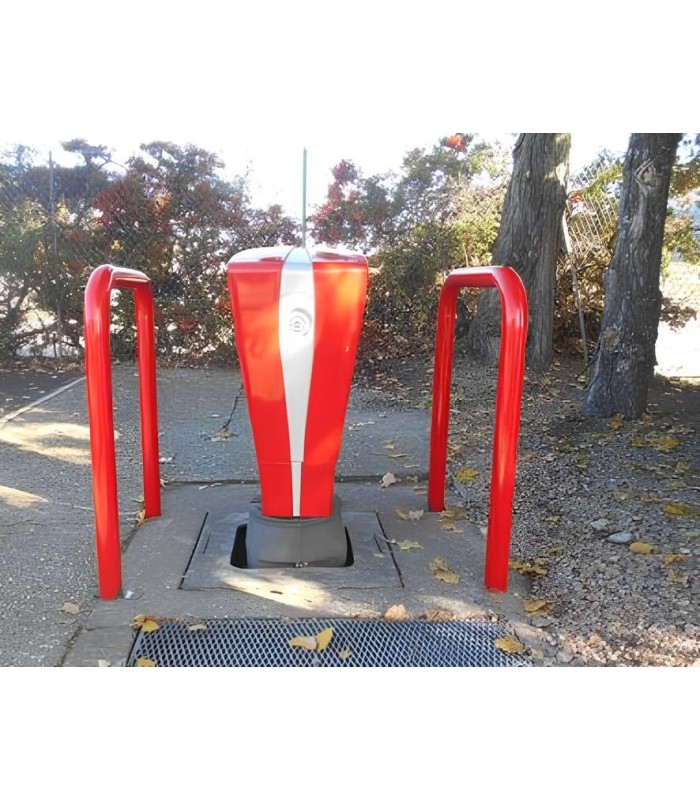

Elancio fire hydrants: safety and urban integration
Elancio fire hydrants are designed to combine technical performance and aesthetics. Their modern, rounded design allows them to blend into any urban environment, while remaining perfectly visible and accessible to firefighters. With their smooth shafts and ergonomic boxes, these posts are as much safety features as they are street furniture.

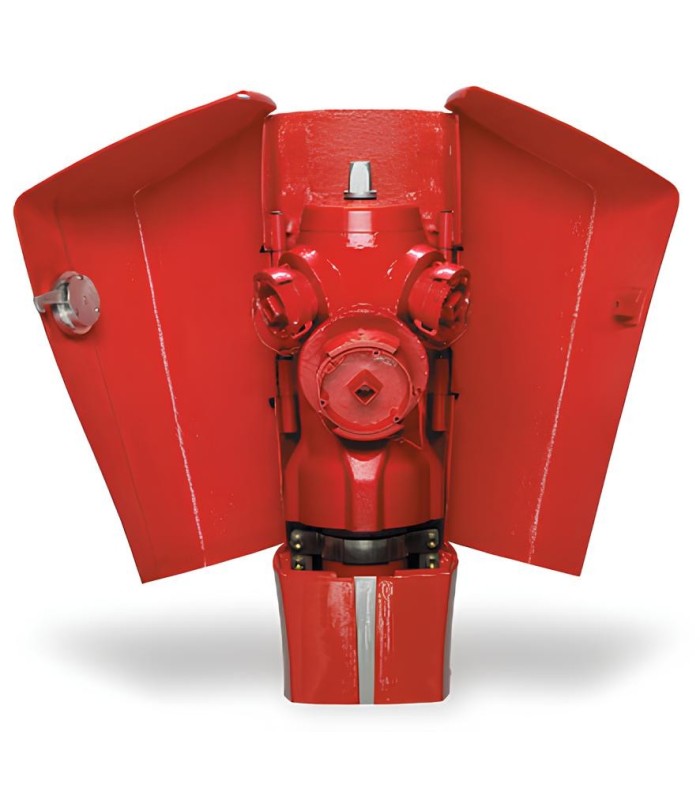

DN80 fire hydrant: several versions available
The Elancio DN80 fire hydrant is available in different configurations to suit the needs of local authorities and fire networks:
- Straight or angledbox, depending on installation configuration.
- Outlets available in DN40 and DN65 with standardized symmetrical connections.
Elancio DN80 fire hydrant materials and coatings
Every component of the pole is made from robust materials, with coatings to ensure maximum longevity.

Item |
Designation |
Material |
Coating |
1 |
Operating square |
Ductile iron EN GJS 400-15 or 500-7 EN1563 |
Zinc-plated |
2 |
Marking cover |
Polyamide P A 6 |
Red polyurethane paint |
3 |
Socket bodies |
Ductile iron EN GJS 400-15 or 500-7 EN1563 |
Epoxy powder primer + red polyurethane |
4 |
Symmetrical fitting Plug |
Aluminum type AS7G |
Red polyurethane |
5 |
Fixing screw CHC |
Steel type CL 8/8 |
Zinc-plated |
6 |
Adjustment module |
Cast iron GS |
Bituminous varnish |
7 |
Extension pipe |
Ductile cast iron EN GJS 400-15 or 500-7 EN1563 |
Blue epoxy powder, 250 micron thick |
8 |
Straight or angled valve box |
Ductile cast iron EN GJS 400-15 or 500-7 EN1563 |
Blue powder epoxy 250 microns thick |
9 |
Plug |
Ductile cast iron NF EN 1563 |
EPDM overmolding |
10 |
Operating tube |
Steel type Tu 56-8 NF EN 10240 |
Galvanized |
11 |
Operating nut |
Brass type Cu Zn 40 NF EN 12420 |
- |
12 |
Operating screw |
Steel type X 20 Cr 13 NF EN 10088-3 |
- |
13 |
Screwed bearing |
Brass type Cu Zn 39 Pb 2 NF EN 12420 |
- |
14 |
Lower shaft |
Cast iron GS |
Epoxy powder primer + red polyurethane |
Technical performance
- Resistant to over 1,000 opening/closing cycles.
- Operating pressure up to 25 bar.
- Reduced operating torque < 80 Nm for rapid intervention.
- Integrated automatic drain to prevent freezing.
- Head can be rotated 360° after installation, without additional earthwork.
DN80 fire hydrant applications
This DN80 fire hydrant is perfectly suited to municipal fire networks, industrial zones, sensitive sites and any installation requiring fast, reliable access to water for emergency services.
Distribution MMF Protection et Sécurité
MMF Protection et Sécurité distributes the complete range of Elancio fire hydrants, with spare parts available, installation advice and technical support to guarantee optimum safety.
Read moreShow less
