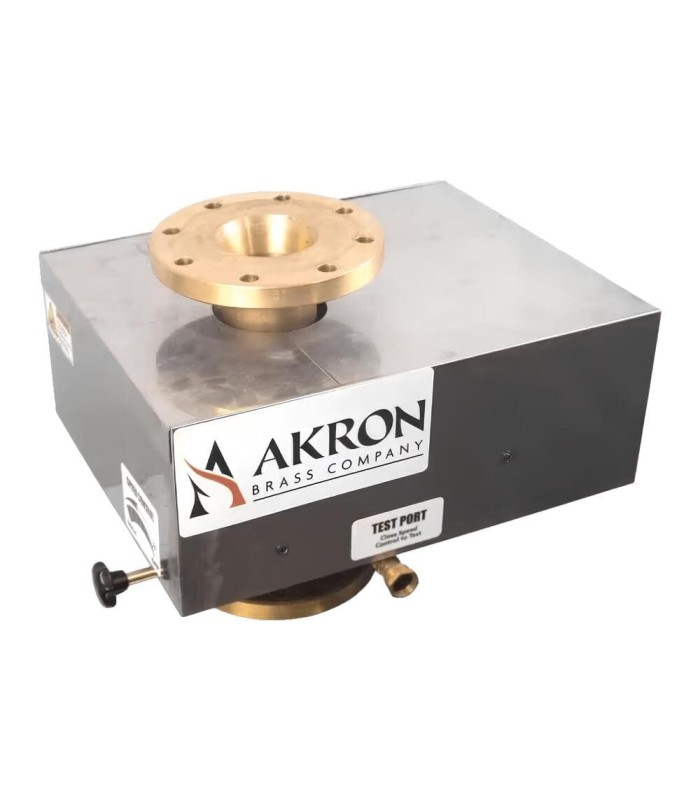

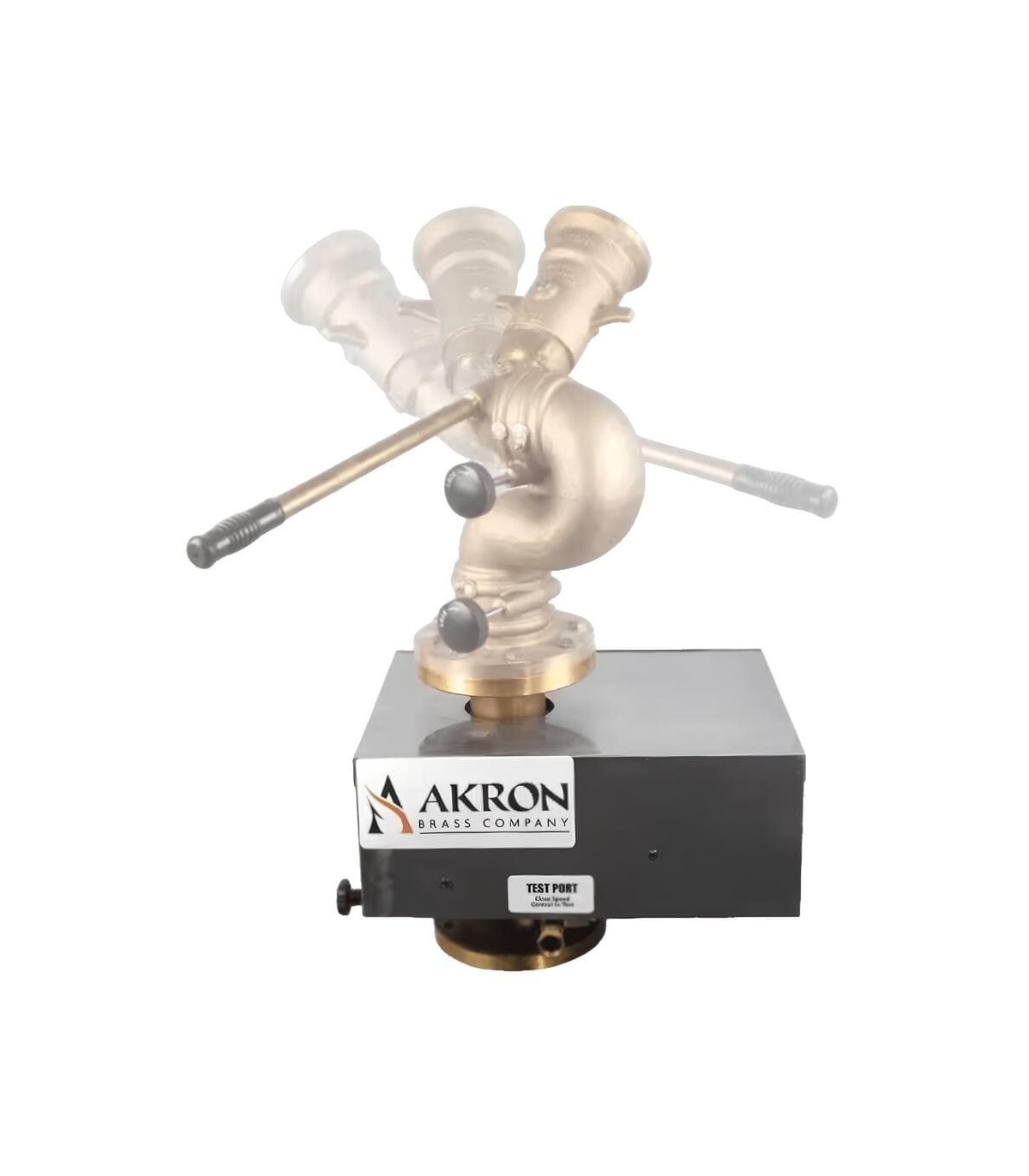

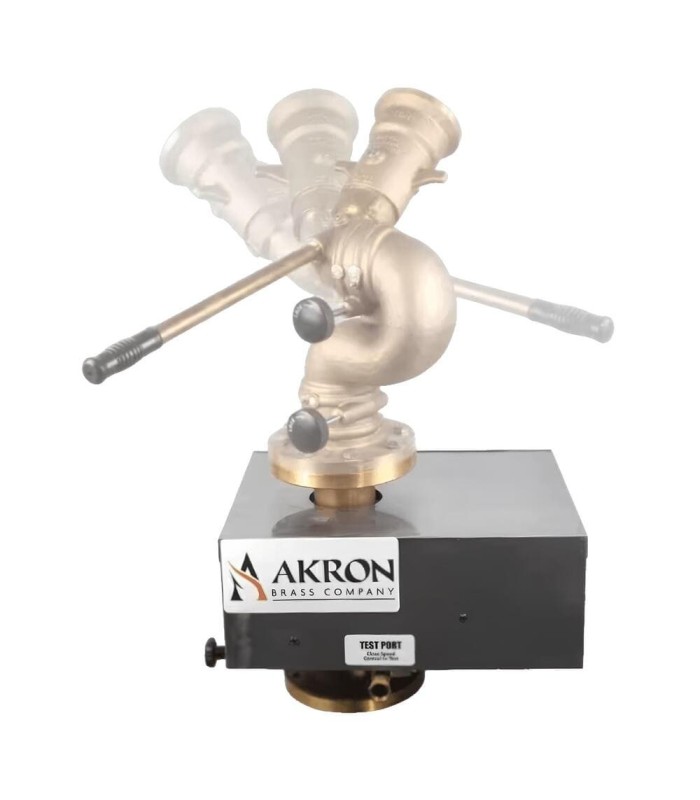

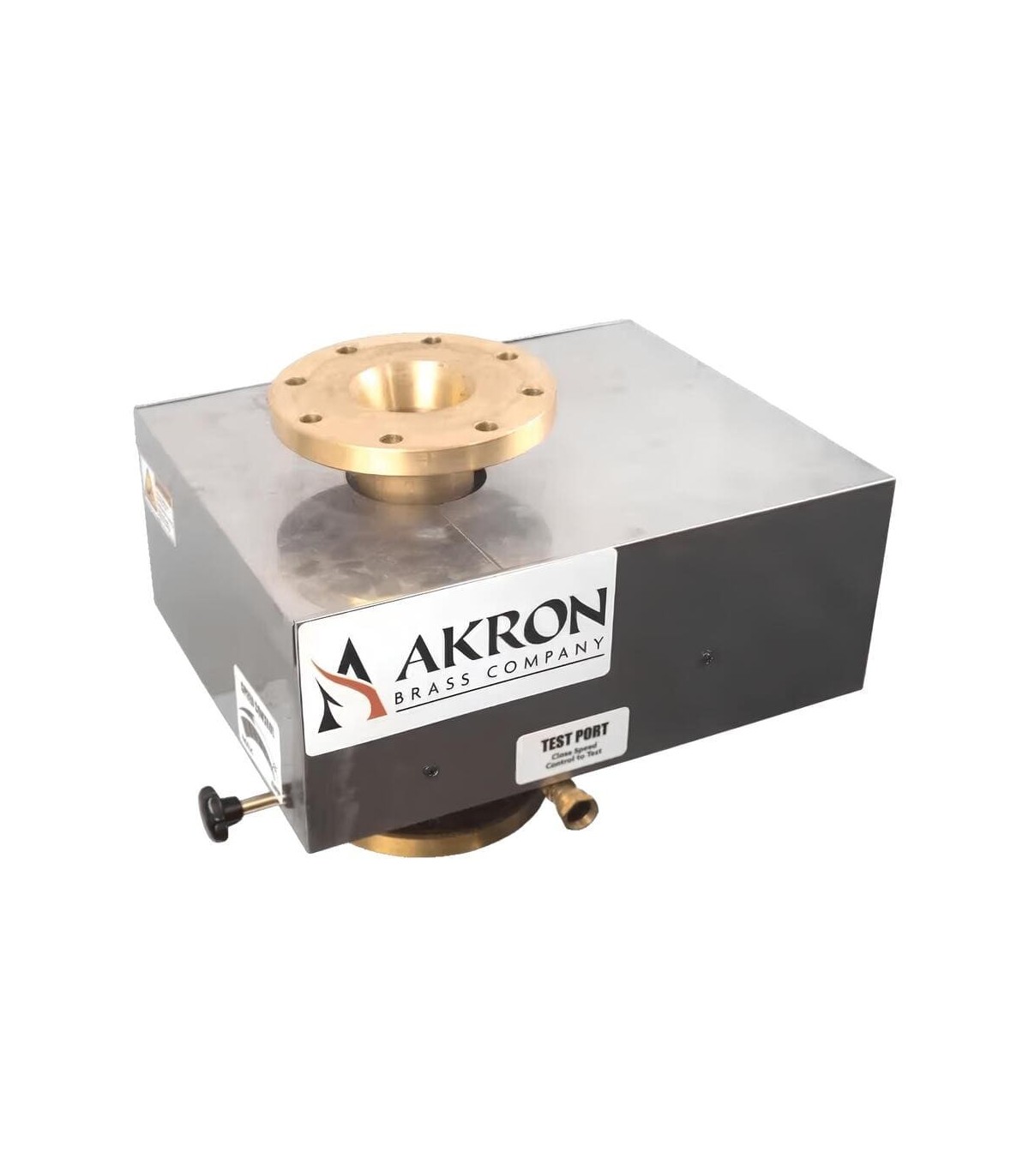

Oscillating flange 3531 for AKRON monitors

Storage stand for AKRON Mercury 3444
AKRON wireless interface 60370008
2-AKRON®

FM Approved

The oscillating clamp for monitor AKRON 35310001 is compatible with most of the brand's monitors manuals. Its unique maintenance-free polymer bearing design, high-quality materials and superior performance make it the ideal choice for a robust, long-term, low-maintenance solution.

Read moreShow less
Reference:
32964
Guide de tailles
Out of stock (lead time: please contact us)
Create a quote
€7,860.14 (tax excl.)
€7,860.14 (tax excl.)



Download PDF

Partager cette fiche produit :

Add to compare0
Description

Oscillating flange for monitor AKRON 35310001.

Model 3531 offers a flow rate of up to 5700 L/min with a maximum oscillation amplitude of 165°. It is compatible with the majority of AKRON BRASS brand monitors manuals.

Its unique maintenance-free polymer bearing design, high-quality materials and superior performance make it the ideal choice for a long-term, low-maintenance solution to protect your harsh, hazardous environments:

  • Maintenance-free polymer bearing (no ball bearings)
  • Fully water-powered (no electrical connections)
  • Robust, low-pressure-loss bronze water line
  • Hydraulically driven stainless steel impeller for long service life

All AKRON® spare parts and accessories are available from MMF Protection et Sécurité. You can rely on our authorized dealers and repair centers!

Need advice or have a specific request? Just call us!

- by telephone on 04 78 00 00 25

- by e-mail at sav@mMF.fr

Read moreShow less
Product Details
32964

Data sheet

Mounting flange
4" ASA 150
Material
Bronze
Max. flow
4750 L/min @ 17 bar
5700 L/min @ 12.5 bar
Power supply
Hydraulic (non-electric)
Operating pressure
3 - 17 bar
Weight
55 kg
Dimensions
W. 546.1 x D. 425.5 x H. 392.2 mm
Certification
FM Certification
Compatible model
Omega XP - 3528
Oscillation range
30° - 165°

Specific References

MPN
35310001
Attachments
FM-CERT-AKRON-3531
FM certificate: AKRON 3531 oscillating flange
Download (43.64KB)
ECL_TECH_3531_122121
Technical details - AKRON 3531 oscillating flange
Download (1.21MB)
mode-emploi-3531_122122
Operating instructions - AKRON 3531 oscillating clamp
Download (2.71MB)
